Manufacturer no: 10060827

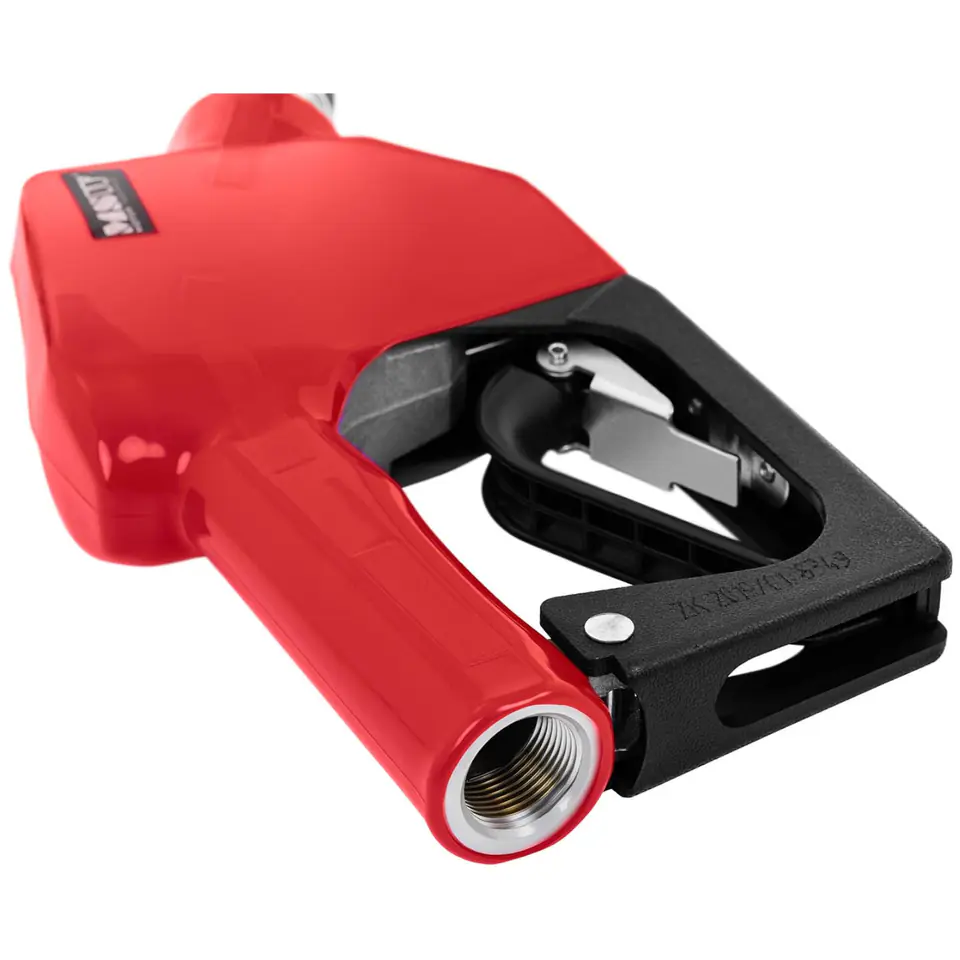

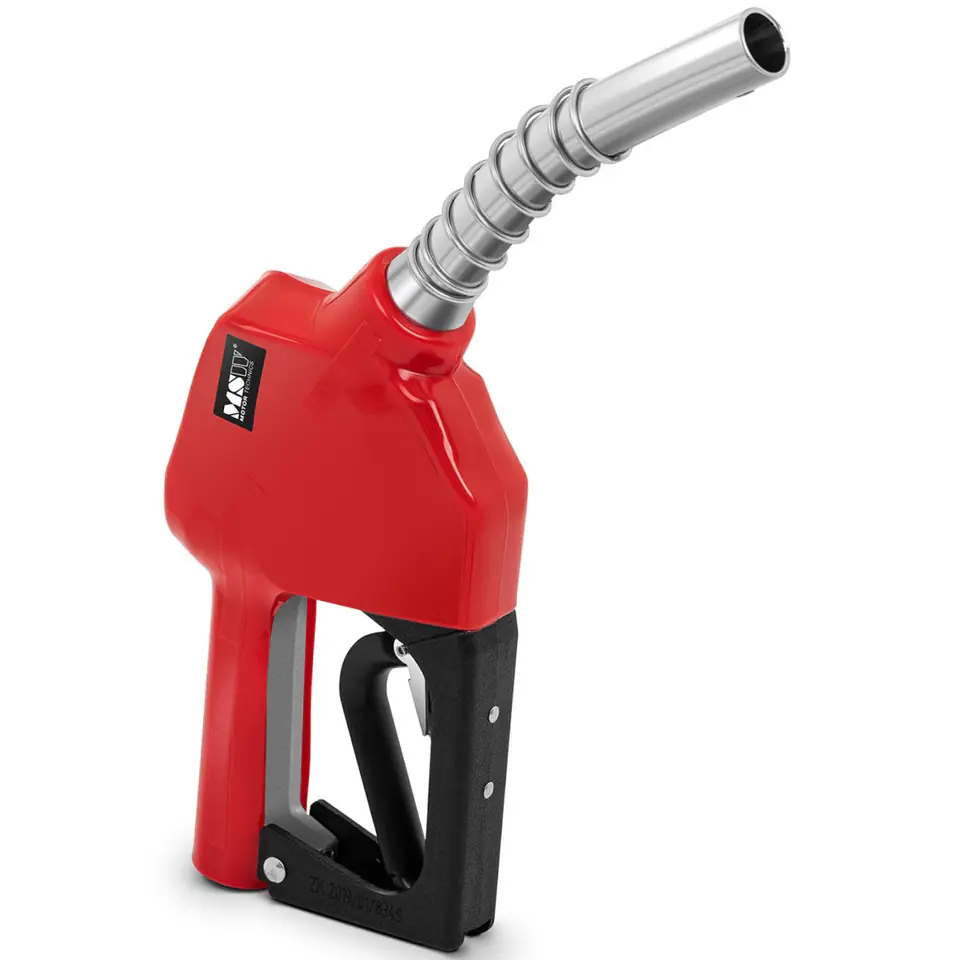

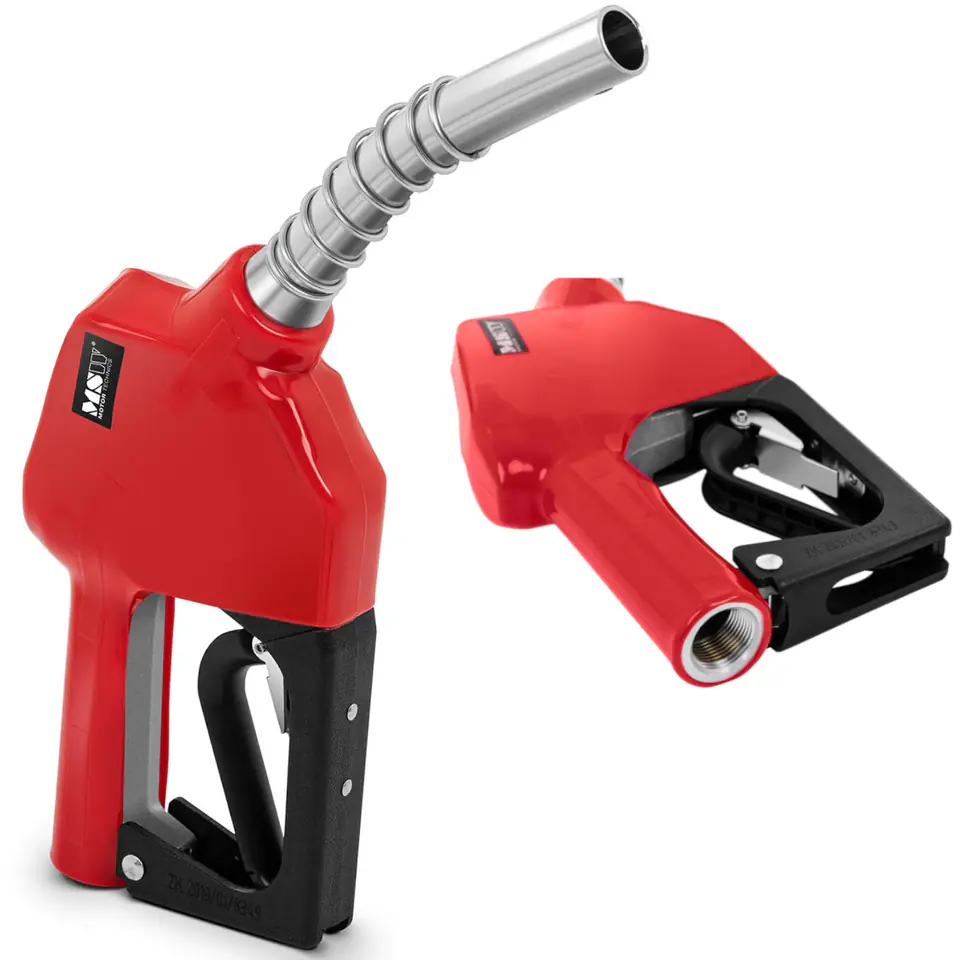

The fuel gun of the German brand MSW is perfect for pouring most popular fuels, gasoline, diesel or kerosene. It will be used at gas stations, transport companies or car services.
The maximum flow is 60l/min. The rugged design has been tested to have shown a service life of more than 1 million cycles. The opening of the nozzle occurs only under the influence of pressure, when it runs out, the nozzle closes. The filler is equipped with the FlowLock system, which prevents liquid spillage if the gun falls out of the fuel filler. The tip is bent upwards to prevent dripping. Protection against accidental scratches is provided by a Duratuff cover. Low weight and comfortable handle ensure comfort of use.
Product features:
- - Efficiency - flow rate up to 60 l/min fast and convenient fuel pouring,
- - Versatility - one gun for all the most popular types of fuel,
- - Safety - automatic closing of the nozzle in the absence of pressure,
- - Modern - FlowLock technology prevents liquid spillage when the gun falls out of the fuel filler,
- - Comfort - lightweight construction and handy handle,
- - Vehicle protection - the lever cover made of Duratuff material prevents scratches on the refueled vehicles.
- - Model - MSW-MN34
- - Catalogue number - 10060827
- - Article status - New
- - Inlet diameter - 15/16"
- - Thread - NPT/BSPT
- - Outlet diameter - 3/4"
- - Material - Plastic (housing), Aluminum (tip)
- - Working pressure - 0,2 MPa
- - Flow - 18-60 l/min
- - Gasket - Buna-N, Viton
- - Sensitivity of the automatic fuel disconnection system - 0.1 s
- - Lever and lever guard - Duratuff
- - Main stem seals - Oil seal in Viton housing, graphite with Teflon
- - User manual - Yes
- - Dimensions (LxWxH) - 39,5 x 5,5 x 17 cm
- - Weight - 1,1 kg
- - Shipping dimensions (LxWxH) - 39,5 x 17,5 x 6 cm
- - Shipping weight - 1,2 kg
- - Fuel gun
- - Manual EN
