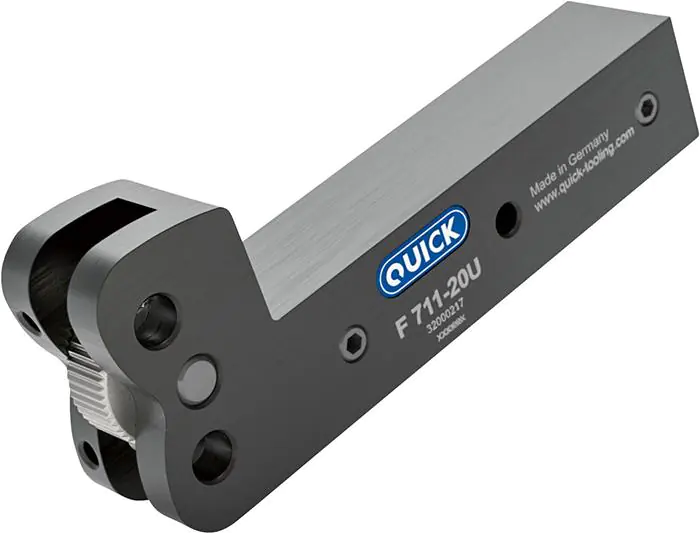

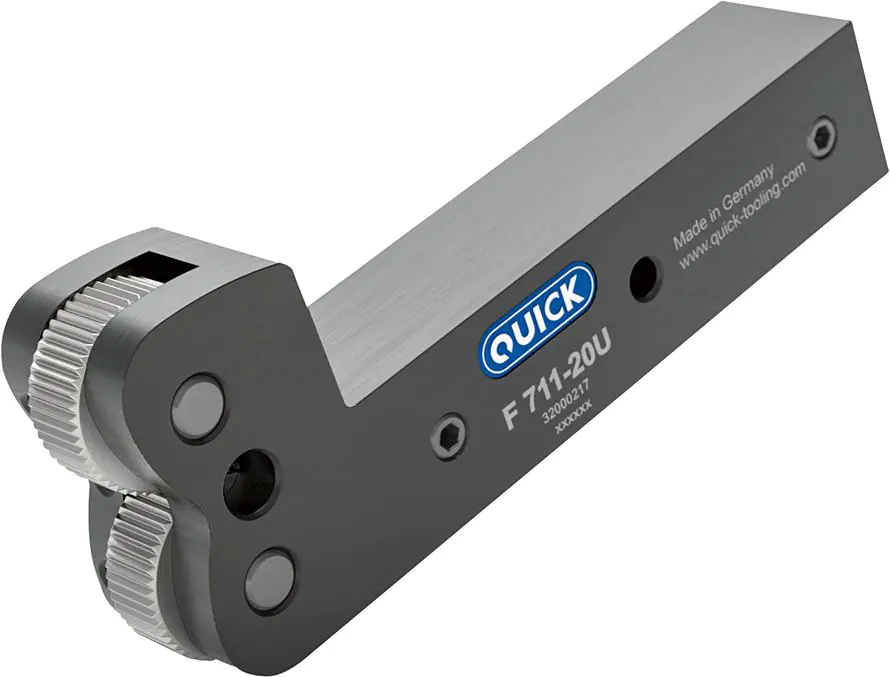

Forming knurling tool QUICK F711-20U 20x20 for roll 20x8x6

€411.33
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
QUICK
Product code:
32000217 / 4030741733314

Specification

Cylindrical:20 x 20 mm
Grip length:80 mm
Knurling rollers used:20 x 8 x 6 mm
Model:F711-20U
Working area diameter:7–120 mm

Forming Knurling Tool F711 (without knurling roller)

Material: handle made of heat-treated steel. One plus two roller system for maximum stability . Constant specified height of canines. Making the tool from one element ensures high stability. Smaller overhang length due to lack of connector. Delivery without knurling roller.
Application: for forming knurling. For making all shapes and forms. Possibility to adjust the parallelism of the axes. No need to change to another tool.
Knurling rollers:
RBR 30°
RBL 30°
RBR 45°
RBL 45°
RGE 30°
RGE 45°
RAA
Machine tool type: automatic longitudinal lathes and small lathes – CNC and conventional.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
