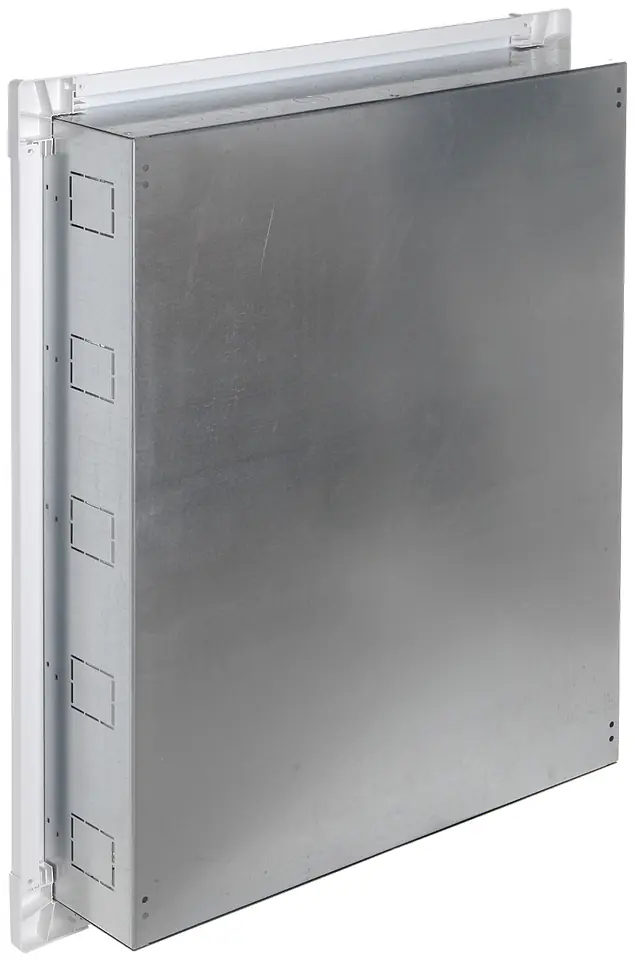

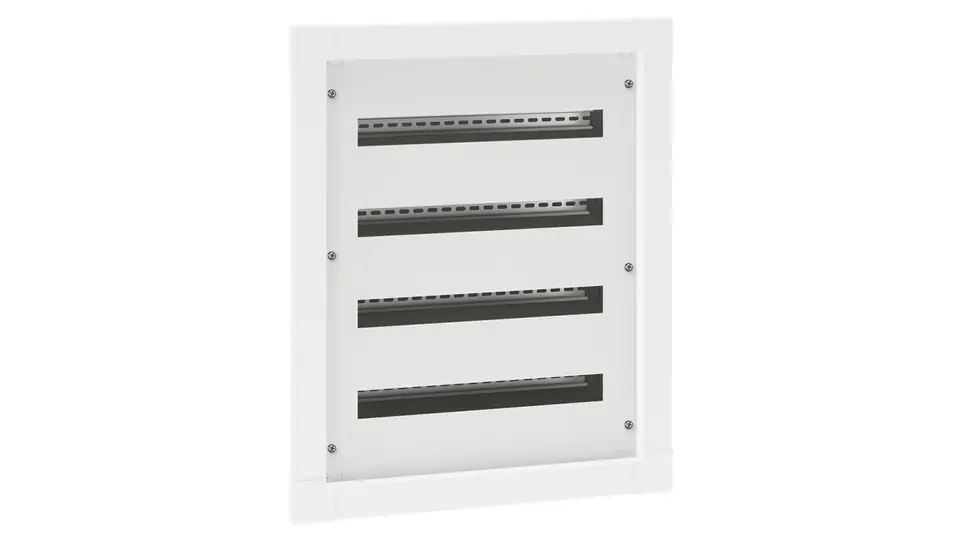

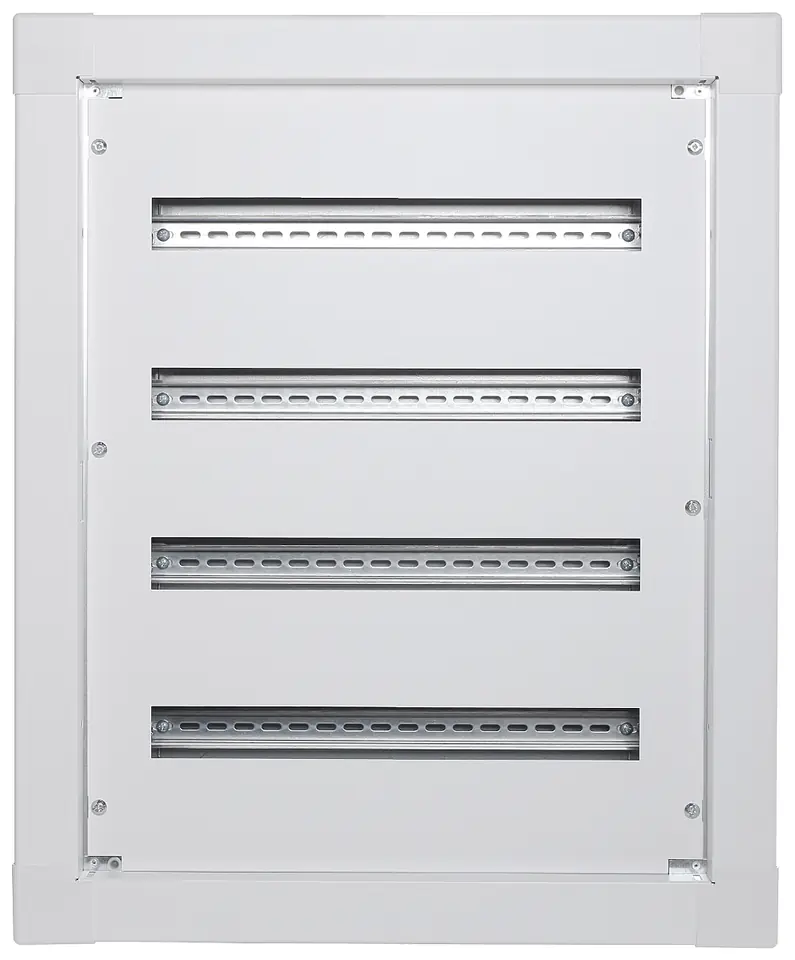

4-row 96-module flush-mounted electrical switchgear
NOTE: Doors and cord rails must be ordered separately
FLUSH-MOUNTED SWITCHGEAR LE-337224 XL<sup>3</sup> S 160 LEGRAND
€384.58
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Legrand
- Product code:
- 337224 / 3414970897206
Share this product:
Specification
| Colour: | white |
|---|---|
| Colour:: | white |
| Compliance with standards: | IEC/EN 61439-1, IEC/EN 61439-3, IEC 60695-2-1 |
| Compliance with standards:: | IEC/EN 61439-1, IEC/EN 61439-3, IEC 60695-2-1 |

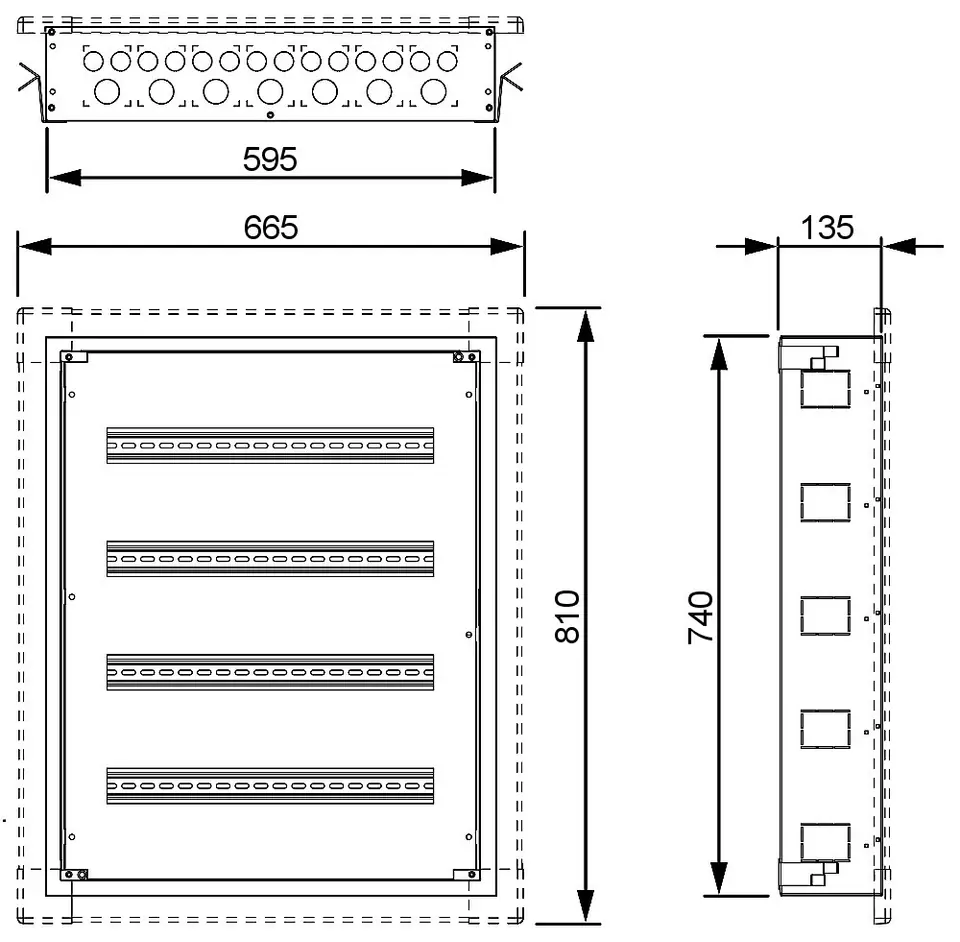

| Dimensions: | 665 x 810 x 135 mm, 595 x 740 x 135 mm - flush-mounted box |
| Dimensions:: | 665 x 810 x 135 mm, 595 x 740 x 135 mm - flush-mounted box |

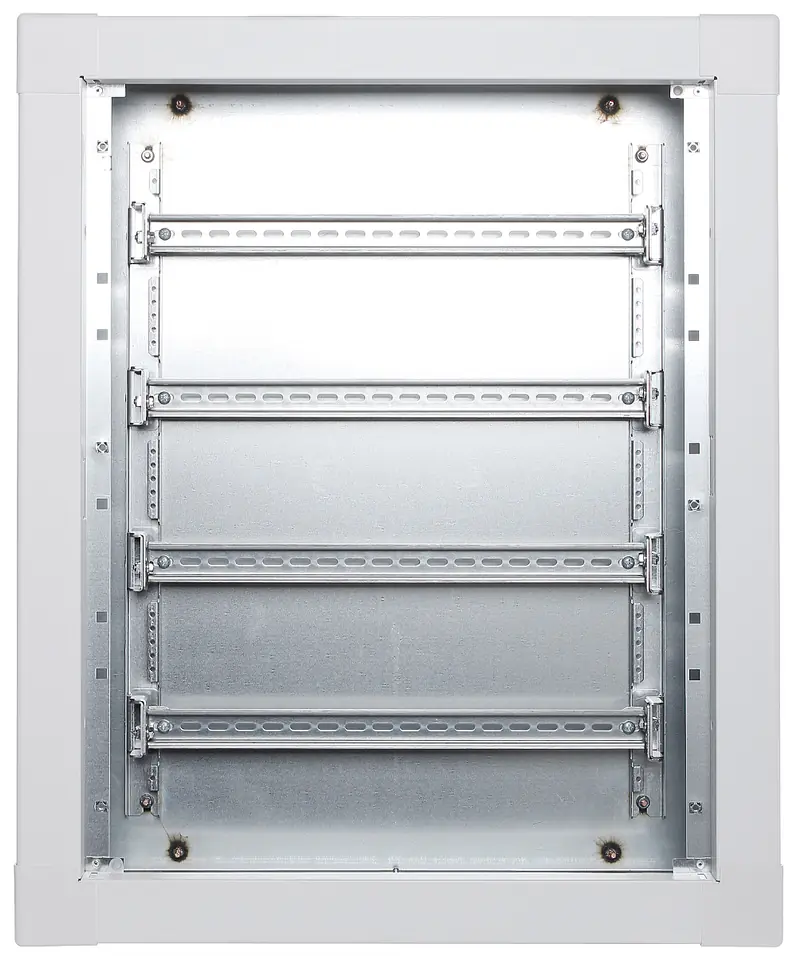

| Distance between th 35 brackets: | 150 mm |
| Distance between th 35 brackets:: | 150 mm |

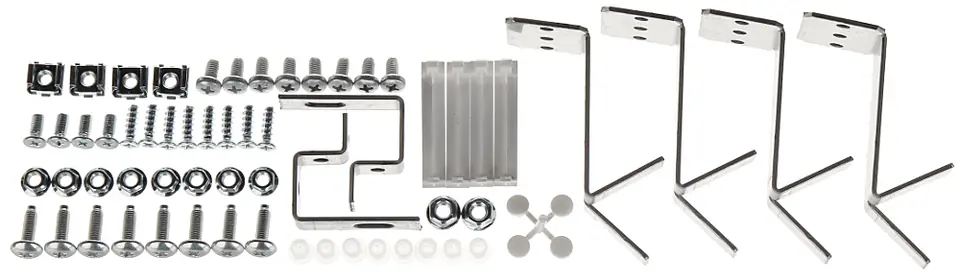

| Equipment: | Guards : 1 x 4R |
| Equipment:: | Guards : 1 x 4R |
| Manufacturer / brand:: | LEGRAND |
| Material of manufacture: | Steel |
| Material:: | Steel |
| Mechanical resistance class: | IK04 (without doors) IK07 (with doors) |
| Mechanical resistance class:: | IK04 (without doors) IK07 (with doors) |
| Method of attachment: | Concealed |
| Mounting method:: | Concealed |
| Number of modules to be assembled: | 24 x 4 rows |
| Number of modules to be installed:: | 24 x 4 rows |
| Operating temperature: | -5 °C ... 40 °C |
| Operating temperature:: | -5 °C ... 40 °C |
| Producer / brand: | LEGRAND |
| Scales: | 16.39 kg |
| Scales:: | 16.39 kg |
| Sealing: | IP30 (without doors) IP40 (with doors) |
| Sealing:: | IP30 (without doors) IP40 (with doors) |
| Selected features: | Easy adjustment of the depth of the brackets TH 35 Large capacity Monoblock enclosures Flexibility in the selection of connection strips Possibility of connecting enclosures vertically Max. Current : 160 A Switchable short-circuit current : 17 kA Full height front guards included |
| Selected features:: | Easy adjustment of the depth of the brackets TH 35 Large capacity Monoblock enclosures Flexibility in the selection of connection strips Possibility of connecting enclosures vertically Max. Current : 160 A Switchable short-circuit current : 17 kA Full height front guards included |
| Transparent door:: | (not included) |
| Transparent doors: | (not included) |
| Warranty: | 2 years |
| Warranty:: | 2 years |
