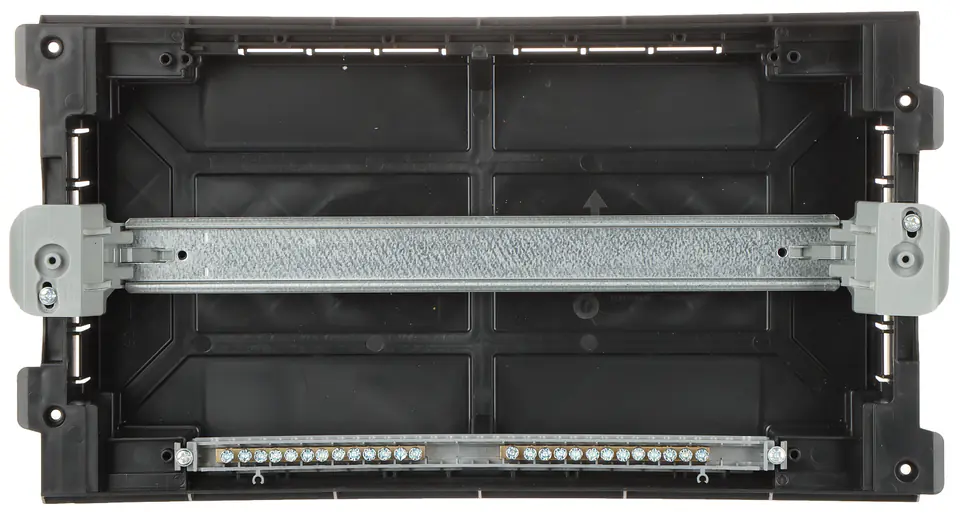

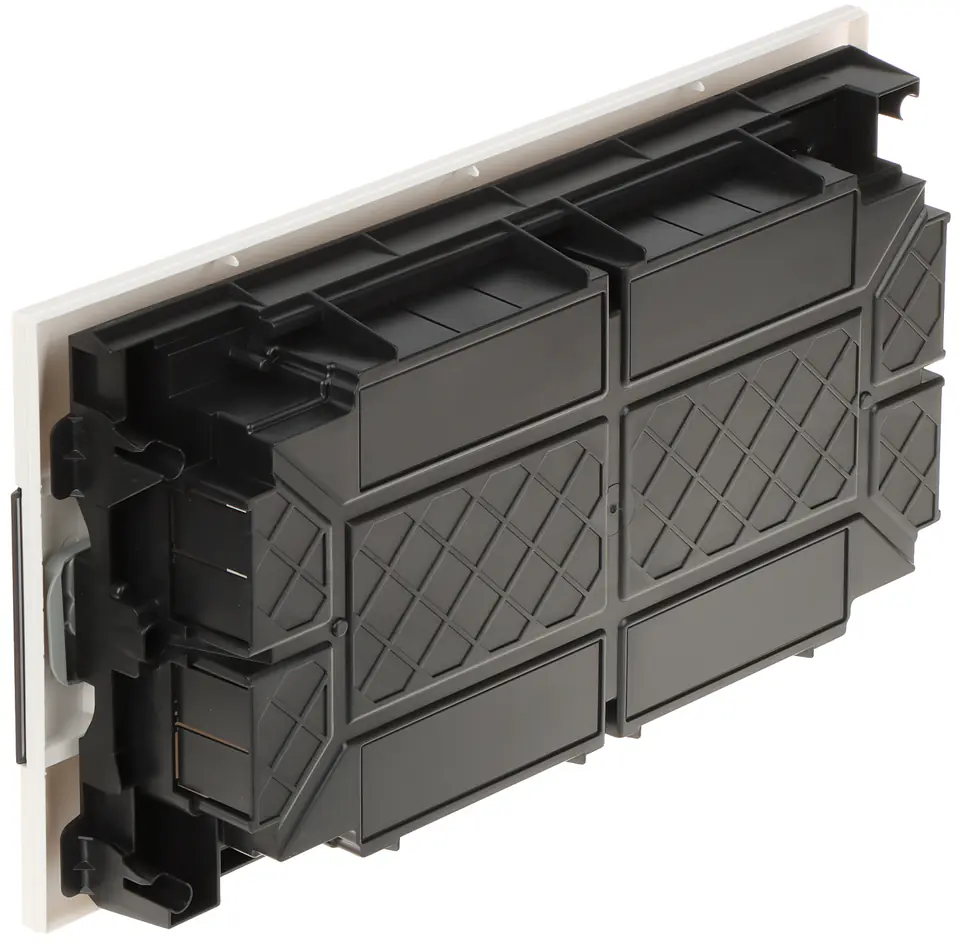

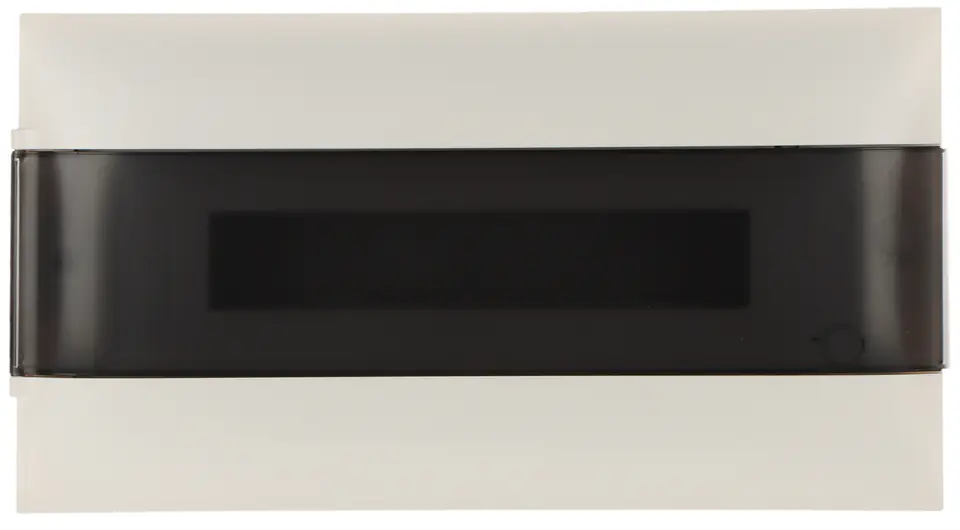

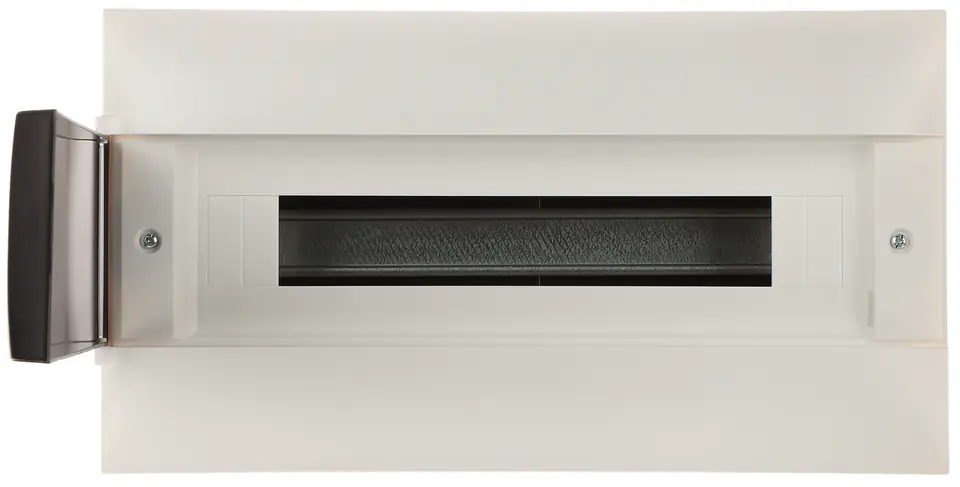

1-row flush-mounted electric switchgear 18-module
FLUSH-MOUNTED SWITCHGEAR LE-137376 Practibox S LEGRAND 18-MODULE
€24.91
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- Legrand
- Product code:
- LE-137376 / 3414971199095
Share this product:
Specification
| Colour: | white |
|---|---|
| Compliance with standards: | IEC/EN 60670-24, IEC/EN 61439-3 |
| Dimensions: | 436 x 235 x 104 mm, 415 x 220 x 72 mm - flush-mounted box |

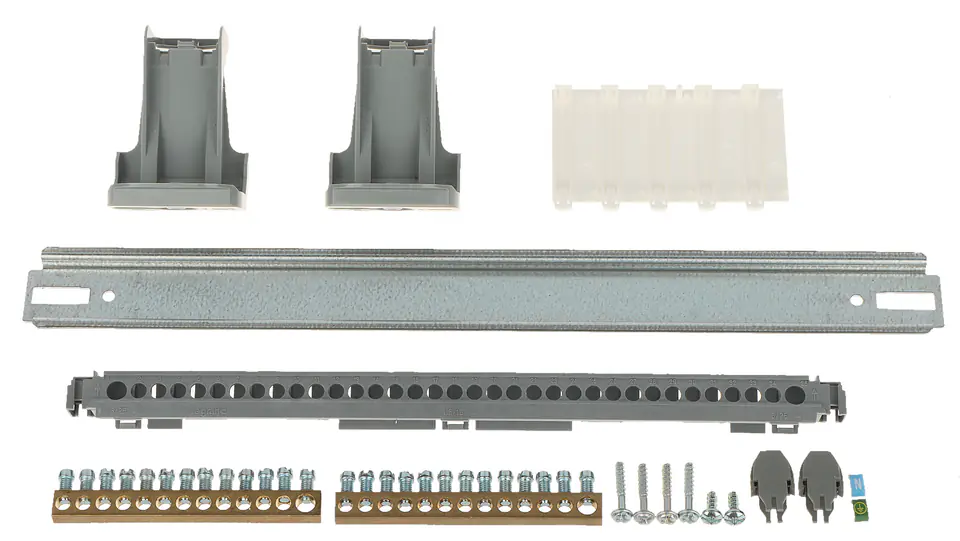

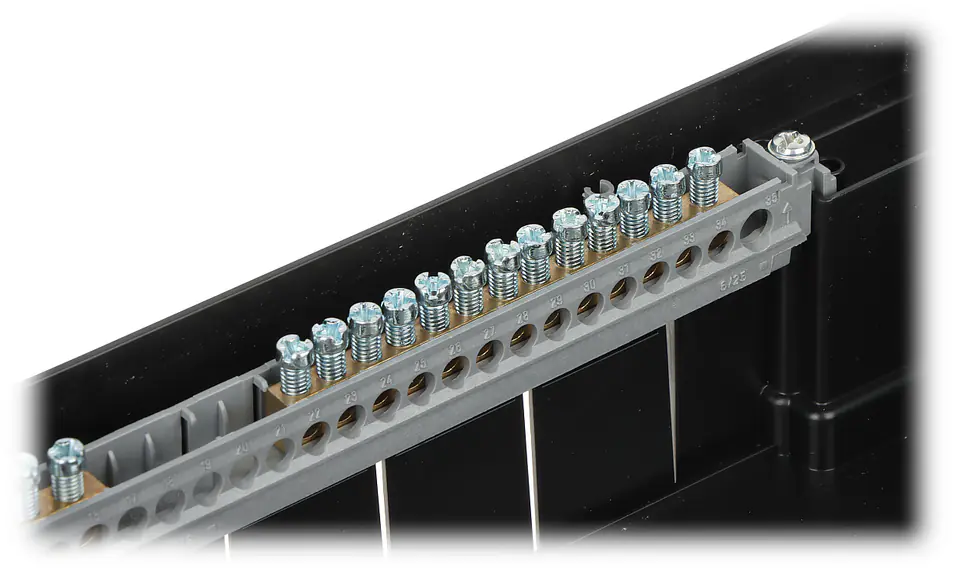

| Equipment: | Connection strips : 1 pc N : 1 x 25 mm² + 12 x 16 mm² 1 pc PE 1 x 25 mm² + 12 x 16 mm² |
| Material of manufacture: | Self-extinguishing plastic |
| Mechanical resistance class: | IK07 |
| Method of attachment: | Concealed |
| Number of modules to be assembled: | 18 x 1 row, 17.5 mm |
| Operating temperature: | -10 °C ... 60 °C |
| Producer / brand: | LEGRAND |
| Scales: | 1.05 kg |
| Sealing: | IP40 |
| Selected features: | Removable bracket TH 35 Reversible door Removable front guards for each row of switchgear Rated voltage : 400 V AC, 50 / 60 Hz Max. Current : 63 A Switchable short-circuit current : 10 kA Connection strips included |
| Warranty: | 2 years |
