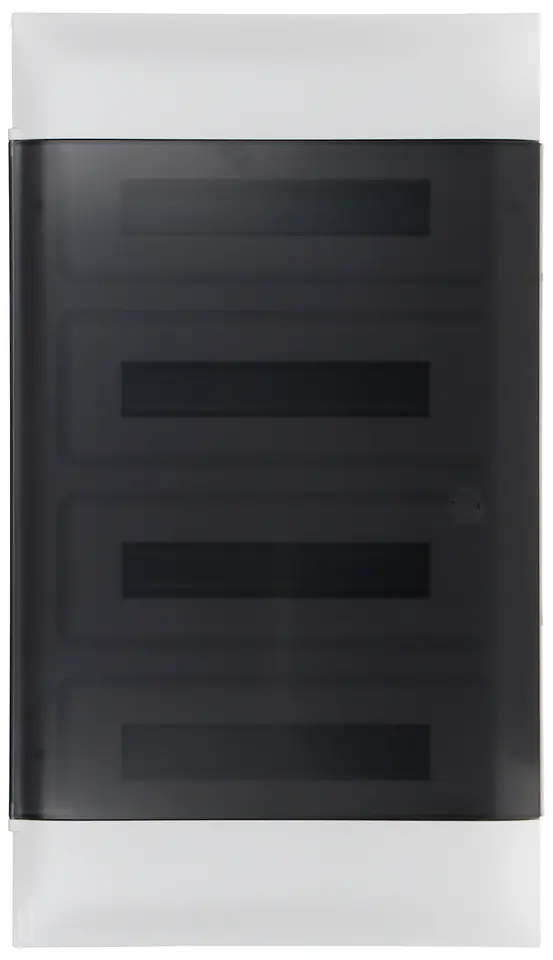

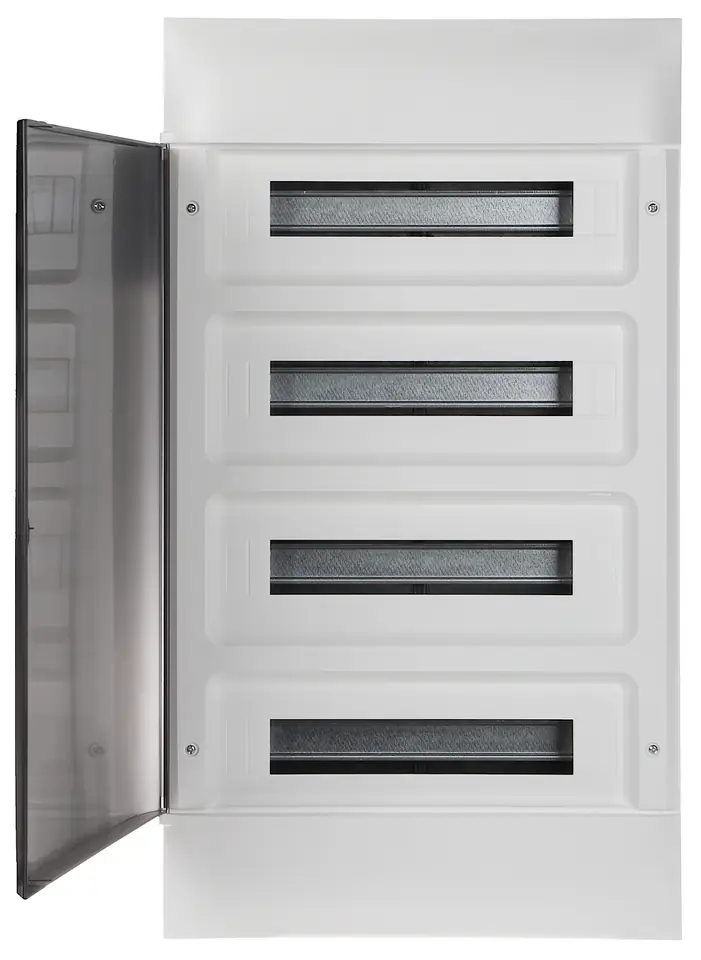

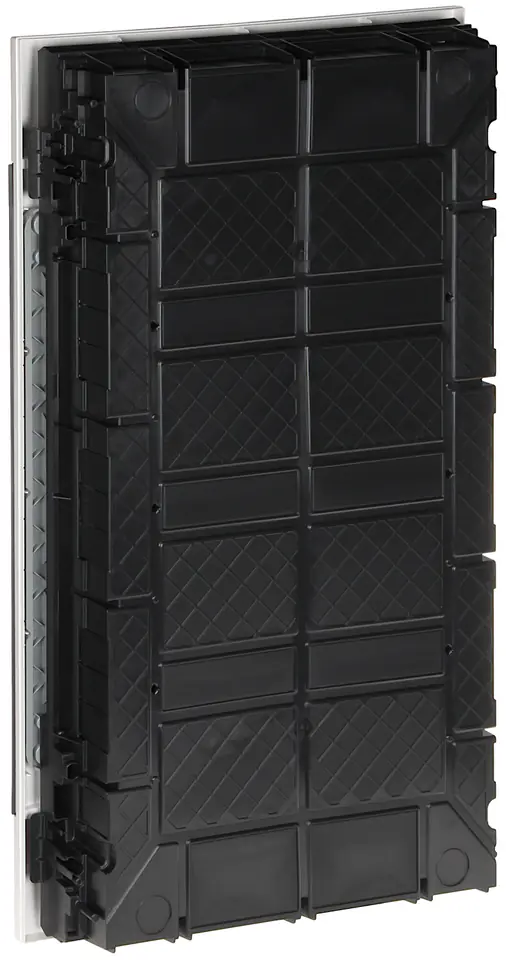

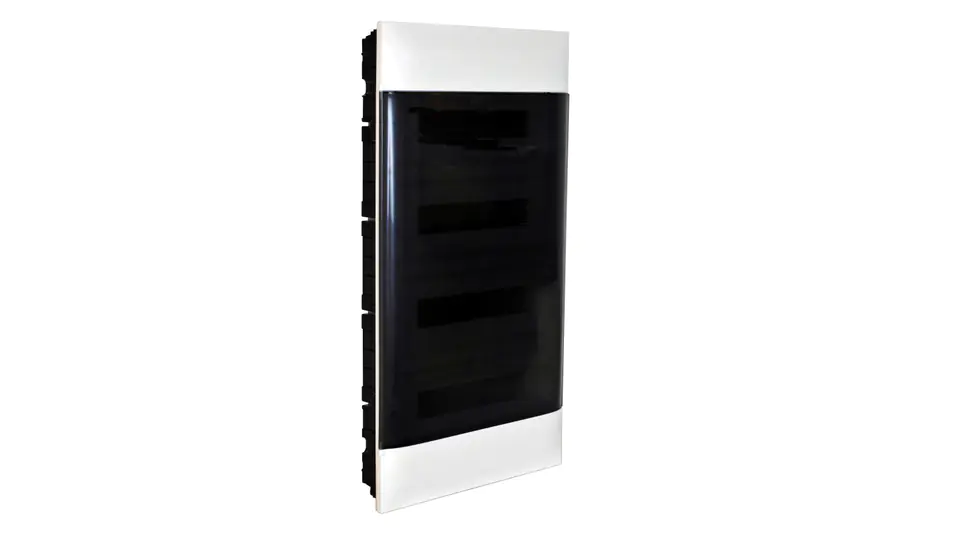

Flush-mounted electrical switchgear 4-row 72-module
FLUSH-MOUNTED SWITCHGEAR 72-MODULE LE-137379 Practibox S LEGRAND
€107.26
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- Legrand
- Product code:
- 137379 / 3414971199125
Share this product:
Specification
| Colour:: | white |
|---|---|
| Compliance with standards:: | IEC/EN 60670-24, IEC/EN 61439-3 |
| Dimensions:: | 430 x 765 x 105 mm, 420 x 750 x 85 mm - flush-mounted box |

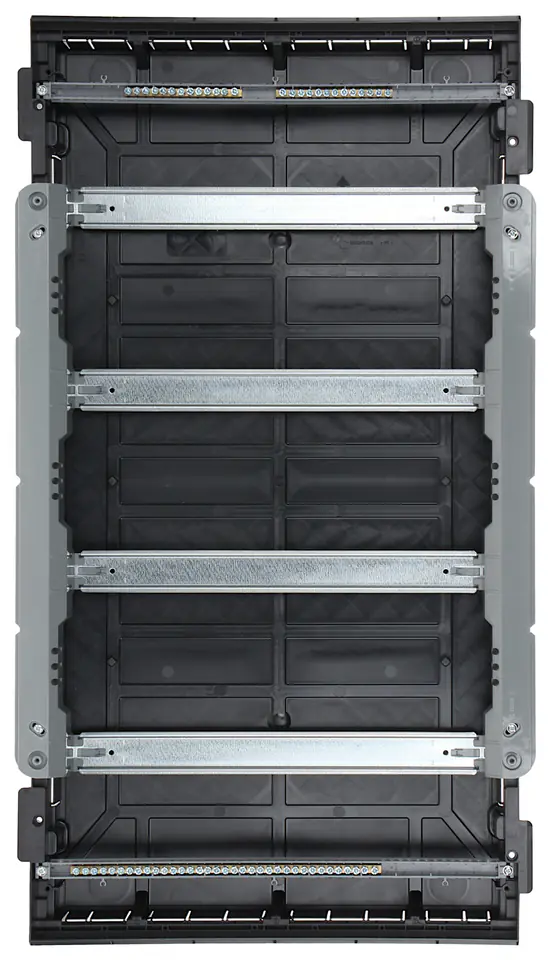

| Distance between th 35 brackets:: | 150 mm |

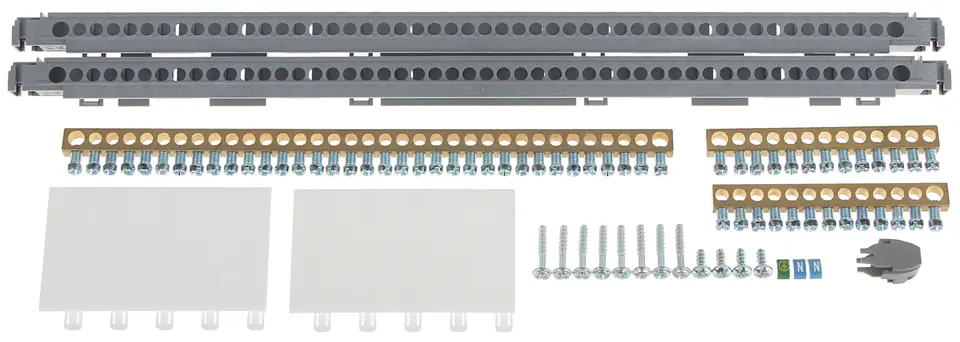

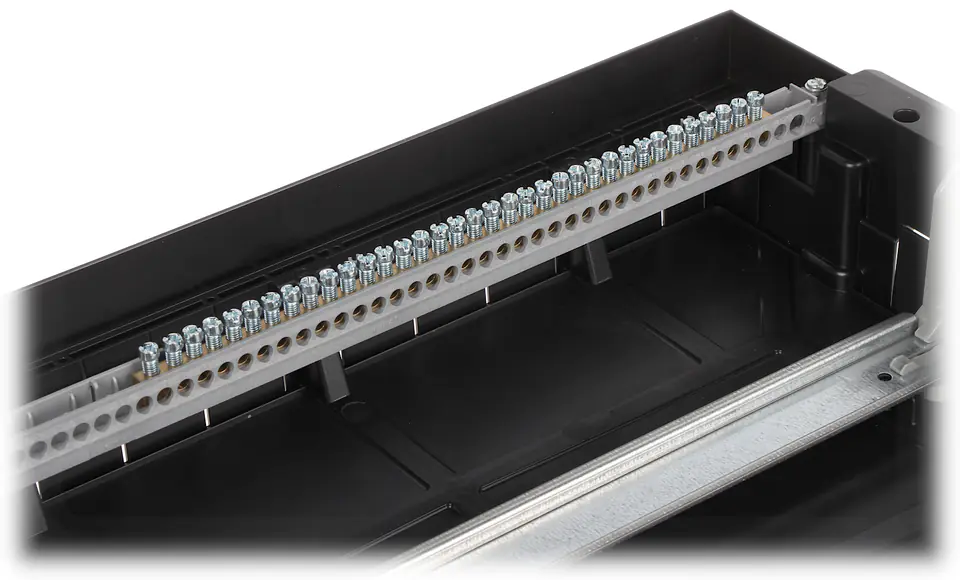

| Equipment:: | Connection strips : 2 pcs. : 1 x 25 mm² + 12 x 16 mm² 1 pc 1 x 25 mm² + 34 x 16 mm² |
| Manufacturer / brand:: | LEGRAND |
| Material:: | Self-extinguishing material |
| Mechanical resistance class:: | IK07 |
| Method of fastening:: | Concealed |
| Number of modules installed:: | 18 x 4 rows, 17.5 mm |
| Operating temperature:: | -10 °C ... 60 °C |
| Scales:: | 3.56 kg |
| Sealing:: | IP40 |
| Selected features:: | Removable Bracket TH 35 Reversible Door Removable Front Guards For Each Row Switchboard Rated Voltage: 400V AC, 50/60Hz Max. current : 125 A Short-circuit operating current : 10 kA Connection strips included |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
