Flush-mounted electrical switchgear 2-row 36-module
FLUSH-MOUNTED SWITCHGEAR 36-MODULE LE-137377 Practibox S LEGRAND
€50.59
Shipping from warehouse: T2
Estimated shipping: Mon, Oct 21 - Wed, Oct 23
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Legrand
- Product code:
- 137377 / 3414971199101
Share this product:
Specification
| Colour:: | white |
|---|---|
| Compliance with standards:: | IEC/EN 60670-24, IEC/EN 61439-3 |
| Dimensions:: | 436 x 385 x 105 mm, 420 x 370 x 85 mm - flush-mounted box |
| Distance between th 35 brackets:: | 150 mm |

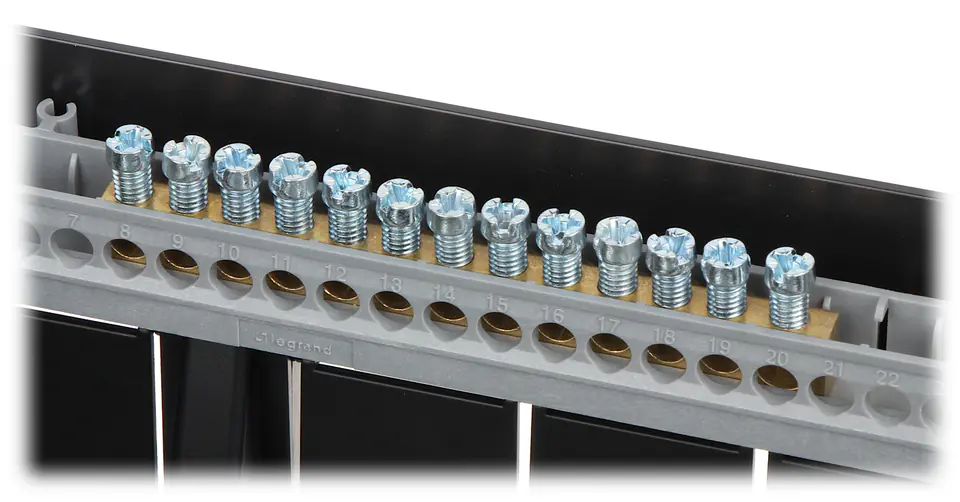

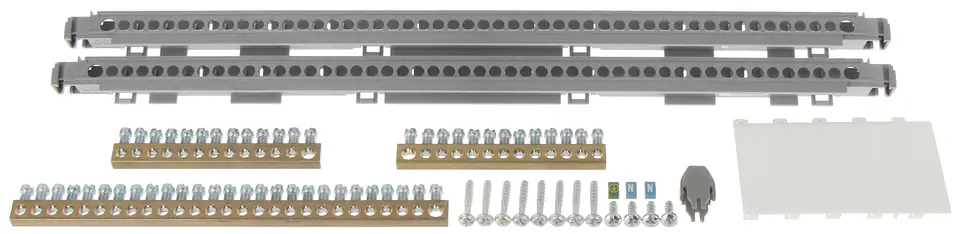

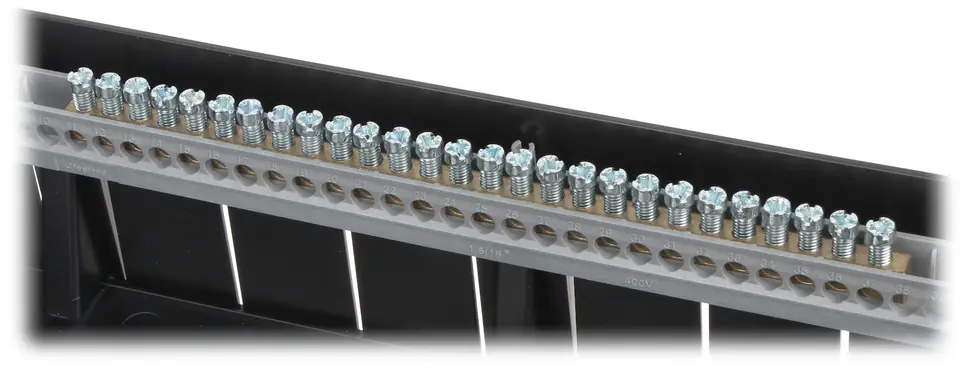

| Equipment:: | Connection strips : 2 pcs. : 1 x 25 mm² + 12 x 16 mm² 1 pc 1 x 25 mm² + 26 x 16 mm² |
| Manufacturer / brand:: | LEGRAND |
| Material:: | Self-extinguishing material |
| Mechanical resistance class:: | IK07 |
| Method of fastening:: | Concealed |
| Number of modules installed:: | 18 x 2 rows, 17.5 mm |
| Operating temperature:: | -10 °C ... 60 °C |
| Scales:: | 1.88 kg |
| Sealing:: | IP40 |
| Selected features:: | Removable Bracket TH 35 Reversible Door Removable Front Guards For Each Row Switchboard Rated Voltage: 400V AC, 50/60Hz Max. current : 125 A Short-circuit operating current : 10 kA Connection strips included |
| Warranty:: | 2 years |
