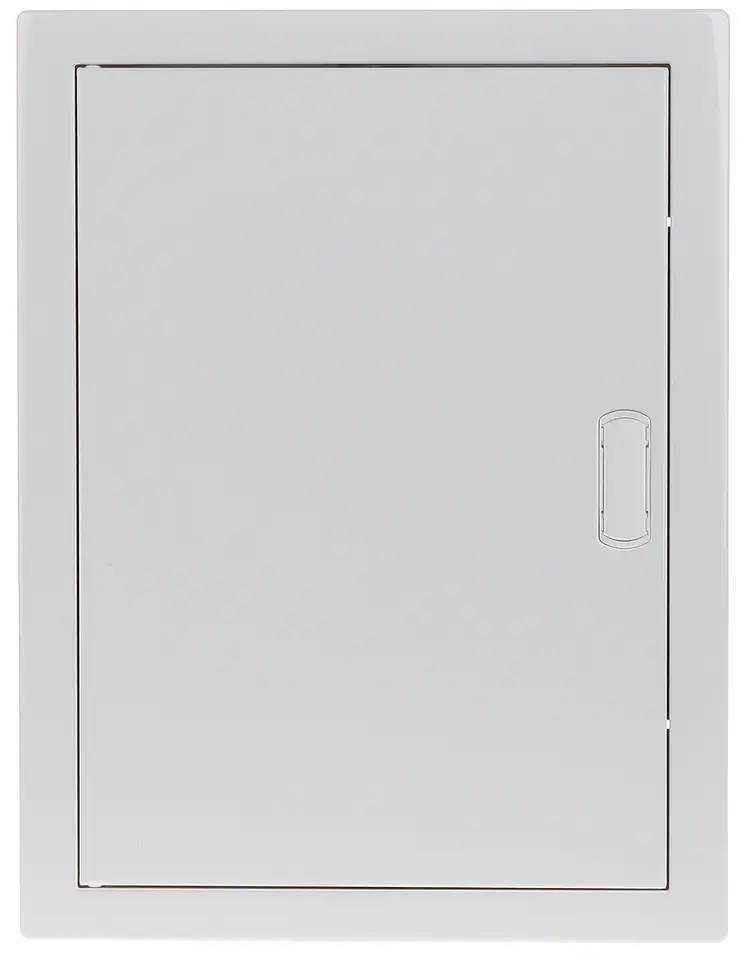

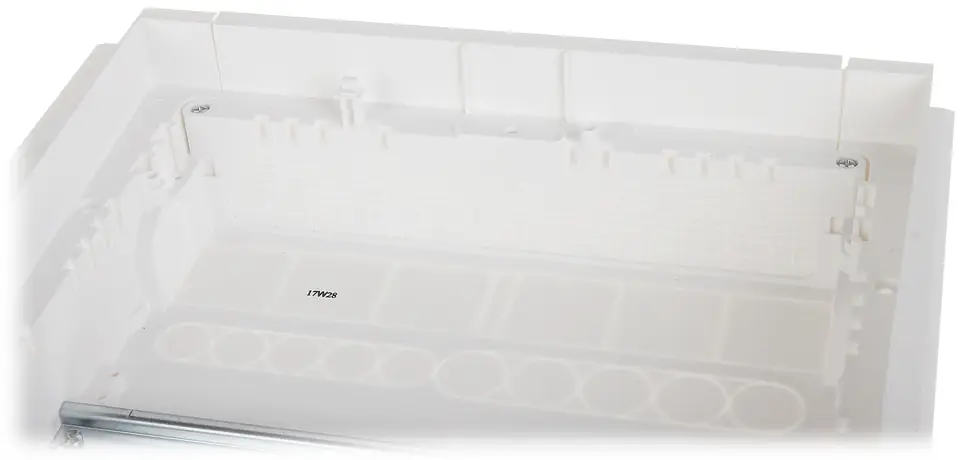

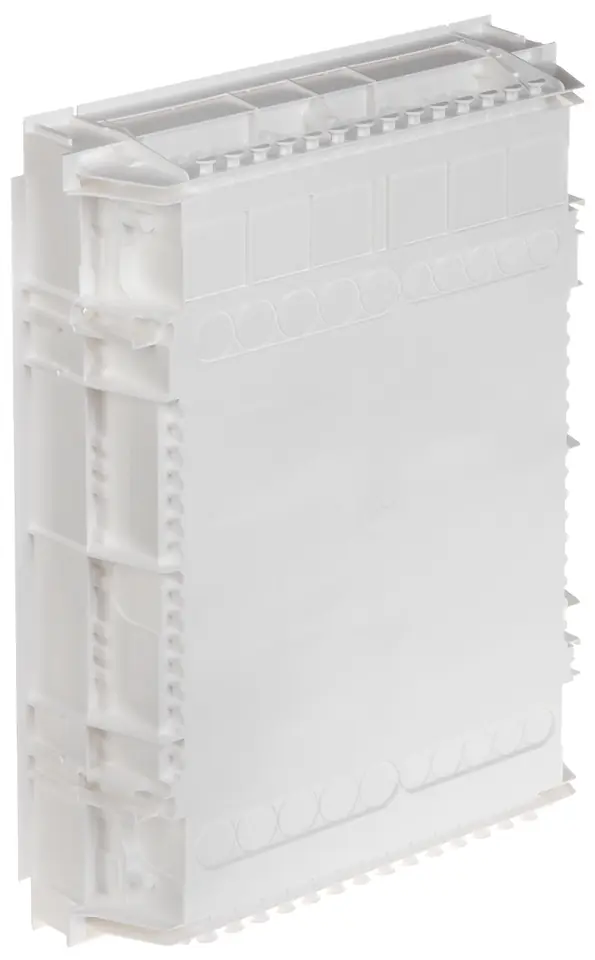

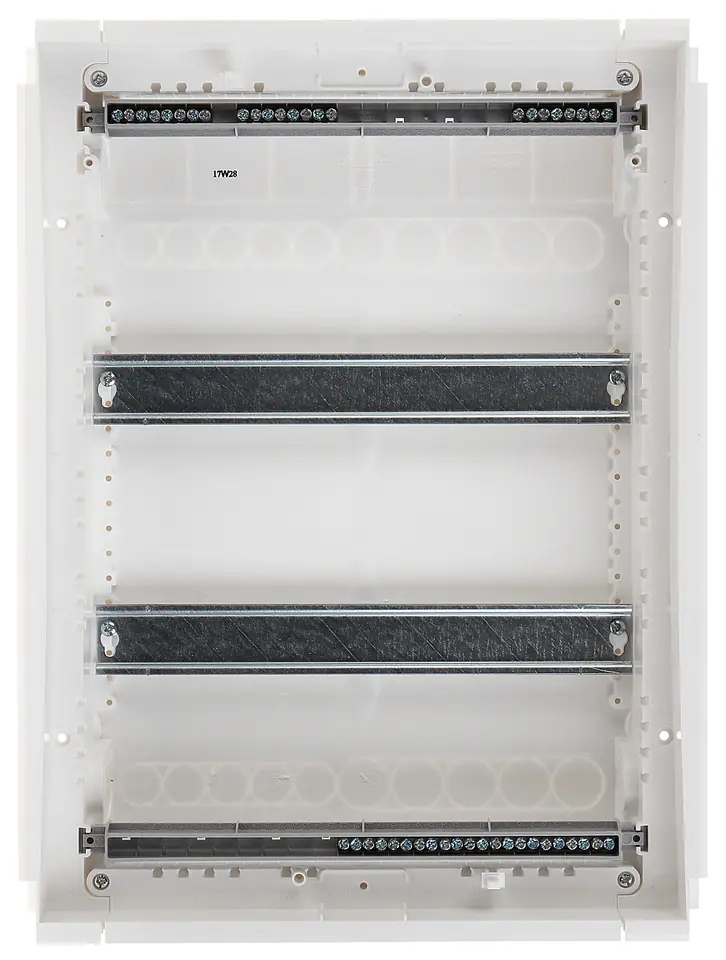

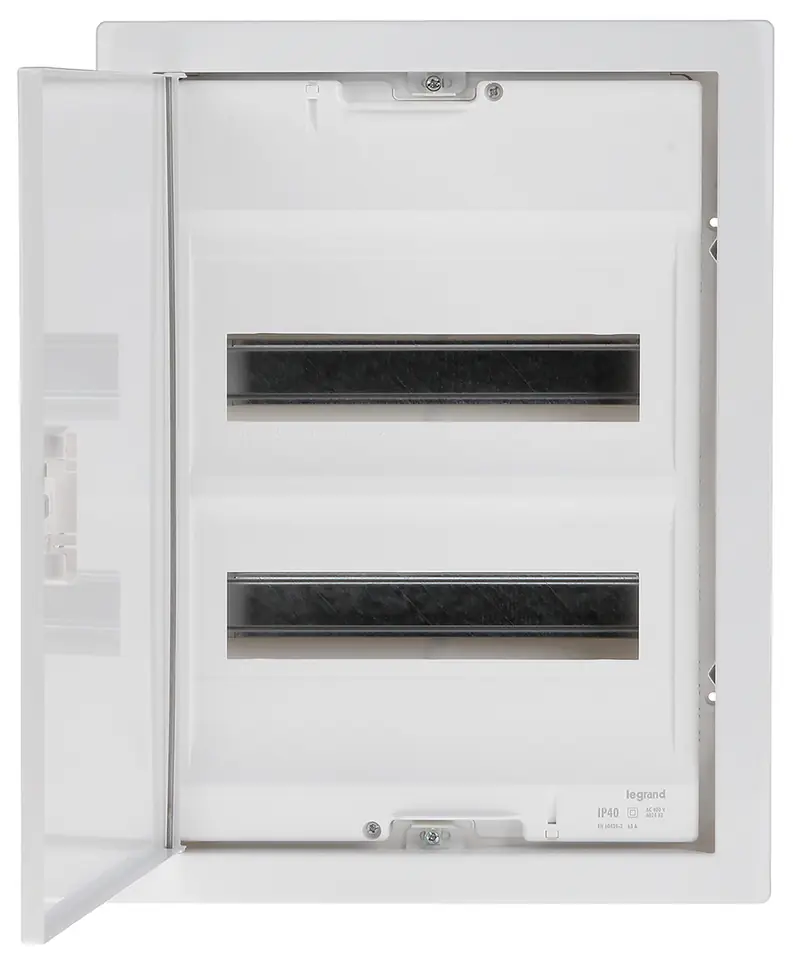

Flush-mounted electric switchgear 2-row 24-module
FLUSH-MOUNTED SWITCHGEAR 24-MODULE LE-602432 RWN LEGRAND
This product is not available
- Availability:
- expected delivery
- Brand:
- Legrand
- Product code:
- LE-602432 / 5902887027437
Share this product:
Specification
| Colour:: | white |
|---|---|
| Compliance with standards:: | EN 60439-3, IEC/EN 61439-3 |
| Dimensions:: | 350 x 460 x 93 mm, 330 x 430 x 87 mm - flush-mounted box |
| Distance between th 35 brackets:: | 125 mm |

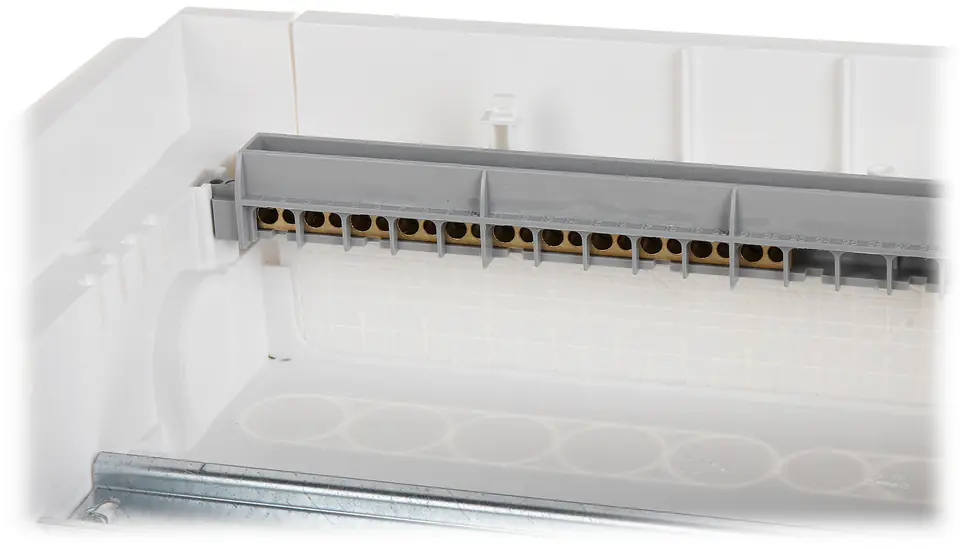

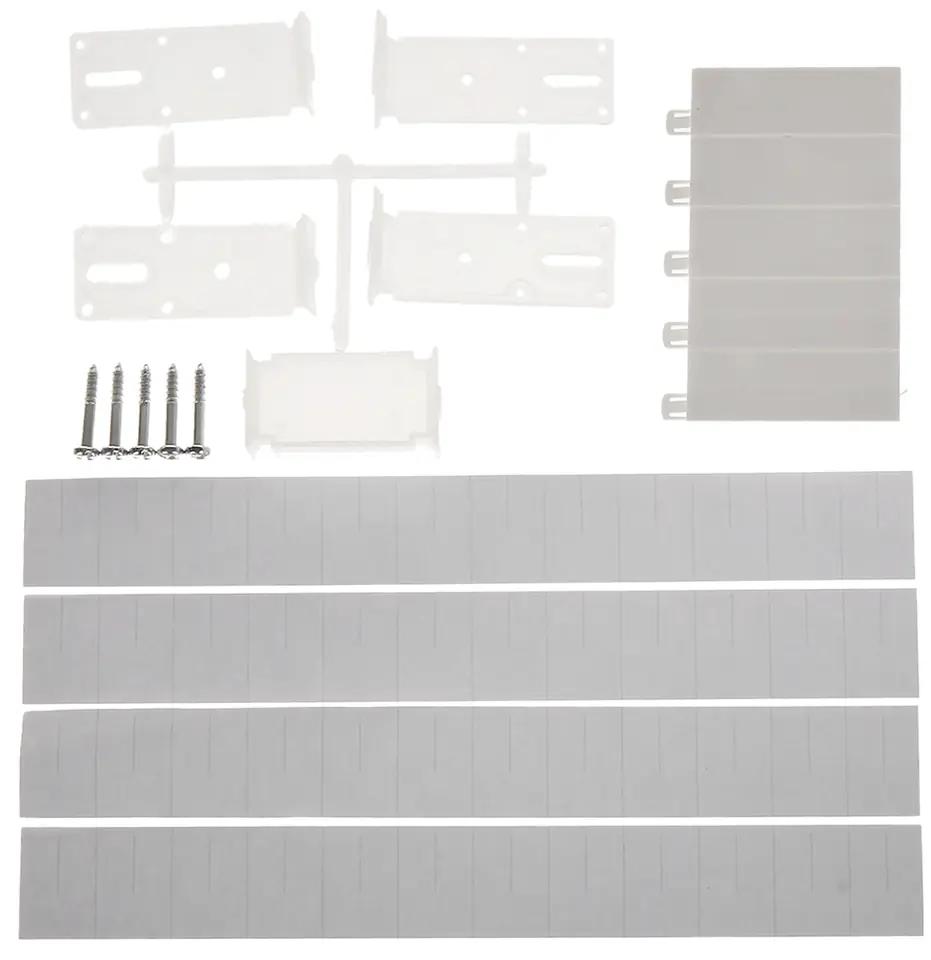

| Equipment:: | Connection strips3 x ( 4 x 16 mm² + 4 x 10 mm² )1 x ( 11 x 16 mm² + 11 x 10 mm² ) Modular end caps : 1 x 5 pcs. |
| Manufacturer / brand:: | LEGRAND |
| Material:: | Self-extinguishing material |
| Mechanical resistance class:: | IK07 |
| Method of fastening:: | Concealed |
| Number of modules installed:: | 12 + 1 x 2 rows, 17.5 mm |
| Scales:: | 3.05 kg |
| Sealing:: | IP40 |

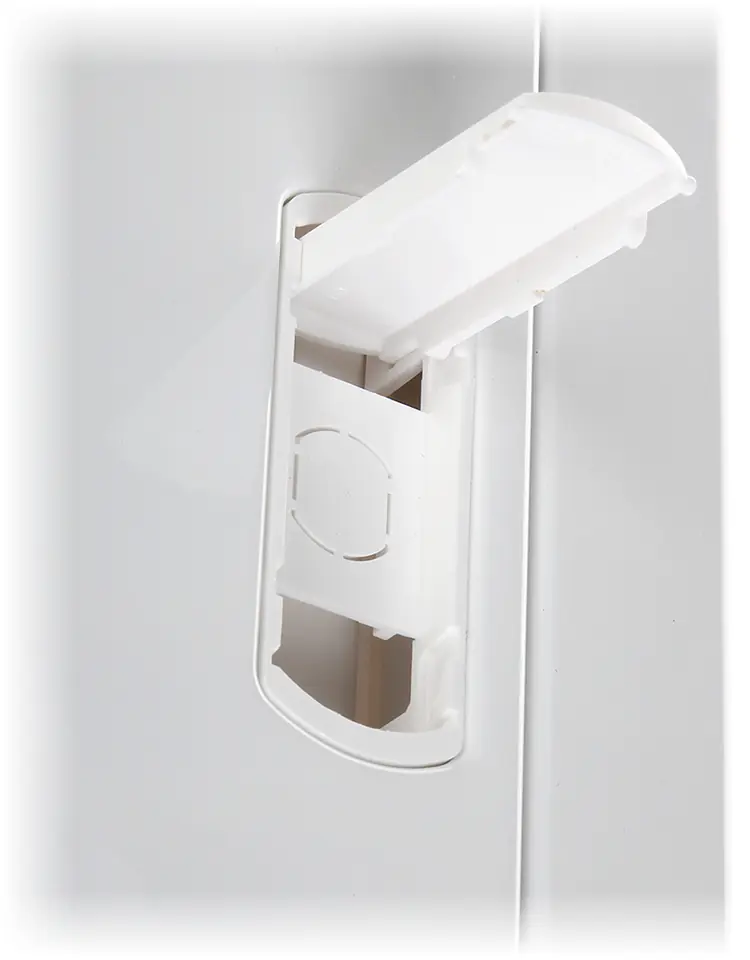

| Selected features:: | Metal doors with a thickness of 6 mm Doors can be equipped with a lock Removable upper and lower plate Connection strips and modular plugs included |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
