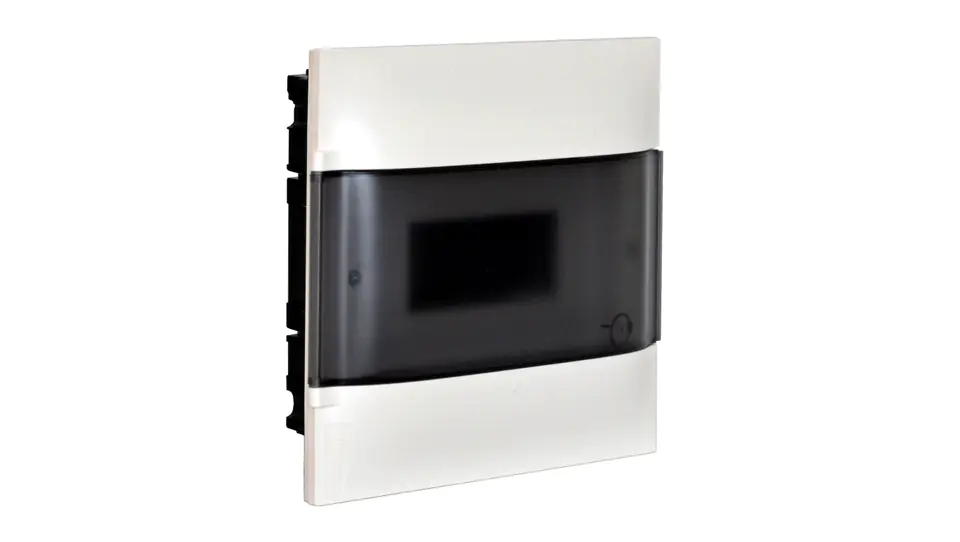

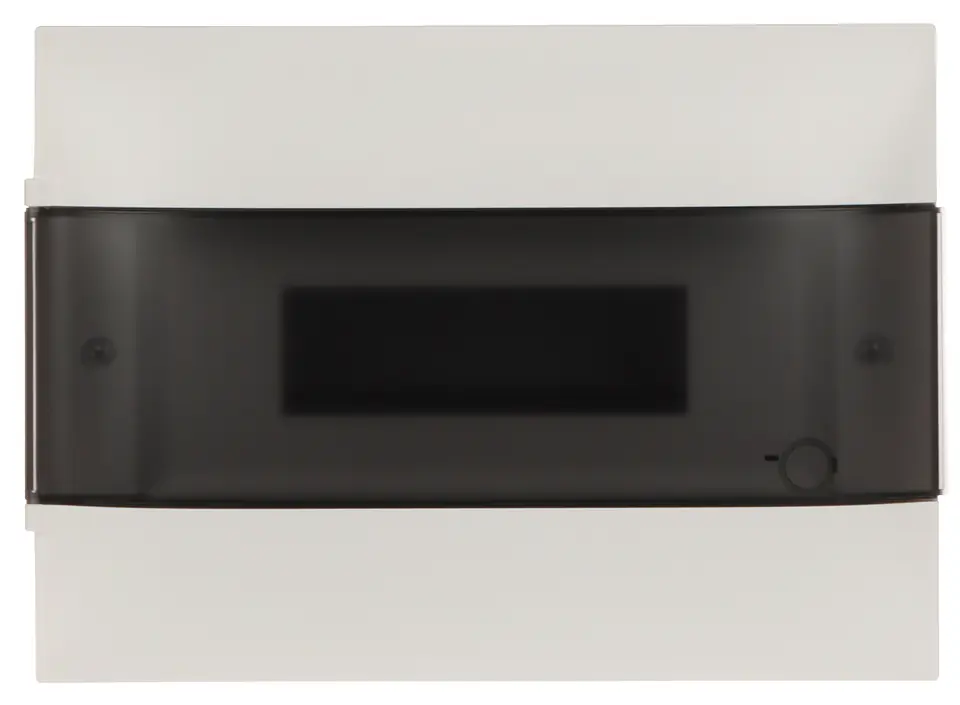

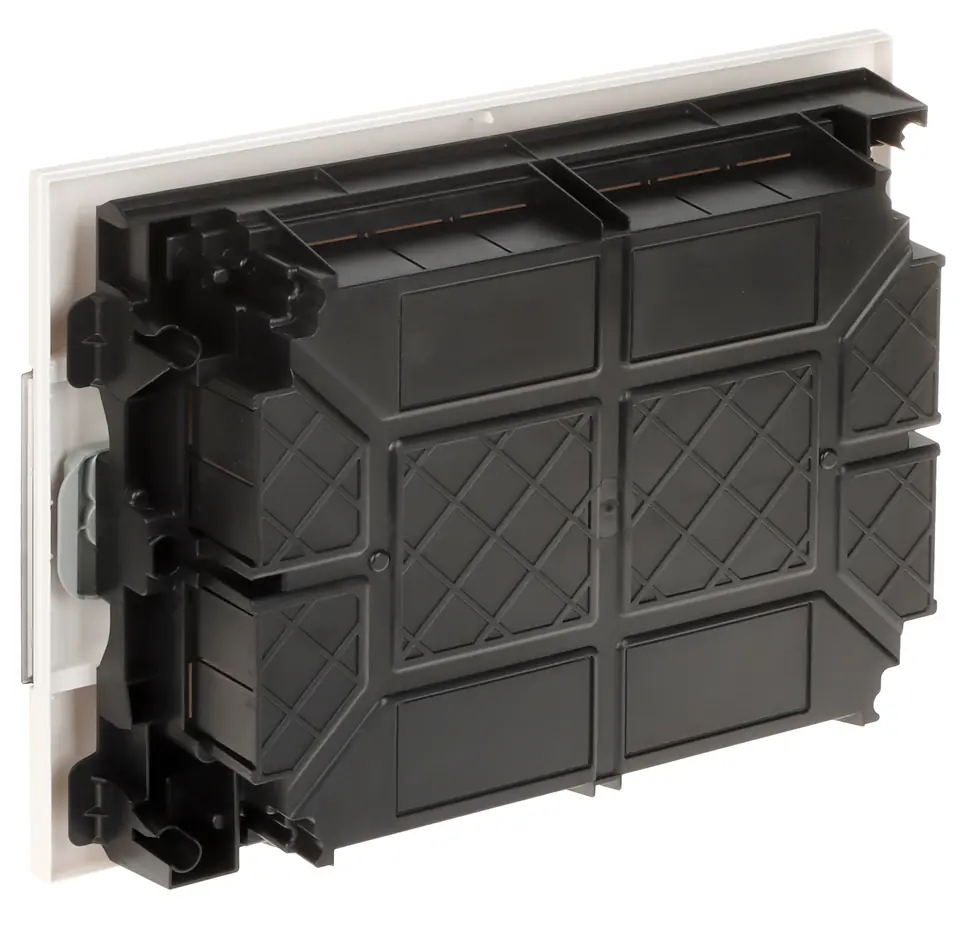

Flush-mounted electrical switchgear 1-row 12-module
Satin material of the switchboard and cover with doors, prevents the effect of mirror light reflections
FLUSH-MOUNTED SWITCHGEAR 12-MODULE LE-135371 Practibox S LEGRAND
€14.73
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Legrand
- Product code:
- 135371 / 3414971198173
Share this product:
Specification
| Colour:: | white |
|---|---|
| Compliance with standards:: | IEC/EN 60670-24, IEC/EN 61439-3 |
| Dimensions:: | 328 x 235 x 104 mm, 306 x 219 x 72 mm - flush-mounted box |

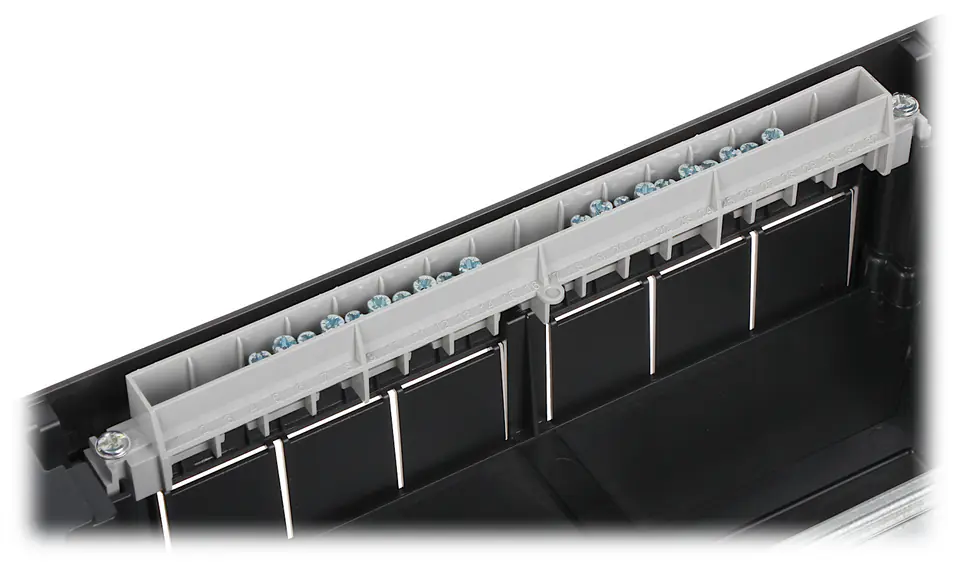

| Equipment:: | Connection strips1 pcs. N : 5 x 16 mm² + 5 x 10 mm² ,1 pc PE : 5 x 16 mm² + 5 x 10 mm² |
| Manufacturer / brand:: | LEGRAND |
| Material:: | Self-extinguishing material |
| Mechanical resistance class:: | IK07 |
| Method of fastening:: | Concealed |
| Number of modules installed:: | 12 x 1 row, 17.5 mm |
| Operating temperature:: | -10 °C ... 60 °C |
| Scales:: | 0.79 kg |
| Sealing:: | IP40 |

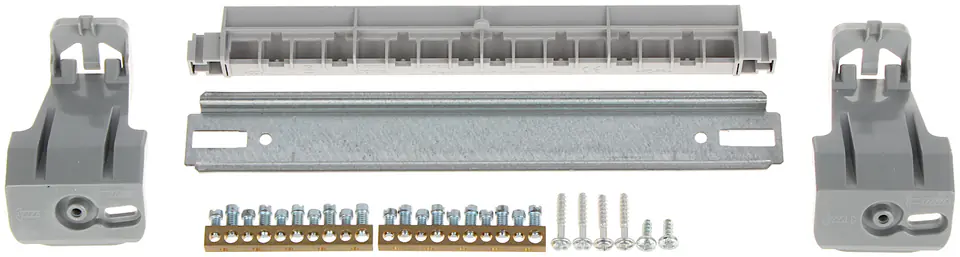

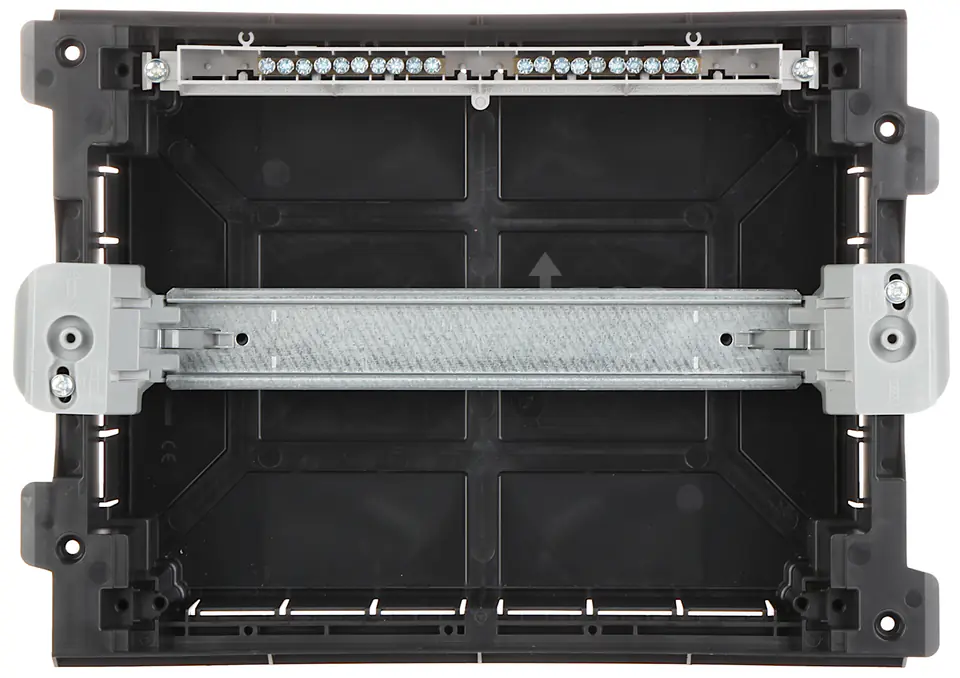

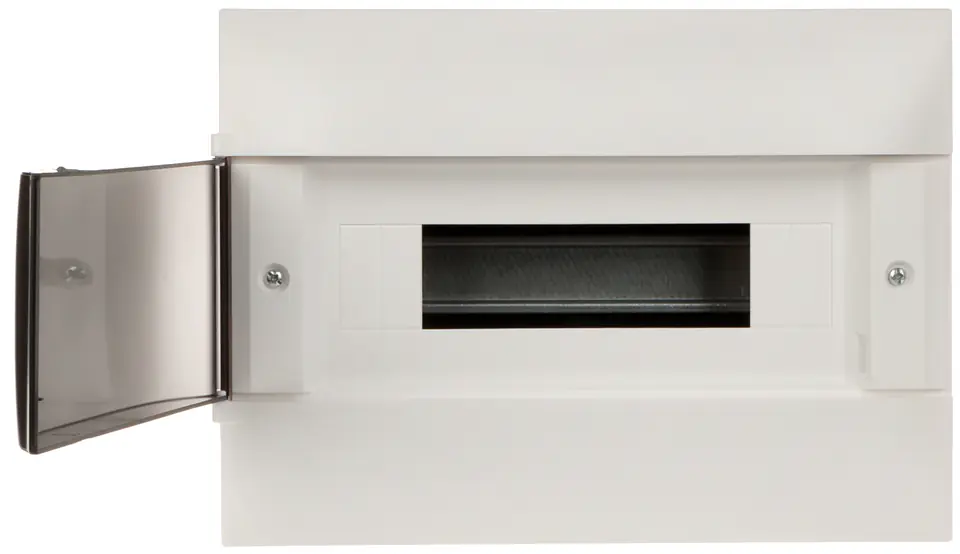

| Selected features:: | Removable bracket TH 35 Reversible doors Connection strips included |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
