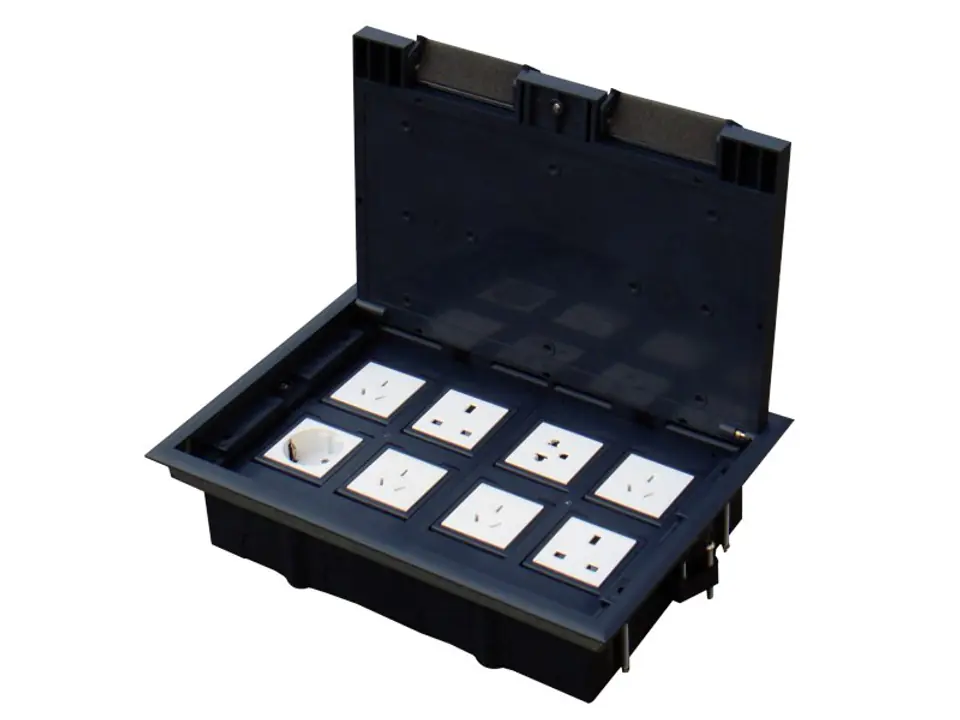

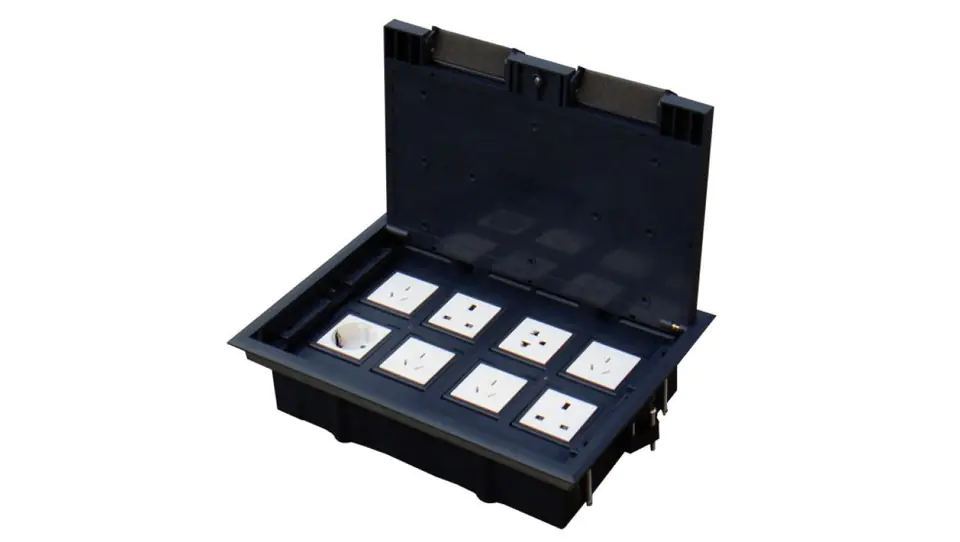

The 8M floor box allows you to embed 8 electrical sockets 45x45mm or 16 adapters for teletechnical sockets with dimensions of 22.5x45mm.
Underfloor installations are currently the standard of electrical and teletechnical installations in modern workplaces. The use of floor cans allows simple and quick access to media in places away from the walls. Thanks to floor installations, it is possible to maintain the order associated with the age-old problem of wiring in the workplace.
BASIC FUNCTIONALITIES
- Floor box 8 modules x (45x45 mm).
- For installation in rooms with a technical floor of reduced height.
- Equipped with handles positioning and fixing the can in the technical floor (raised).
- The possibility of adaptation to the floors poured after the use of adjustable cassettes, dedicated to the spout. Cassettes have weaknesses for the introduction of cables and wires through a subfloor channel or peszlem.
- Adjustment of cassettes for poured floors allows adjustment and leveling in relation to the floor.
- The covers of the cans can be finished with a floor surface up to 5 mm thick, contain two tabs for wires, finished with a sponge that protects the inside of the can from dust and dirt.
- The two-point, secure closure of the floor box cover requires the simultaneous release of both transoms.
- Colors: gray and graphite.
- Protection class: IP40
- Impact resistance: IK08
DIMENSIONS
- Height: 232 mm
- Width: 329 mm
- Adjustable depth: 76 to 110 mm
