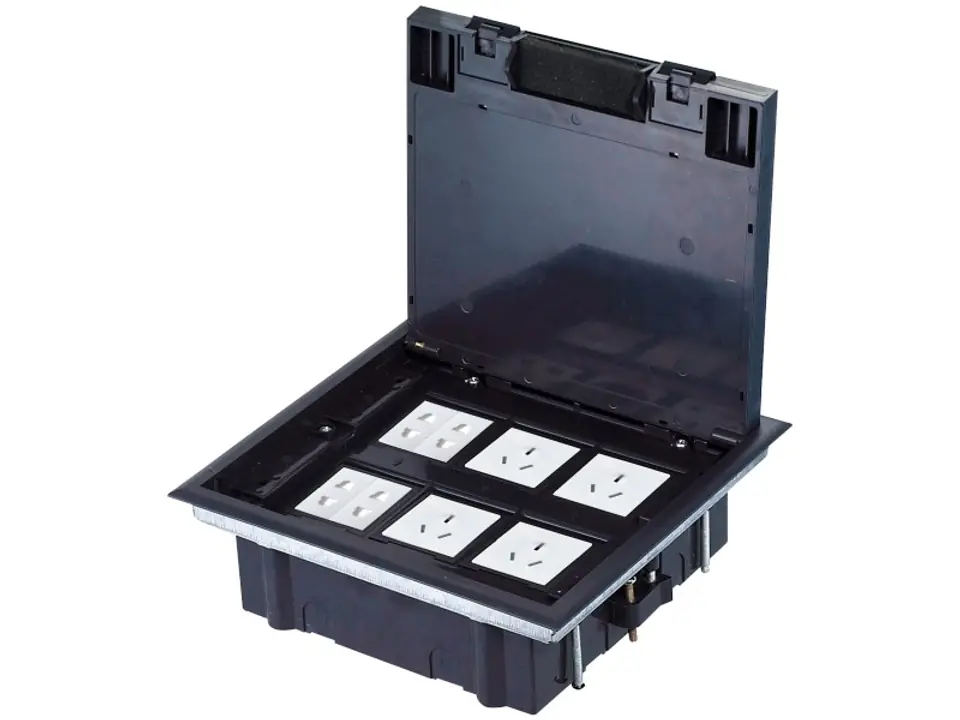

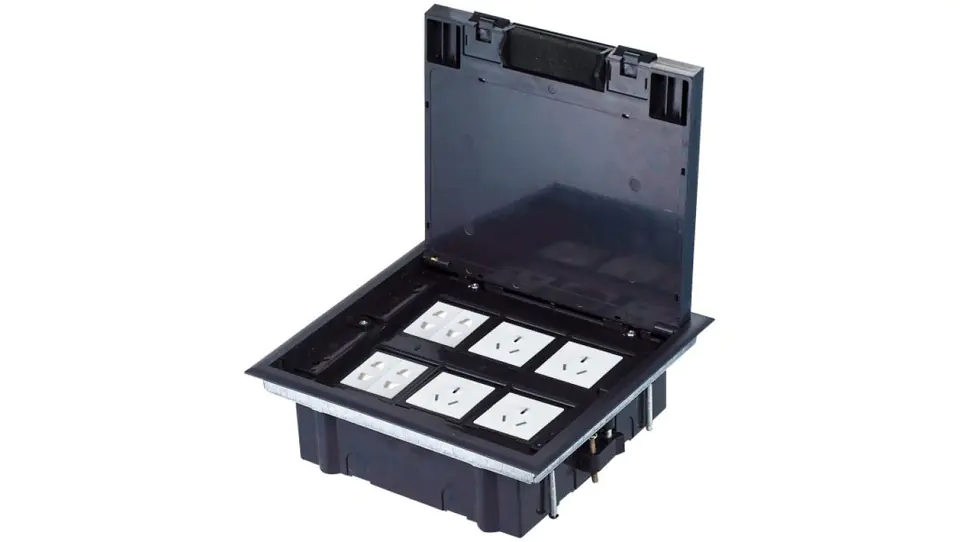

The 6M floor box allows you to embed 6 45x45mm electrical sockets or 12 adapters for telecommunication sockets with dimensions of 22.5x45mm.
Underfloor installations are currently a standard for electrical and telecommunication installations in modern workplaces. The use of floor cans allows simple and quick access to utilities in places away from the walls. Thanks to floor installations, it is possible to maintain order related to the age-old problem of wiring in the workplace.
BASIC FUNCTIONALITIES
- Floor box 6 x modules (45x45 mm), sockets mounted horizontally.
- For installation in rooms with a technical floor with reduced height.
- Equipped with handles positioning and fixing the box in the technical floor (raised).
- Adaptable to cast floors after the use of adjustable cassettes, dedicated to the screed. The cassettes have weaknesses for the introduction of cables and wires through the underfloor channel or conduit.
- Adjustable casting floor cassettes allow adjustment and leveling relative to the floor.
- The covers of the cans can be finished with a floor surface up to 5 mm thick, contain two splines for wires, finished with a sponge protecting the inside of the can from dust and dirt.
- A two-point, safe closure of the floor box cover requires the simultaneous release of both bolts.
- Colors: gray and graphite.
- Protection class: IP40
- Impact resistance: IK08
DIMENSIONS
- Height: 226 mm
- Width: 246 mm
- Adjustable depth: 76 to 110 mm
