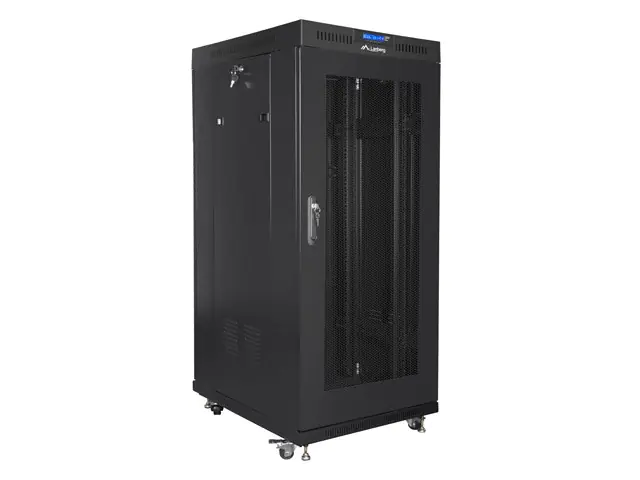

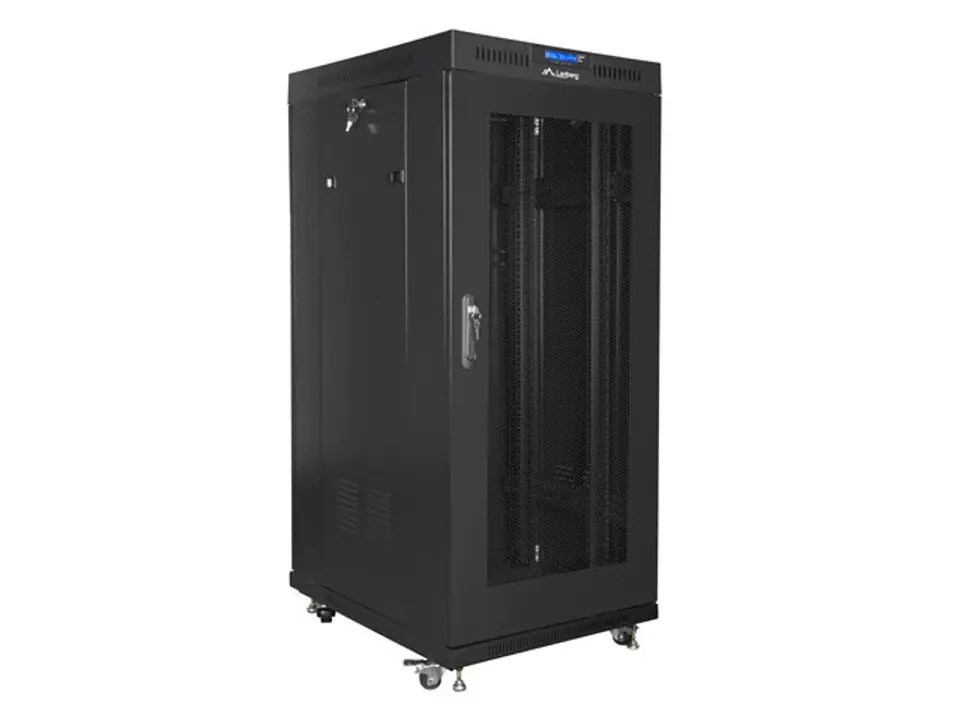

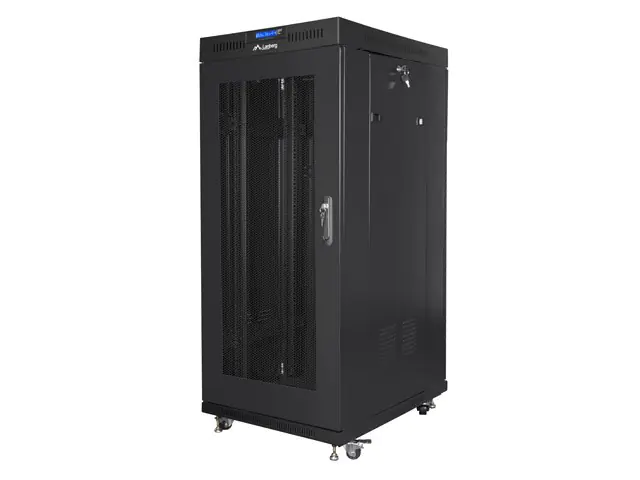

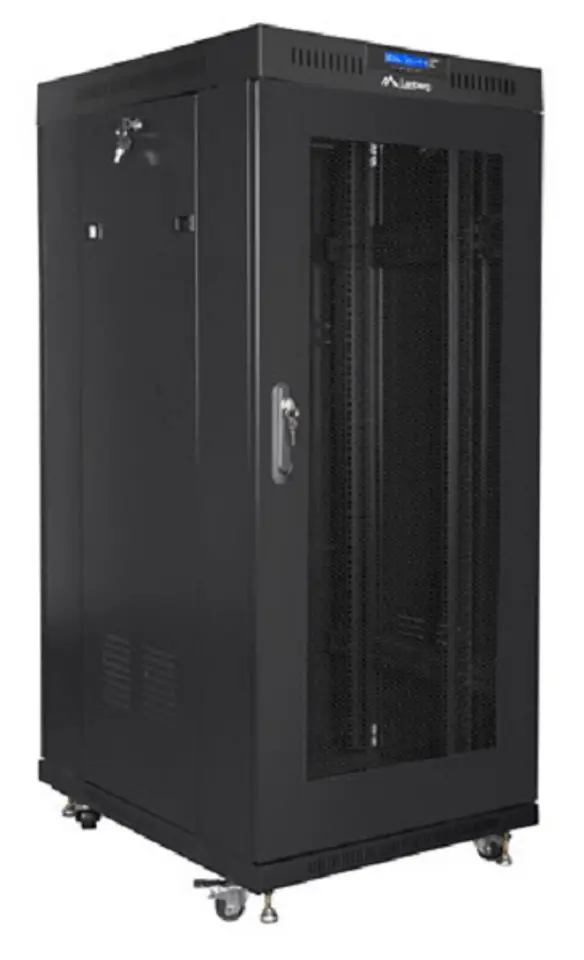

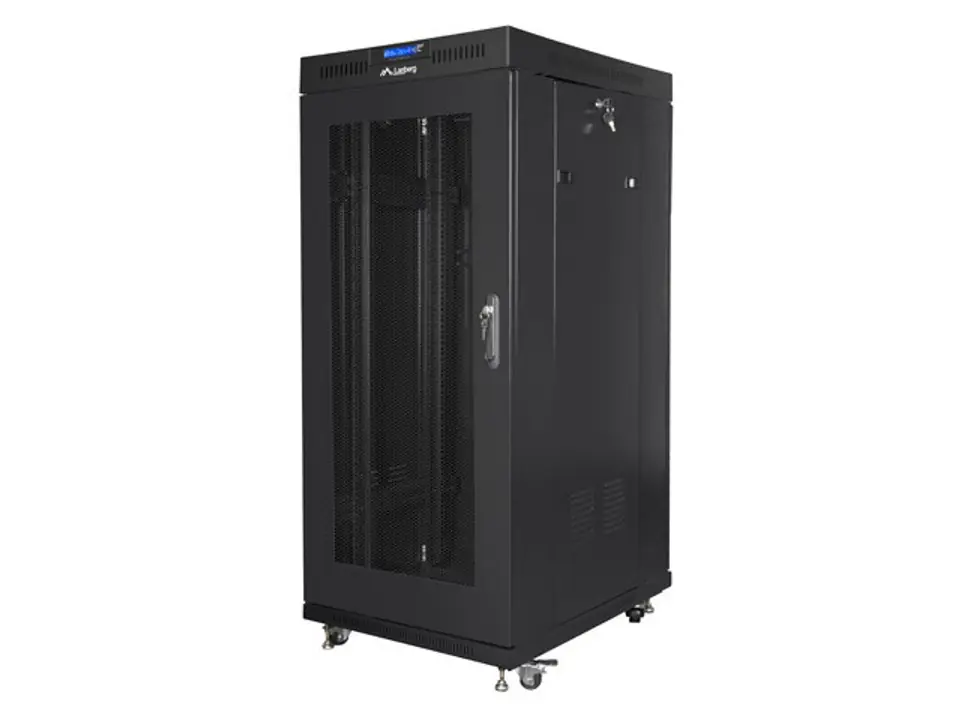

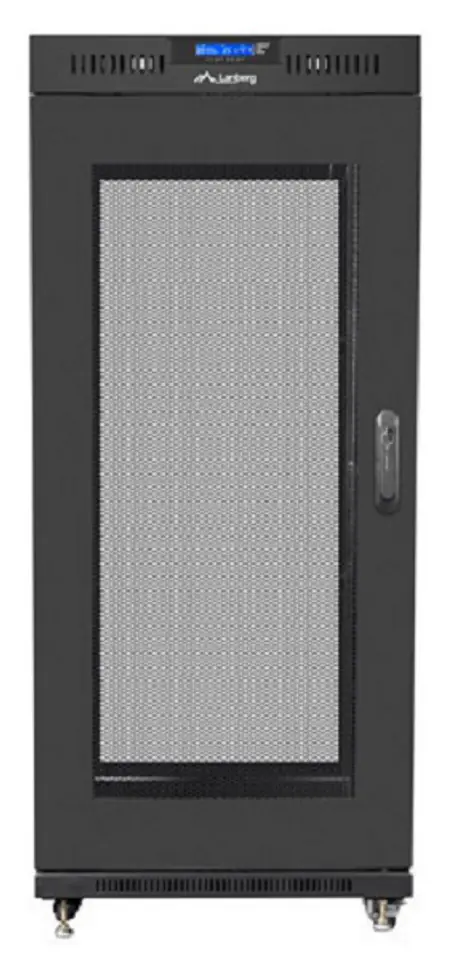

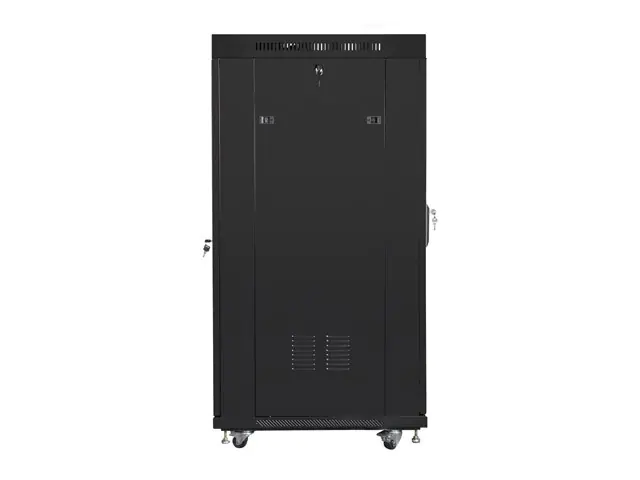

FLOOR-STANDING RACK CABINET 19" 22U 800X800 BLACK PERFORATED LCD DOOR LANBERG FLAT PACK

€555.75
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Lanberg
Product code:
FF01-8822-23BL / 5901969433913

Specification

Ac input voltage:230 V
Adjustable feet:Yes
Available number of slots:22U
Back door construction:Perforated
Back door key lock:Y
Castor wheels:Yes
Colour:Black
Depth:800 mm
Depth (mm):800
Destiny:19 inch
Equipment:Mounting kit
Front door:Perforated
Front door construction:Perforated
Front door key lock:Yes
Height:1216 mm
Height (mm):1216
International protection (ip) code:IP20
Key lock:Yes
Kind:Standing
Manual:Yes
Maximum payload (kg):800
Maximum weight capacity:800 kg
Mounting depth (max):72 cm
Number of fans:4 fan(s)
Other parameters:Lcd
Product colour:Black
Protection:IP20
Rack capacity:22U
Rack rails:Yes
Rear door:Perforated
Screws included:Yes
Side guards:yes
Side panel key lock:Yes
Side panels included:Yes
Size (imperial):48.3 cm (19")
Thickness of elements:Thickness of the other elements: 1.2 mm, Thickness of mounting rails: 2 mm, Thickness of the upper and lower panel: 1.2 mm, Thickness of the front door: 1.2 mm, Thickness of the side panel: 1.2 mm, Thickness of the rear door: 1.2 mm
Type:Floor standing cabinet
Warranty:2 years
Weight:85 kg
Weight (kg):85
Width:800 mm
Width (mm):800

The Lanberg FF01-8822-23BL single-section standing cabinet is a solution designed for network construction, cabling and equipment installation in size 19 with a maximum total load capacity of up to 800 kg.

It can be used in data centers that require a large amount of space in equipment cabinets. The cabinet will successfully fulfill its role in large, extensive networks and server rooms, both in small, medium and large companies and corporations. It will also work well in low-voltage installations such as cable TV networks, alarm systems, fire protection systems, access control systems as well as CCTV and IP monitoring systems.

The construction is made using high quality rolled steel, it is characterized by excellent design and workmanship.

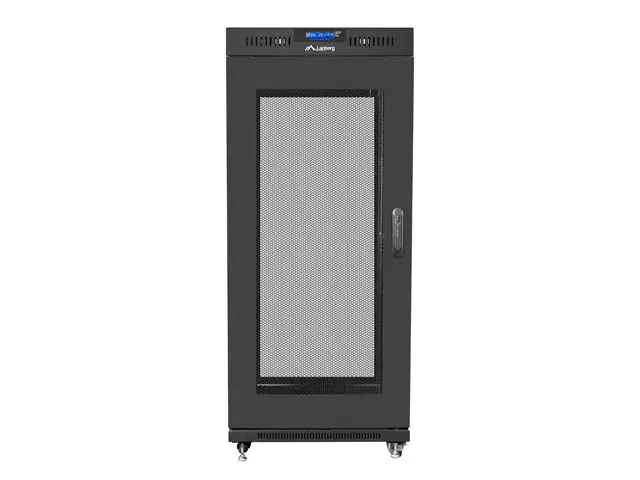

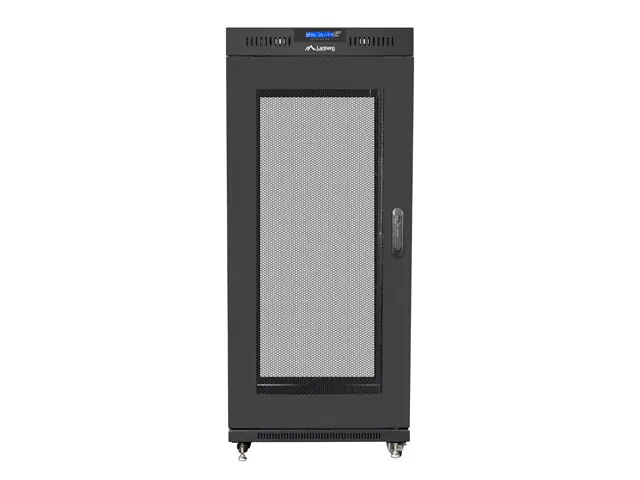

The cabinet enables full adjustment of the depth of the vertical mounting rails. It is equipped with a front door made of tempered glass with a lock, which can be mounted on the right or left side. It has removable side panels (with locks included) and a rear solid steel door with a lock. It is possible to introduce wiring through the lockable upper and lower panels (with plugs in the set).

The cabinet has an LCD display mounted on the front, displaying basic information (e.g. temperature inside the cabinet, current time and current status of fans) about the status of the device.

The set includes a ventilation panel with 4 230V fans. In addition, the set includes accessories for mounting the mounting rails, M6 screws and plugs for entry panels, and thanks to the construction for self-assembly (flat pack), the whole thing is in 3 flat packages, which facilitates transport.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
