The 4M floor box allows to mount 4 electrical sockets 45x45mm or 8 adapters for telecommunication sockets of 22,5x45mm size.
Underfloor installations are currently the standard for electrical and telecommunication installations in modern workplaces. The use of floor boxes enables easy and quick access to media in places which are remote from walls. Thanks to underfloor installations it is possible to keep the eternal problem of wiring in the workplace in order.

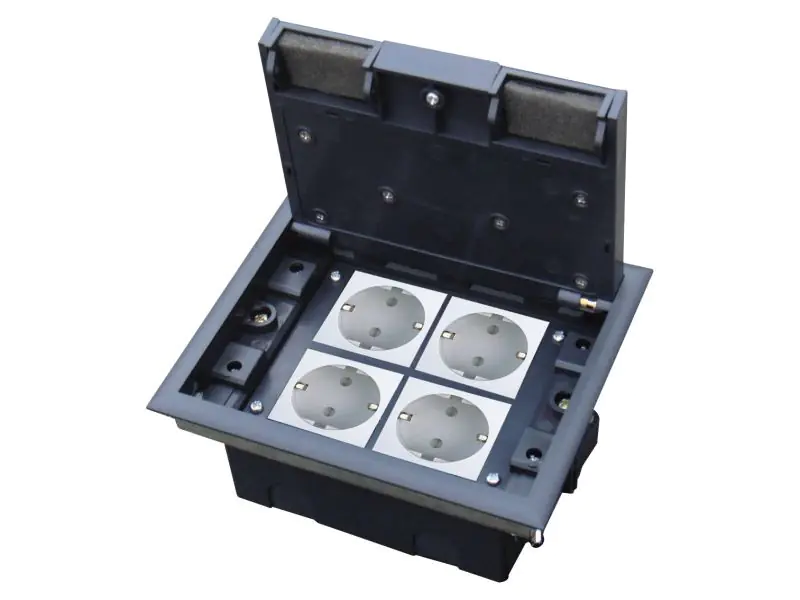

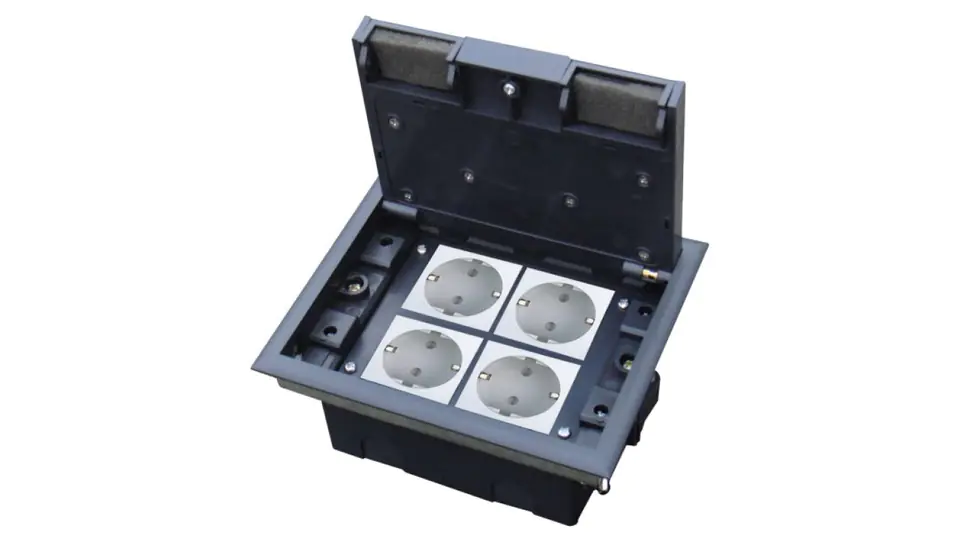

Box not equipped, illustrative photo.
Basic functionalities:
- Floor box 4 modules x (45x45 mm), sockets embedded horizontally.
- For installation in rooms with a technical floor with reduced height.
- Equipped with holders for positioning and fixing the box in the technical floor (raised).
- Possibility to adapt the box to the poured floors after using adjustable cassettes dedicated to the poured floors. The cassettes have weakenings for inserting cables and wires through the underfloor channel or a lining.
- Adjustable cassettes for screed floors enable adjustment and leveling in relation to the floor.
- The lids of the boxes may be finished with a floor surface up to 8 mm thick, they contain two outlets for conductors, finished with a sponge protecting the inside of the box against dust and dirt.
Material:
- Body: plastic
- Enclosure: plastic
- Sockets: plastic
Durability
- Degree of protection: IP40
- Impact resistance: IK08
