Heat Shrink Sleeve With Tin - Set of 50 pcs

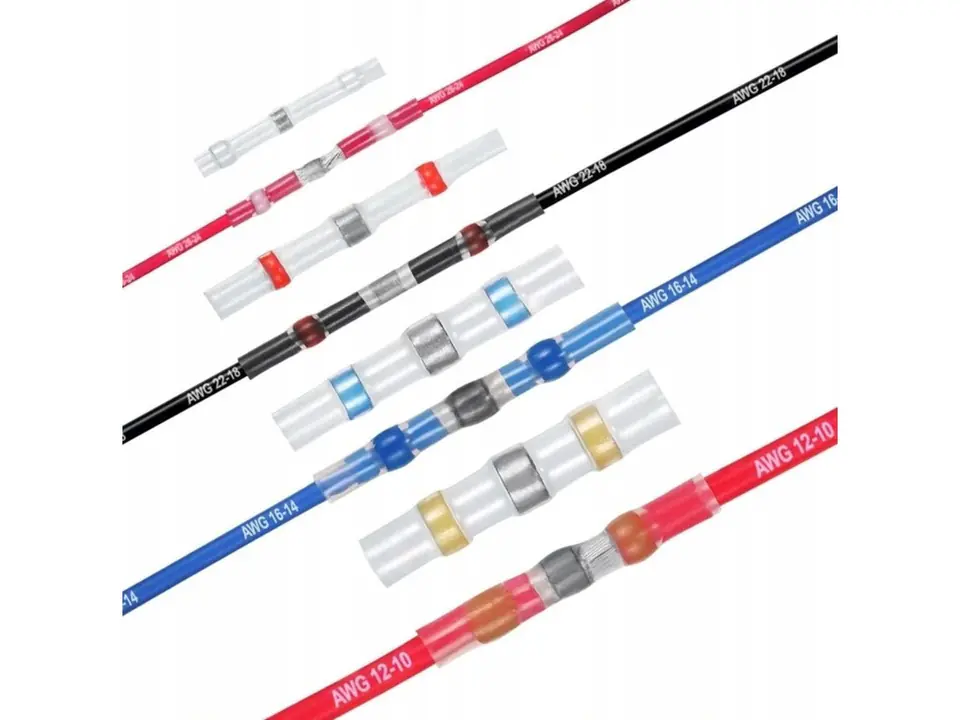

A set of quick connectors with tin in a heat shrink tube is an ideal set for repairing and connecting various types of wires. Cable fittings are made of heat-shrinkable sleeve, soldering tin and thermoplastic glue.
Tin melting provides a durable connection and a reliable contact of the veins. Thermoplastic adhesive ensures tightness and insulation. The transparent heat shrink tube allows constant control during the joining process. After connecting the wires, no additional insulation is required.

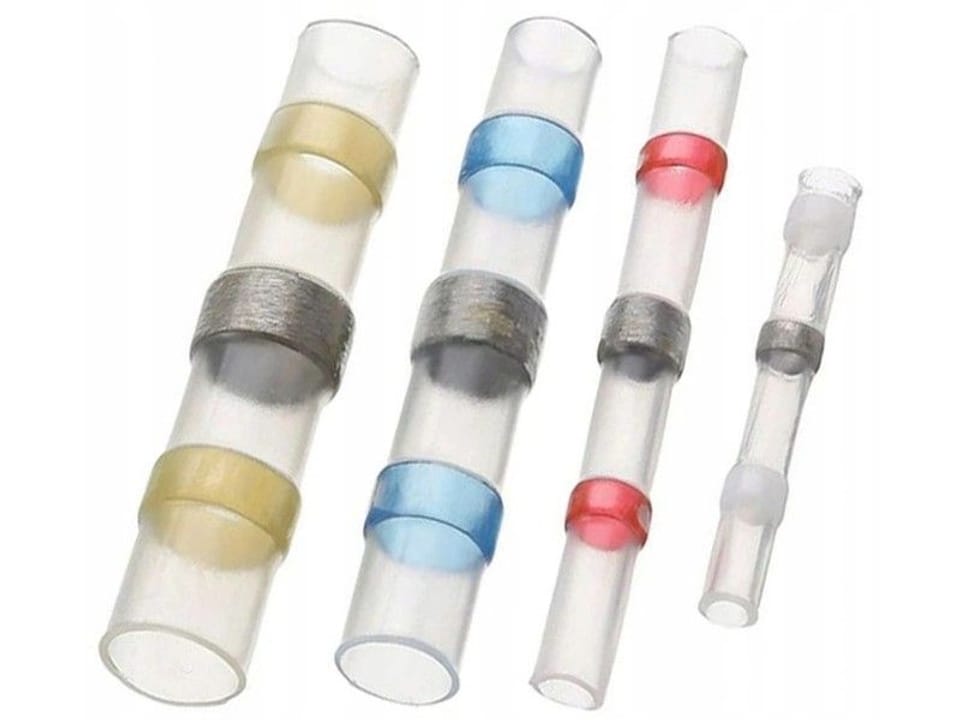

The set consists of 4 sizes of hermetic soldering fittings:
- 1.7 x 26mm - white 10 pieces
- 2.7 x 40mm - red - 23 pieces
- 4.5 x 40mm - blue - 12 pieces
- 6.0 x 40mm - yellow - 5 pieces
Specification:
Operating temperature:
-55 °C to 125 °C
Shrinkage temperature:
70 °C to 138 °C
Insulating material:
polyethylene tube
Bonding ring material:
tin
Degree of shrinkage:
2:1
Dimension:
105 x 70 x 25mm
