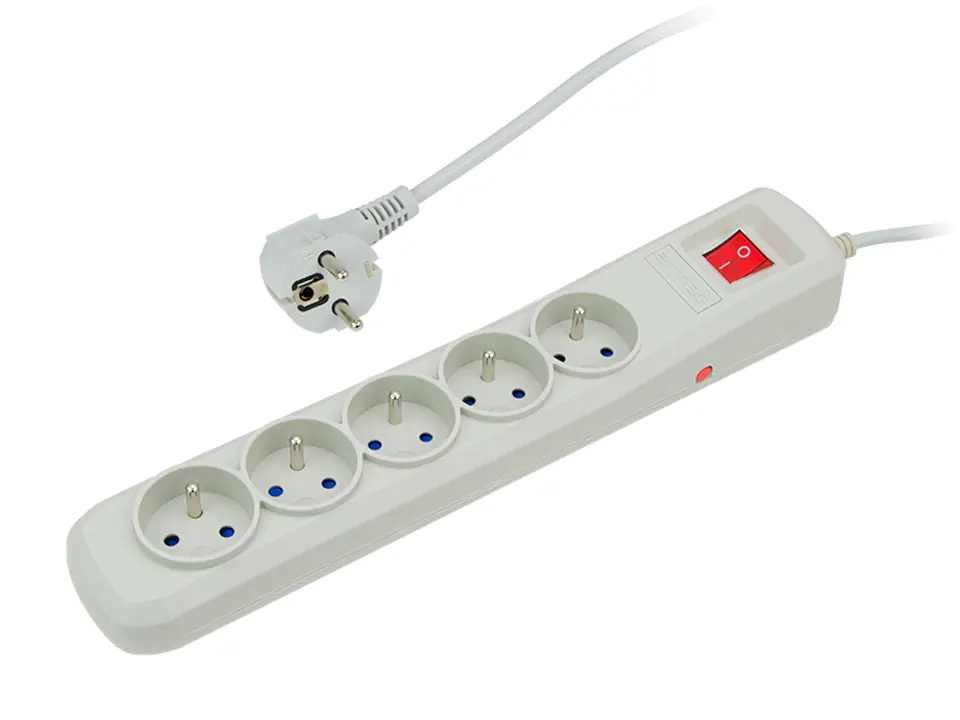

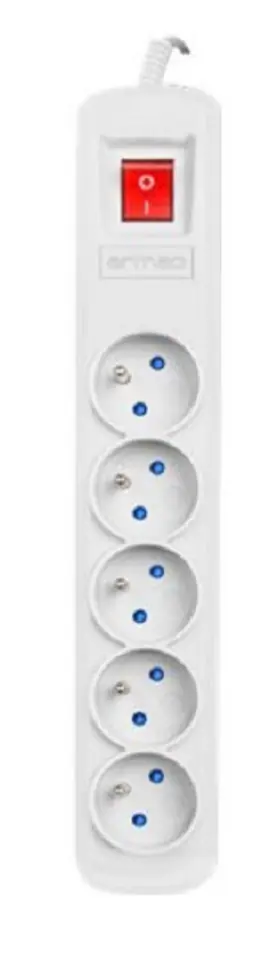

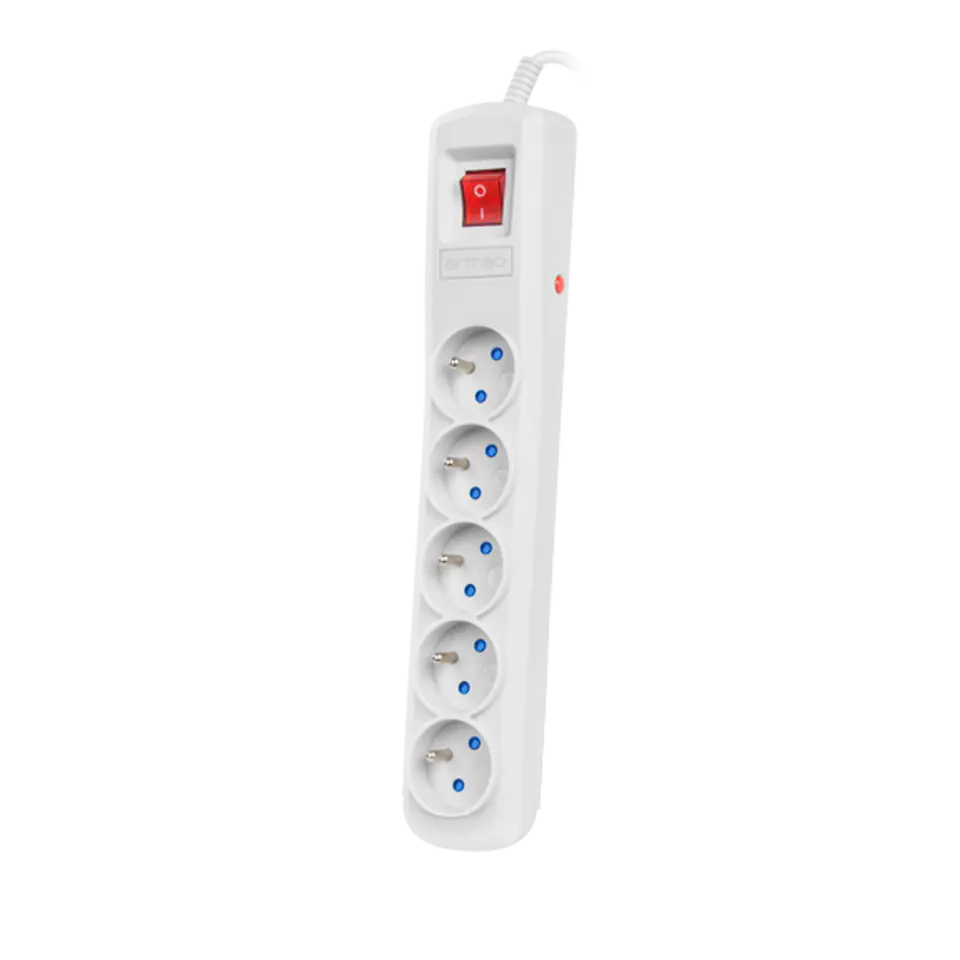

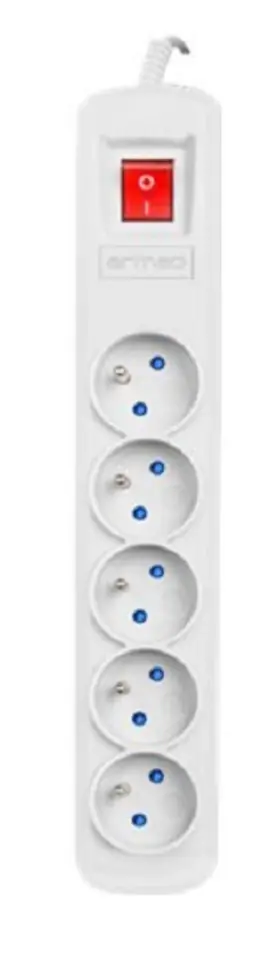

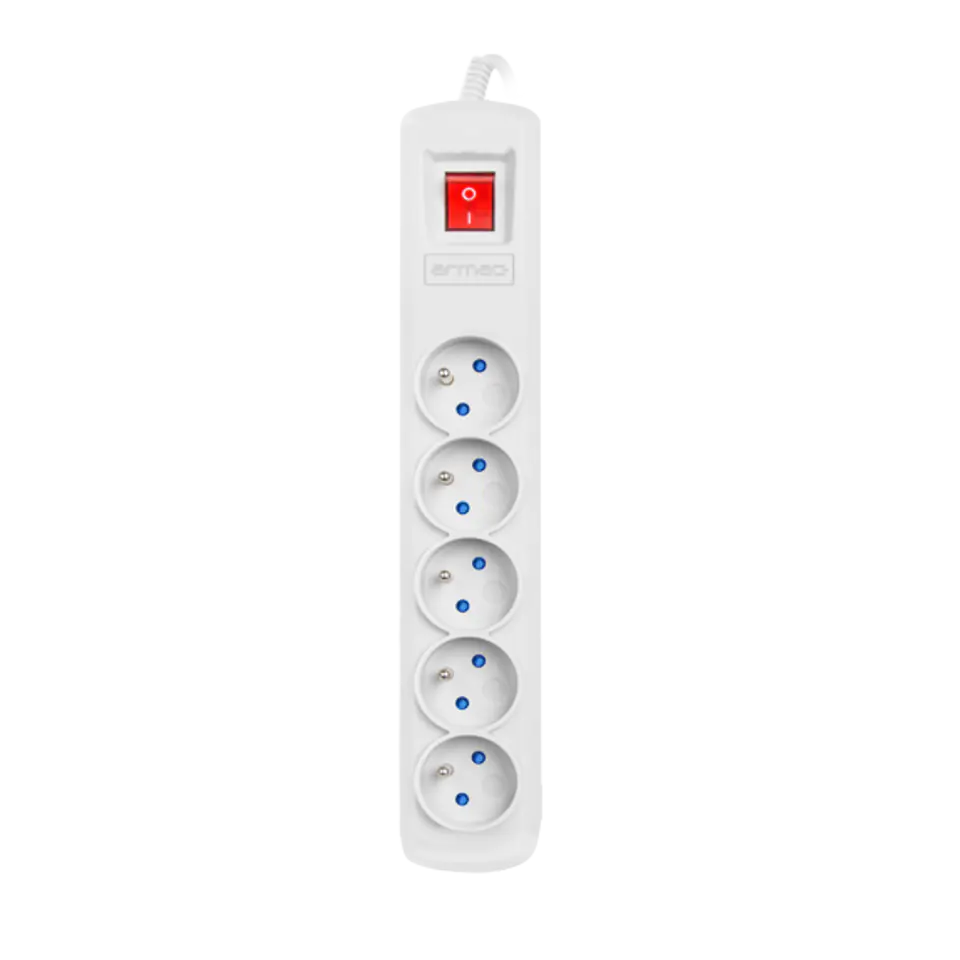

The R-5 mains filter has a special system for short-circuit and surge protection and an automatic fuse that ensures full safety. It consists of 5 sockets with grounding and protective screens.
Specification:
Rated voltage: 230V, 50Hz
Maximum load: 10A (2300W)
Energy absorption (total): 155J
Leakage Current: 0.5mA
Response Time: <25ns
Maximum discharge current: 6kA - 8/20us
Uc Permanent Operating Voltage: 250V 50Hz
Voltage protection level Up: <1.2kV
Uoc test voltage: 4kV
Protected lines: L-N
Fuses: automatic 10A/250V
Fire protection system: socket protective pins connected to a protective wire
Number of sockets: 5
Plug: PN-E-93203 type 2P + grounding
Switch: backlit, bipolar
Housing: Plastic, self-extinguishing
Case Color: Grey
Wire length: 3 m
