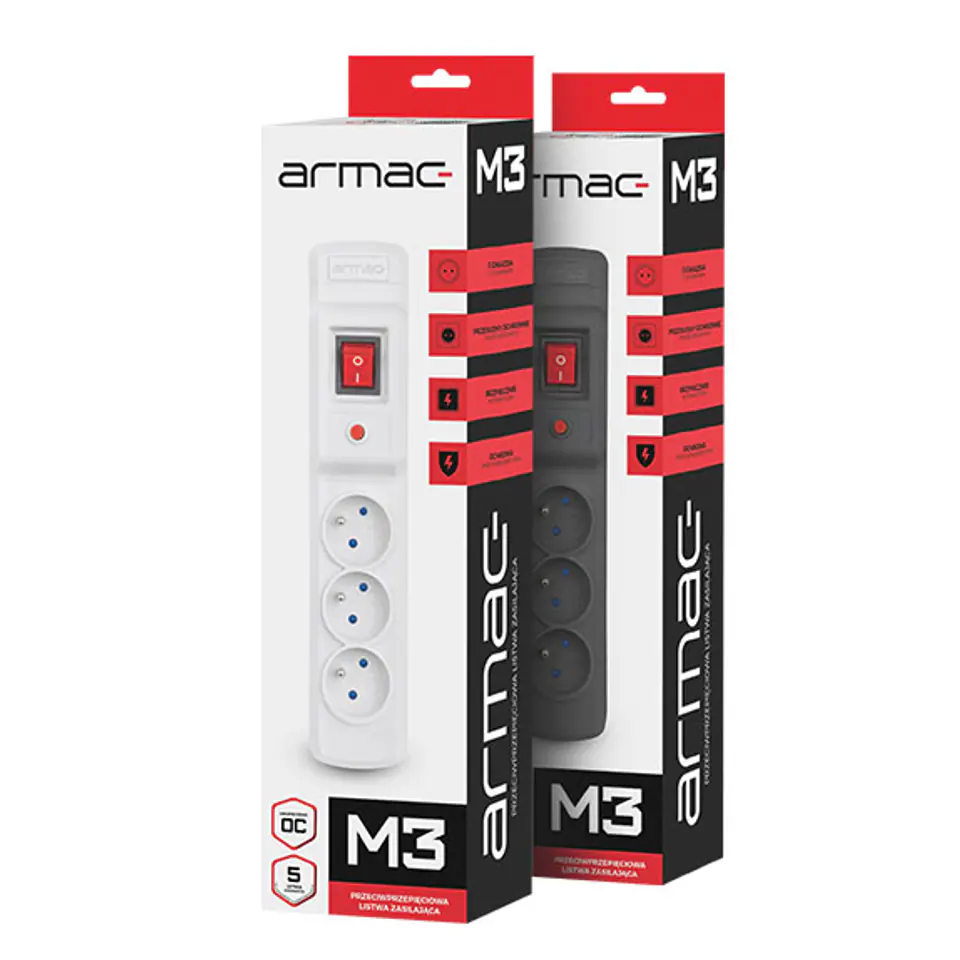

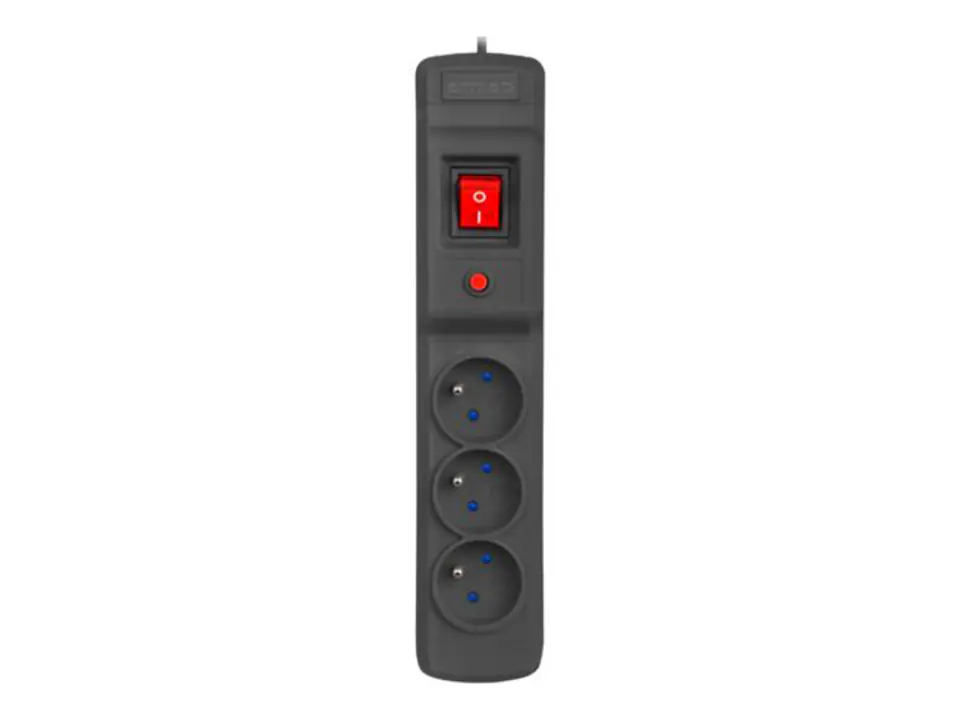

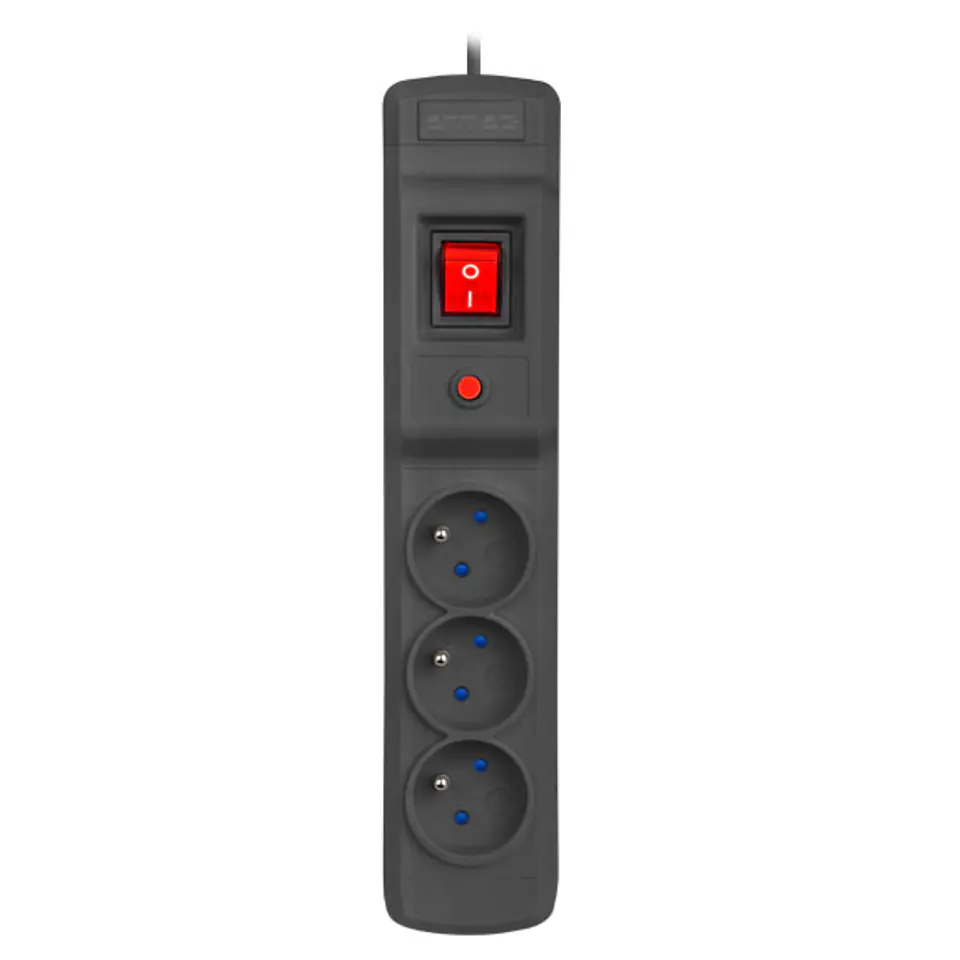

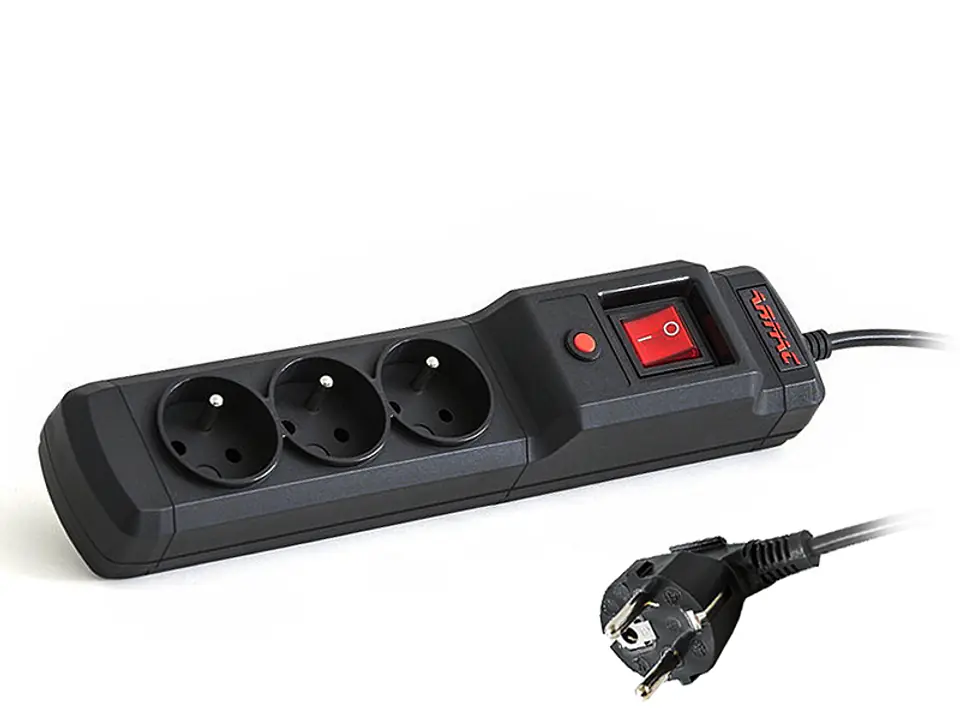

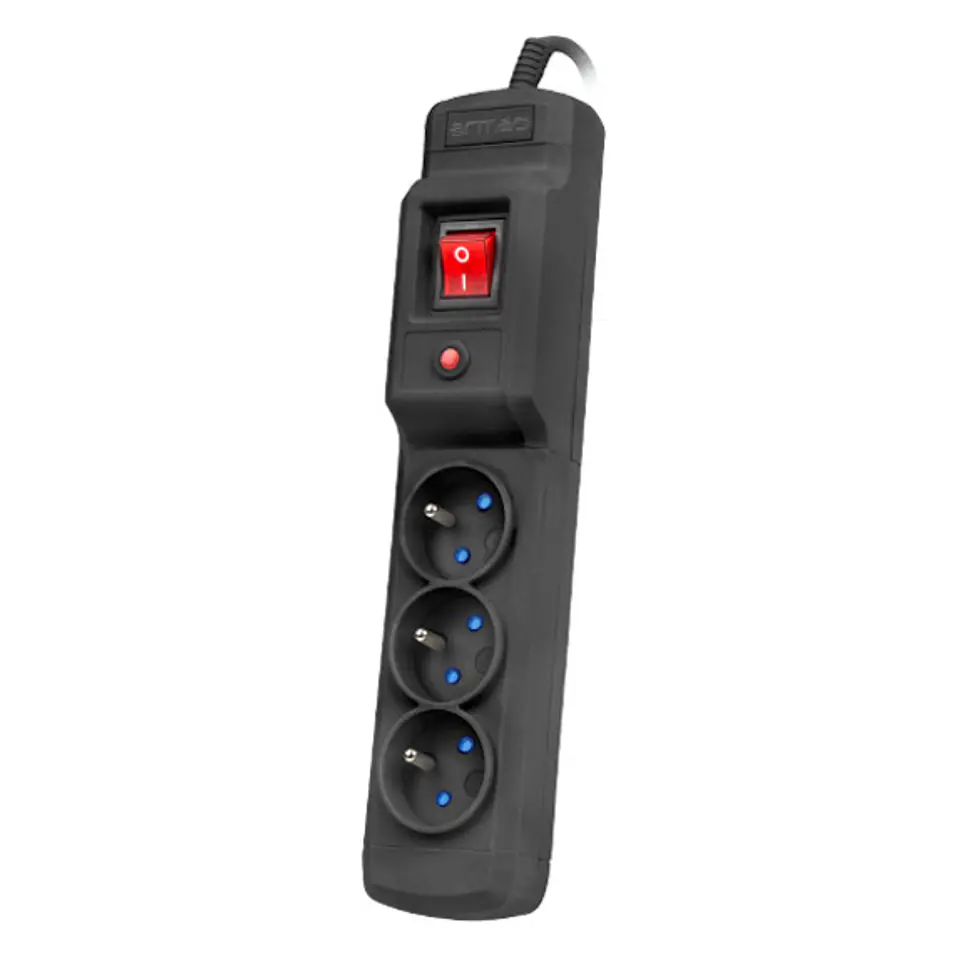

Mains filter cable 3 m with switch
Multi M3 is the basic model of the latest series of armac safety devices. Unique and innovative solutions, used in the multi family, allow you to create products with different model and color configurations. A special method of fixing the modules from which the products are made has been reserved in the Polish Patent Office. Multi M 3 has three sockets with grounding, an automatic, time-lag fuse.
Product features:
- 3 sockets with grounding
- plug with grounding + schuko
- cable length: 3 m
- illuminated switch
- automatic fuse
- surge protection system
Technical parameters:
- Rated voltage: ~230V
- Frequency: 50 Hz
- Load rated current: 10A (2300W)
- Leakage current: 0.5mA
- Response time: <25ns
- Maximum discharge current Imax: 6kA – 8/20 μs
- Permanent operating voltage: ~250V 50Hz
- Voltage protection level: ≤1.2kV
- Test voltage: 4kV
- Protected lines: L-N
- Fuses: automatic fuse with time-lag characteristics 10A/250V
- Electric shock protection system: socket protective pins connected to a protective wire
- Number of slots: 3
- Plug: PN-E-93203 type 2P + grounding
- Switch: backlit, bipolar
- Housing: plastic, self-extinguishing
- Case color: black
- Wire lengths: 3m
- Wire lengths: 3m
- Dimensions (mm) L x W x H: 285x60x50 mm
- Working conditions: inside
