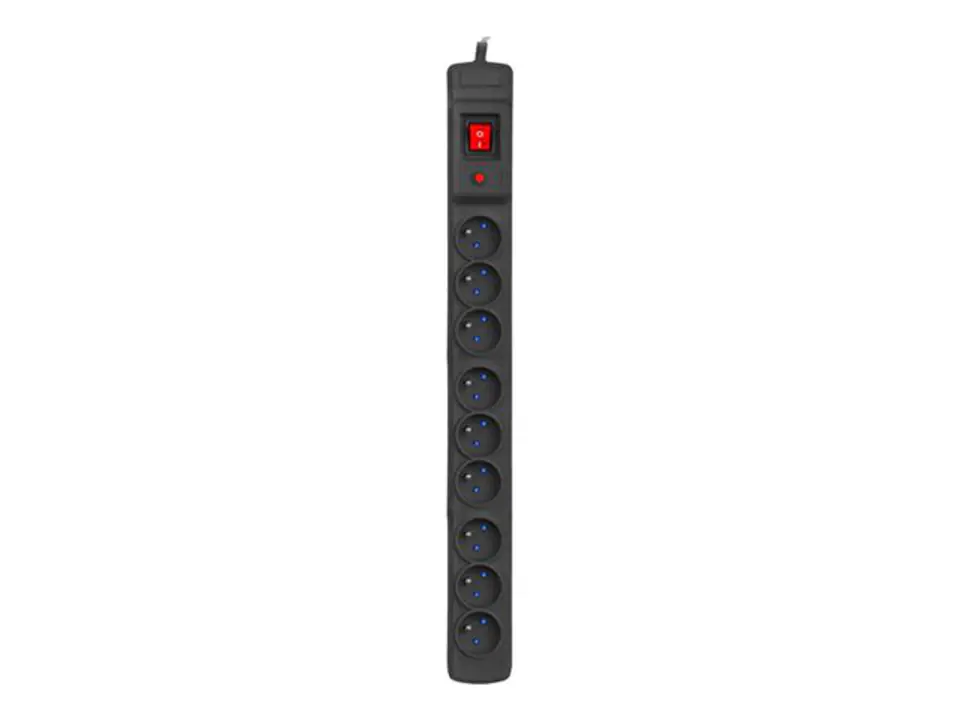

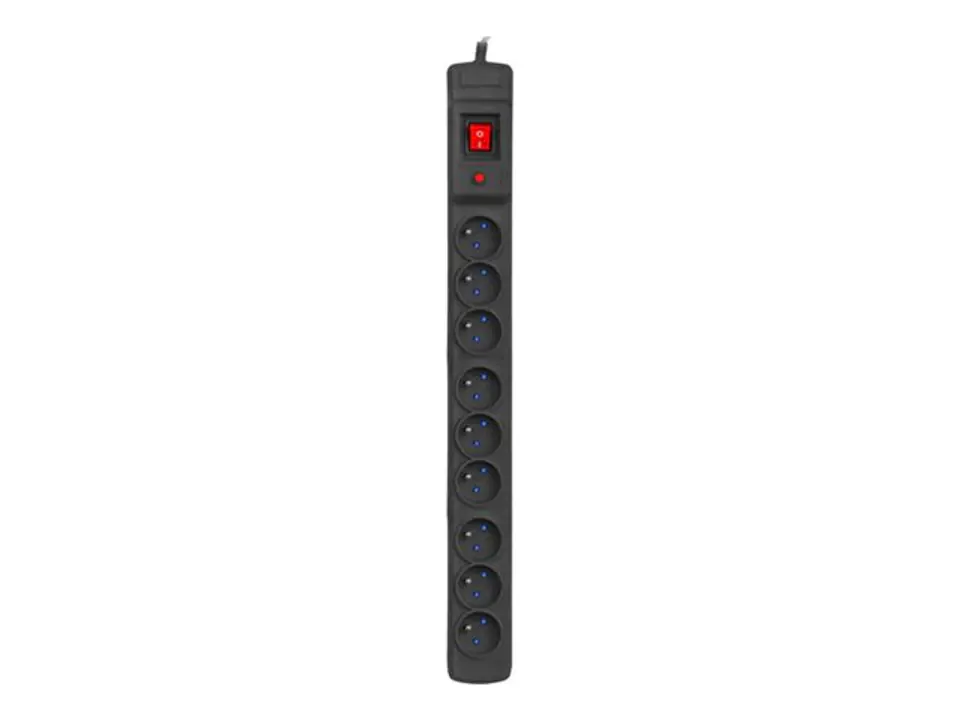

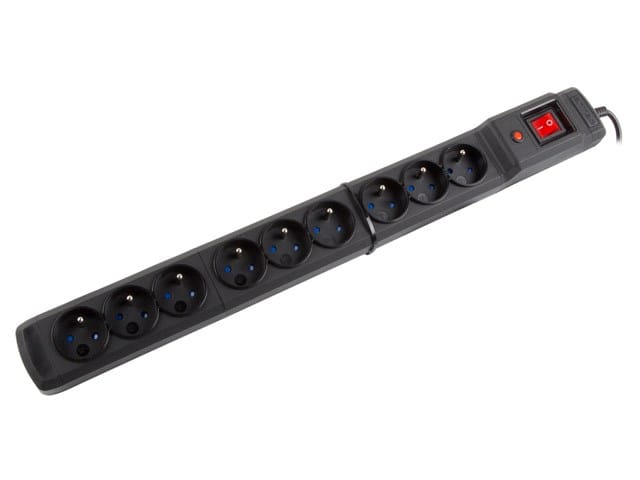

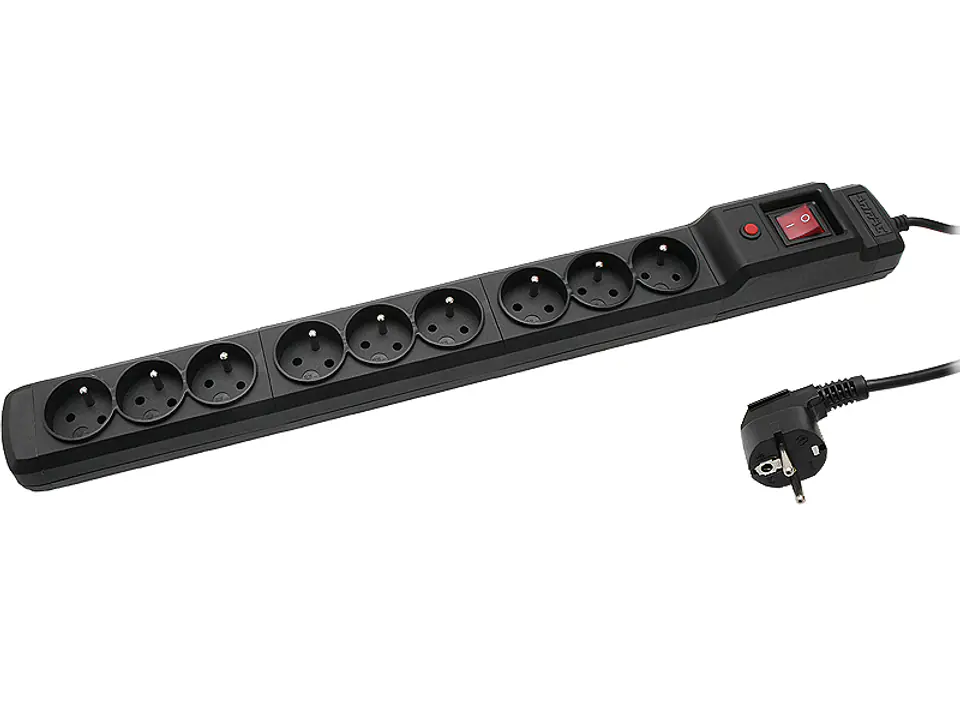

The M9 device has:
9 sockets with protective contact (10A/250V)
safe, non-conductive, self-extinguishing housing
work signaling
easy installation to the ground
two-stage safety system
Surge protection system: the reliability of this system is ensured by a varistor with a fast operating time of less than 25 nanoseconds and a high value of the absorbed pulse of 6000A, which is an effective protection against overvoltages.
Short-circuit system: consists of a time-lag automatic fuse that does not need to be replaced.
REMARK:
In the absence of voltage in the filter sockets, check the fuse button (red under the switch). If necessary, press 30 seconds.
Do not block the fuse button
The device should only be used in installations with a protective contact
Complete disconnection of the strip from the power supply occurs after pulling the plug from the mains socket
Do not use a damaged product.
Protect from water and moisture.
Do not use to power heaters, vacuum cleaners, refrigerators and other devices of this type.
Use indoors.
The maximum load current of all connected devices must not exceed 10A (2300W)
Technical data:
- Rated voltage: ~230 V, 50Hz
- Maximum load: 10A (2300 W)
- Cable length: 5 m
- Switch: backlit double-track
- Fuse: automatic with 10A/240V delayed operation
- Leakage current: < 0.5mA
- Energy absorption: 155 J
- Response time: < 25 ns
- Permanent operating voltage Uc: ~250 V, 50Hz
- Voltage protection level Up: ≤ 1.2kV
- Maximum discharge current: 6000A (L/N) - 8/20 μs
- Uoc test voltage: 4kV
