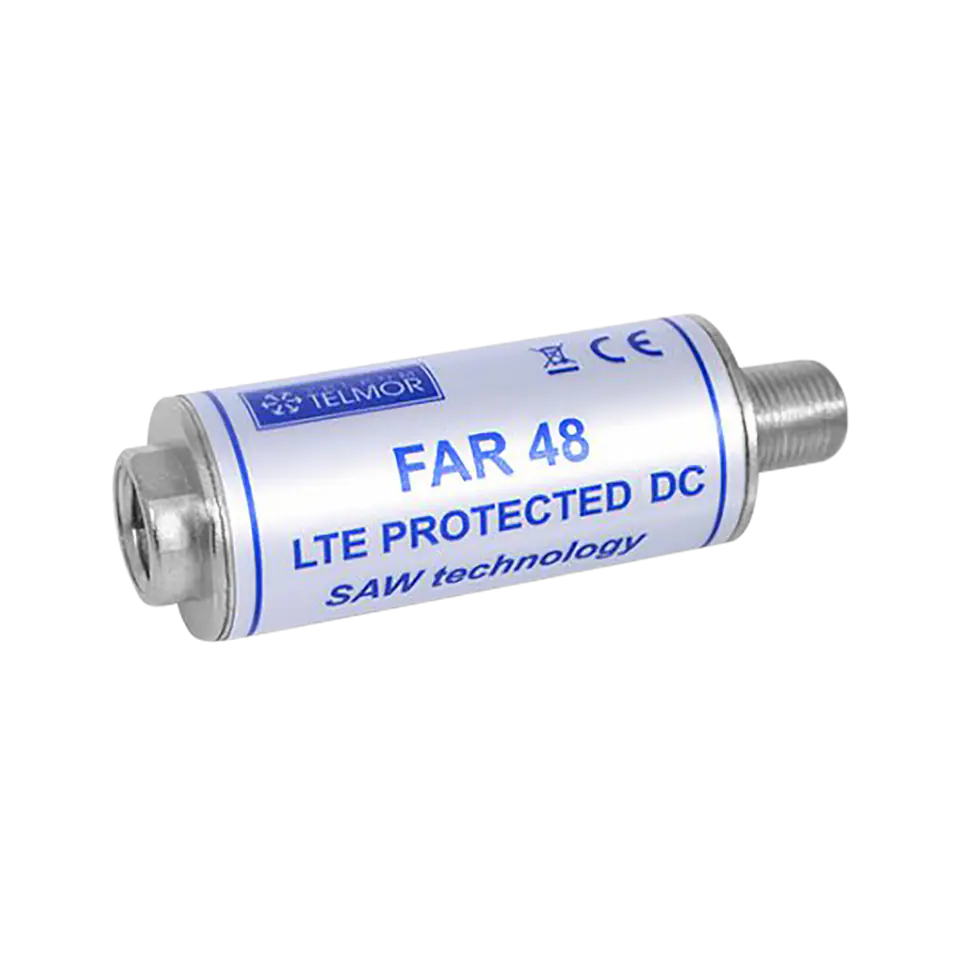

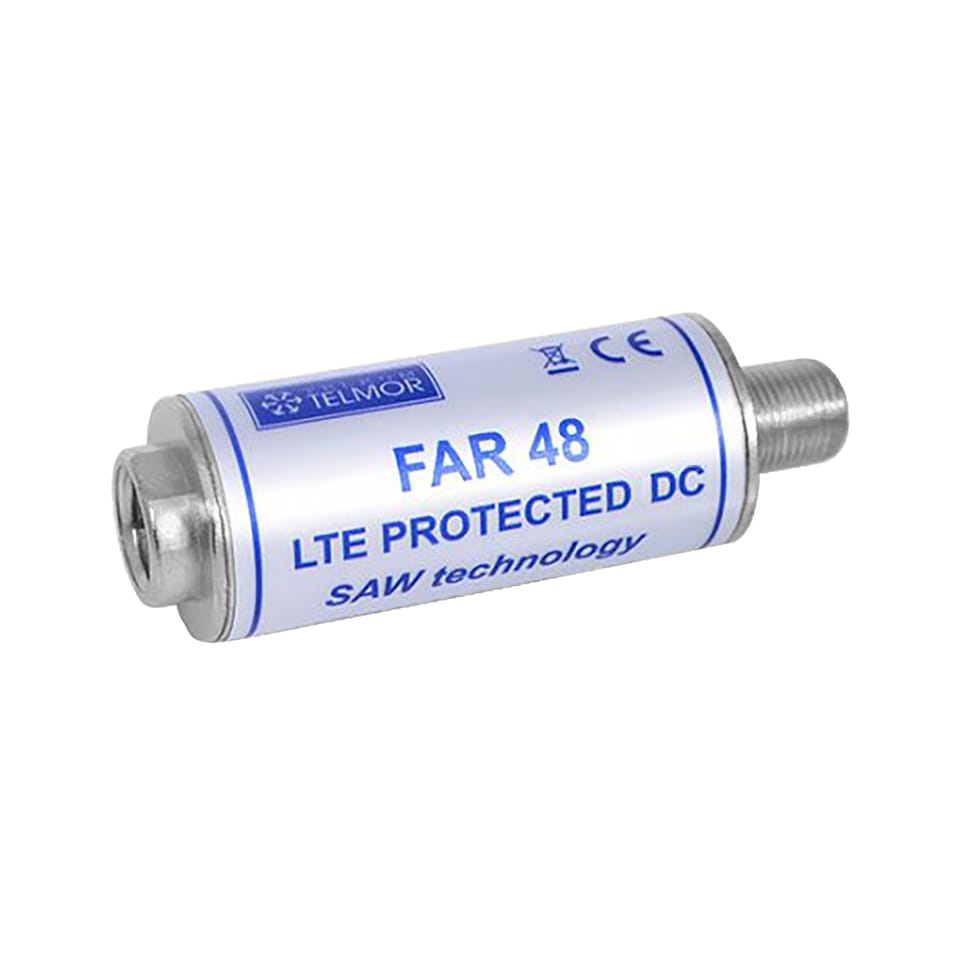

Filter 5G FAR 48 LTE SAW DC PASS LPF 686MHz Telkom Telmor

----------
Specifications
----------
Bandwidth frequency range: 47-694MHz
Attenuation in the pass band: 4 dB
Attenuation in the prohibitive band: >18 dB / 698-718 MHz; >26 dB / 718-725 MHz; >30 dB / 725-2600 MHz
DC Transition: Yes
Power Transmission FROM THE OUTPUT Side (Max.): 5-24V DC / 100mA
Input impedance: 75 Ohm
Output impedance: 75 Ohm
Input connector type: F socket
Output connector type: F plug
Operating temperature: -20~50 degrees Celsius
Dimensions: 64 mm (length) x 20 mm (diameter)
Weight: 0.045 kg


-----------
General
-----------
FAR 48 is an LTE low-pass filter designed to cut out interfering signals in the frequency range above 694 MHz, including LTE 700 and 5G signals. The filter carries signals in the frequency range of 47-694MHz, which corresponds to TV and radio channels with the following bands: FM, VHF, UHF.

The filter is designed for indoor use.

FAR 48 LTE PROTECTED DC PASS with DC voltage transition (possibility of powering antenna preamplifiers)
