FIBER OPTIC VIDEO CONVERTER OVH-1D/SC 1X VIDEO + RS-485 TXRX SET

€73.05
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
OVH-1D/SC / 5902887009433

Specification

Dimensions:108 x 121 x 28 mm
Leds:LED indicators displaying the operating status of the device
Number of fibres:1 pc
Number of video channels:1 pc - AHD / HD-CVI / HD-TVI / PAL
Operating temperature:-40 °C ... 75 °C
Optical wavelength:1310 / 1550 nm
Permissible relative ambient humidity:0 % ... 95 % (non-condensing)

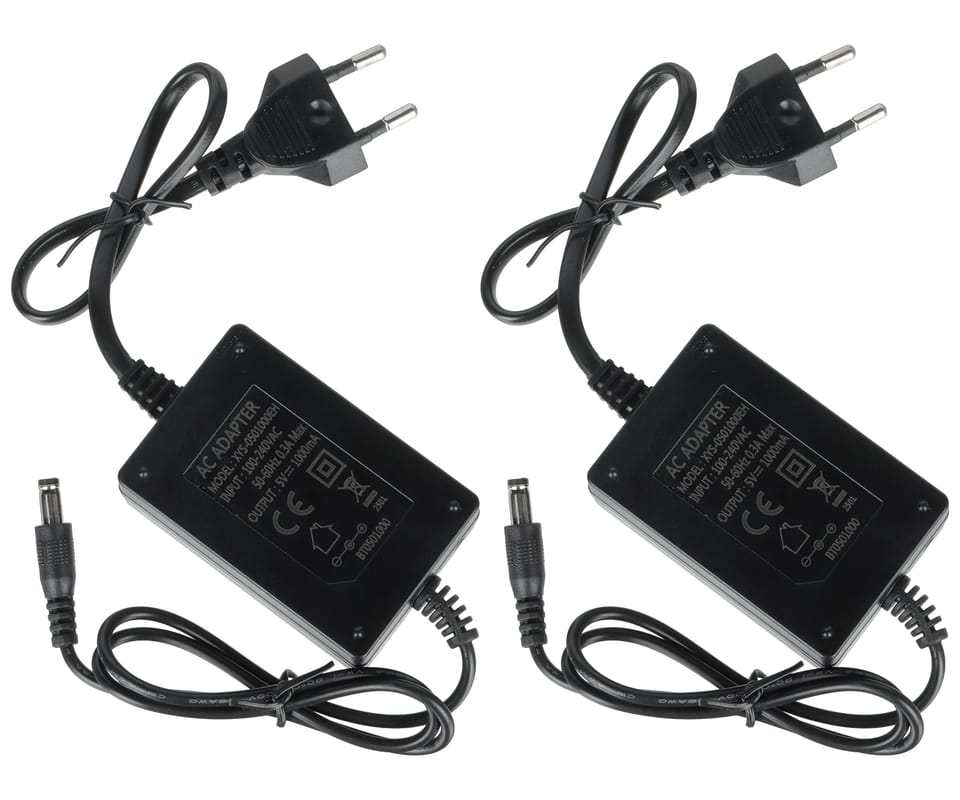

Power:5 V DC / 1.0 A (power adapter included)
Recommended fiber:Single-mode fiber
Rs-485 signal:unidirectional RS-485Connectors 1 (+), 2 (-) - terminal block
Scales:0.234 kg
Standard:AHD / HD-CVI / HD-TVI / PAL
Supported resolutions:.max. 1920 x 1080 - 1080p
Transmission range:20 km - Single-mode fiber
Type of optical connector:SC
Video band:0 MHz ... 50 MHz
Video connector type:BNC
Video input voltage / impedance:1 VDP / 75 Ω
Video resolution:8 bit
Warranty:2 years

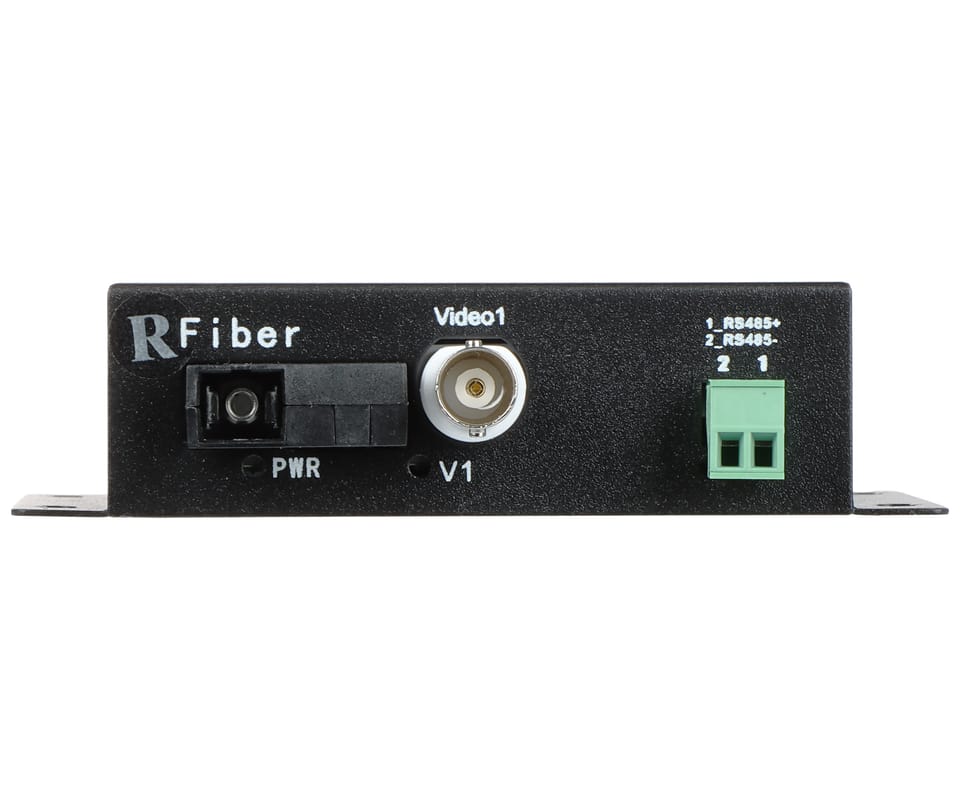

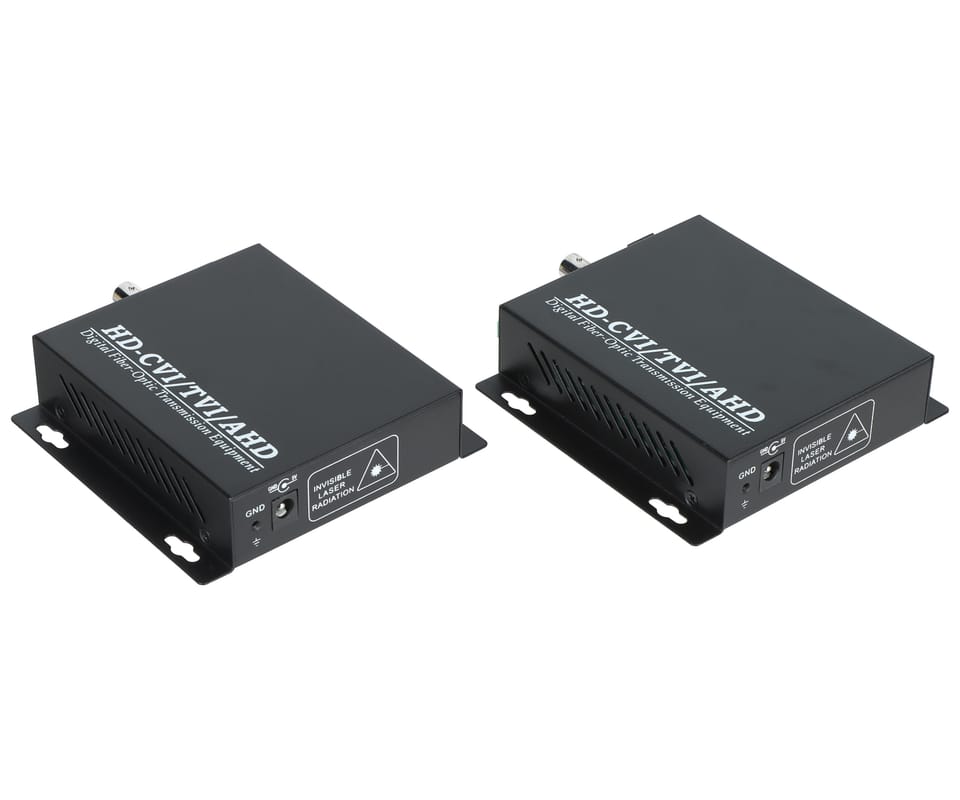

OVH-1D/SC allows you to transmit video channels and RS-485 telemetry channel over a single single-mode fiber over a distance of up to 20 kmEquipped with SC connector for reliable connections

It works with AHD, HD-CVI, HD-TVI, PAL video standards and provides high-quality real-time image transmission over a distance of up to 20 km, which is much greater than offered by standard transmission mediaThe set of transmitter and receiver provides the highest image quality and the ability to send RS-485 data from the receiver to the transmitter, allowing you to control PTZ cameras

Remark! The device does not transfer control over a signal cable (e.g. OSD, PTZ, etc.)

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
