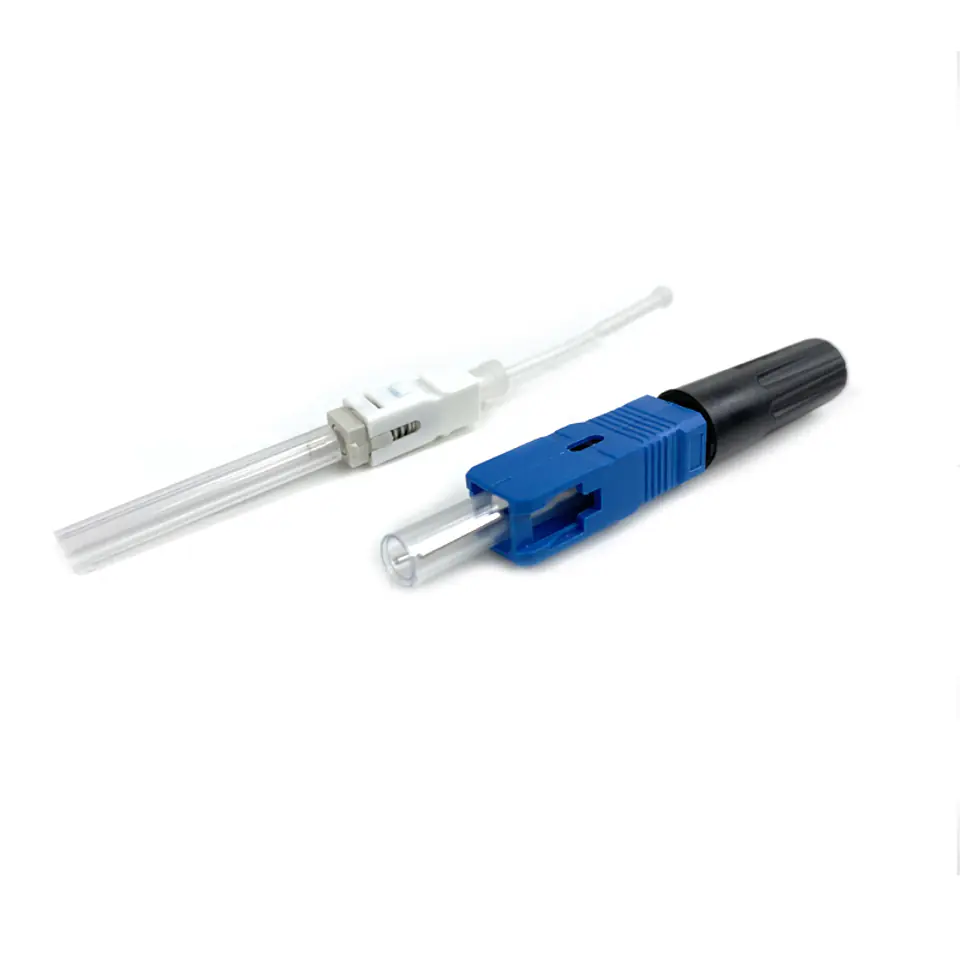

Fiber optic quick coupler FFC-SC/UPC-S05, 10 pieces
The high-quality FFC-SC/UPC-S05 Fast Connector allows you to terminate a single-mode fiber optic cable with a diameter of up to 3 mm. Requires the use of a fiber optic welding machine.
- type of optical fiber: single-mode,
- fiber diameter 125 μm (657A & 657B),
- coating diameter 250 μm,
- cable diameter up to 3 mm,
- connector length 53 mm,
- operating temperature -40~+85°C,
- IL (1310 nm & 1550 nm): ≤0.20 dB (dia), ≤0.40 dB (max.),
- RL: ≥50 dB,

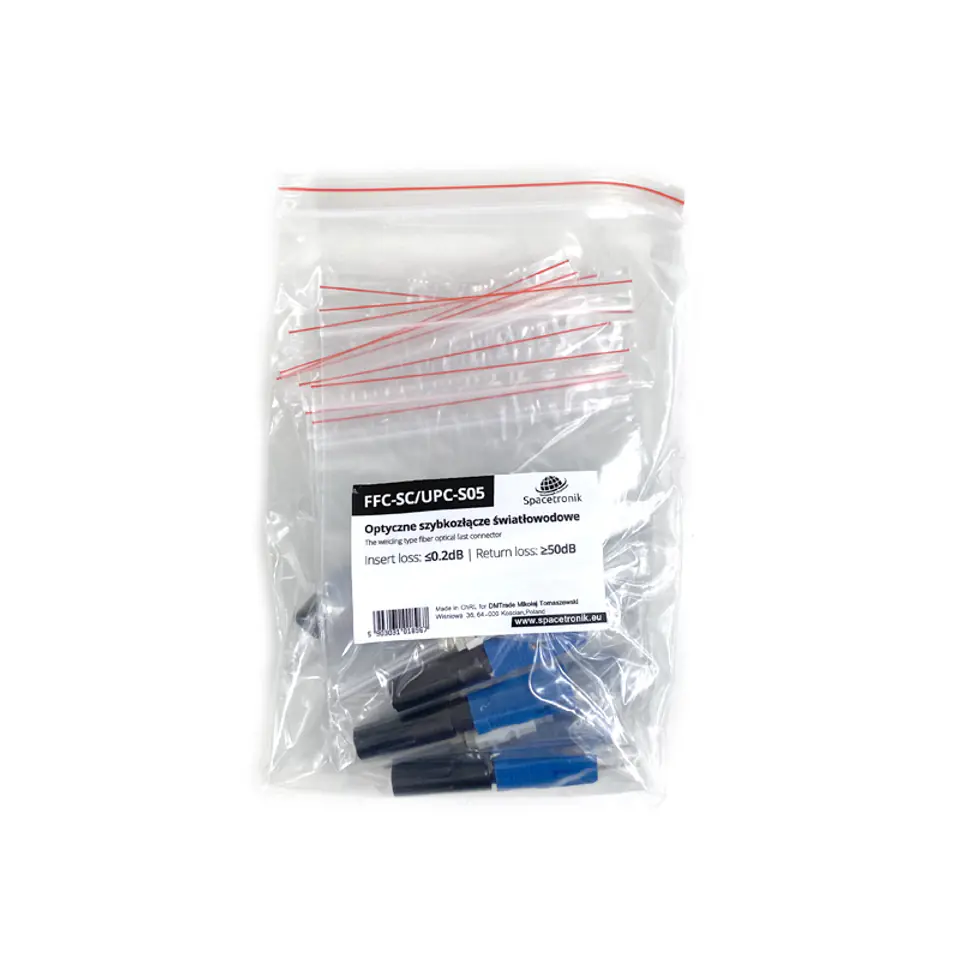

- the package contains 10 pcs.
