Spacetronik SP-58C Fiber Optic Connector Earning Kit

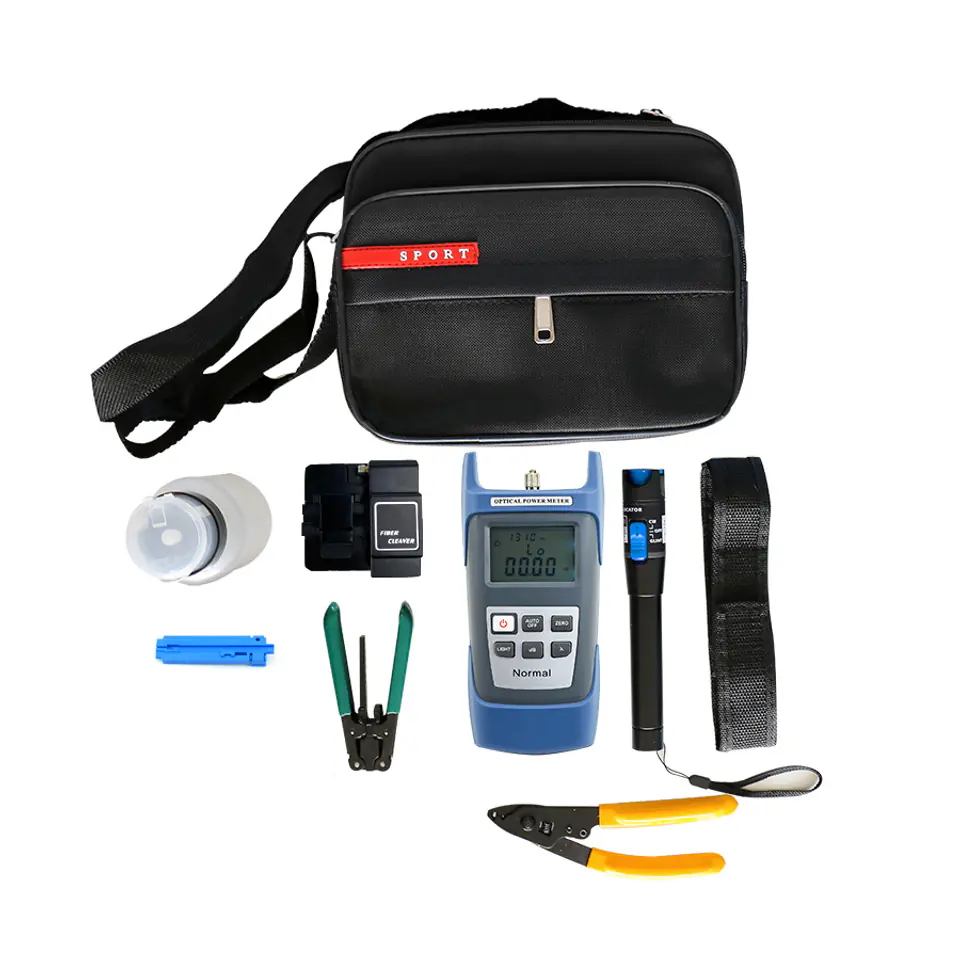

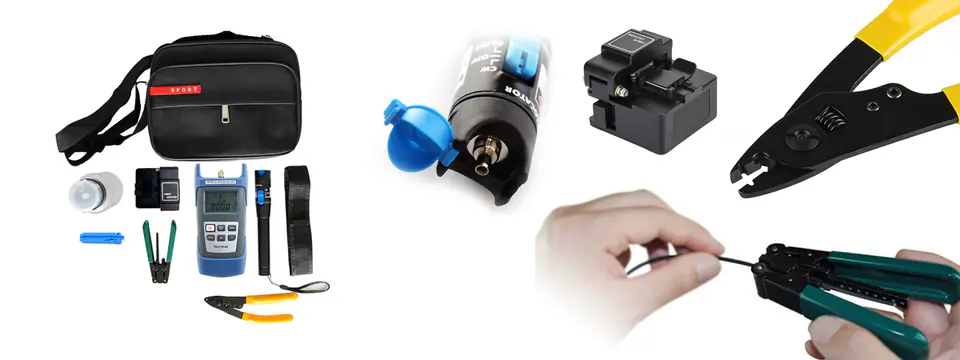

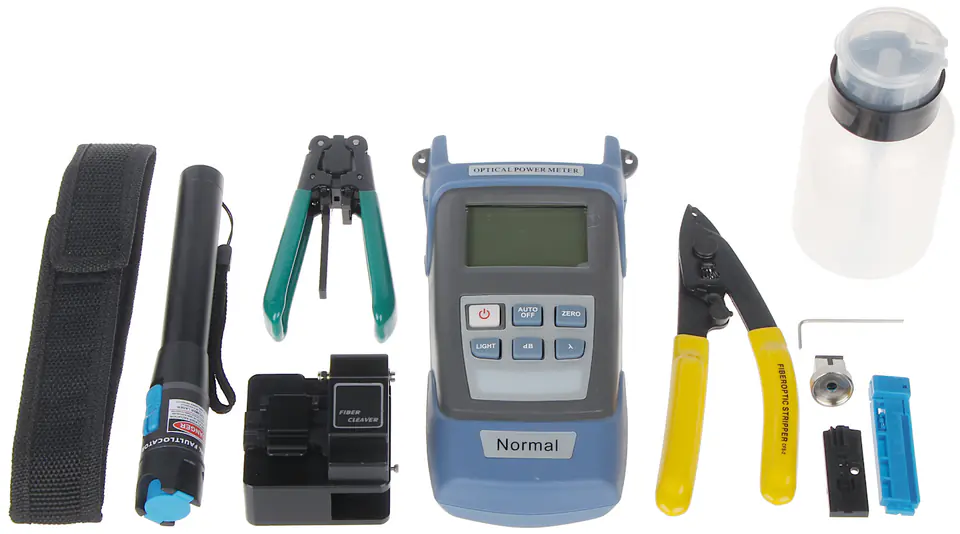

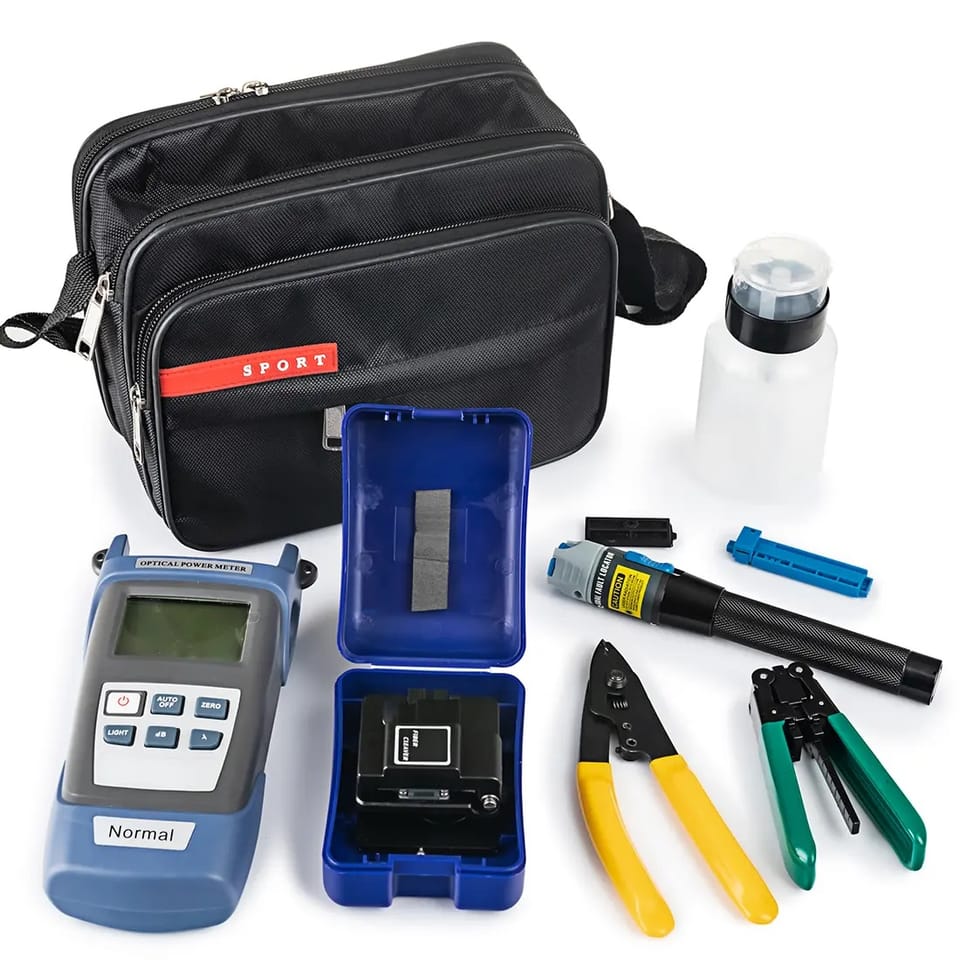

A set of necessary tools and accessories for processing optical fibers before making a weld and checking their quality. The product consists of 8 elements that are necessary equipment when building fiber optic networks.

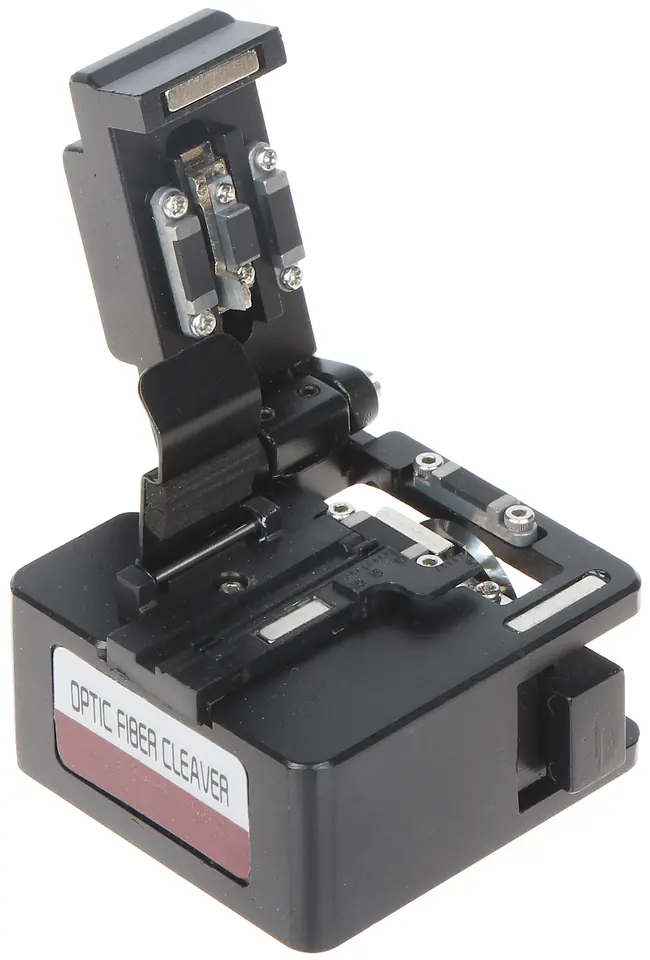

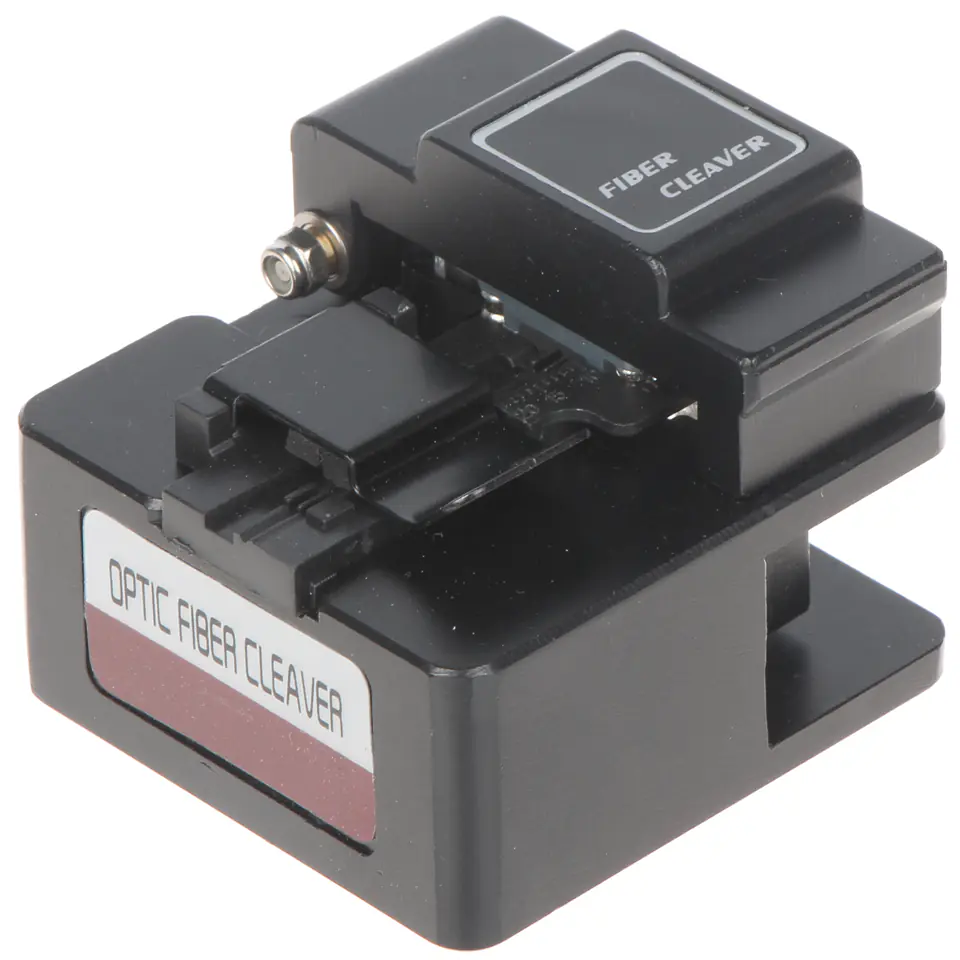

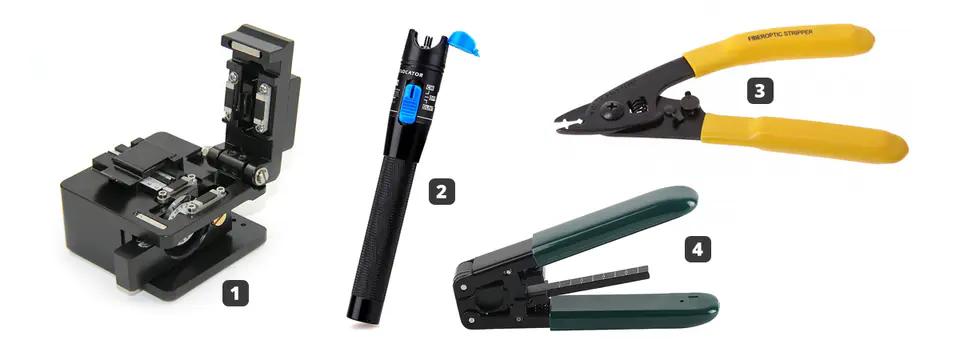

Spacetronik SP-FC-03 is a precision cutter for optical fibers. It provides accurate cutting of fibers at an angle of 90° with an accuracy of +/- 0.5 degrees. The rotary and replaceable knife has several cutting positions, thanks to which it is possible to make approx. 48,000 fiber cuts. After closing the main cover, move the blade and cut the fiber. After opening the lid, the knife will automatically return to its initial place.
- angular accuracy of cutting: ≤ 0.5 degrees
- blade life: approx. 48 thousand cuts
- dimensions: 60 mm x 57 mm x 46 mm
- Cutting length: 9~16mm(.25) / 10~16mm(0.9)
- weight 370 g
- included with a case

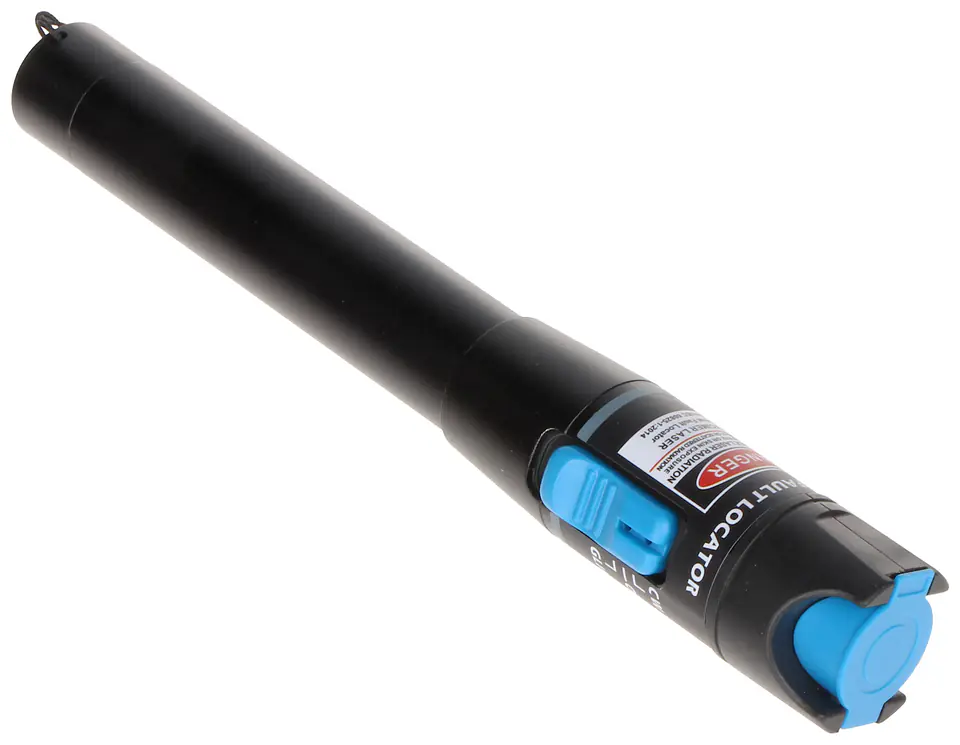

One of the basic tools when working with optical fibers. The visual fault locator allows you to ensure continuity and diagnose problems with fiber optic wiring, such as interruption, crack, fiber bend, bad welds, too small loops, accurately indicating the place of abnormalities. The device generates visible light with a wavelength of 650nm. The laser beam with a power of 1mW allows you to check the fiber optic section with a maximum length of 5km. The shape of the locator resembles a small flashlight, making it handy and convenient to use.
- wavelength: 650 nm
- output power: 1 mW
- max. length of the tested section: 5 km
- two operating modes: CW (fixed mode) or 2Hz modulation (pulse mode)
- universal connector
- power supply 2x AA battery
- battery life: >40 h
- temp. operating: from 0 to +60 deg.C
- dimensions: 175 mm x 26 mm x 26 mm

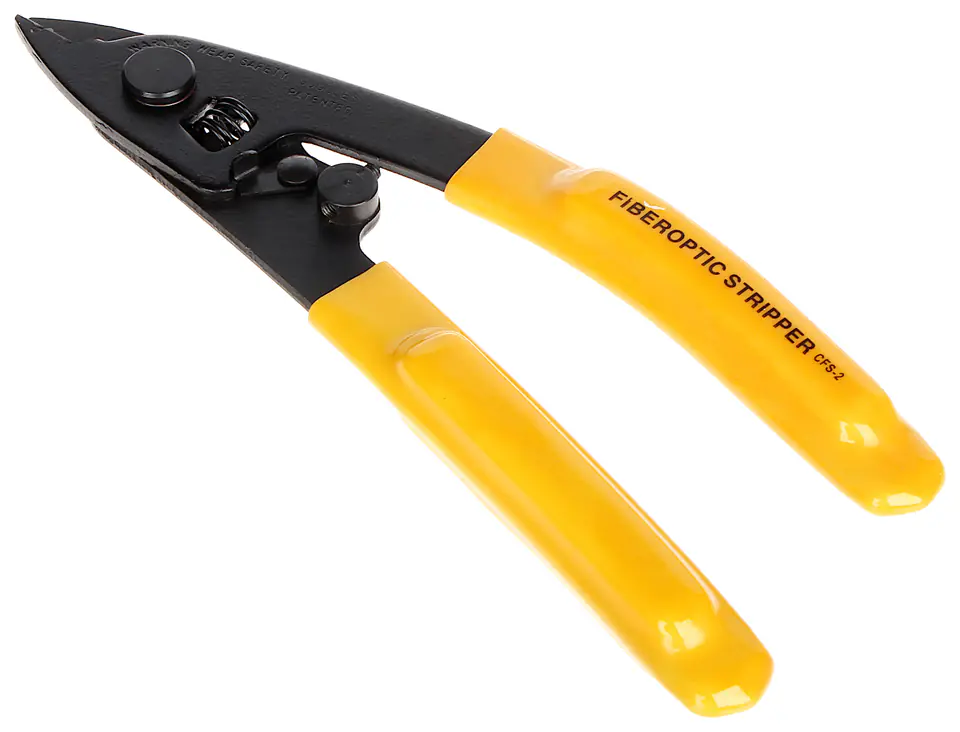

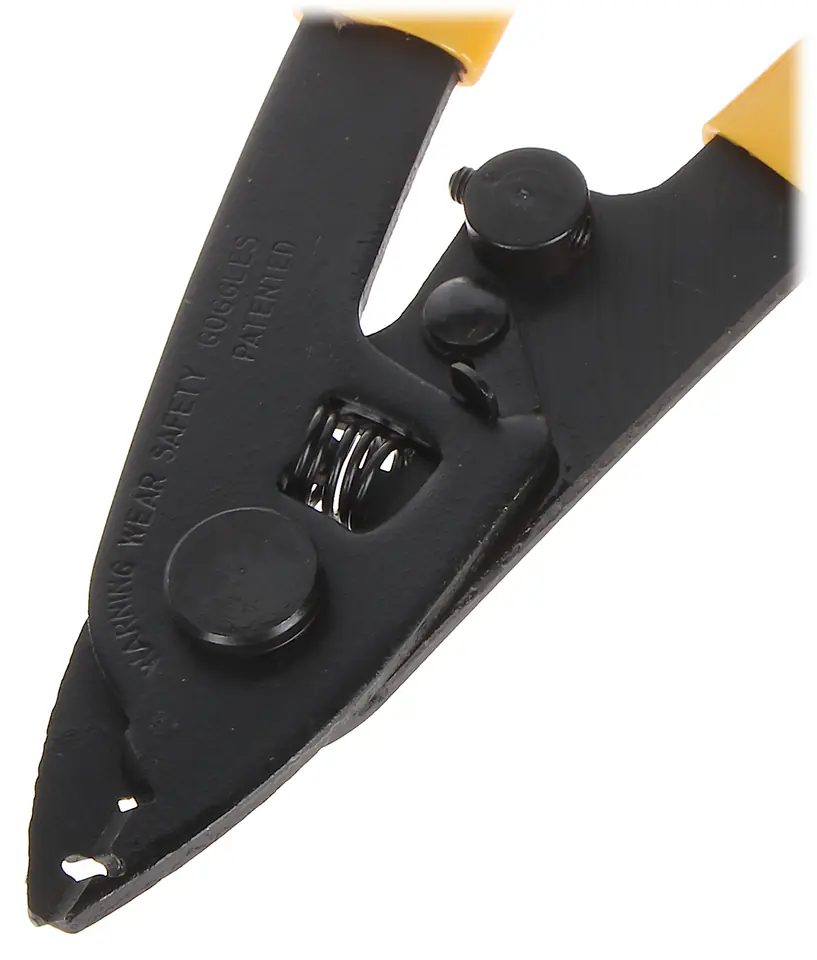

Fiber optic stripper equipped with 2 holes. The first for removing the buffer from fibers with a diameter of 250μm to 125μm, the second for a diameter of 2-3 mm, thanks to which it is possible to cut the jacket or tube of the cable. Thanks to the precise execution of the astringent surfaces, the tool thoroughly removes coatings, without causing damage and scratches on the optical fibers. Ergonomic design translates into comfort during use. The stripper has been equipped with a blade locking mechanism, which allows you to prevent self-opening, e.g. during transport.
- hole for pulling the jacket from fibers with a diameter of 250μm to 125μm
- additional hole for removing the coating with a diameter of 1.98 mm (for jacket / tube 2-3 mm)
- light and handy
- blade locking mechanism
- ergonomic shape
- tool length 165 mm

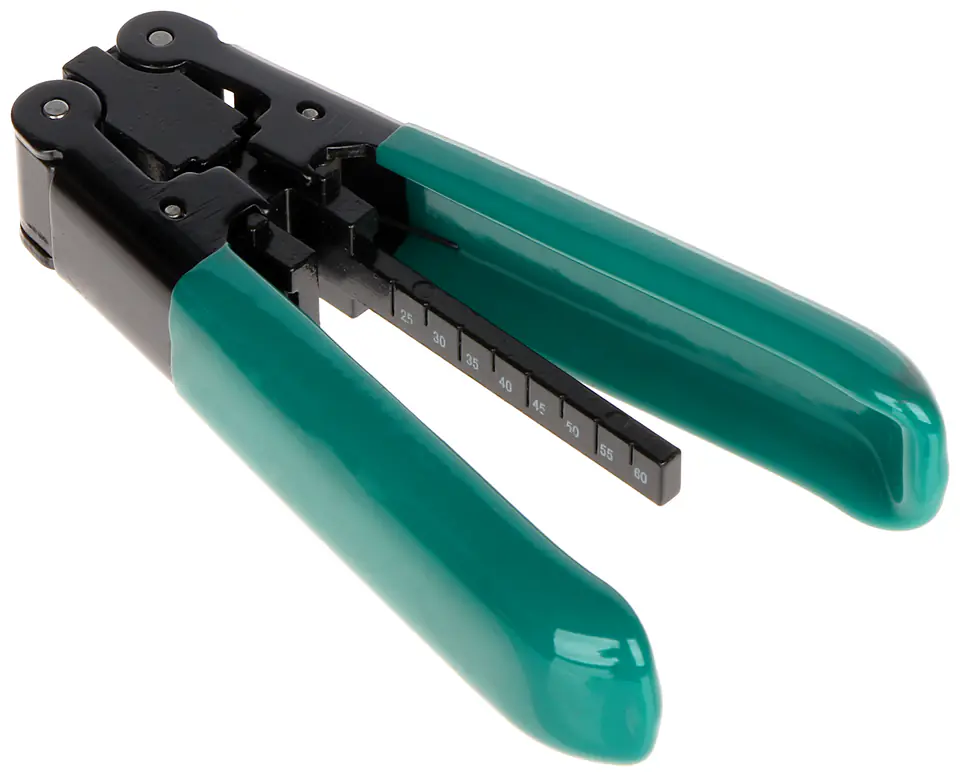

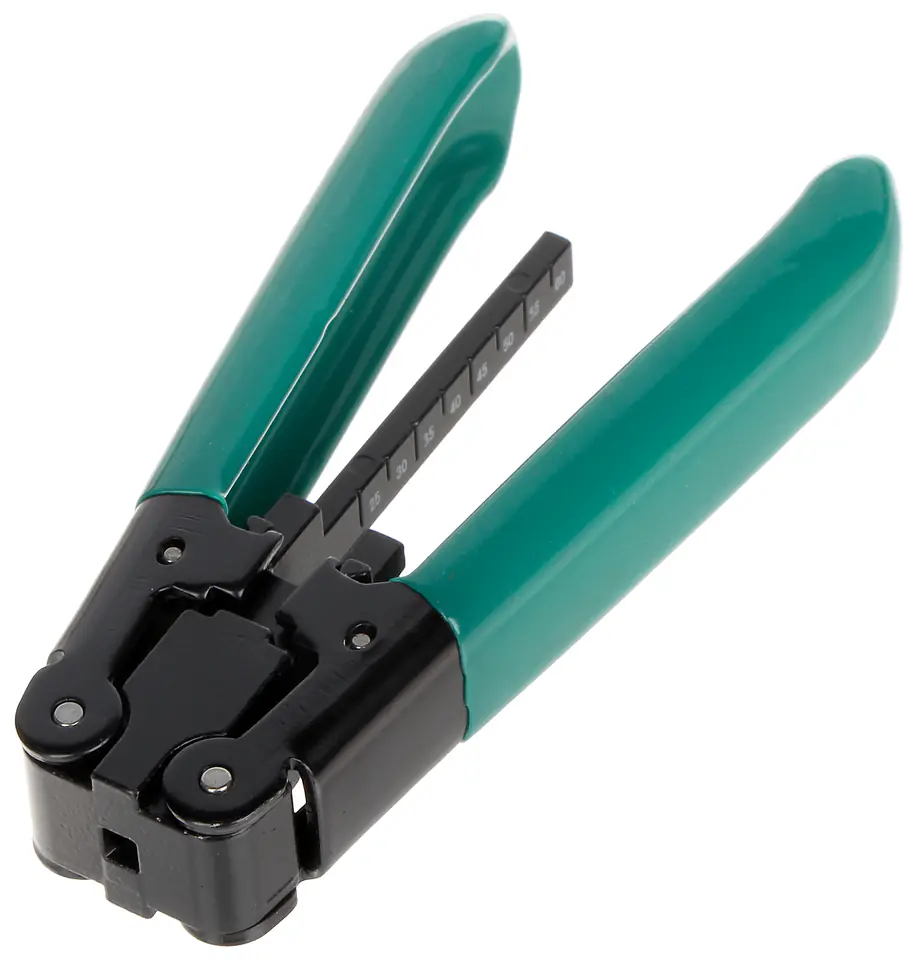

This high-quality tool is designed to remove insulations from fiber optic flat subscriber cables that do not exceed a diameter of 2.0mm x 3.1mm. The built-in measuring tape will allow you to measure the length of the striped insulation.
- for fibers with a diameter of 125μm
- for "indoor" cables with a diameter of not more than 3.1mm x 2.0mm
- made of reinforced plastic + metal core
- made of galvanized alloy steel with PVC non-slip handle

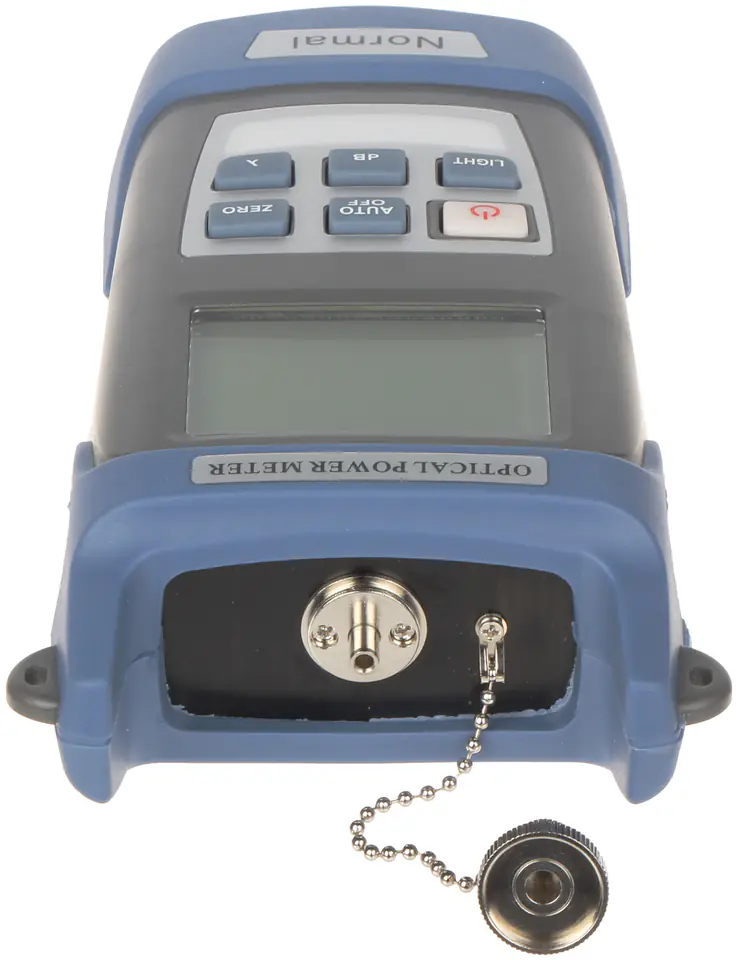

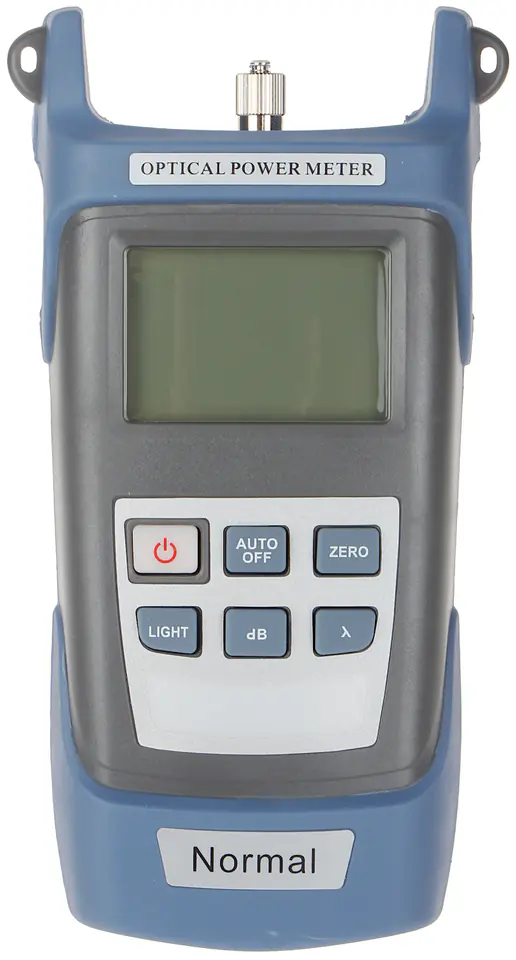

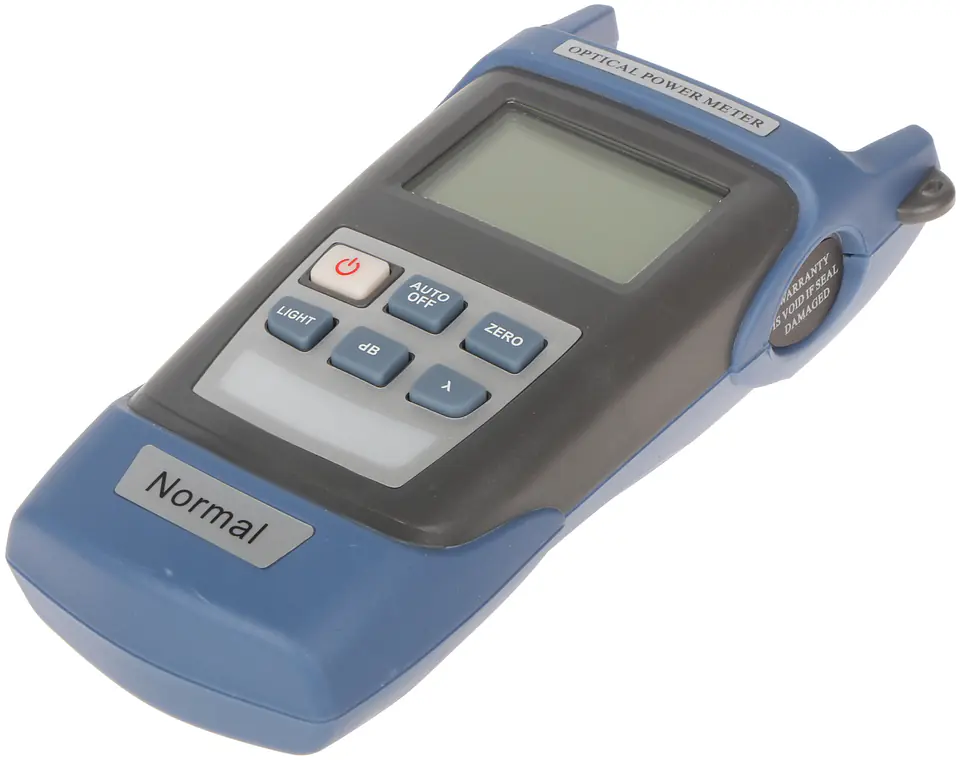

The device can carry out measurements of optical power in the range of 800-1700nm. It has six pre-calibrated wavelengths for measurement: 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625nm, 1650 nm. The optical power meter allows you to carry out absolute (absolute) and relative (relative) measurements. The meter has 3 adapters for optical fibers (pigtail): FC, SC, ST.
- measuring range: -70 to about + 3 dBm (with an accuracy of ±5%)
- wave measurement: 850 nm 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, 1650 nm
- detector type: InGaAs
- operating temperature: -10 to +60 degrees Celsius
- storage temperature: -30 to +70 degrees Celsius
- connection types: FC / SC / ST
- power supply: 3x AAA battery
- working time: >120 hours, without LCD backlight
- weight 240 g

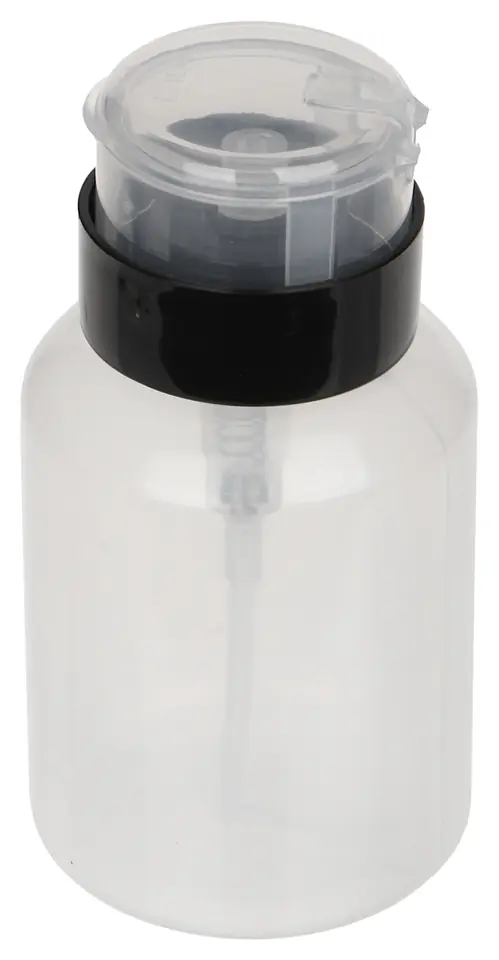

Designed to dispense adequate amounts of alcohol during degreasing and cleaning of optical fibers. SP-BA01 effectively facilitates the use of alcohol and prevents its excessive wear when working with optical fibers. Made of special plastic resistant to concentrated alcohol. The container has a lid that prevents leaks during transport.
Designed for 250/900um optical fibers.

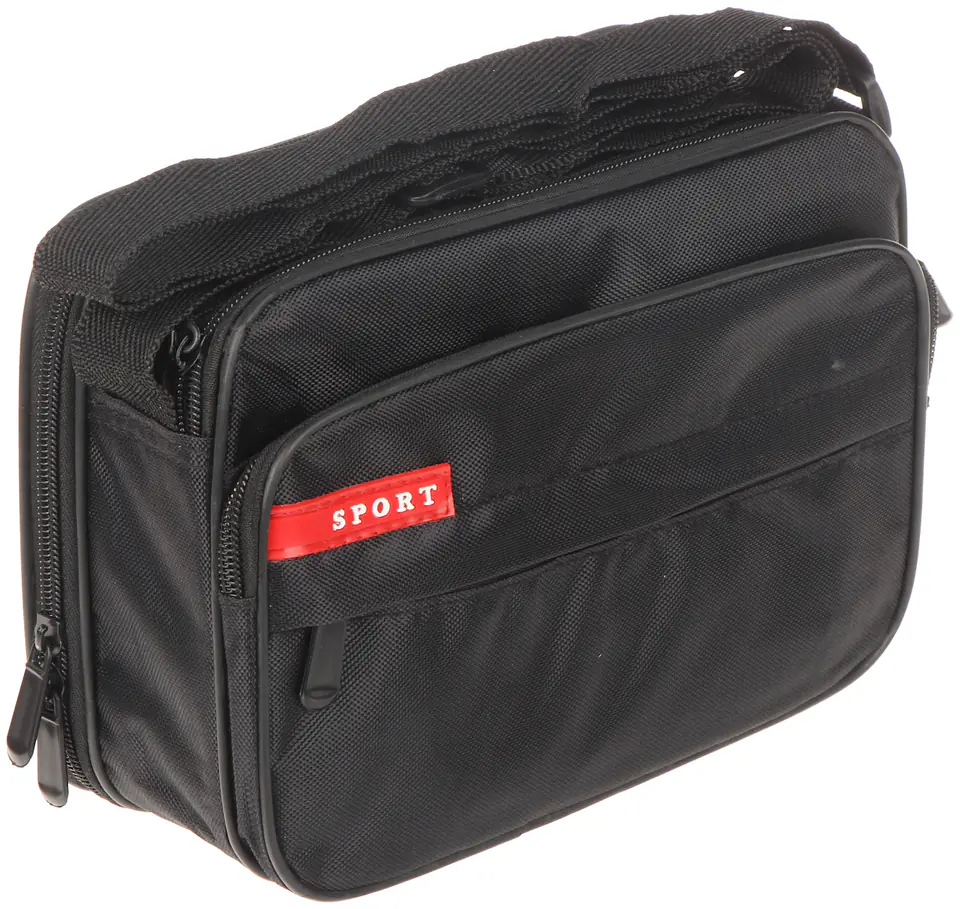

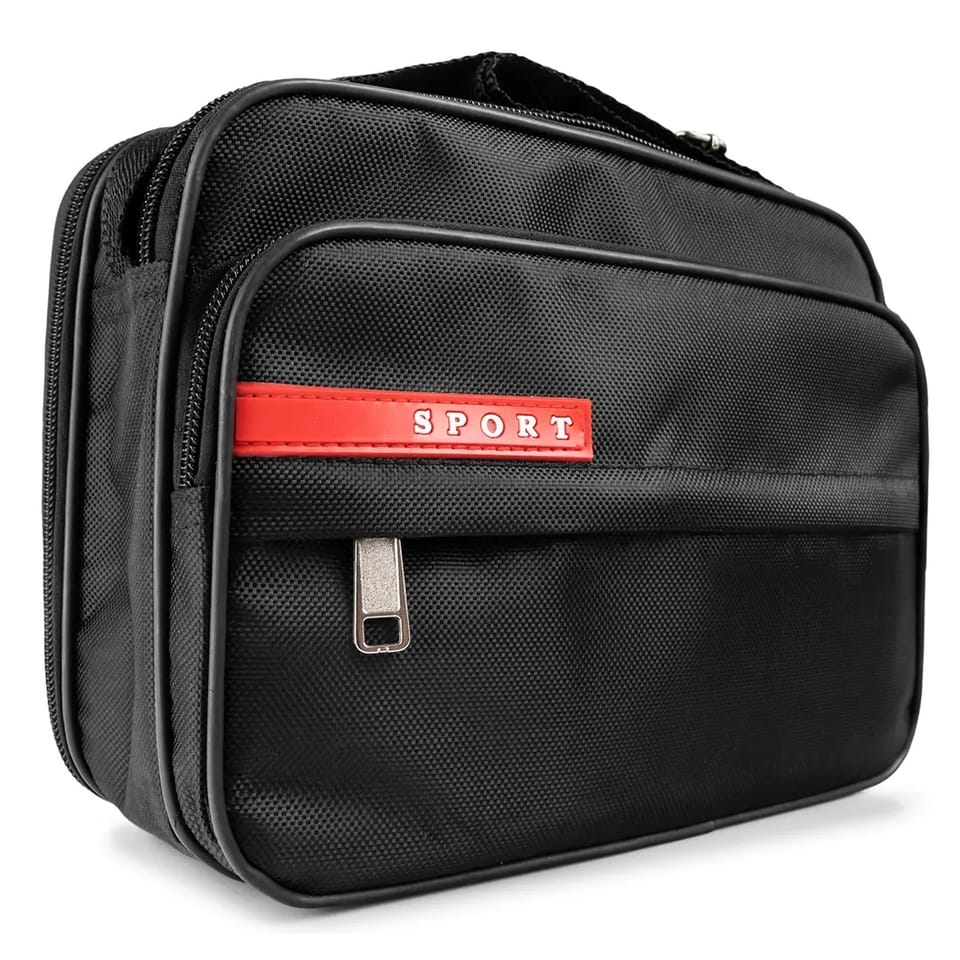

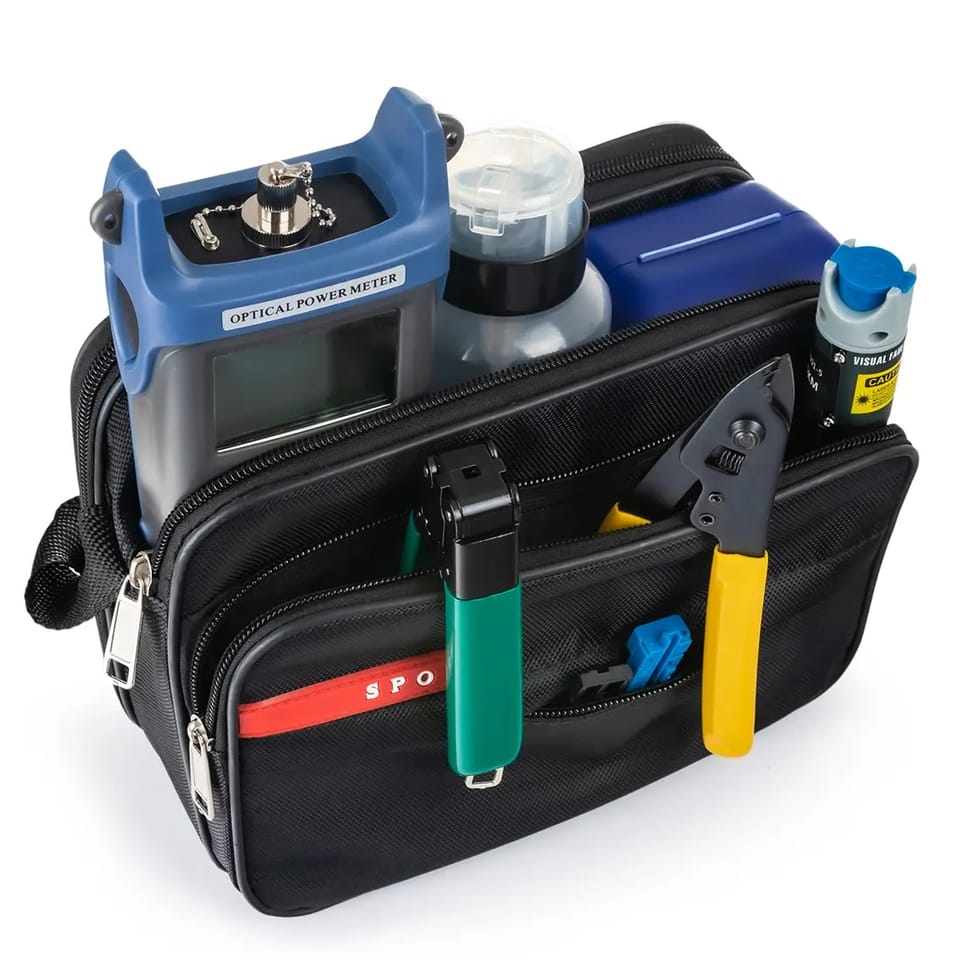

High quality tool transport bag. Comes with a shoulder strap. It has 3 zippered compartments.
