Specifications:
Brand: Vorel
Symbol: 15130
Series: GRD
Material: stainless steel
Application: clearance measurement during valve setting|slot measurement in spark plugs of internal combustion engines
Leaf thickness:
0.05|0.10|0.15|0.20|0.25|0.30|0.40|0.50|0.60|0.70|0.80|0.90|1.0 mm
Leaf length: 99.8 mm
Blade width: 10.2 mm
Number of blades: 13

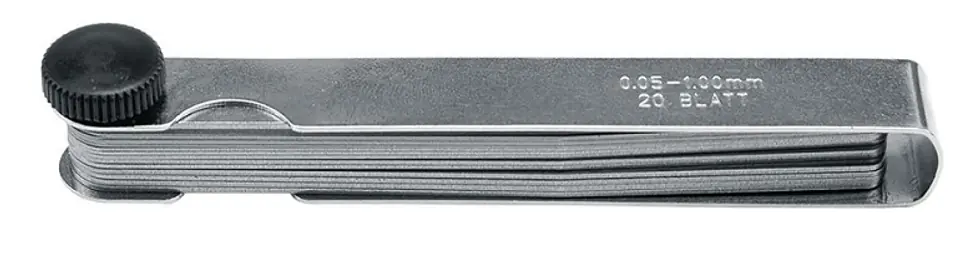

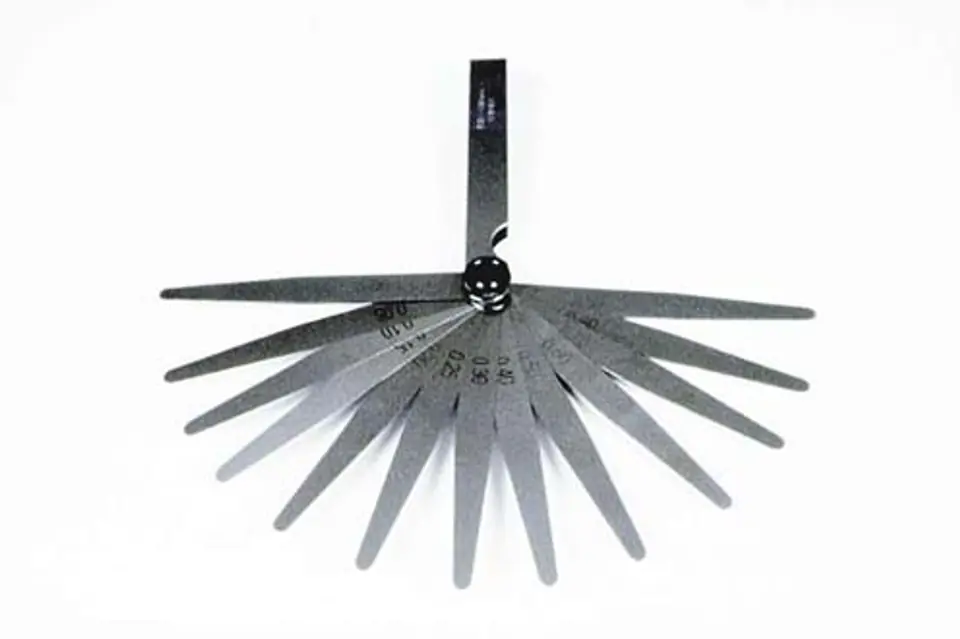

The feeler gauge consists of a metal housing and 13 strips of different thicknesses, made of special stainless steel.
The dimensions of steel leaves are 10.2 x 99.8 mm.
Range thicknessand from 0.05-1 mm.
Feeler gauge for measuring the size of gaps/gaps between elements.
Most often used to measure the clearance when setting valves and the gap in the spark plugs of internal combustion engines
**
FEELER GAUGE 13 LEAVES
€1.56
Shipping from warehouse: U1
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 5906083151309
Share this product:
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
