Technical parameters:
- Dimensions: 80 x 80 x 25 mm
- Power supply: 230VAC
- Air flow: 28.9m³/hr
- Current: 0.08A
- Speed: 2300rpm
- Noise level (at 1m): 30dB
- Weight: 230g
- Operating temperature: -20°C ~ +80°C

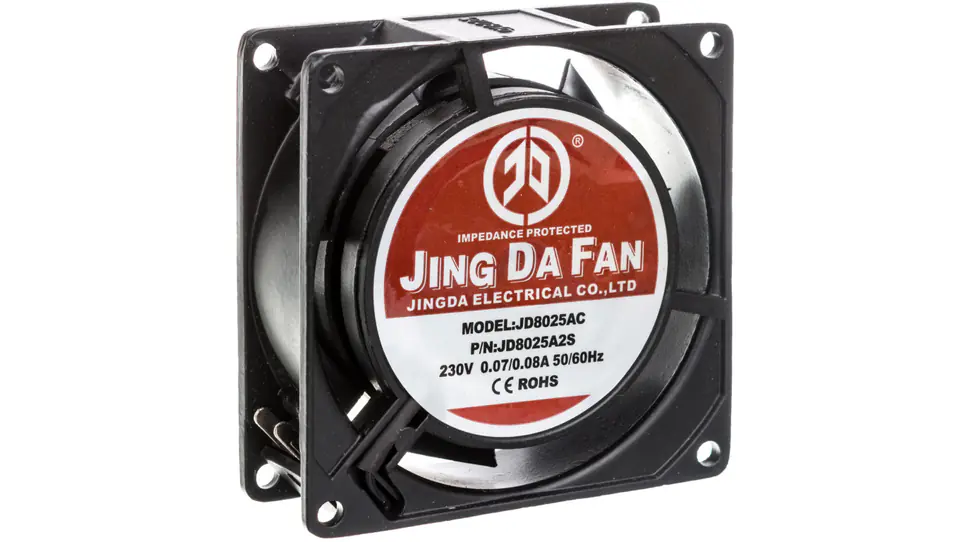

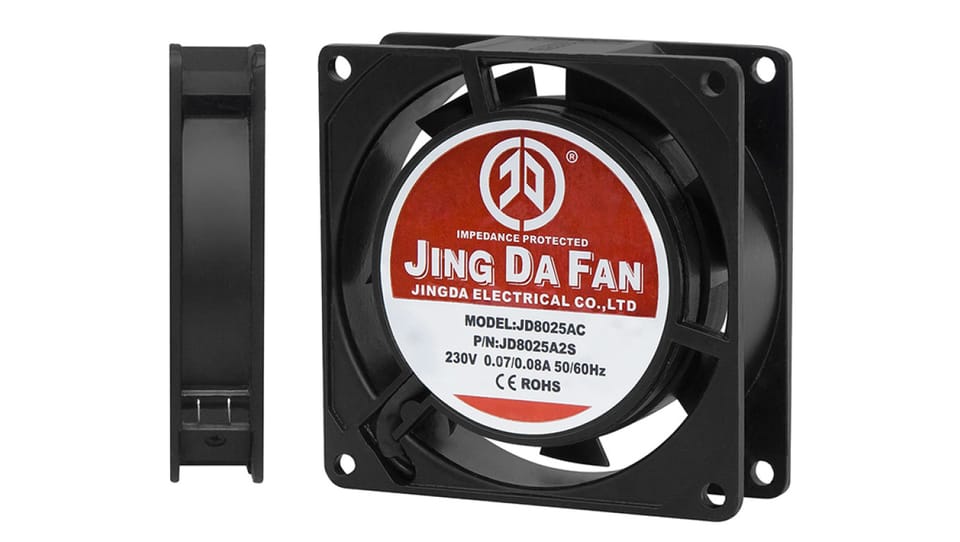

Fan 80x80x25mm 230V plain bearing TERMINAL 85-810
€7.07
Shipping from warehouse: P2
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Prolech
- Product code:
- 85-810 / 5900804079149
Share this product:
Specification
| Depth [mm]: | 25 |
|---|---|
| Designed in accordance with the emc electromagnetic compatibility directive: | No |
| For 19-inch rack mounting: | No |
| Forced air circulation: | No |
| Height [mm]: | 80 |
| Mortise fan: | No |
| Mounting method: | Screw mount |
| Number of fans: | 1 |
| Operating voltage for ac 50 hz [v] up to: | 230 |
| Operating voltage for ac 60 hz [v] up to: | 230 |
| Rated power [w]: | 12 |
| Recessed wall mounting: | No |
| Roof fan: | No |
| Voltage type: | AC |
| Width [mm]: | 80 |
| With filter: | No |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
