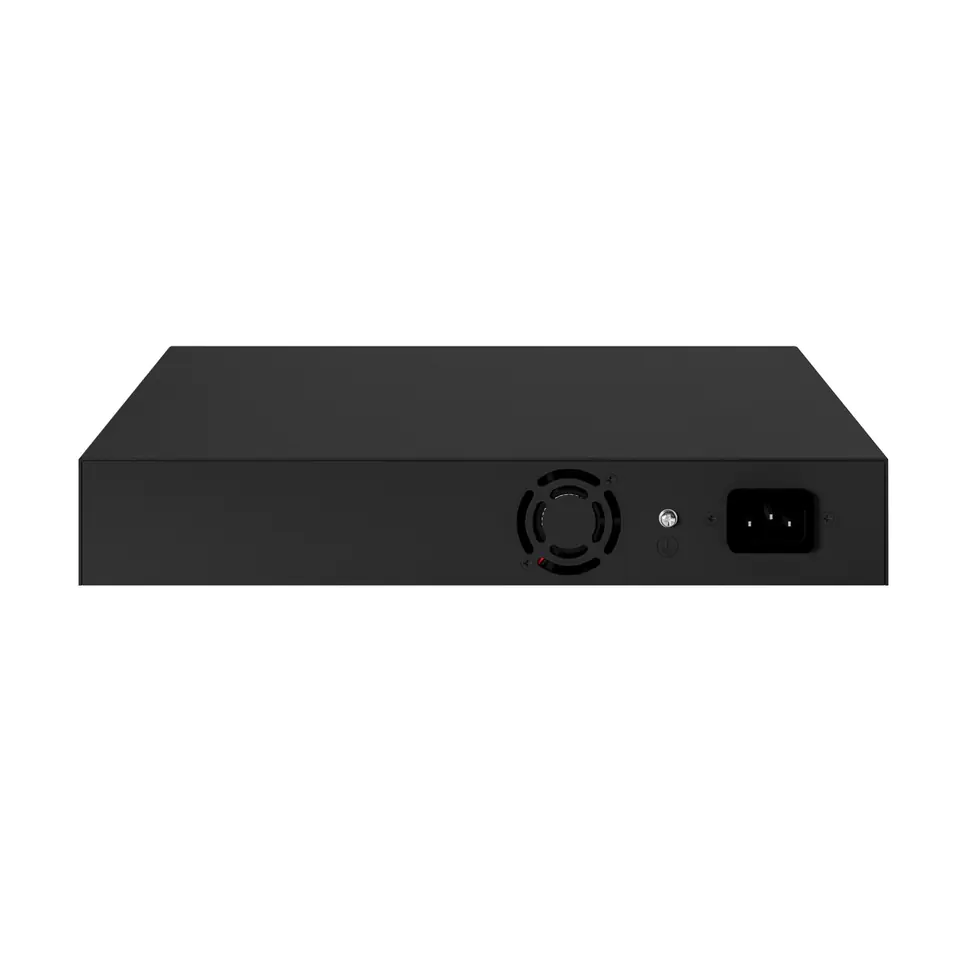

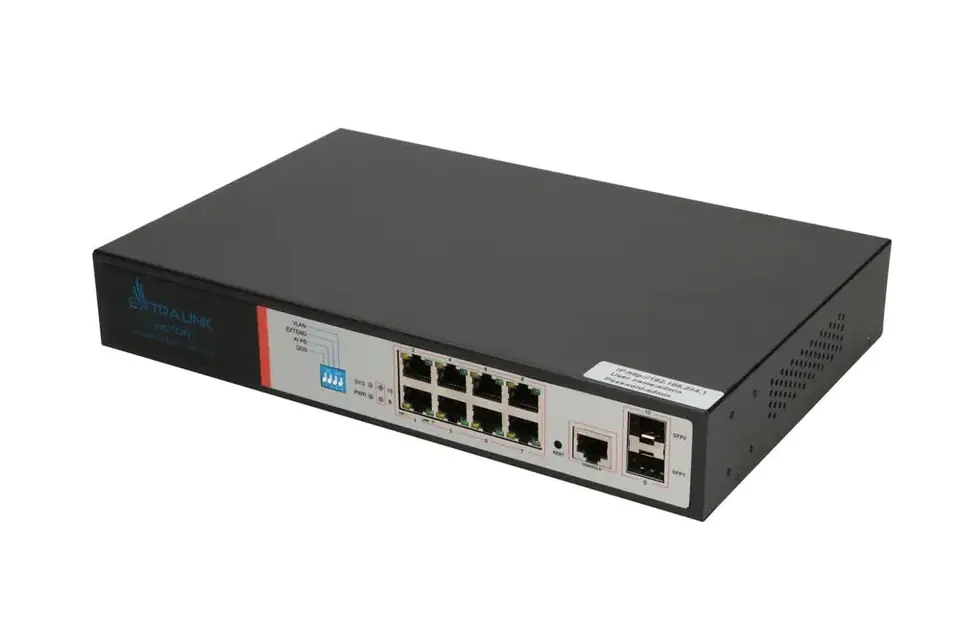

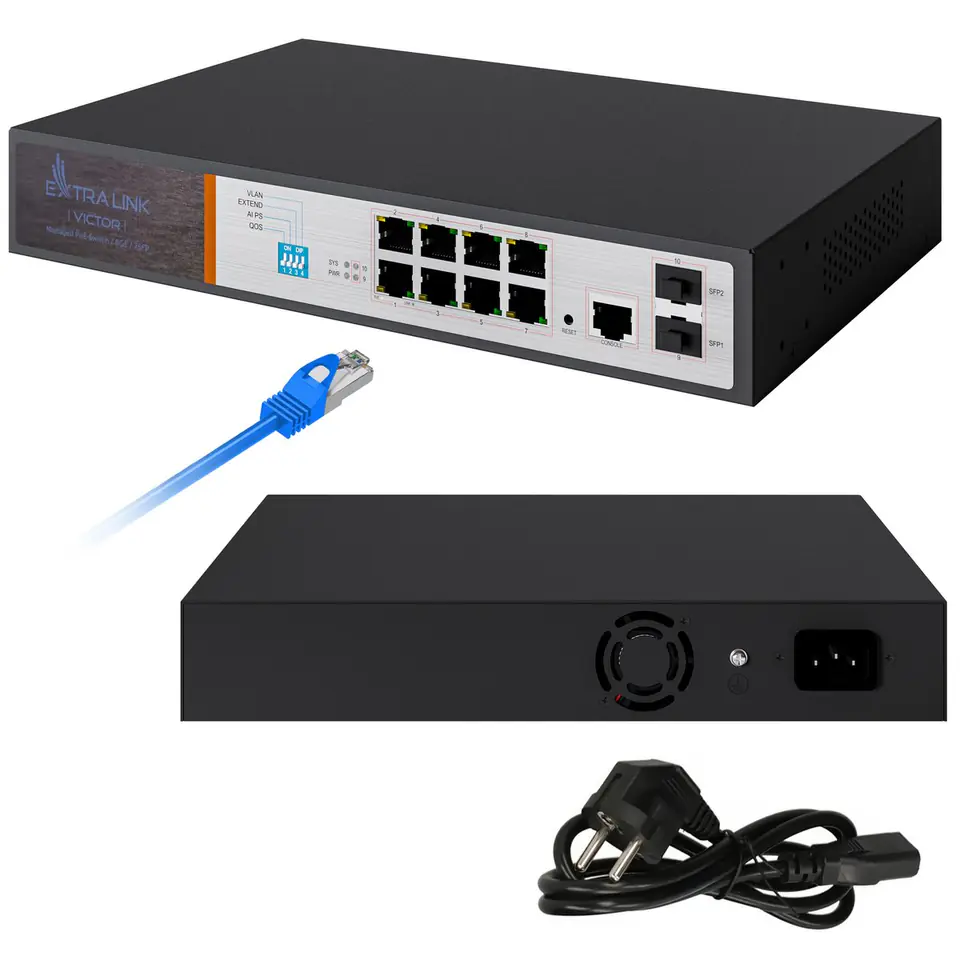

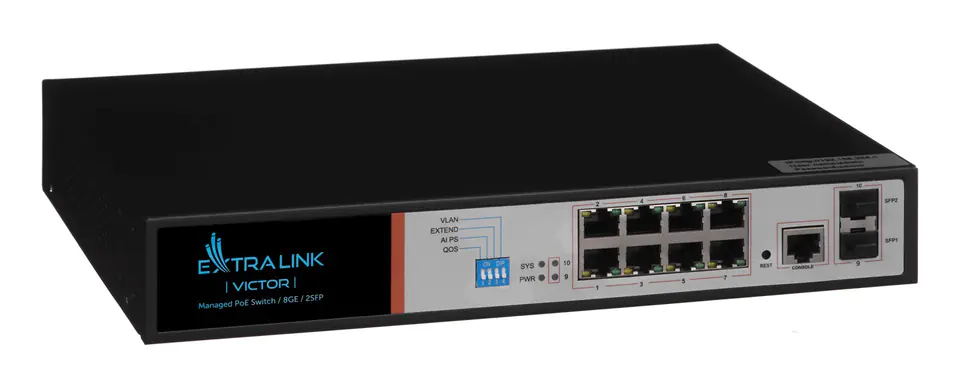

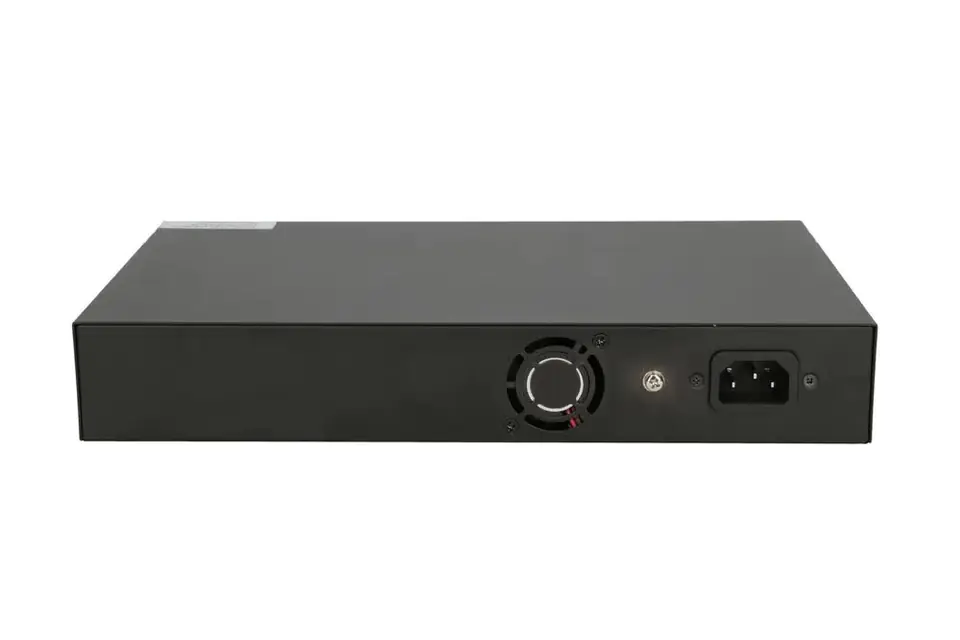

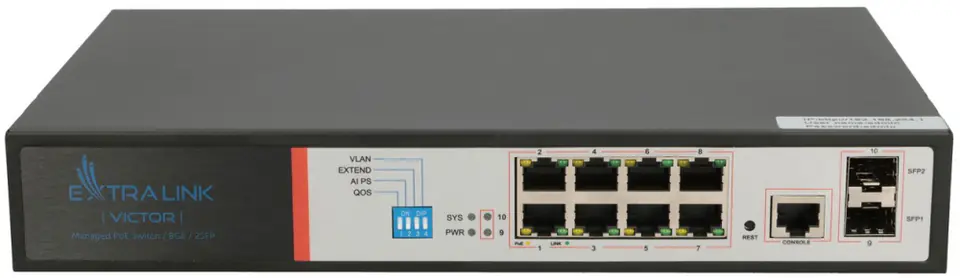

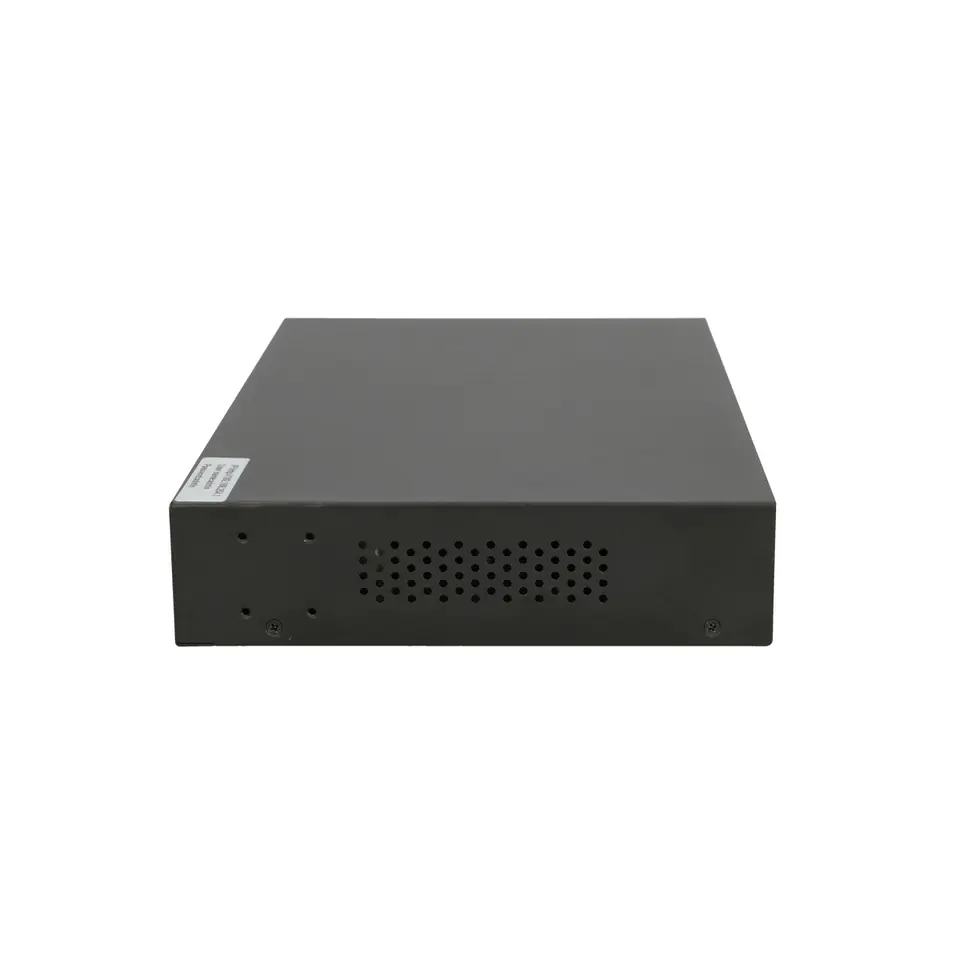

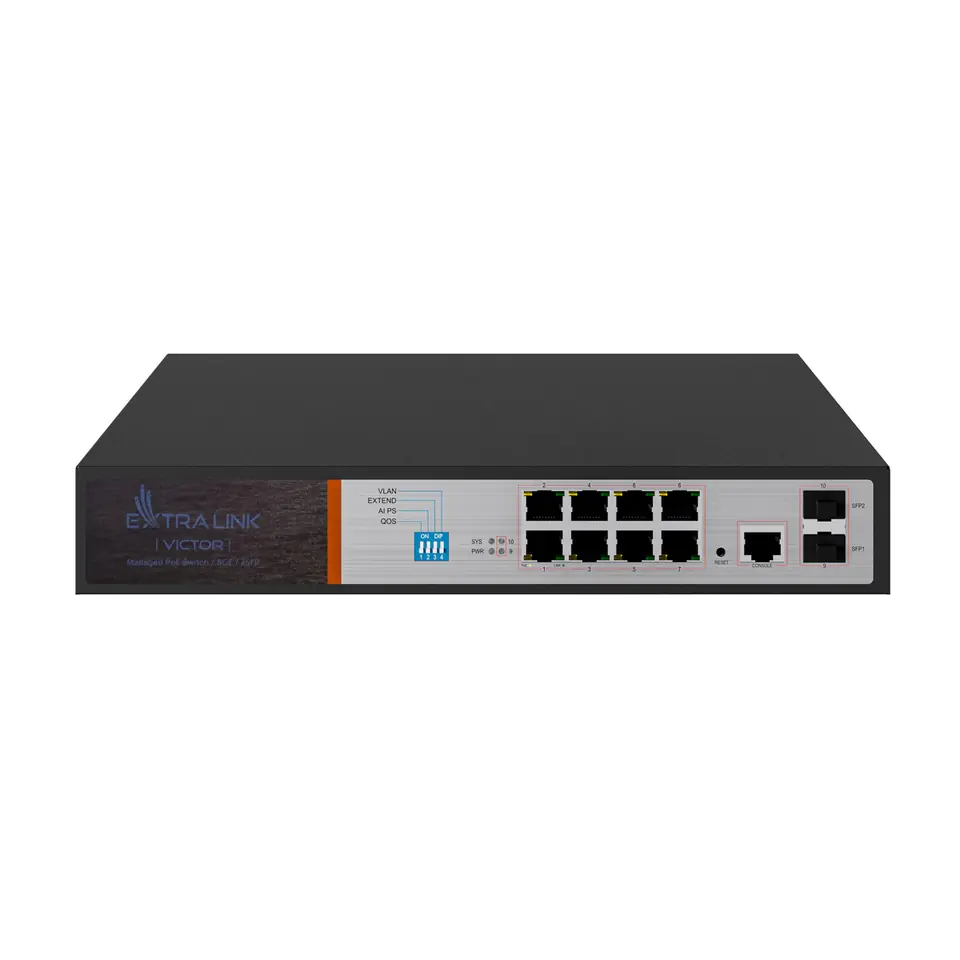

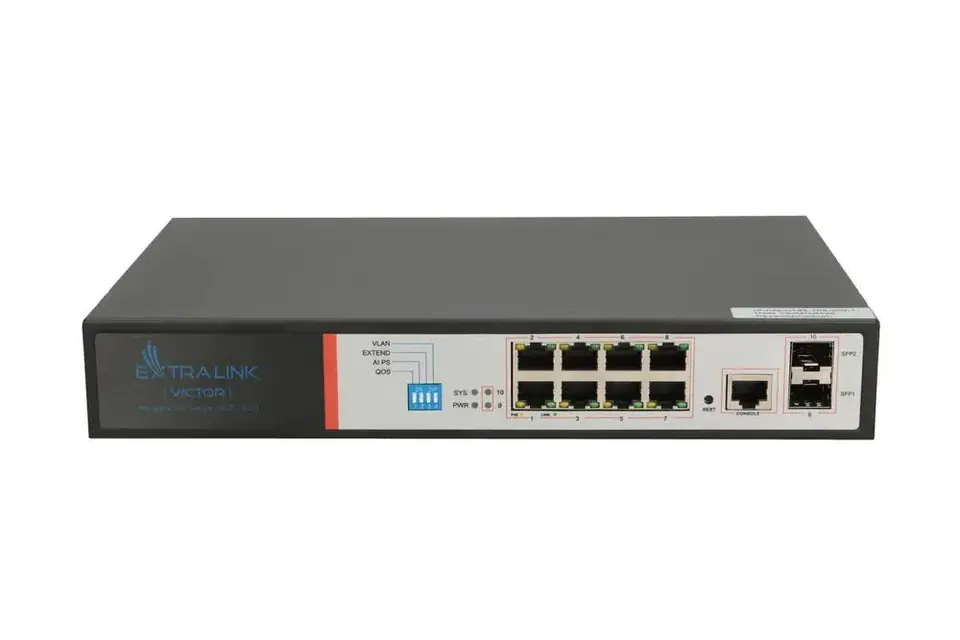

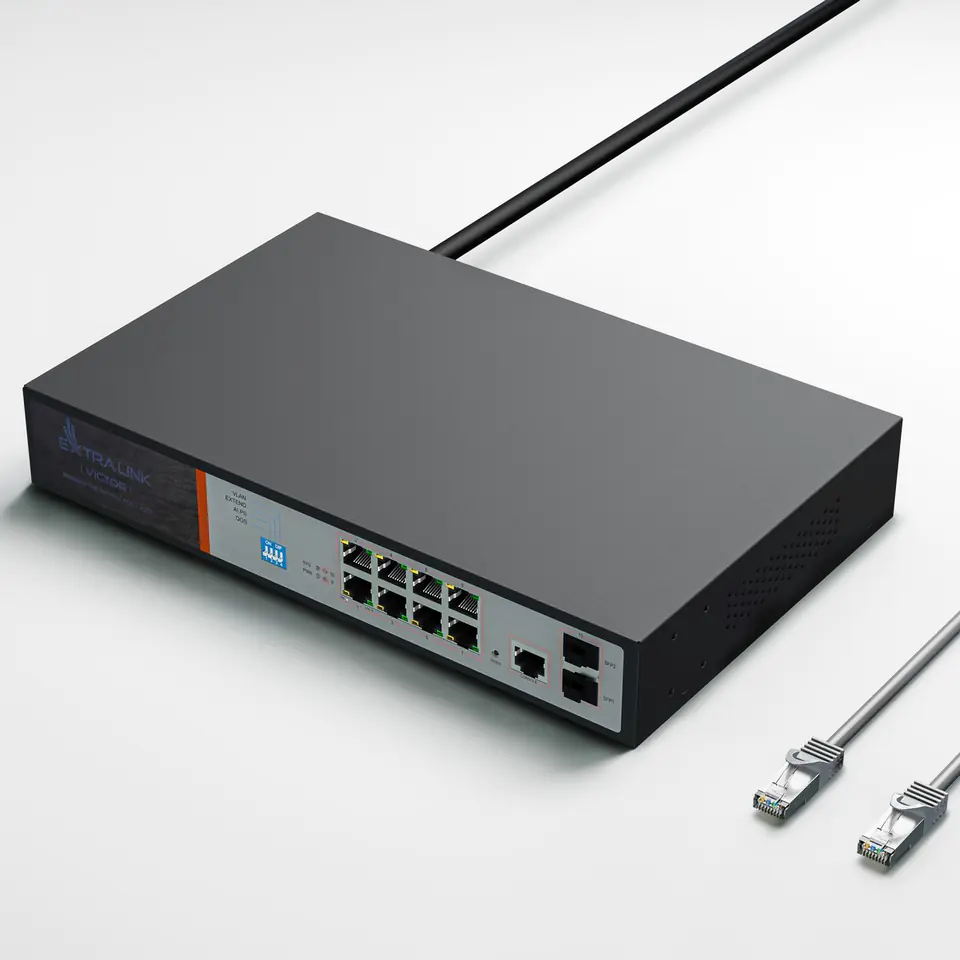

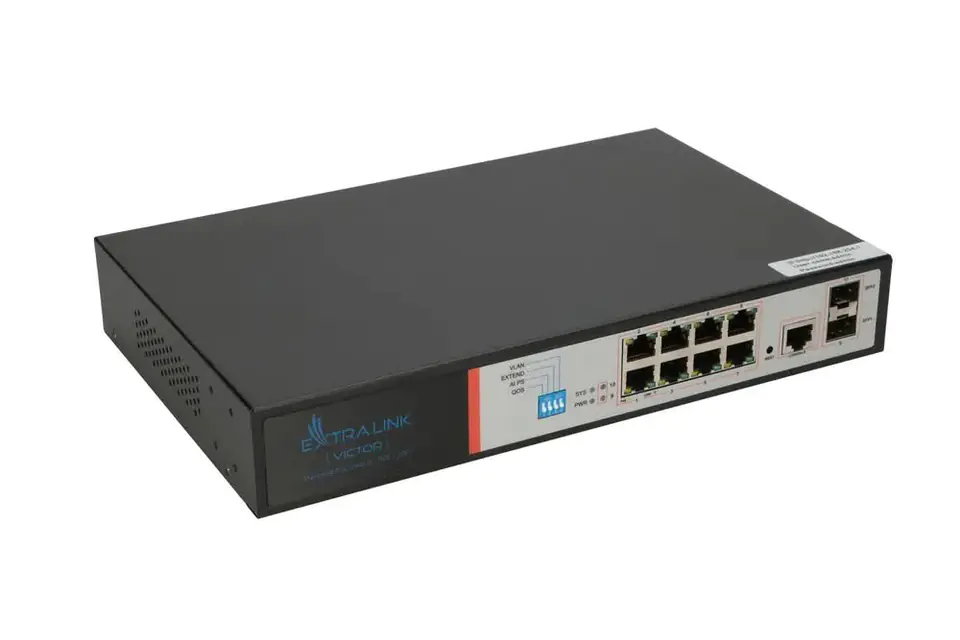

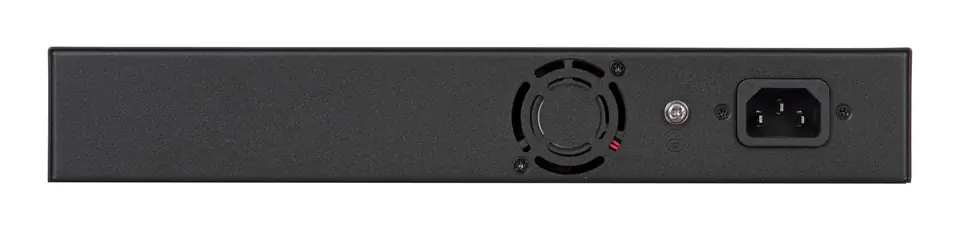

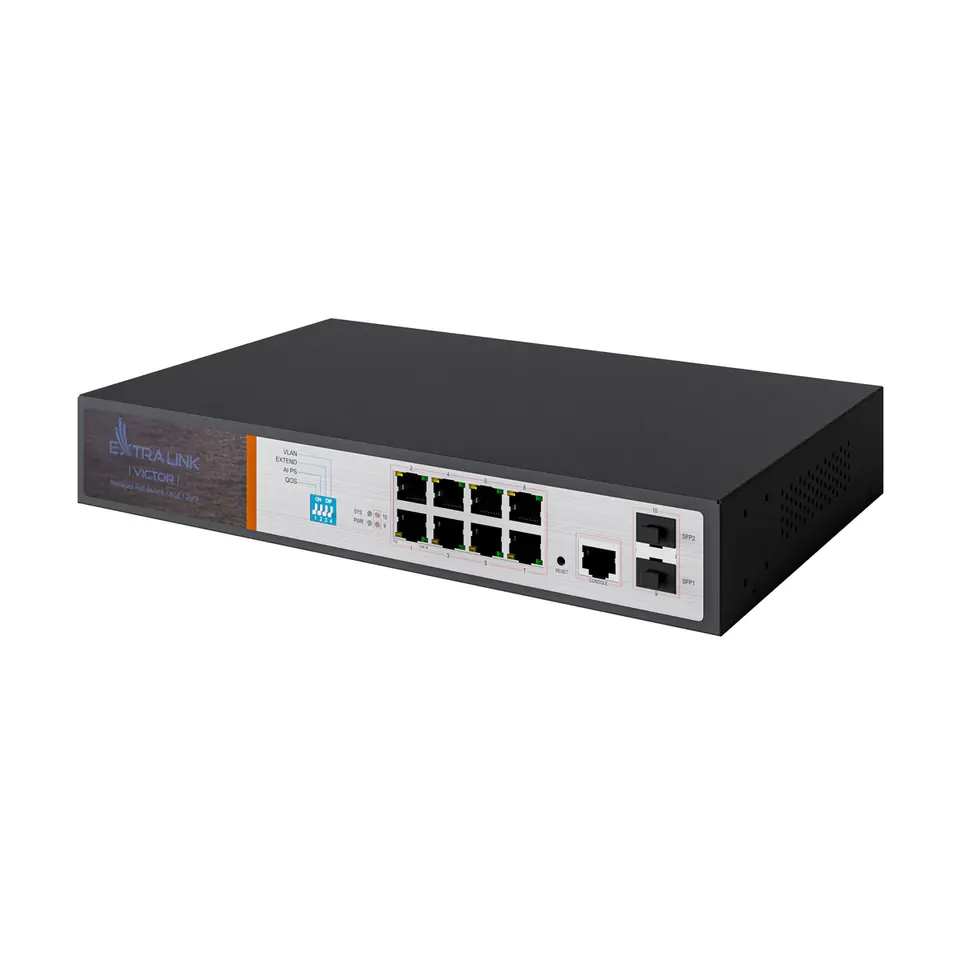

Extralink EX.8222 network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
€100.65
Shipping from warehouse: B3
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Extralink
- Product code:
- EX.8222 / 5902560368222
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Auto-negotiation: | Yes |
| Auto-sensing: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |

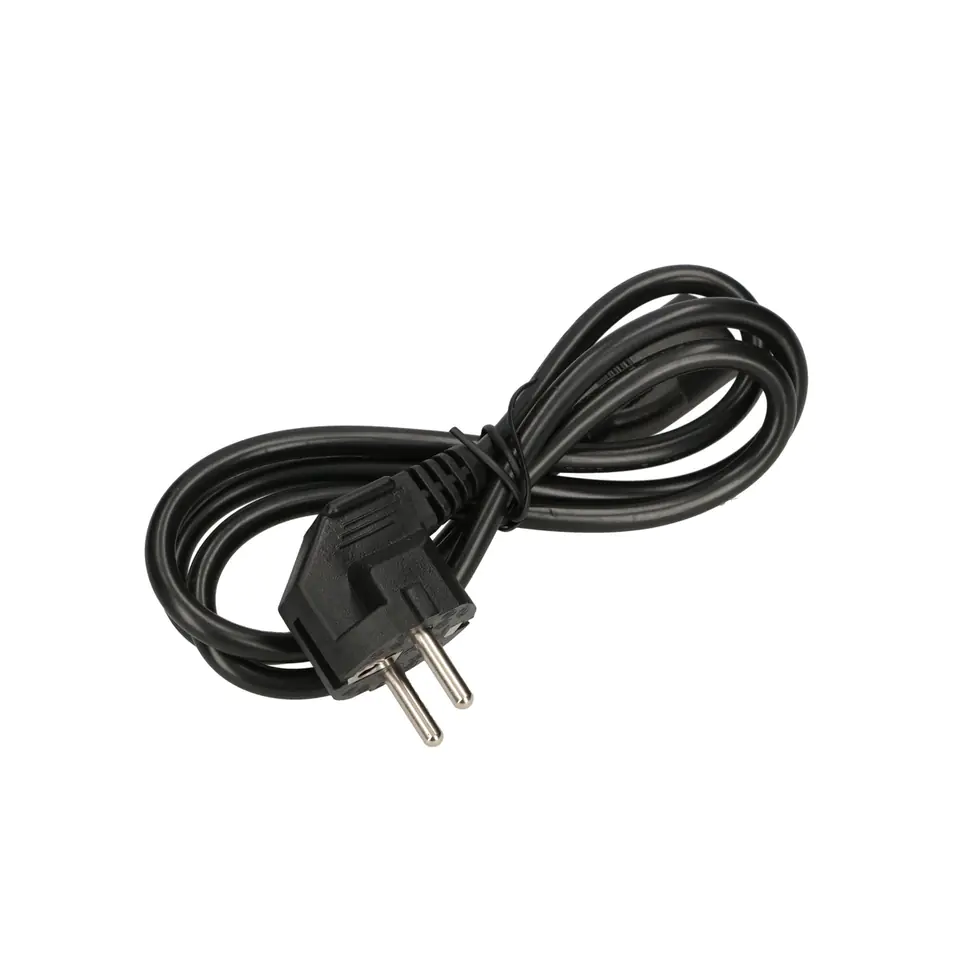

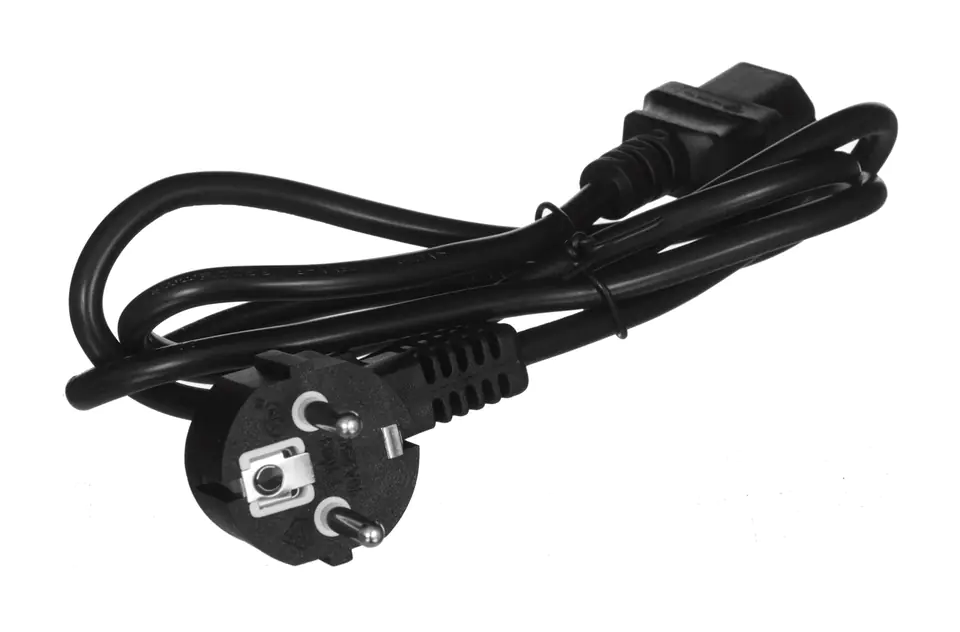

| Cables included: | DC |
| Configuring location settings (cli): | Yes |
| Console port: | RJ-45 |
| Depth: | 180 mm |
| Dhcp features: | DHCP snooping |
| Din rail mounting: | No |
| Form factor: | 1U |
| Forwarding rate: | 14.88 Mpps |
| Full duplex: | Yes |
| Gigabit ethernet (copper) ports quantity: | 8 |
| Height: | 44 mm |
| Igmp snooping: | Yes |
| Ip routing: | Yes |
| Jumbo frames support: | Yes |

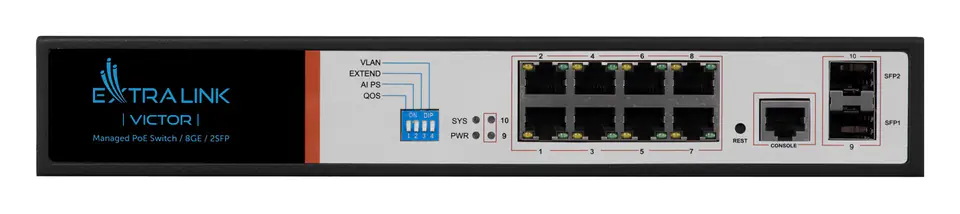

| Led indicators: | Link, PoE, System, Activity, Power |
| Loop protection: | Yes |
| Mac address entries: | Dynamic MAC address entries, Static MAC address entries |
| Mac address table: | 8000 entries |
| Minimum order quantity: | 1 pc(s) |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3at, IEEE 802.1D, IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3i, IEEE 802.3af, IEEE 802.3u, IEEE 802.1w, IEEE 802.3x |

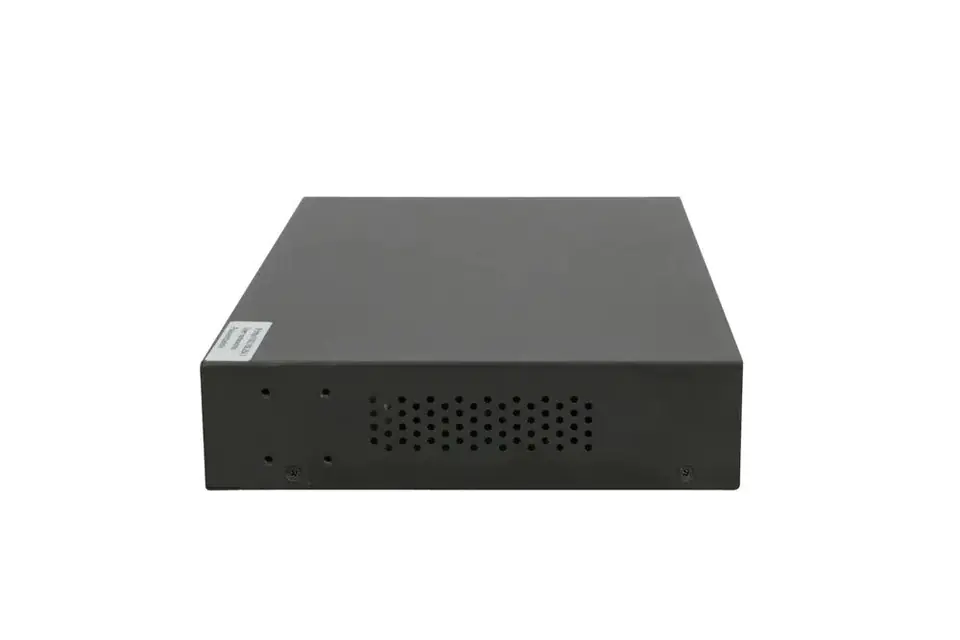

| Number of fans: | 1 fan(s) |
| Number of vlans: | 4096 |
| Package depth: | 185 mm |
| Package height: | 49 mm |
| Package type: | Box |
| Package width: | 290 mm |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) pass through: | No |
| Power over ethernet (poe) ports quantity: | 8 |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet (poe) type supported: | Active PoE |
| Power over ethernet (poe) voltage: | 48 V |
| Power over ethernet plus (poe+) ports quantity: | 8 |
| Power source: | AC |
| Power supply included: | Yes |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |

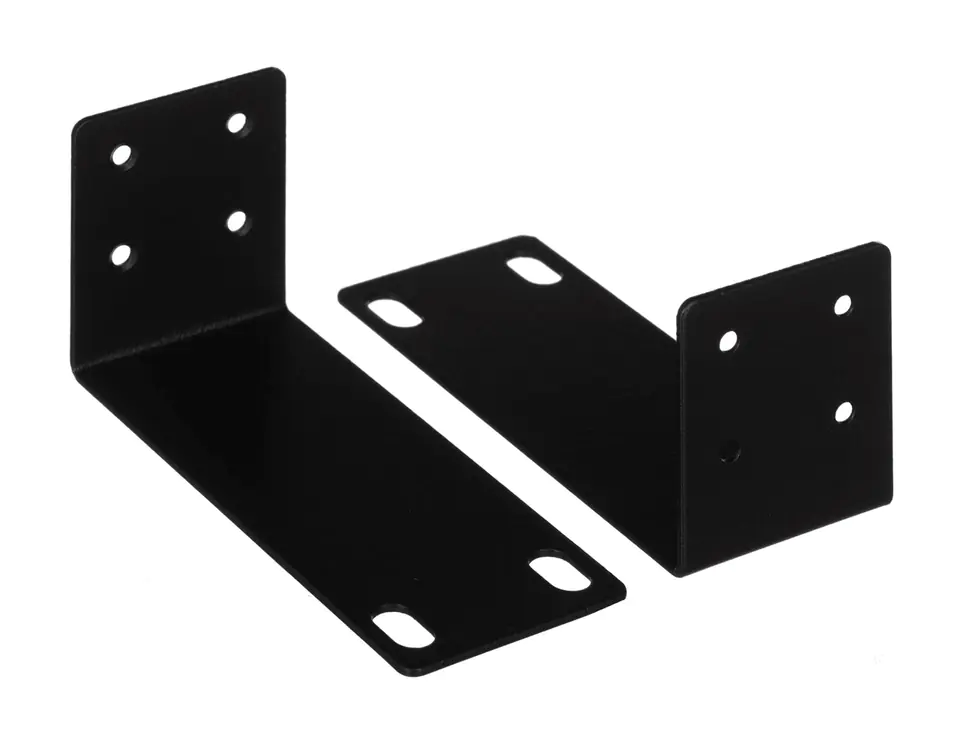

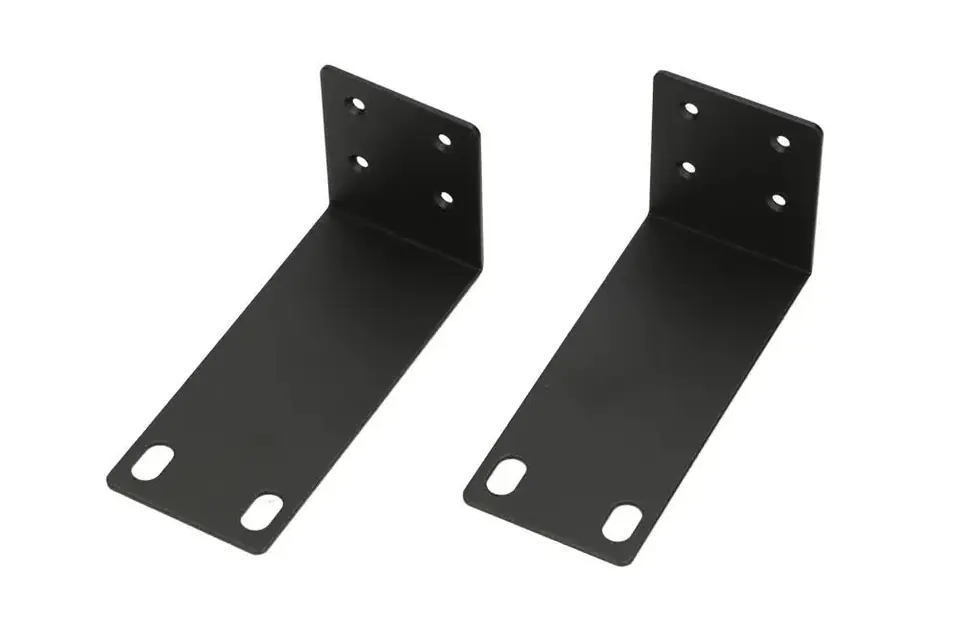

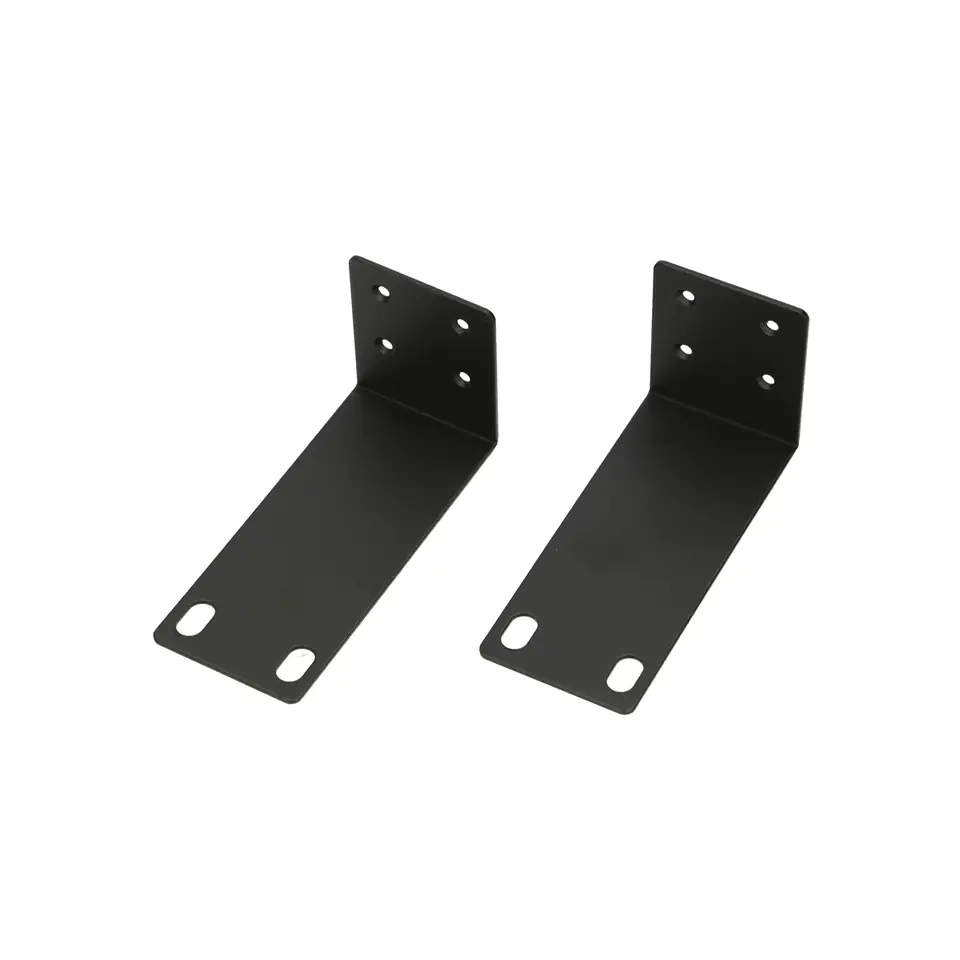

| Rack mounting: | Yes |
| Redundant fans support: | No |
| Redundant power supply (rps) support: | No |
| Reset button: | Yes |
| Sfp module slots quantity: | 2 |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Stackable: | Yes |
| Store-and-forward: | Yes |
| Switch layer: | L2/L4 |
| Switch type: | Managed |
| Switching capacity: | 20 Gbit/s |
| Total power over ethernet (poe) budget: | 150 W |
| User guide: | Yes |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Width: | 285 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
