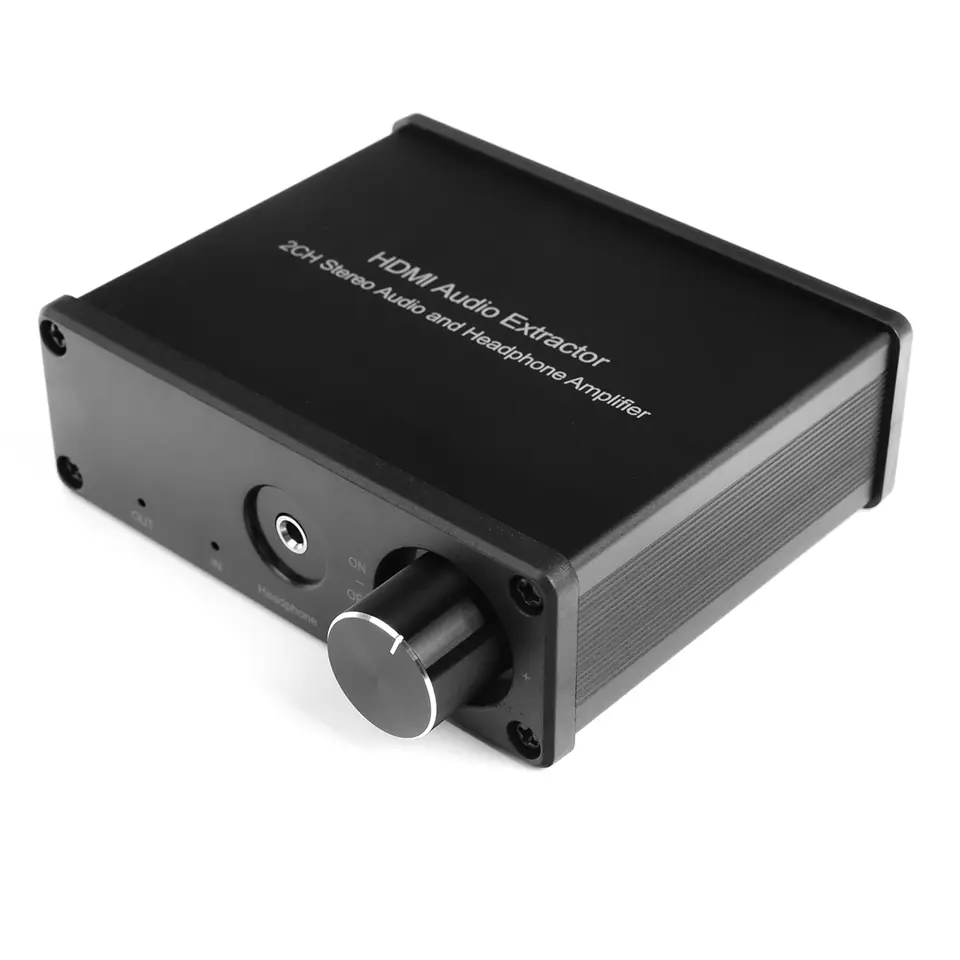

Extractor HDMI to HDMI + Audio R/L Spacetronik SPH-AE11

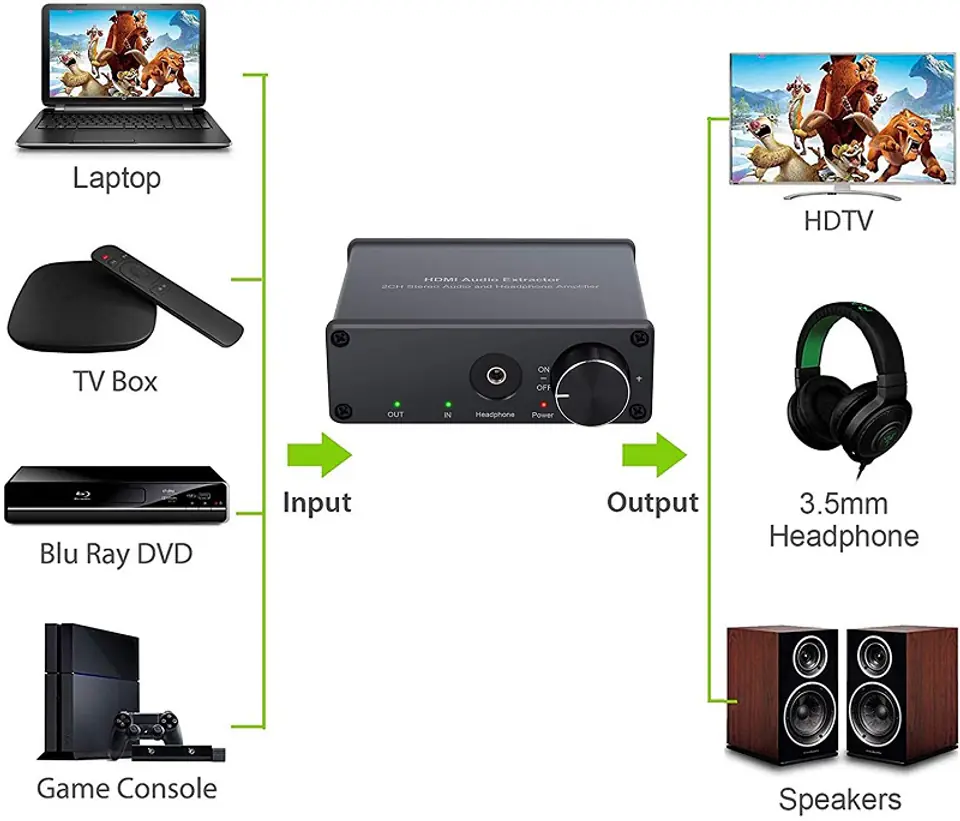

Extractor HDMI to HDMI + Audio R / Lp allows you to connect the device sending audio and video signal (tuner, console, dvd, blu-ray) to the TV with an HDMI cable. In addition, you can extract the audio signal from the device and send it to the home theater receiver or other such device. Thanks to this solution, the sound will be heard as standard from the TV speakers and additionally from the second source when the receiver is turned on. An interesting solution when we want to control and decide for ourselves when the sound is to be heard from a given device.
Spacetronik SPH-AE11 Audio Extractor - Product Features
- HDCP version: HDCP 2.2
- HDMI version: HDMI 2.0b
- HDMI resolution: 2160p at 60Hz/1080p at 50/60Hz/1080i/720p/1576i/480p/480i
- Supports Video color format: 24 bits/deep color 30bit,36bit

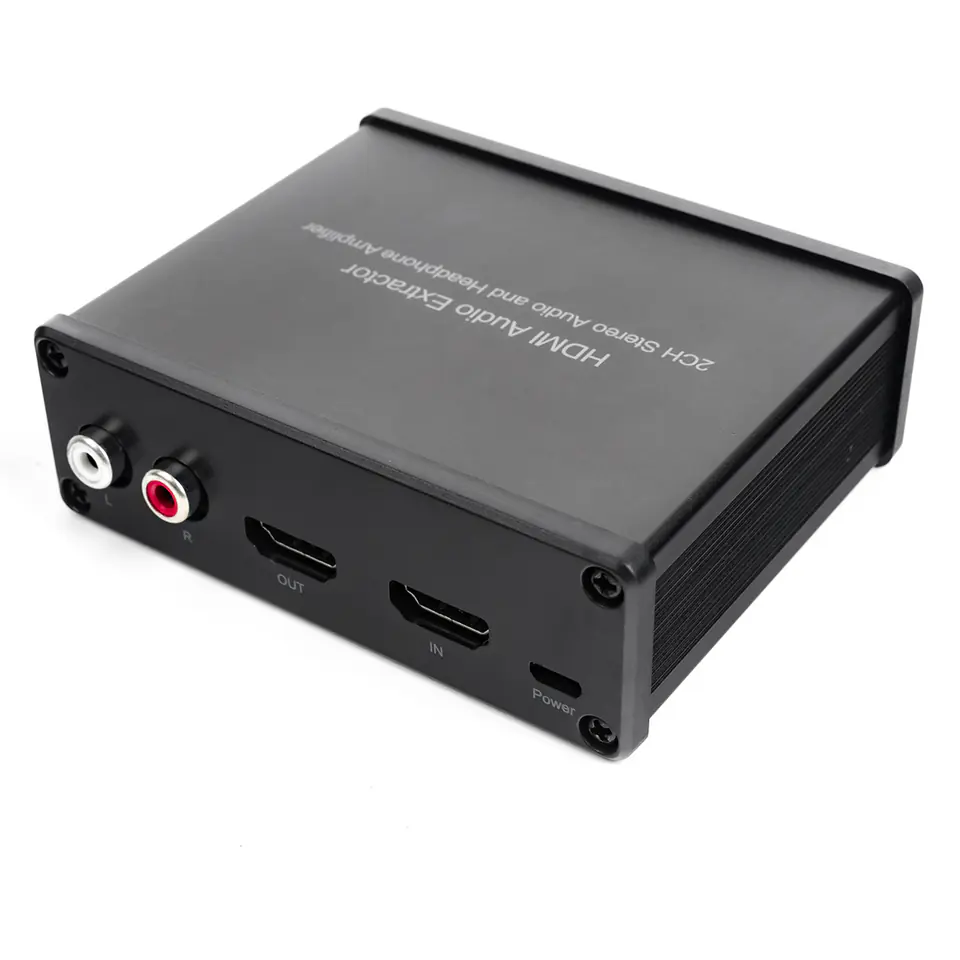

- Audio Output:2x RCA, Jack 3.5mm
- Maximum bitrate: 18 gb/s
- Input/output TMDS signal: 0.5-1.5v p-p(TTL)
- DDC input/output signal: 5v p-p(TTL)
- Input cable distance: <= 7m standard HDMI cable AWG26
- Output cable distance: <= 8m standard AWG26 HDMI cable
- Maximum working current: 340mA
- Working voltage: DC+5V
- Operating temperature range: (-15 to +55°c)
- Operating humidity range: 5 to 90% RH (non-condensing)
- Dimension: 96x80x3.2mm
- Weight: 144g
