Extractor HDMI - Audio SPDIF R/L jack 3,5mm ARC SPH-AE04

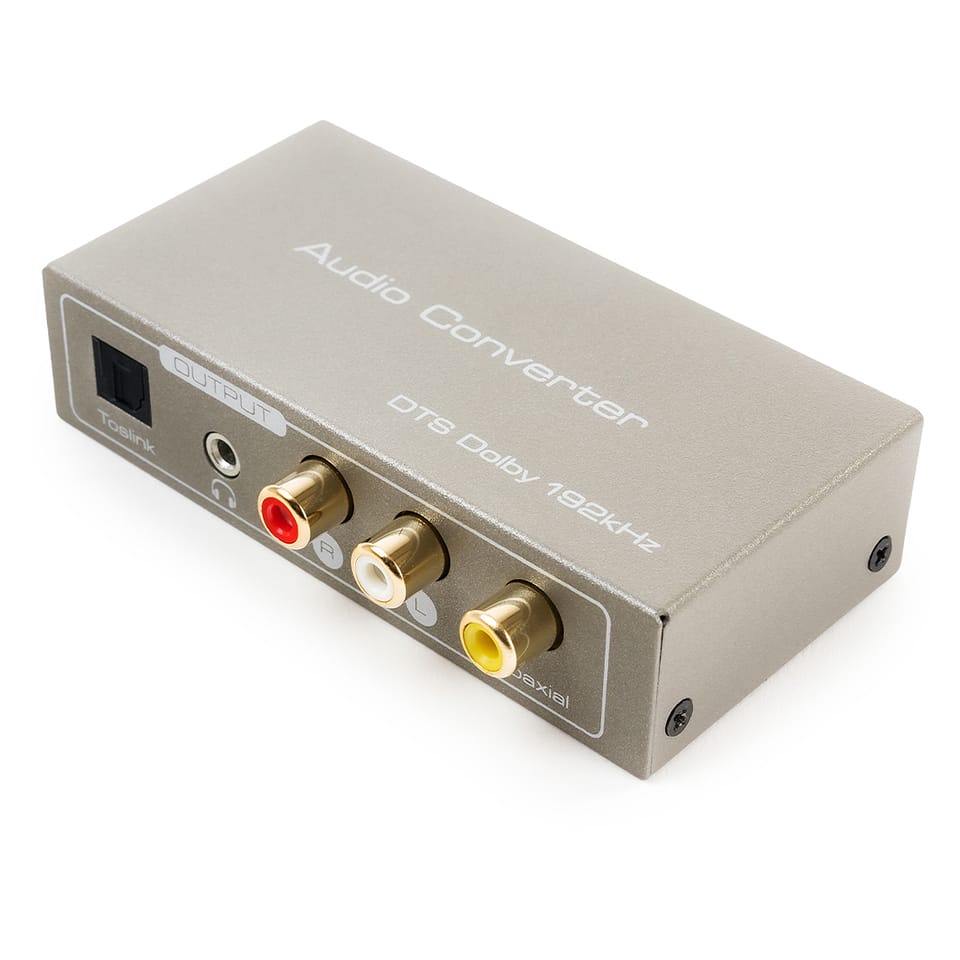

Audio extractor with HDMI, toslink and coaxial for analog L/R, coaxial, toslink and jack audio with the possibility of simultaneous operation at the output. The A-T-C switch used allows you to choose from which source the sound is to be downloaded and transmitted to all outputs at the same time. The converter is small in size and easy to install. An interesting solution when we want to control and decide for ourselves when the sound is to be heard from a given device.

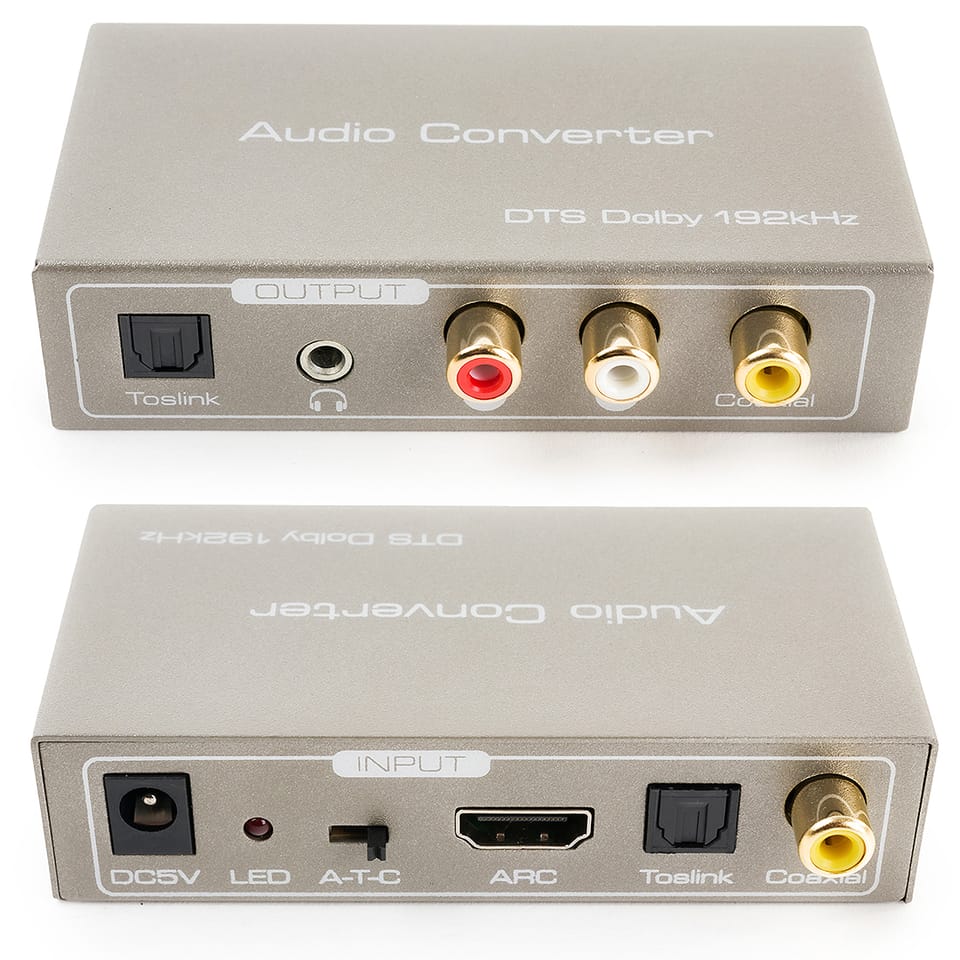

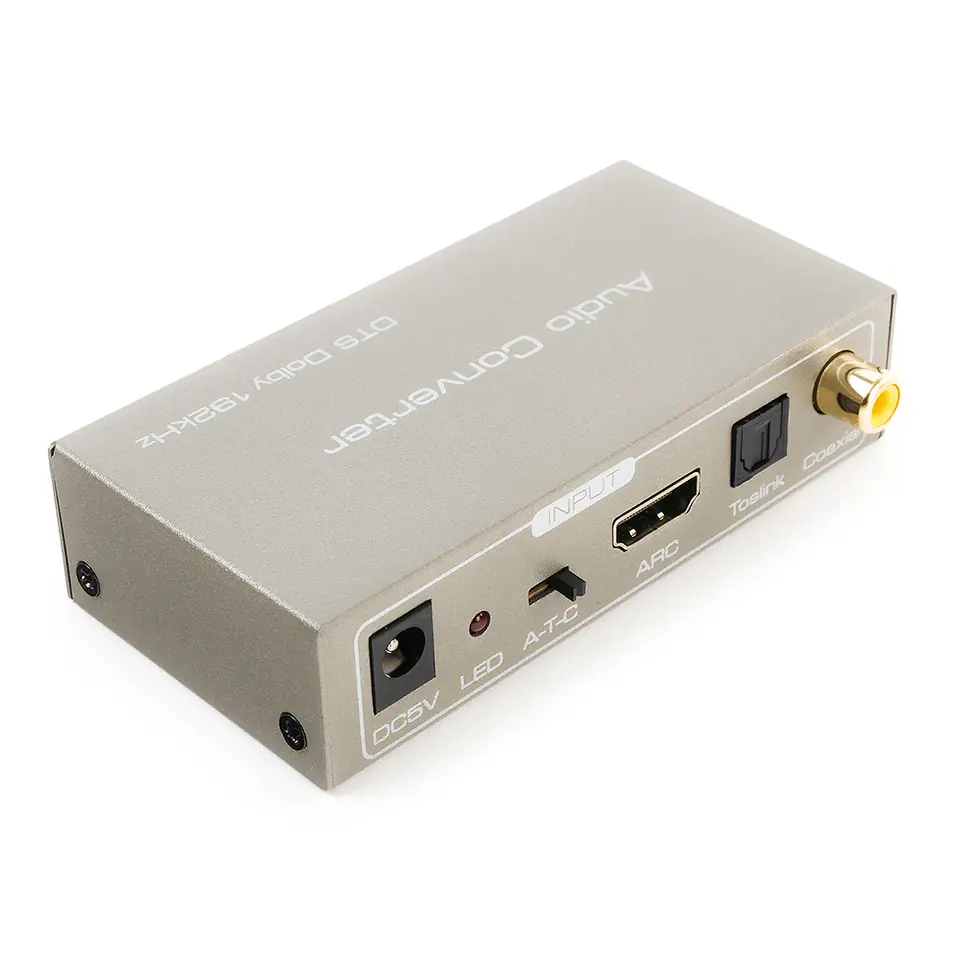

A-T-C audio input settings:
1. Setting the switch to the "A" position - ARC HDMI input

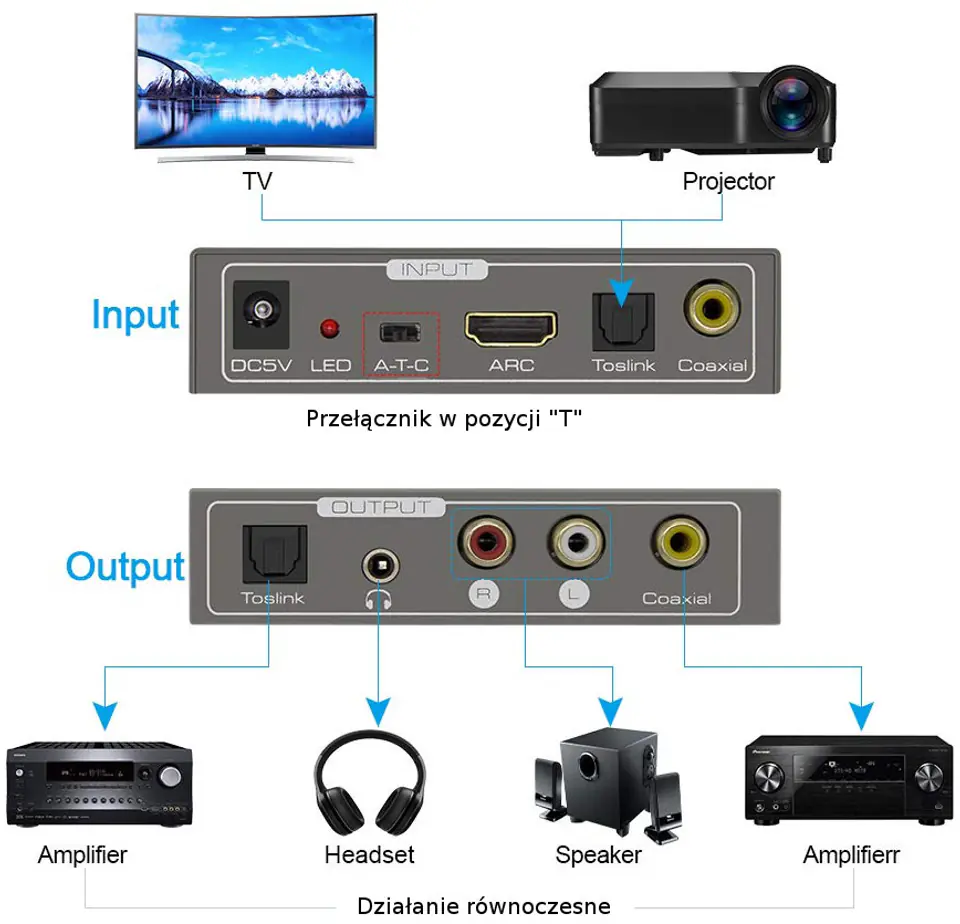

2. Setting the switch in the "T" position - Toslink input

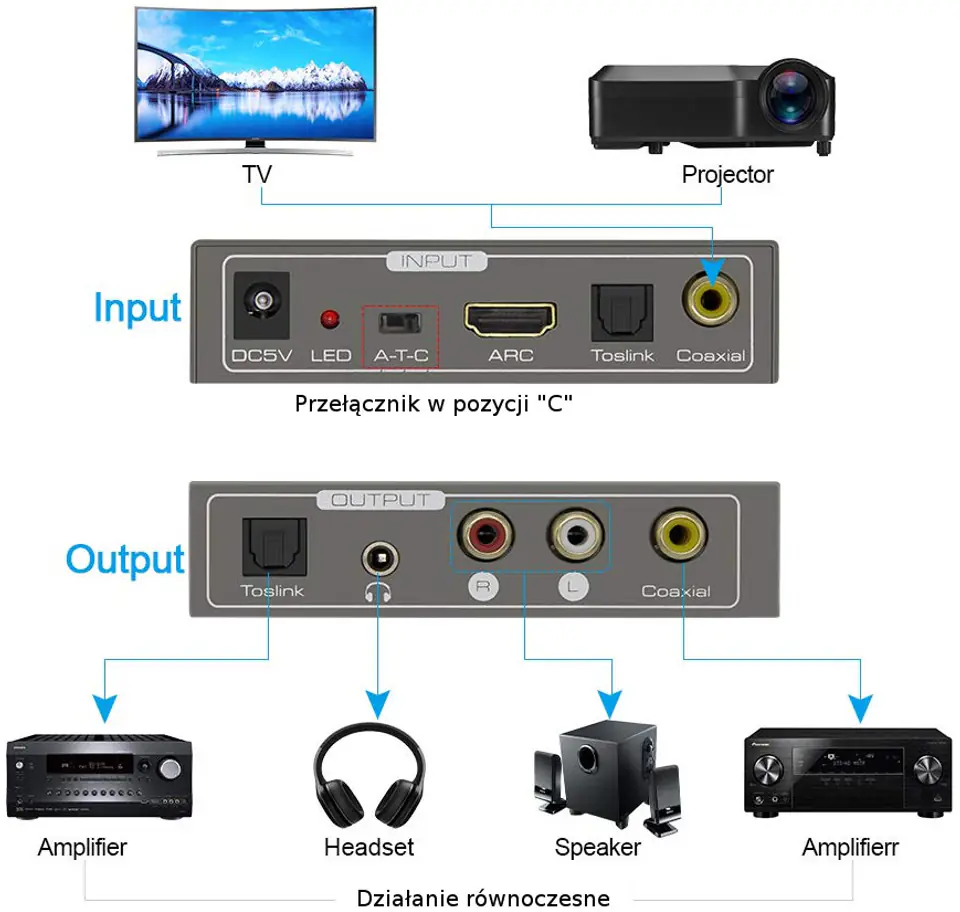

3. Setting the switch in the "C" position - Coaxial input
- Compatible with HDMI2.0, HDCP2.2
- Support Full HD 1080P, Full 3D, 4K* 2K resolution at 60Hz, YUV 4:4:4 HDR
- Support ARC function: sound output from HDMi input and output cable
- AV amplifier over HDMI Cable connection to HDTV when HDTV receives audio and video content.
- Support Dolby Digital AC3, DTS, LPCM and other digital audio formats, supporting 5.1
- Support switching between 3 A-T-C audio input modes
- Simple installation, plug and play
- Power: DC5V/1A
