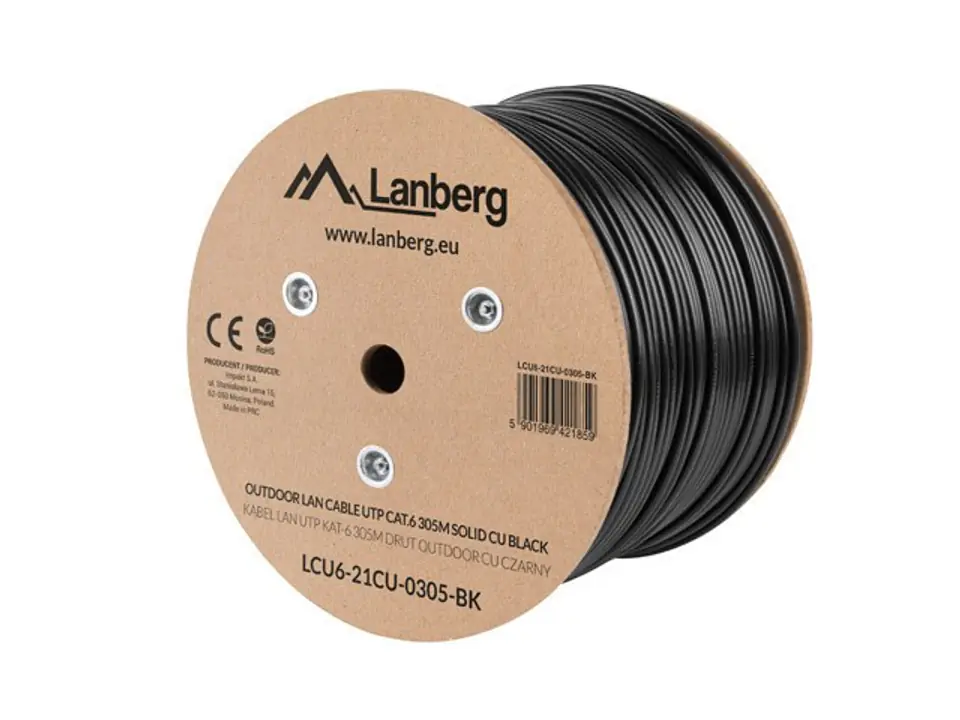

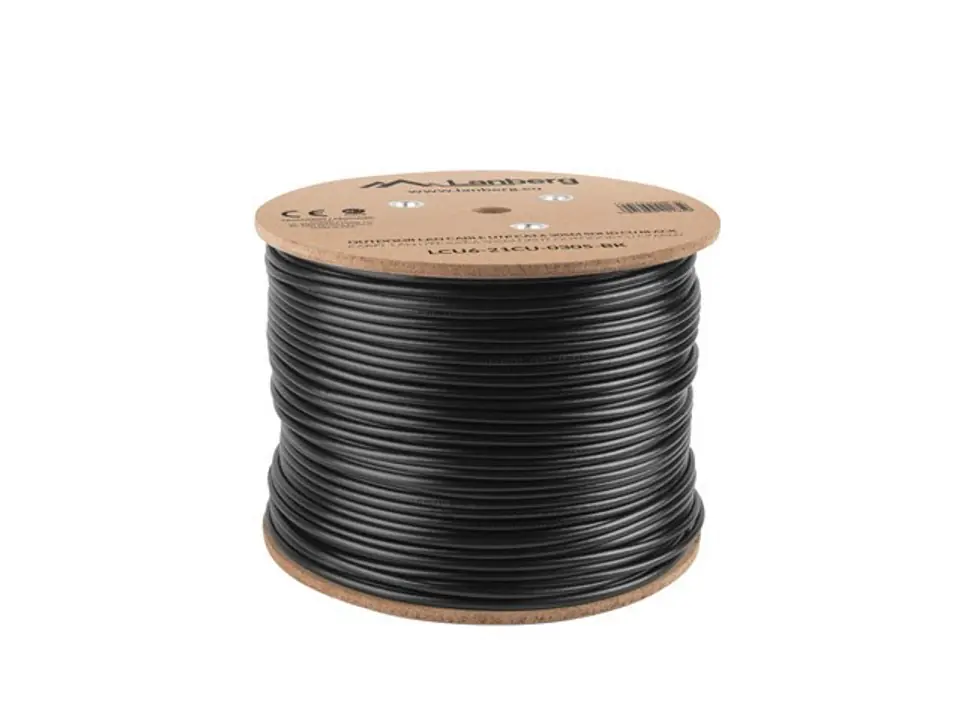

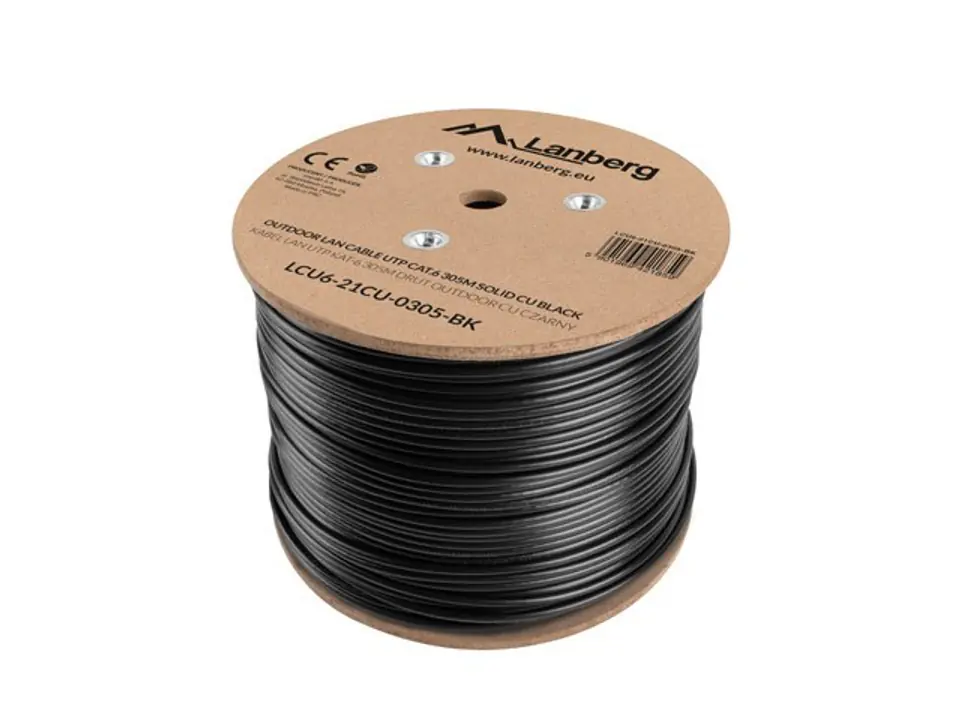

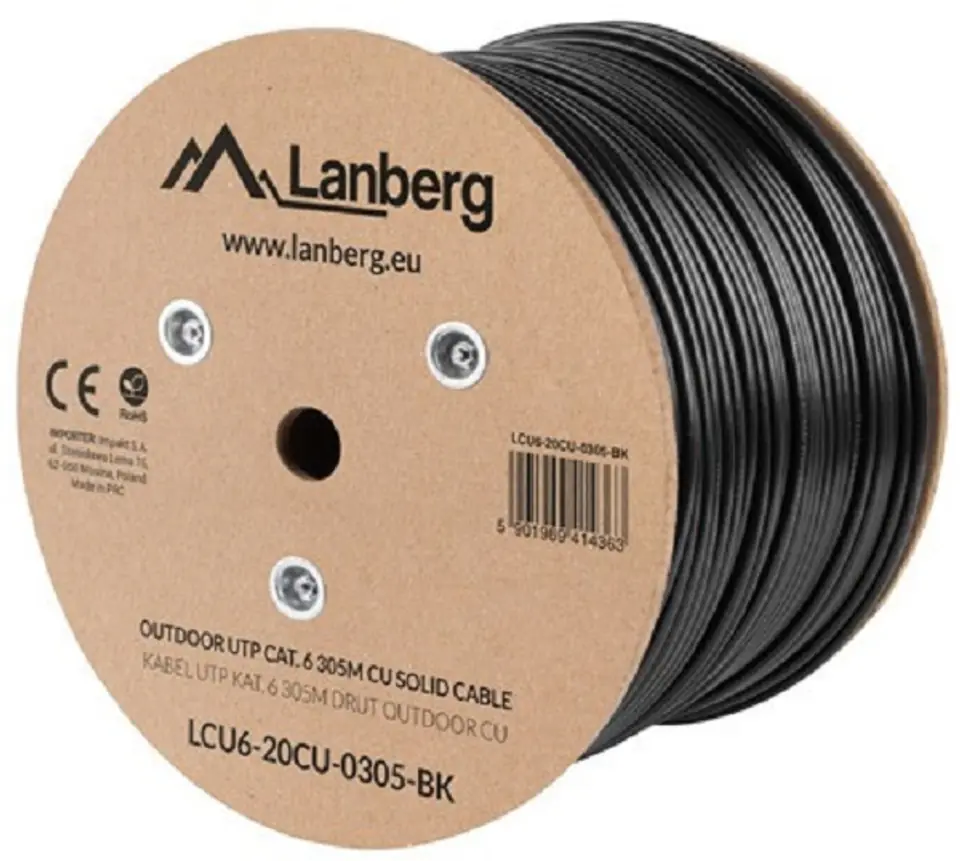

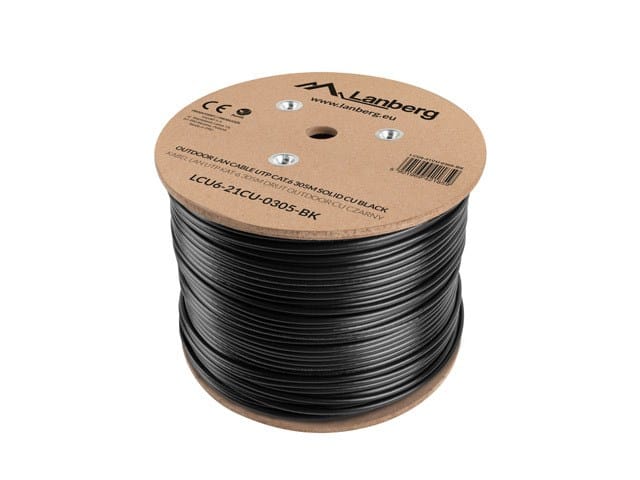

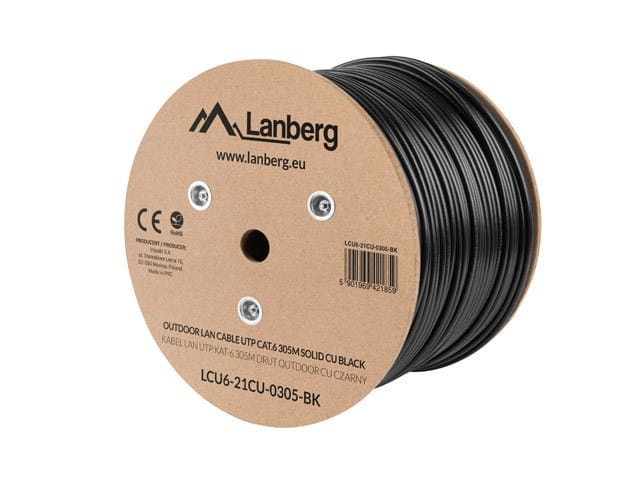

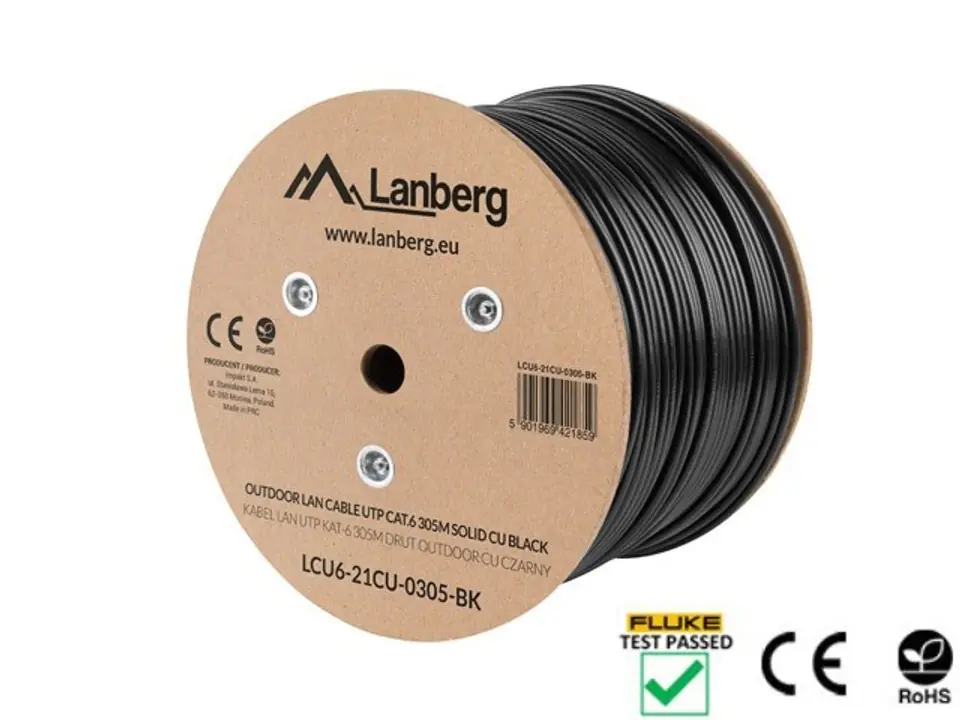

UTP Cable Cat.6 CU 305 m outdoor wire

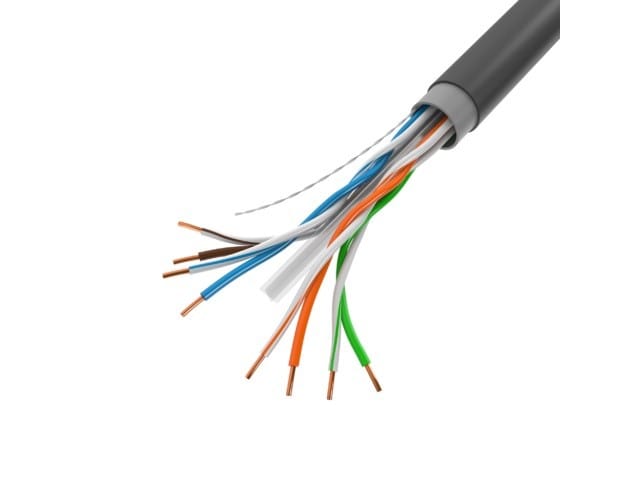

- LAN cable category 6 UTP (unshielded) outdoor
- Cable cores made of pure copper (CU 100% copper)
- AWG 23 (4*2*0.55mm)
- Core structure: single wire
- Color: black RAL9004
- Length counter print every meter of cable
- PE insulation: 6.0mm
- HDPE conductor insulation: 0.98mm
- Operation up to 250Mhz
- Recommended plug / guide diameter for braided conductors: 1.1 mm
- Packing: carton
Electrical parameters (20 degrees):
- Core Resistance (Max.): 20 - 36Ohm / 305m
- Insulation resistance (min.): 5000mOm km
- Steam-a-ground capacity: < 160PF/100m
- Impedance characteristics: < 100Ohm (+/- 15)
- Storage and transport temperature: 0 - 60 degree
- Working temperature: -20 - 75 degree
- Operation Distance: 100m
