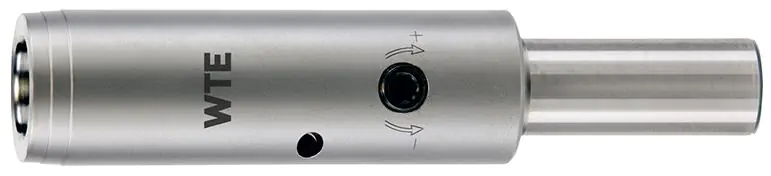

Extension for hydraulic clamping brackets
Design: central coolant supply. Narrow interfering contour. Wide clamping range due to the use of reduction sleeves.
Usage: for extension and adjustment in hydraulic chucks and collet holders.
Extension for hydraulic.handles clamp. 20-20mm/150mm WTE
€446.18
Shipping from warehouse: B6
Estimated shipping: Thu, Jan 23 - Mon, Jan 27
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- WTE
- Product code:
- 30479022 / 4053569749787
Share this product:

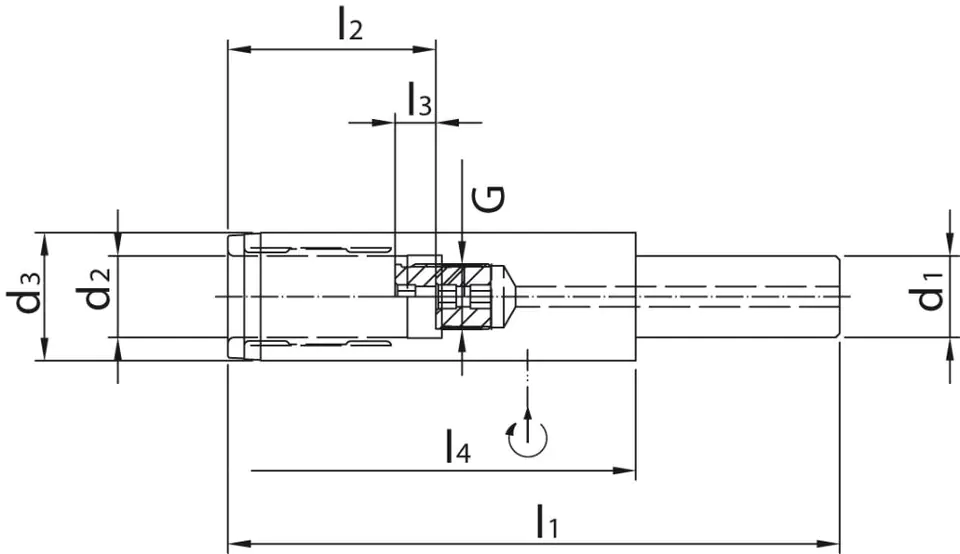

Specification
| D1: | 20 mm |
|---|---|
| D2: | 20 mm |
| D3: | 31.5 mm |
| G: | M16 x 1 |
| Key size: | 5 mm |
| L1: | 150 mm |
| L2: | 51 mm |
| L3: | 10 mm |
| L4: | 100 mm |
