| Band:: | 60 MHz DC ≤ |
|---|---|
| Connector type:: | 1 x VGA Socket 1 x Jack Socket 3.5 mm |
| Device type:: | Active / Transmitter |
| Dimensions:: | 72 x 46 x 24 mm |
| Ground:: | through grounding screw |
| Impedance of the balanced connector:: | 100 Ω |
| Inputs:: | UTP |
| Operating temperature:: | 0 °C ... 55 °C |

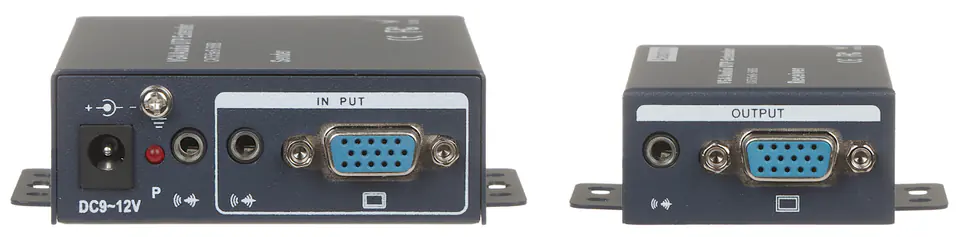

| Output:: | Monitor - VGA Audio - Stereo (Jack) |
| Permissible relative humidity:: | ≤ 95 % |

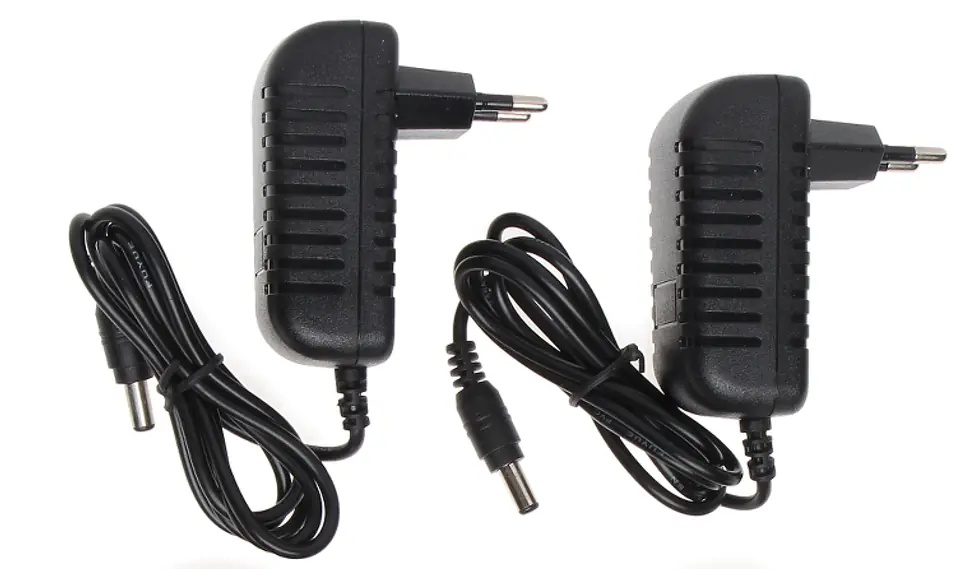

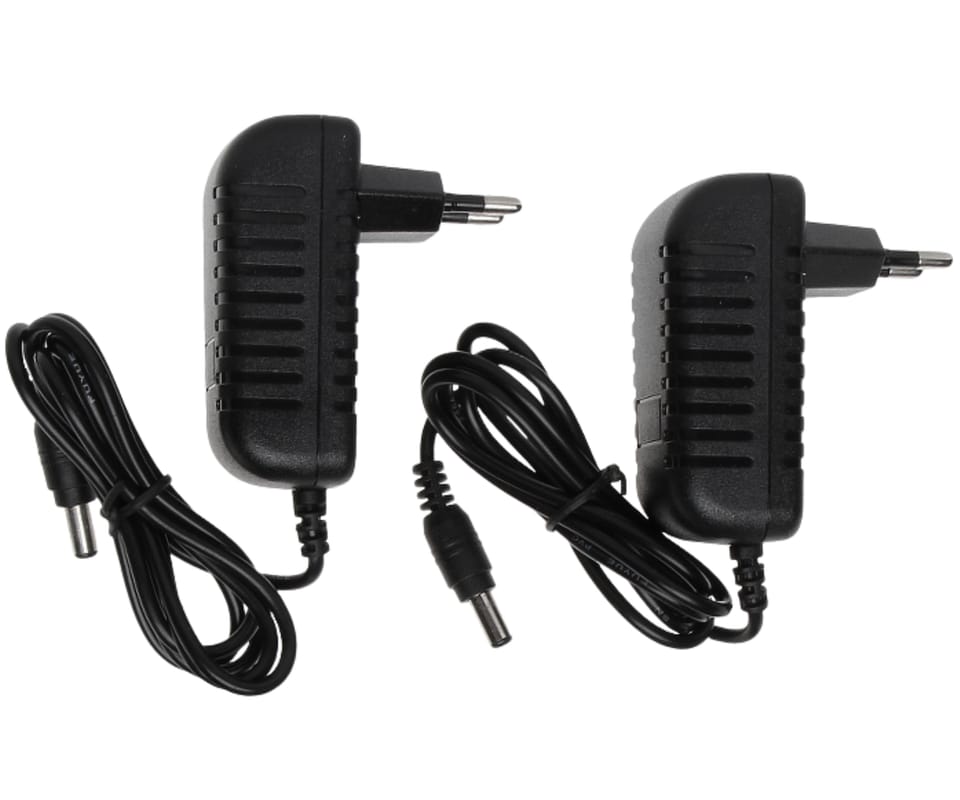

| Power:: | 12 V DC / 1000 mA (power supply included) |
| Prohibitive attenuation:: | Max. -15 dB |
| Resolution:: | 1280 x 1024 px SXGA @ 60 m (manufacturer data) 1024 x 768 px XGA @ 76 m (manufacturer data) 800 x 600 px SVGA @ 106 m (manufacturer data) 640 x 480 px VGA @ 137 m (manufacturer's data) 1920 x 1080 px Full HD @ 45 m (our tests) 1024 x 768 px XGA @ 100 m (our tests) |
| Scales:: | 0.1 kg |
| Selected features:: | UTP Cat 5, 5e, 6 Signal Correction Metal Housing |

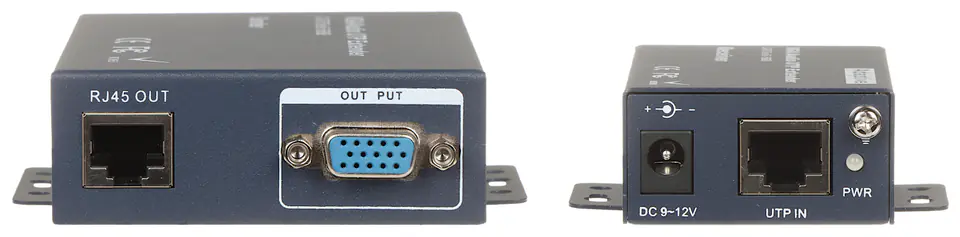

| Symmetrical connector type:: | RJ-45 (8-pin, 4 pairs) Socket |
| Through attenuation:: | < 3 dB |
| Video coverage:: | Max. 140 m |
| Warranty:: | 2 years |

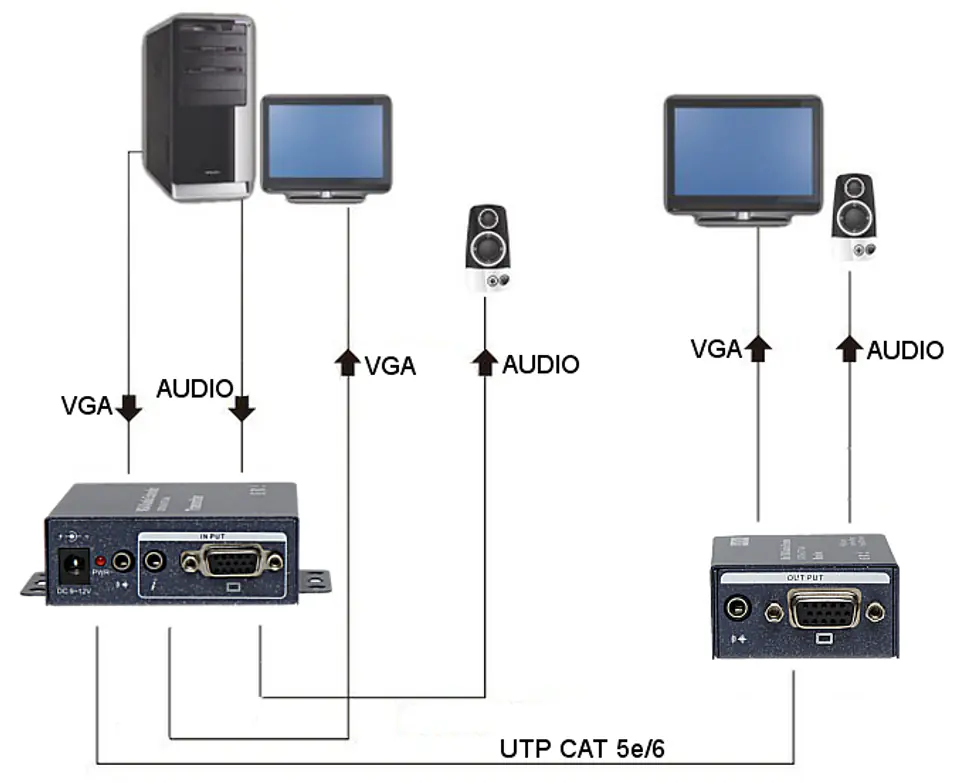

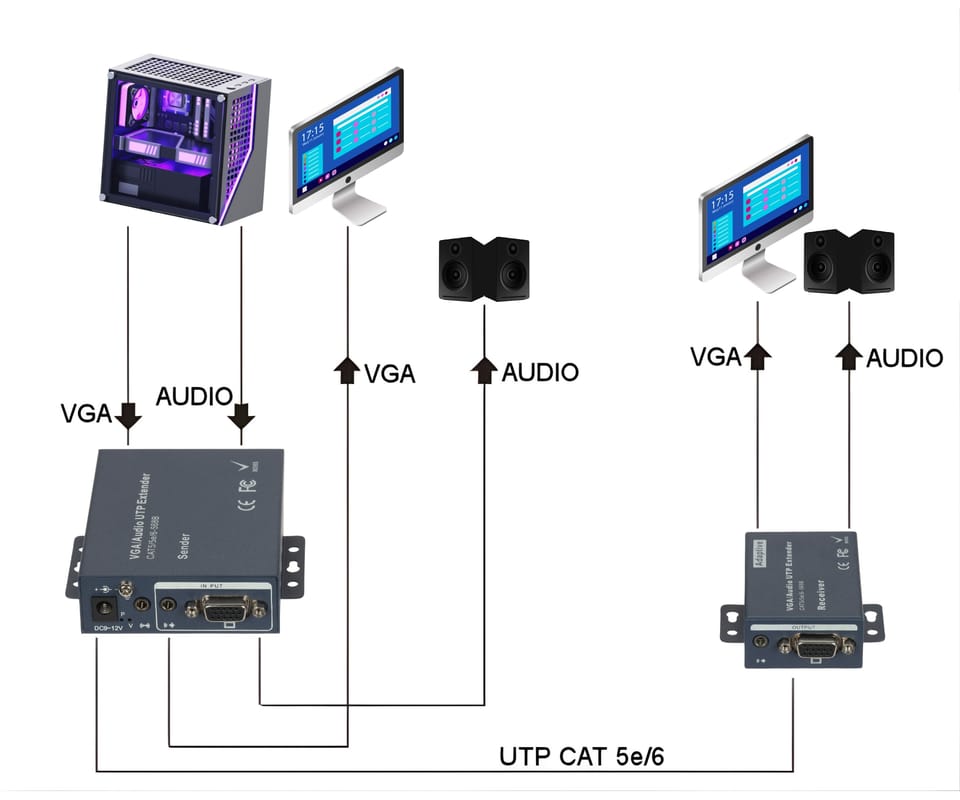

The transmitter and receiver set allows the transmission of VGA signal + 2 Audio (Stereo) channels over a distance of up to 50-140 m using UTP cableThe transmitter symmetrizes the VGA signal enabling its transmission via twisted pair cableThree pairs are used to transmit RGB components, while the fourth is used to transmit synchronization

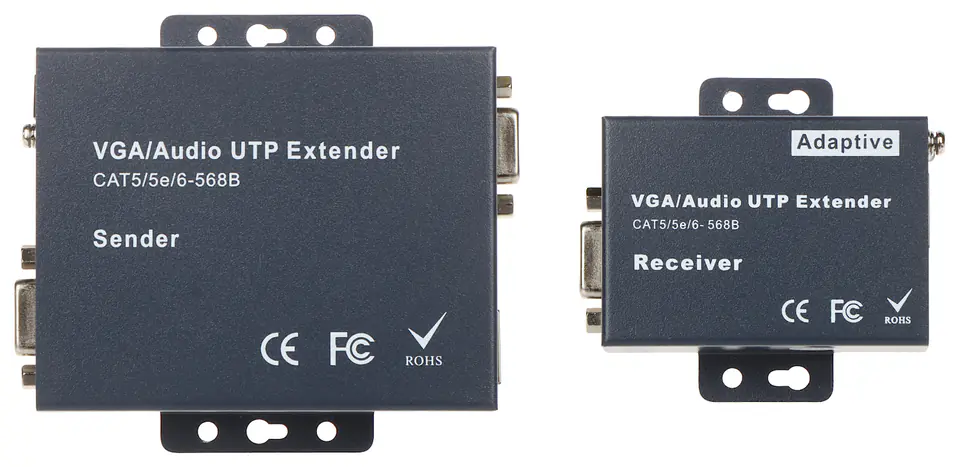

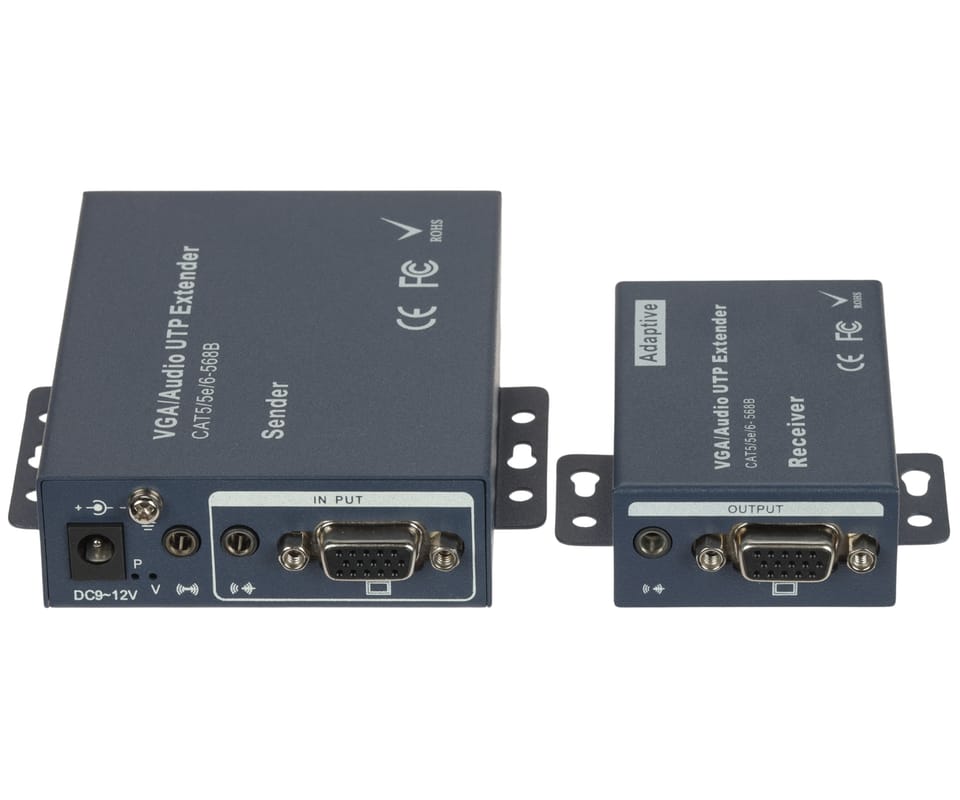

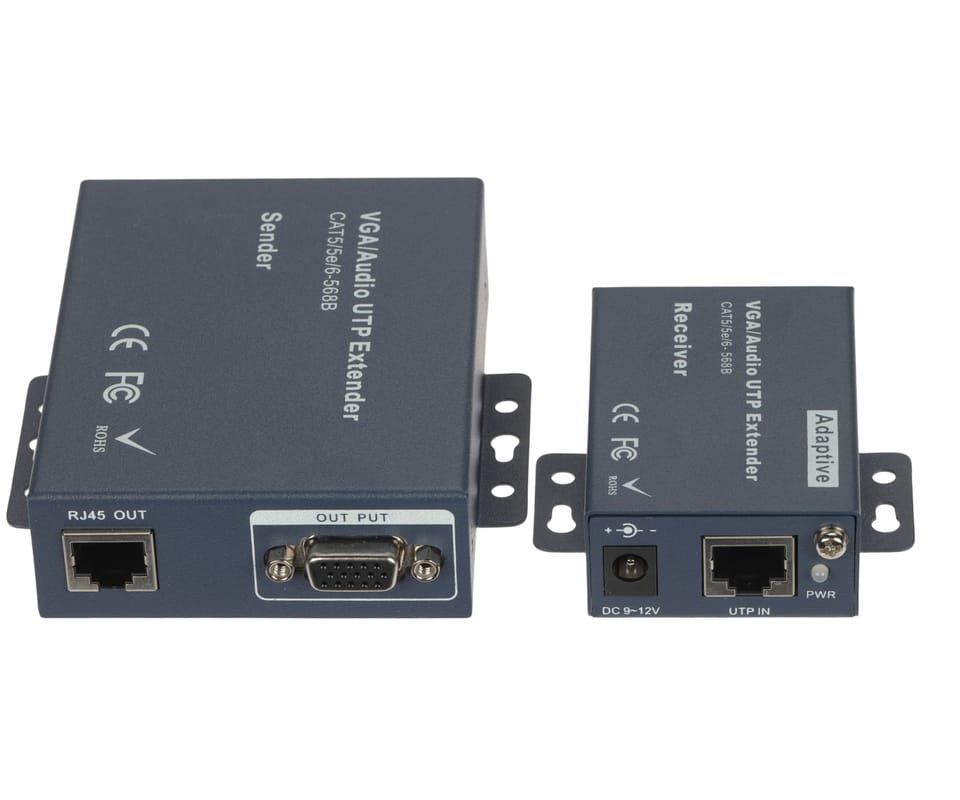

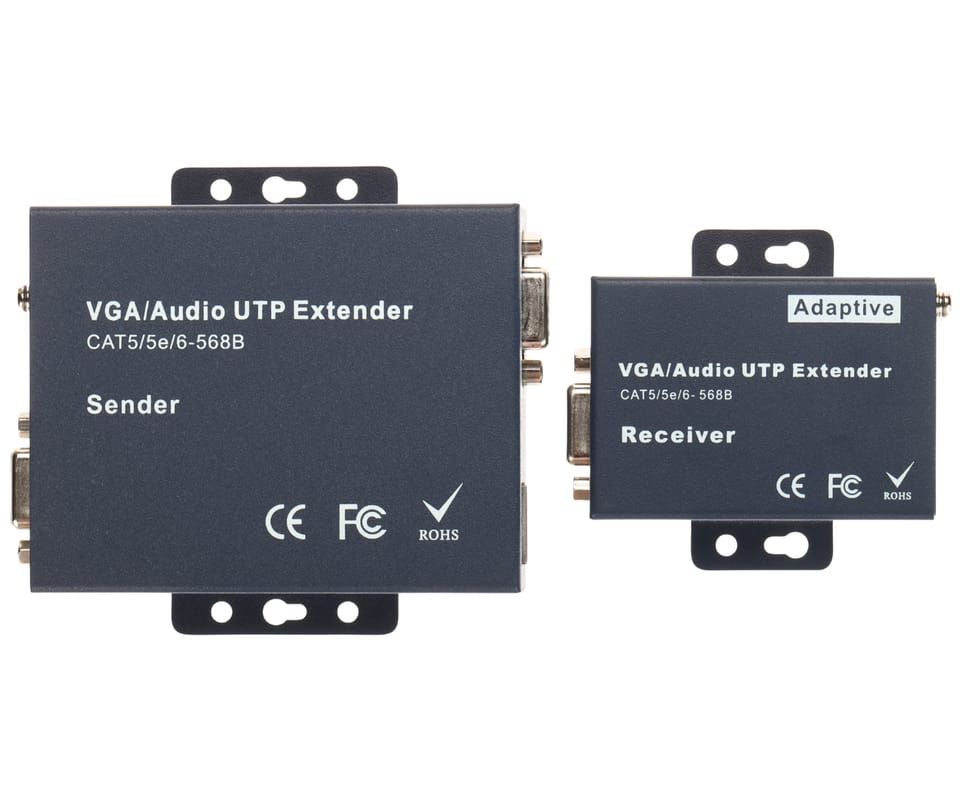

The transmitter and receiver are a set and both devices are required for proper operation
Transmitter and receiver included
