EXTENDER VGA-EX-30

€40.41

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: INNY-D
Product code:: VGA-EX-30 / 5902887011573

Specification

Band::	60 MHz DC ≤

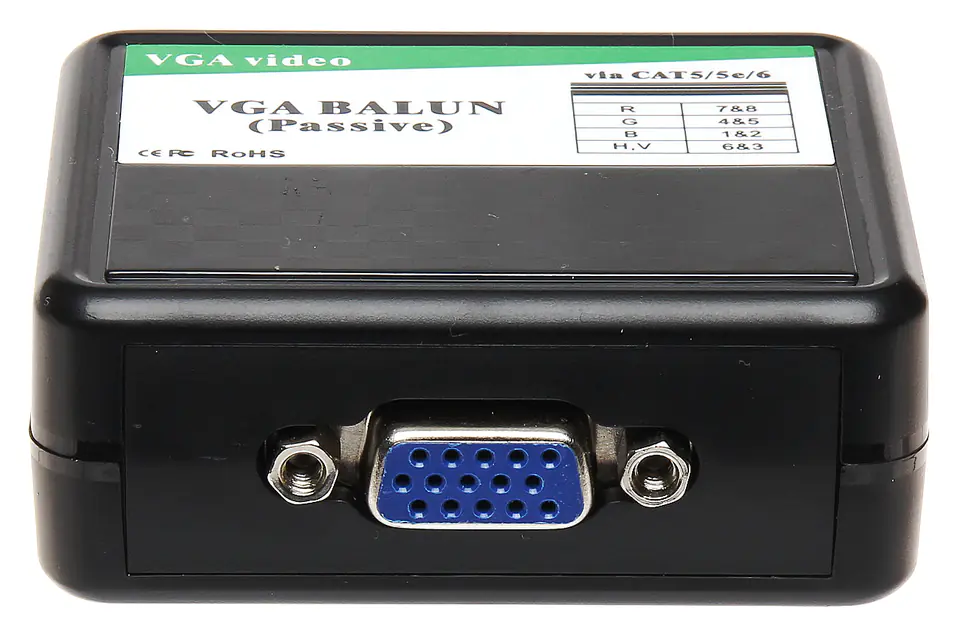

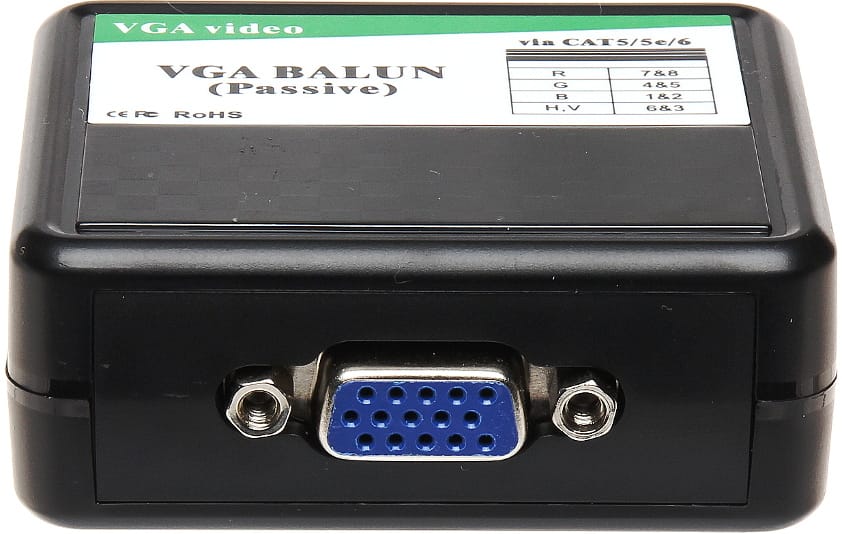

Connector type::	1 x VGA - 1 x RJ-45 Socket - Socket
Device type::	Passive
Dimensions::	64 x 61 x 25 mm
Ground::	through grounding screw
Impedance of the balanced connector::	100 Ω
Operating temperature::	0 °C ... 55 °C
Permissible relative humidity::	≤ 95 %
Resolution::	1920 x 1200 px WUXGA @ 45 m (manufacturer data) @ 30 m (our tests), 1600 x 1200 px UXGA @ 45 m (manufacturer data) @ 30 m (our tests), 1280 x 1024 px SXGA @ 60 m (manufacturer data) @ 40 m (our tests), 1280 x 768 px WXGA @ 60 m (manufacturer data) @ 40 m (our tests), 1024 x 768 px XGA @ 75 m (manufacturer's data) @ 50 (our tests), 800 x 600 px SVGA @ 120 m (manufacturer data) @ 80 m (our tests), 640 x 480 px VGA @ 180 m (manufacturer data) @ 120 m (our tests)
Scales::	0.06 kg
Through attenuation::	< 3 dB
Video coverage::	Max. 180 m
Warranty::	2 years

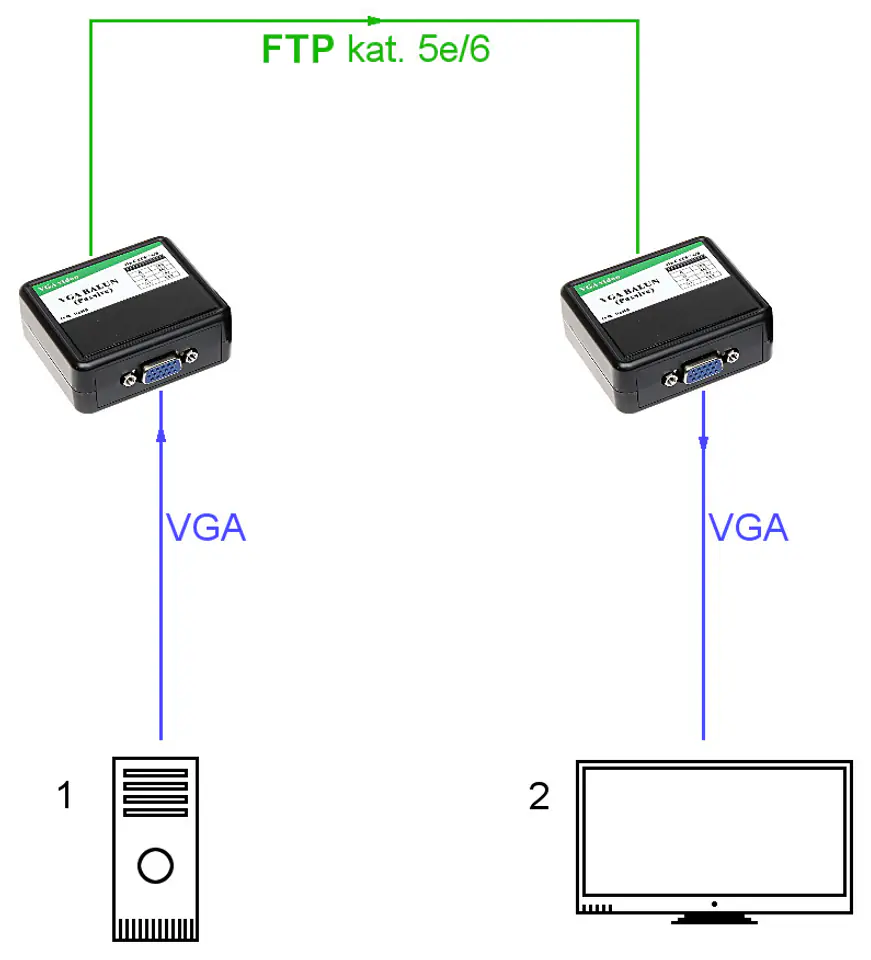

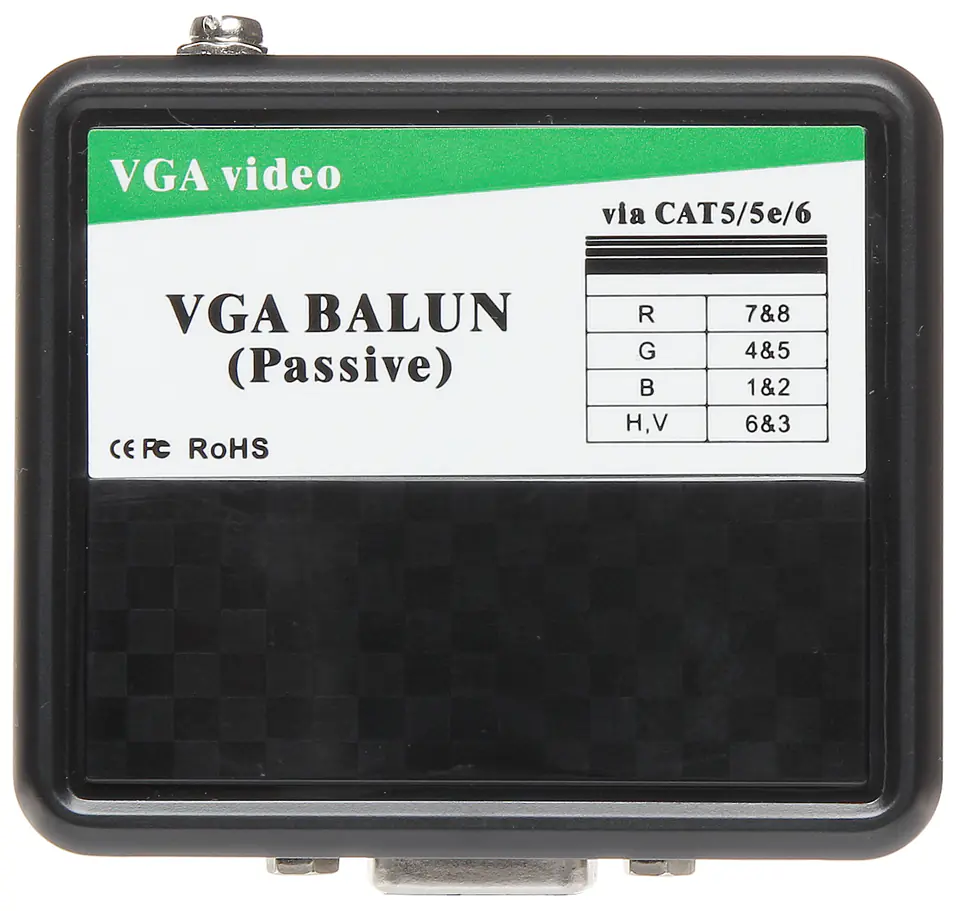

VGA-EX-30 extender enables transmission of VGA signal over a distance of up to 180 m via FTP CableThe transmitter symmetrizes the VGA signal enabling its transmission via twisted pair cableThree pairs are used for transmission of RGB components, while the fourth is used for synchronization transmission

The transmitter and receiver are a set and both devices are required for proper operation

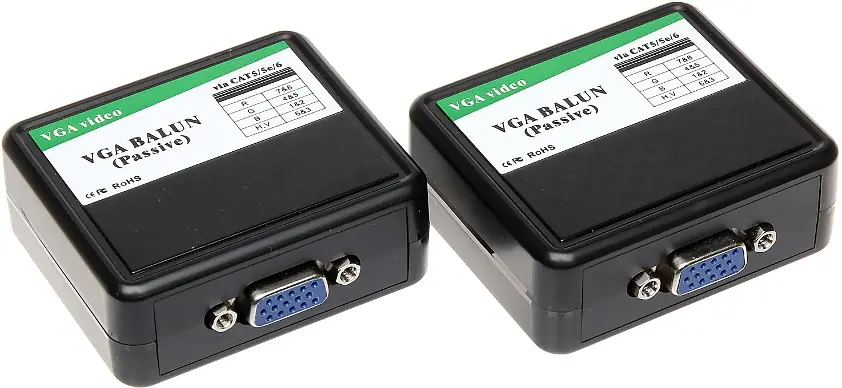

Transmitter and receiver included

Remark! The masses of the devices must be connected to each other and therefore we recommend shielded twisted pair

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
