| Case: | Metal |
|---|---|
| Connectors: | Transmitter :- 1 x USB-A- 1 x RJ-45 shielded socket Receiver :- 4 x USB-A- 1 x RJ-45 shielded socket |
| Dimensions: | 77 x 61 x 21 mm |
| Operating temperature: | -20 °C ... 60 °C |
| Power: | 5 V DC / 1 A (power adapter included) - Receiver |
| Range: | 150 m - USB 2.0 @ UTP Cat. 6, 100 m - USB 2.0 @ UTP Cat. 5e |
| Scales: | 0.12 kg |
| Selected features: | USB 2.0 - High-Speed (480 Mbps) (downward compatible) Supports 4 USB 2.0 inputs and 1 USB 2.0 output The transmitter is powered from the source device - no additional power supply is required The device supports a cascade of gigabit switches which allows to increase the transmission distance Lightning protection, surge protection, ESD protection Easy installation - USB Plug&Play device |
| Utp category: | 5e / 6 / 6A / 7 |
| Warranty: | 2 years |

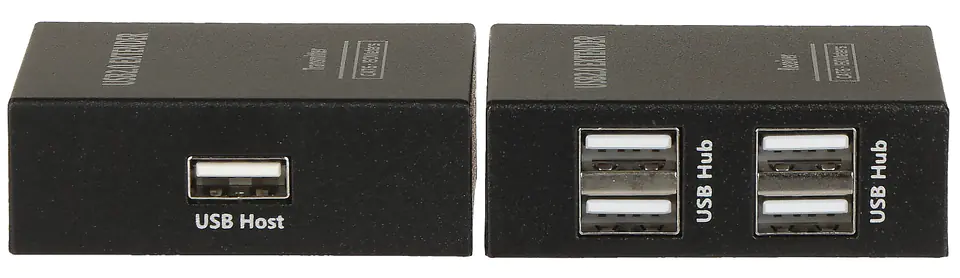

USB-EX-150/4-USB is a USB extension cable that can realize point-to-point connection using network cables cat. 5e/6/7It has 4 input channels for USB 2.0 devices, such as printer, camera, scanner, USB flash drive, keyboard, mouse, touch screen, etc.
The device supports a cascade of gigabit switches, which allows to increase the transmission distance
