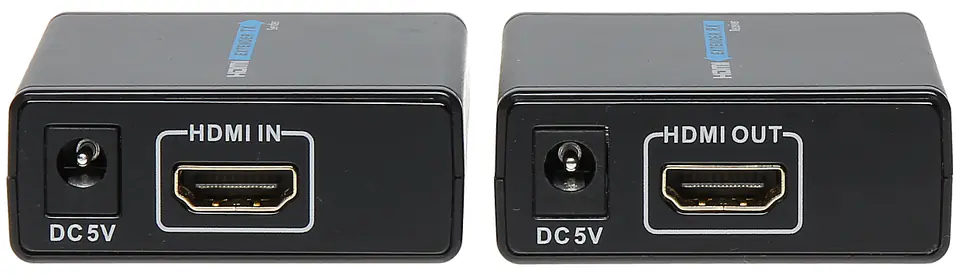

The device enables the transmission of a high-definition signal to a TV set equipped with an HDMI connector via twisted pair computer cat. 5e, 6
The "Length" button is used to automatically select parameters related to the range
Dimensions:: | 67 x 56 x 22 mm |
---|---|
Maximum transmission range:: | 40 m @ 720p / 1080p - UTP cat. 6 (manufacturer's data) 60 m @ 1080p - UTP cat. 6 (our tests) 50 m @ 1080p - UTP cat. 5e (our tests) |
Operating temperature:: | -10 °C ... 55 °C |
Permissible relative humidity:: | 5 % ... 90 % |
Power:: | 5 V DC / 1000 mA - 2 pcs included Power supplies |
Scales:: | 0.045 kg |
Supported audio formats:: | DTS-HD, Dolby true HD, LPCM7.1, AC3, DTS, DSD |
Supported hdmi resolutions:: | 1080p, 1080i, 720p, 576p, 576i, 480p, 480i |
Warranty:: | 2 years |
The device enables the transmission of a high-definition signal to a TV set equipped with an HDMI connector via twisted pair computer cat. 5e, 6
The "Length" button is used to automatically select parameters related to the range
