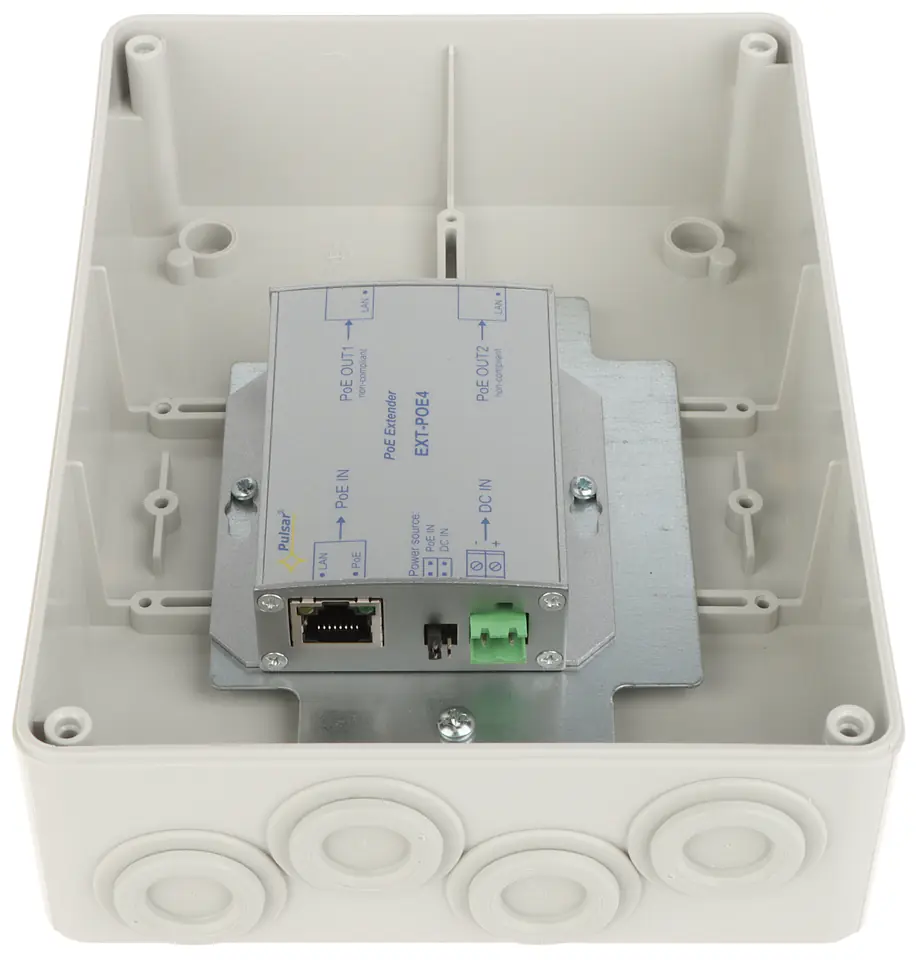

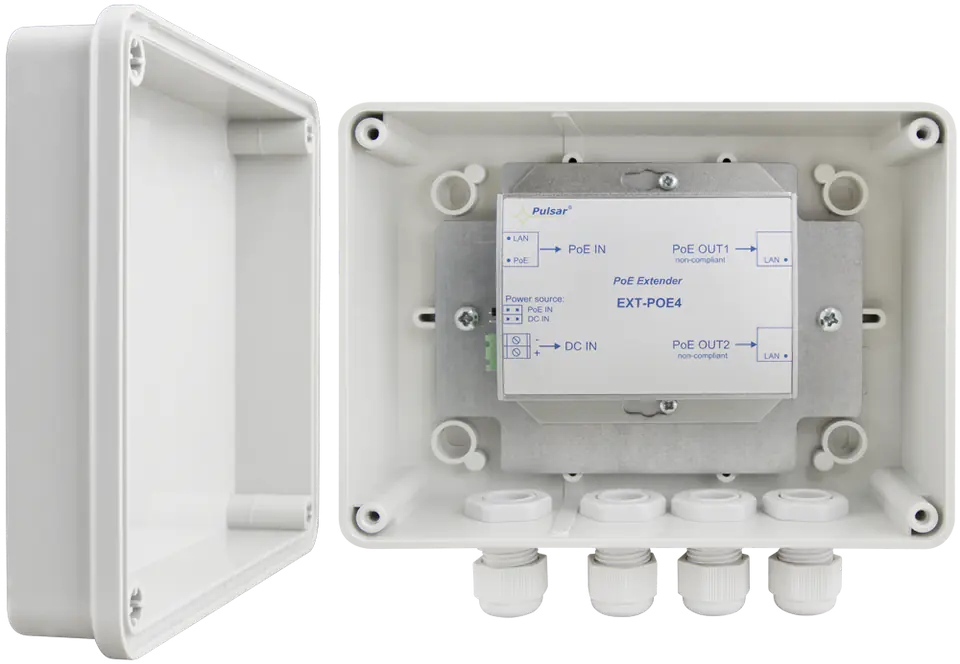

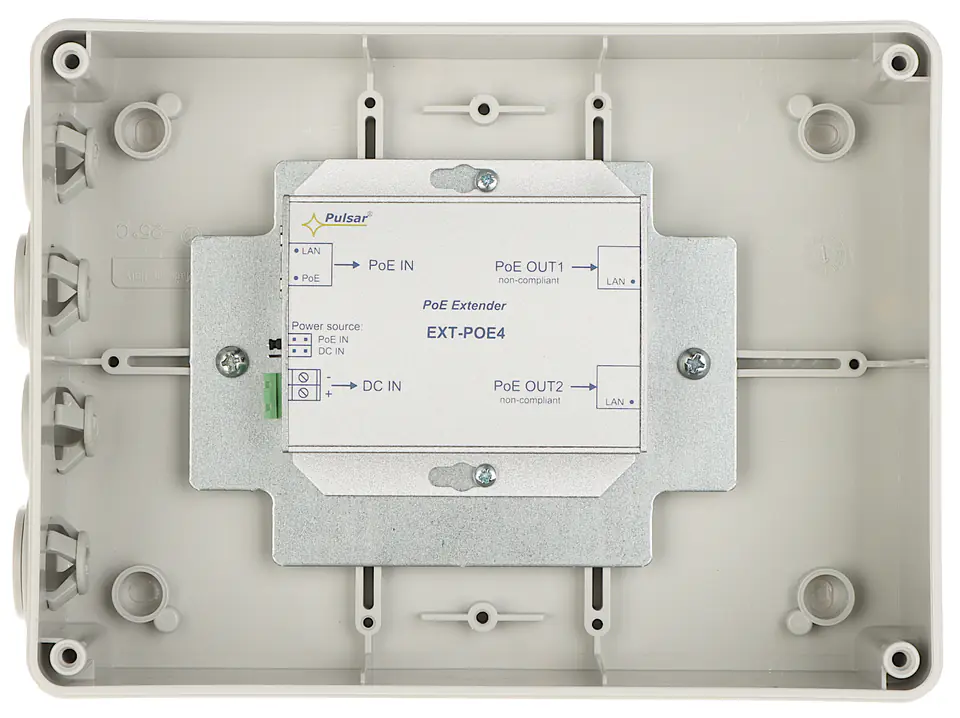

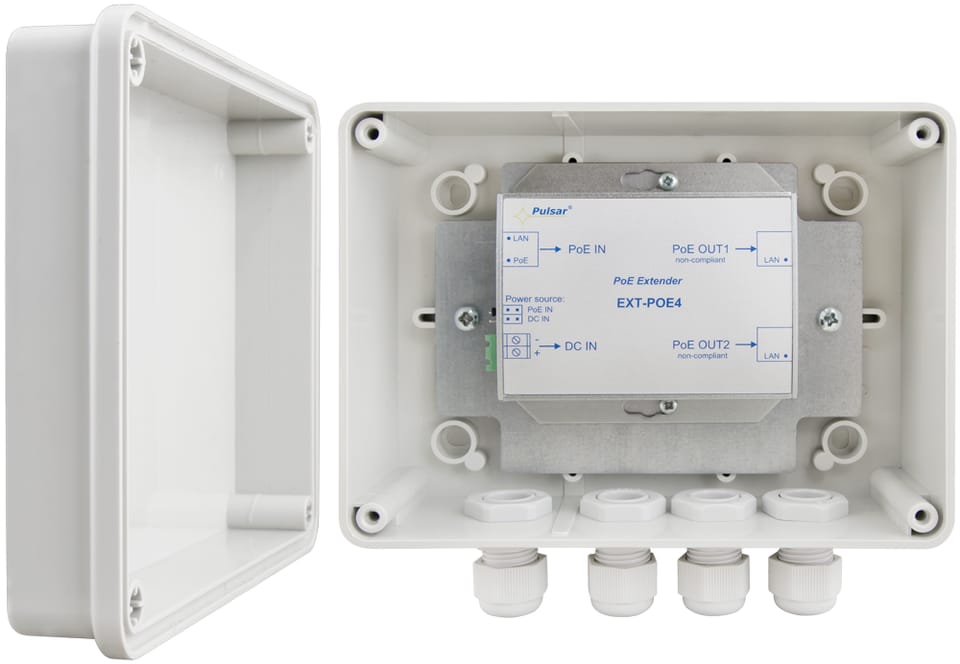

EXTENDER EXT-POE4H IN HERMETIC HOUSING PULSAR

€44.42
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
running out
Brand:
Pulsar
Product code:
EXT-POE4H / 5902135312032

Specification

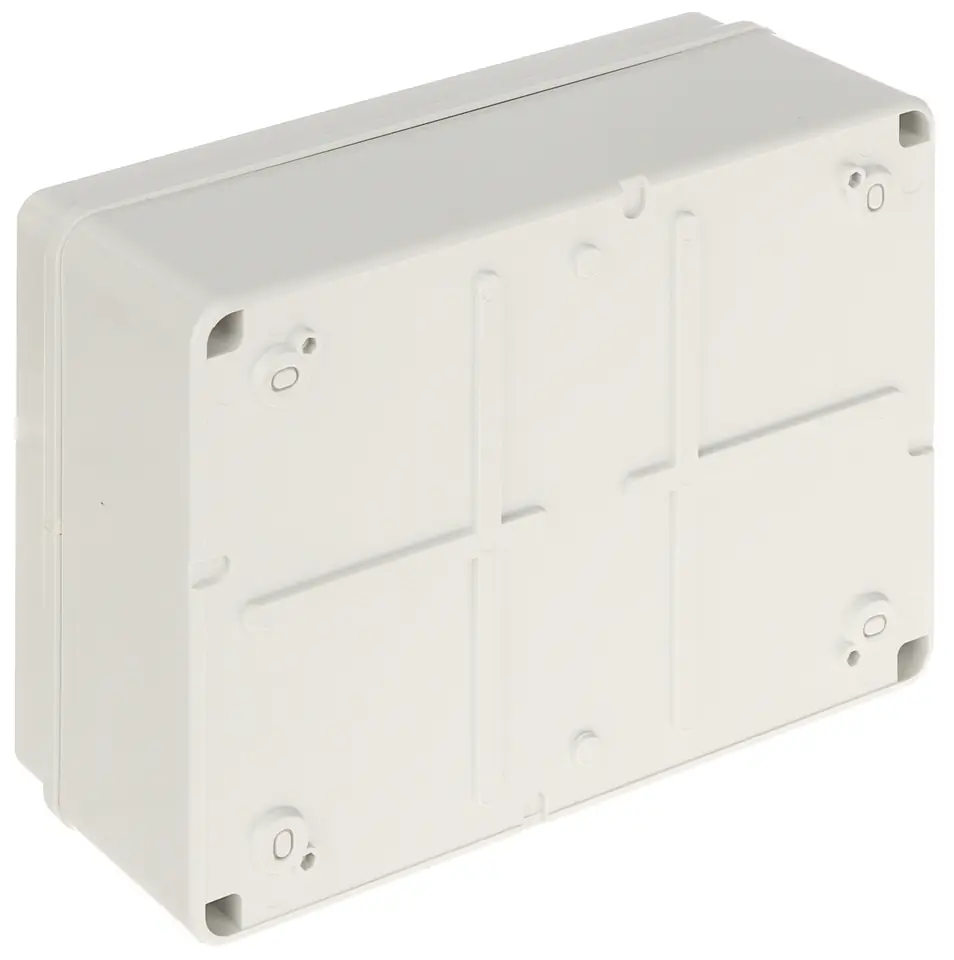

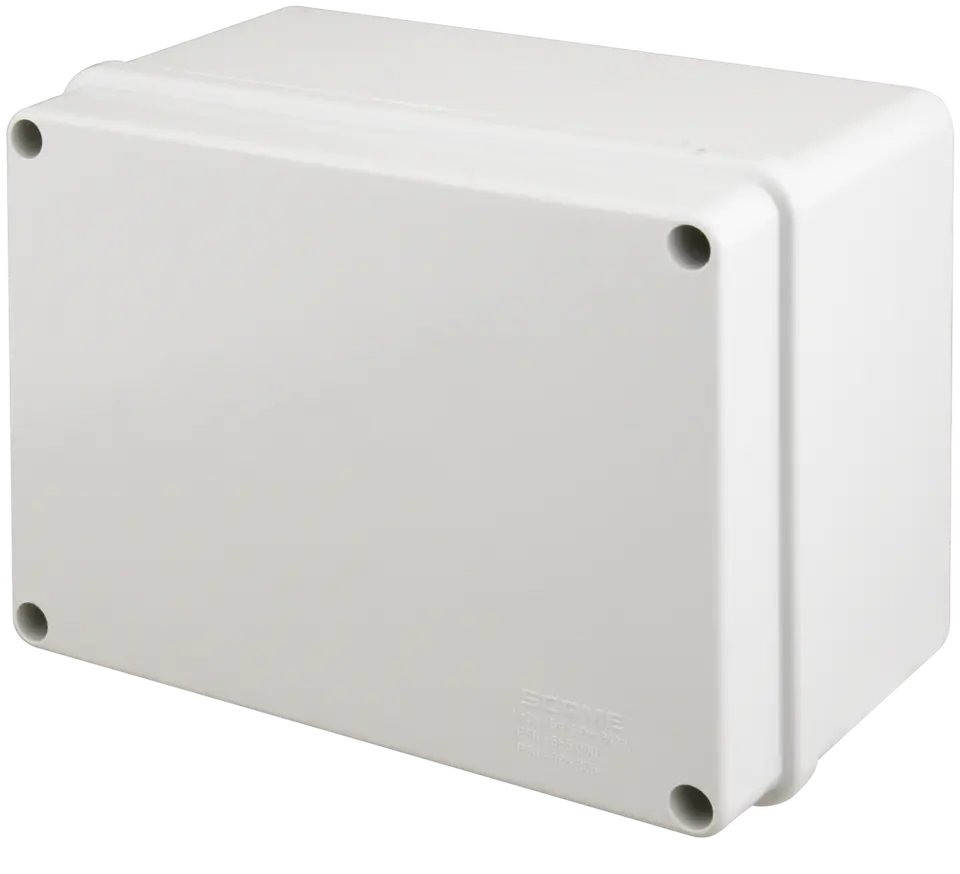

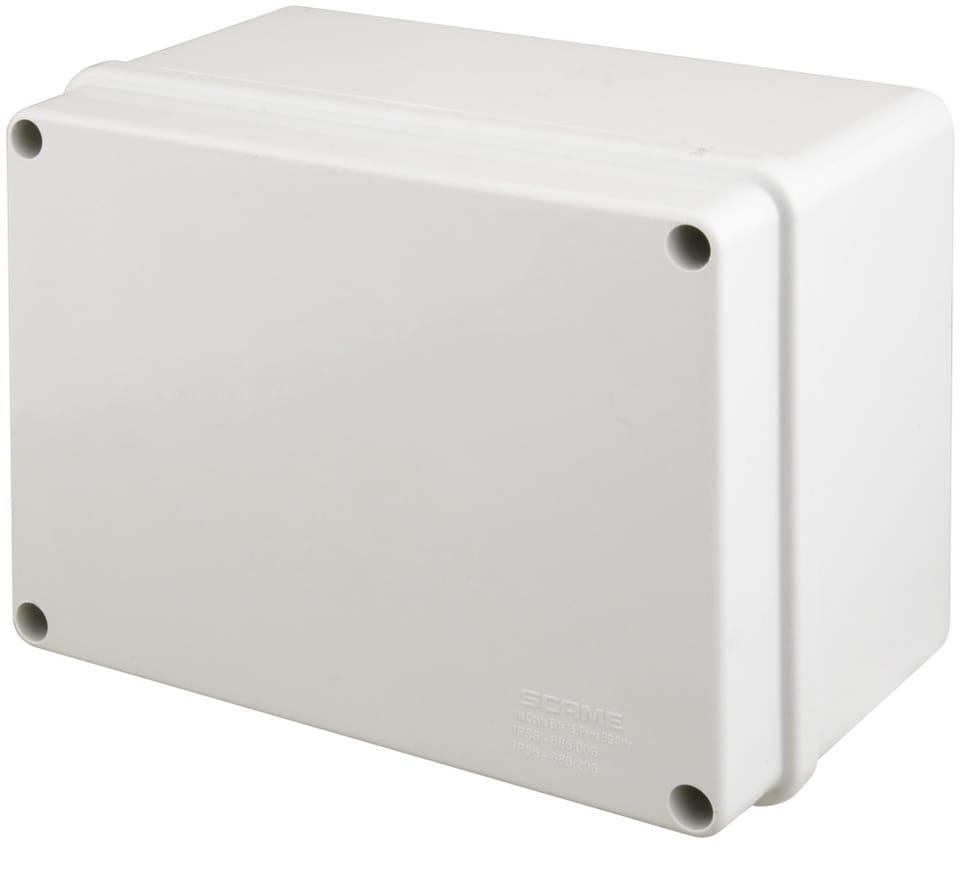

Case:Plastic, airtight
Dimensions:198 x 148 x 80 mm
Input voltage:42 ... 57 VDC
Joint:3 x RJ-45 jack
Number of inputs:1

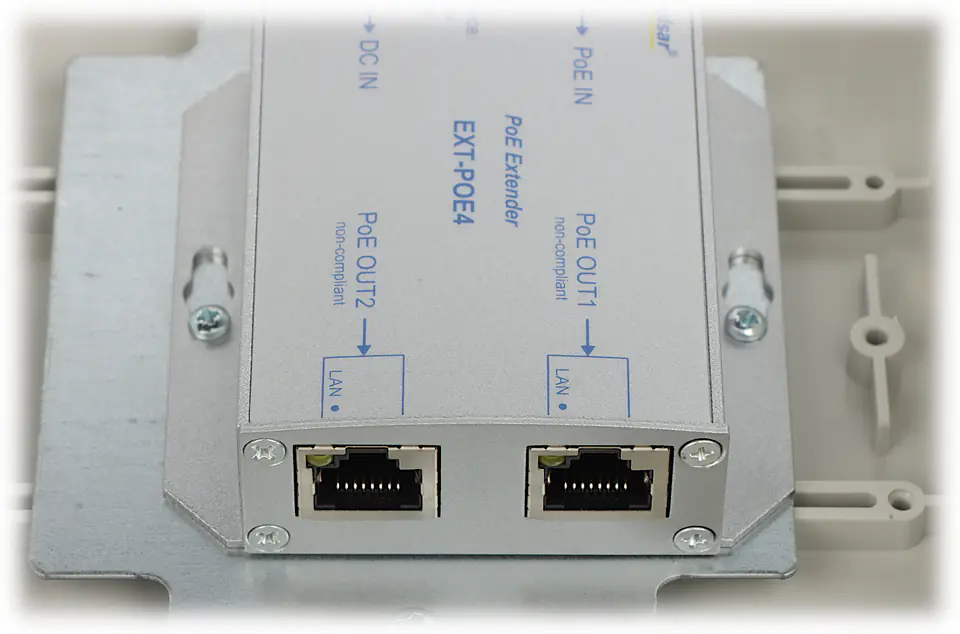

Number of outputs:2
Operating temperature / relative humidity:-10 ... 40 °C / 10 ... 90 %
Output power:.max. 14.4 W / PoE port, max. 20 W (total)
Output voltage:42 ... 57 VDC
Producer / brand:PULSAR
Scales:0.55 kg
Sealing:IP56
Security:Overvoltage Overload Anti-Short-circuit
Signalling diodes:Link/Act
Supported transmission speed:Range : 100 m - Entrance, 100 m - 2 x Output, Supported transmission rate 10 / 100 Mbps - Fast Ethernet
Warranty:2 years

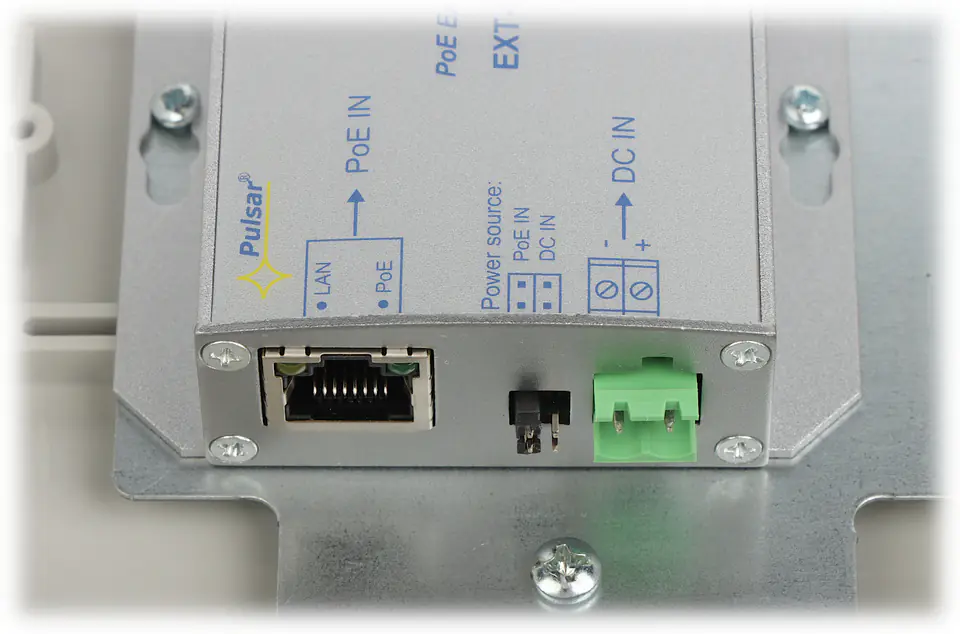

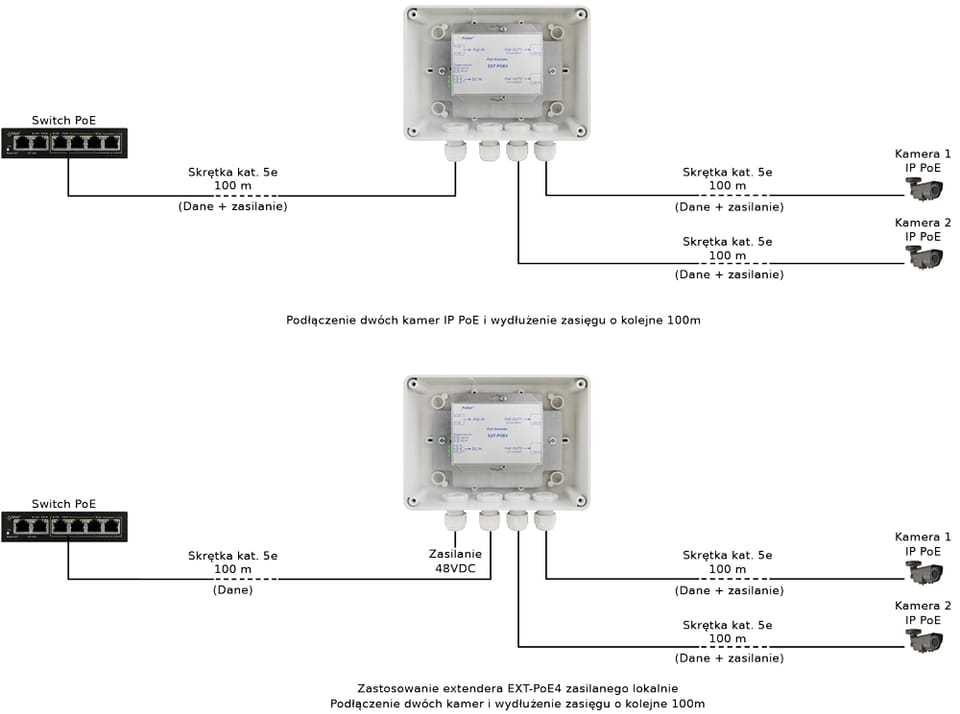

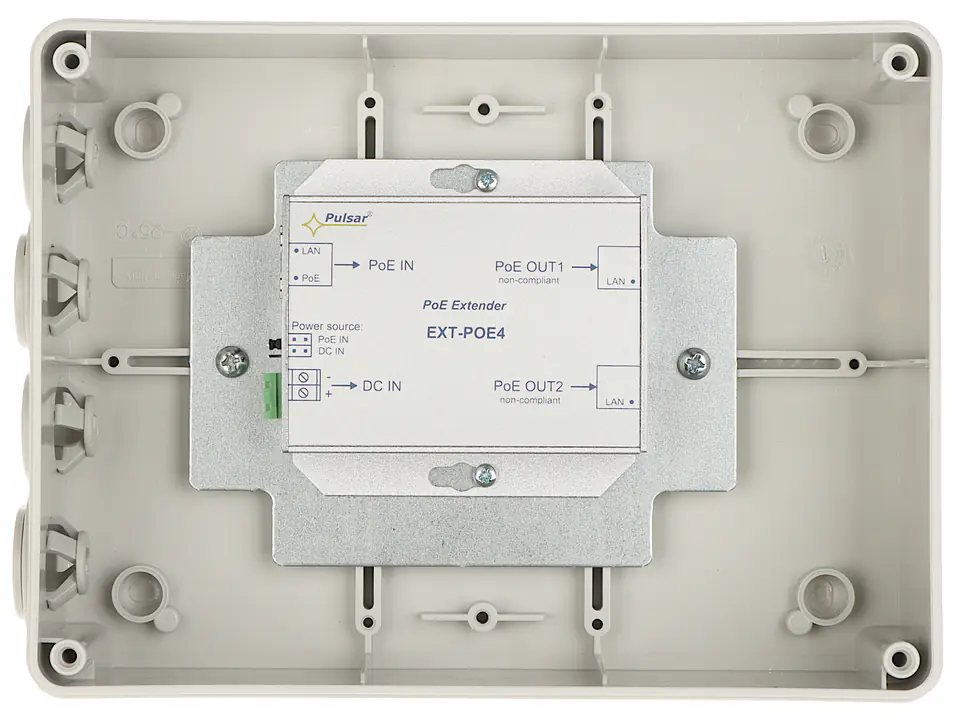

EXT-POE4H increases the range of Ethernet data and PoE power by another 100 metersThe device can be powered by applying voltage directly to 4/5 and 7/8 twisted pair cables, as well as locally using a 48V DC power supply (the choice of power source is made using a configuration jumper)The output voltage is consistent with the input voltage

The product meets the IP56 protection class

Remark! The device is NOT compliant with the IEEE 802.3af/at standardThe device cannot be used in Gigabit Ethernet networks, where all pairs of twisted pair cables are involved in data transmission
