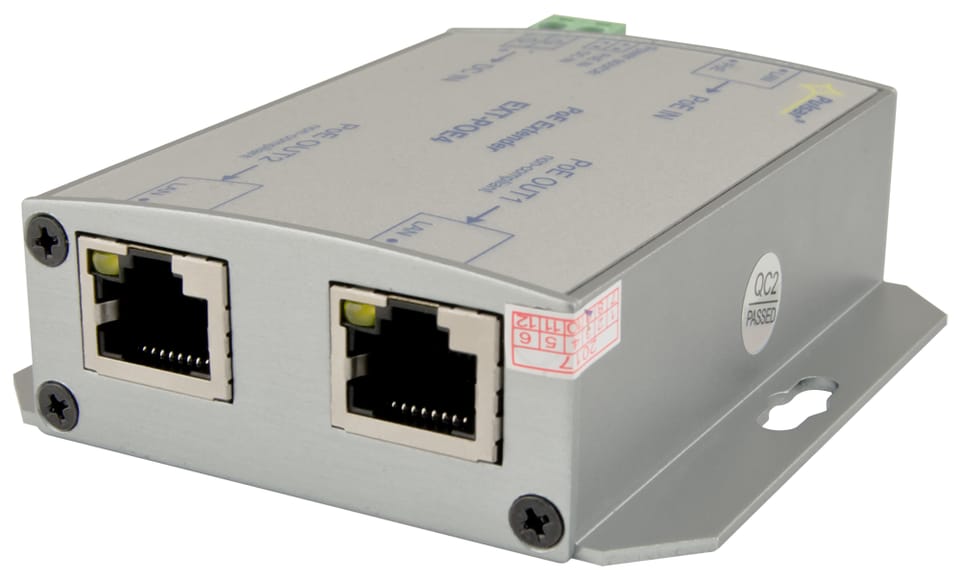

EXTENDER EXT-POE4 PULSAR

Name: EXTENDER EXT-POE4 PULSAR
Brand: Pulsar
SKU: 518101
Price: 27.07 EUR
Availability: InStock

€27.07

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: EXT-POE4 / 5902135310939

Specification

Case::	Metal
Dimensions::	86 x 77 x 26 mm
Input voltage::	42 ... 57 VDC
Joint::	3 x RJ-45 Jack
Manufacturer / brand::	PULSAR
Number of inputs::	1
Number of outputs::	2
Operating temperature / relative humidity::	-10 ... 40 °C / 10 ... 90 %
Output power::	Max. 14.4 W/PoE port, max. 20 W (total)
Output voltage::	42 ... 57 VDC
Scales::	0.10 kg
Security::	Surge Suppression Overload Short-Circuit
Signal diodes::	Link/Act
Supported baud rate::	Range : 100 m - Input, 100 m - 2 x Output, Supported transmission speed 10 / 100 Mbps - Fast Ethernet
Warranty::	2 years

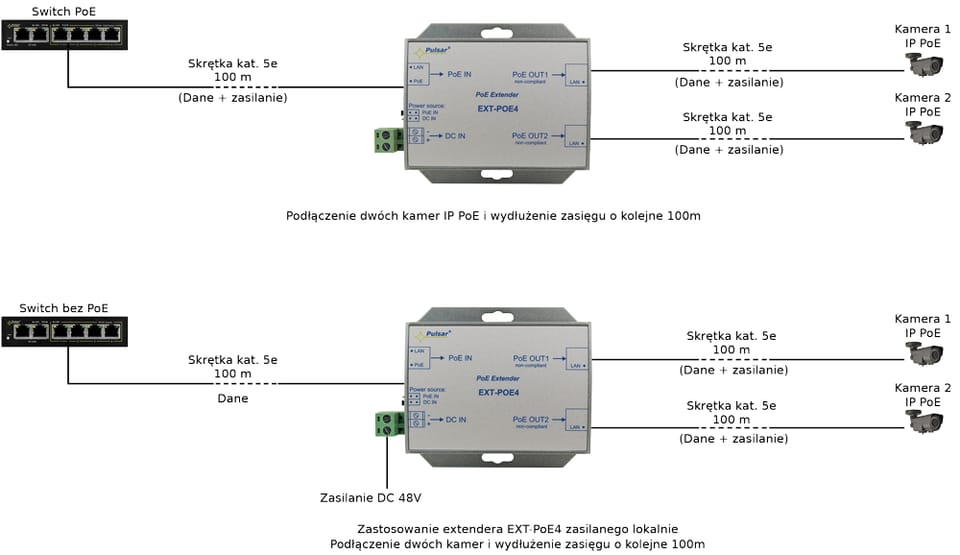

EXT-POE4 allows you to increase the transmission distance of PoE power supply and data using UTP category 5e to max. 200 mThe device can be powered by applying voltage directly to 4/5 and 7/8 twisted pair pairs, as well as locally using a 48V DC power supply (the power source is selected using a configuration jumper)The output voltage is consistent with the input voltage

Remark! The device is NOT compliant with the IEEE 802.3af/at standardThe device cannot be used in Gigabit Ethernet networks, where all pairs of twisted pair are involved in data transmission

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
