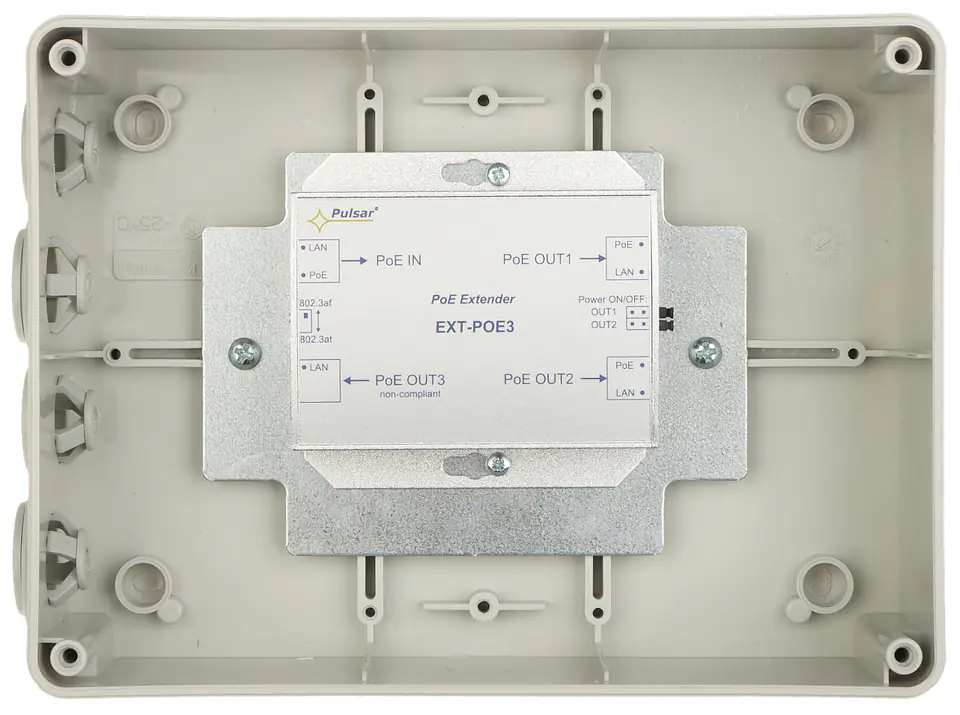

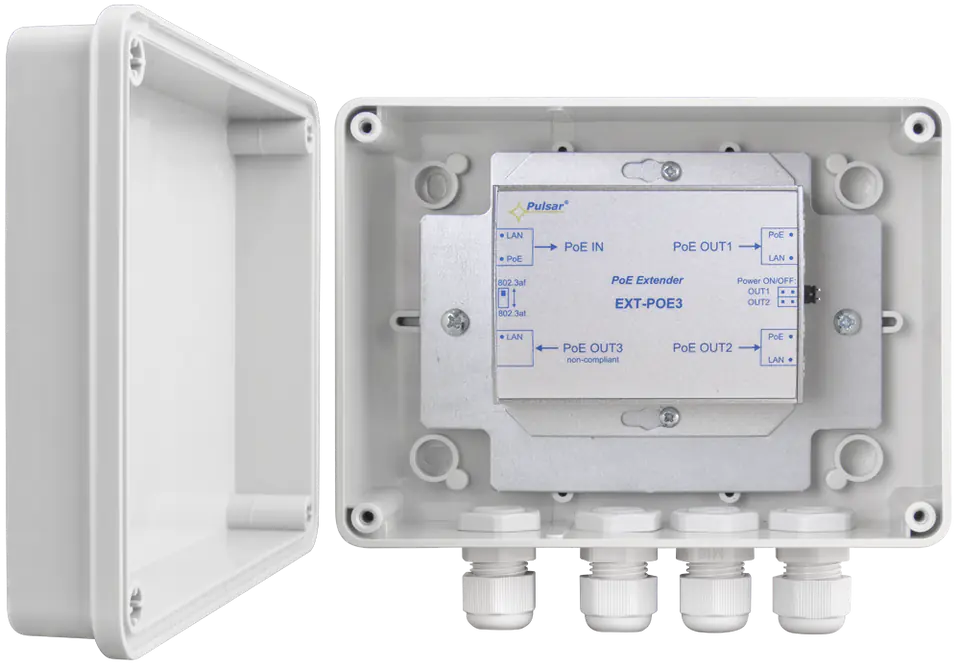

EXTENDER EXT-POE3H IN PULSAR HERMETIC HOUSING

€69.88
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Pulsar
Product code:
EXT-POE3H / 5902135312025

Specification

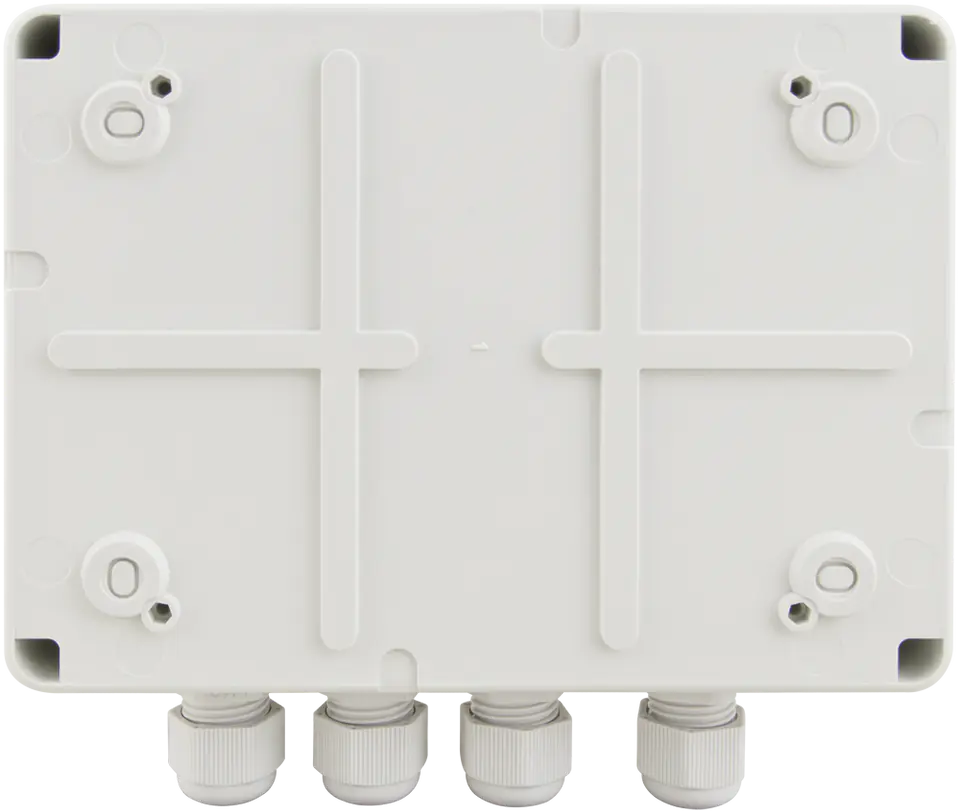

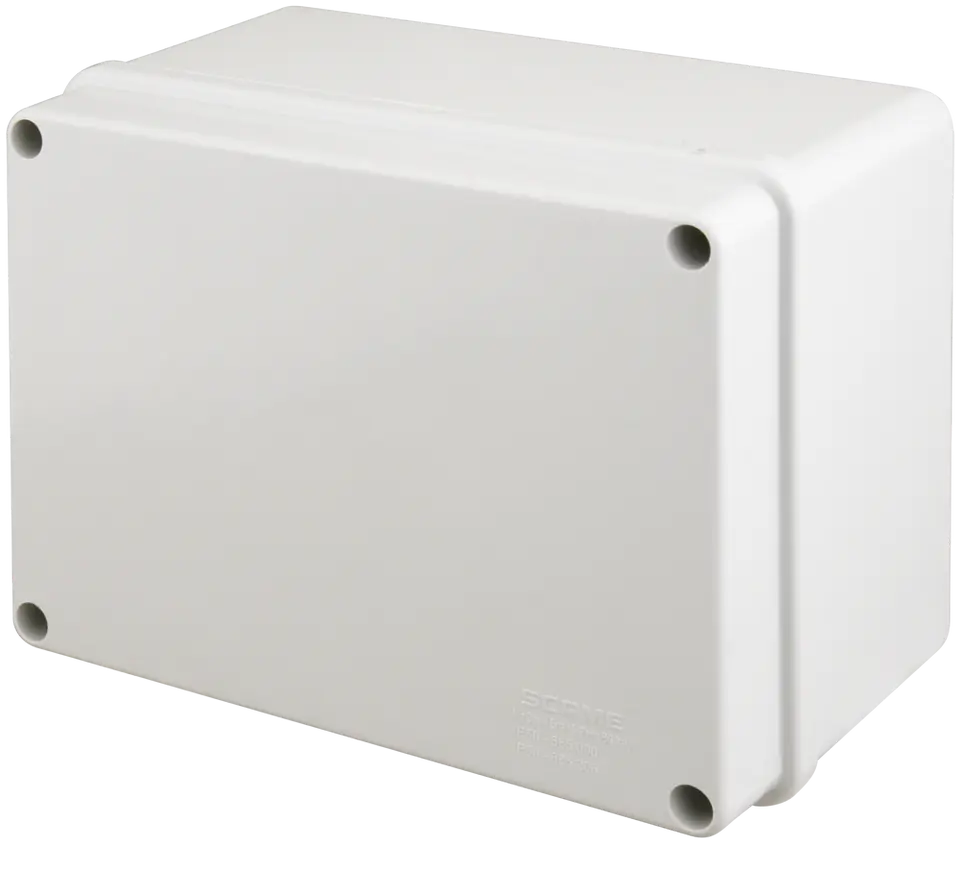

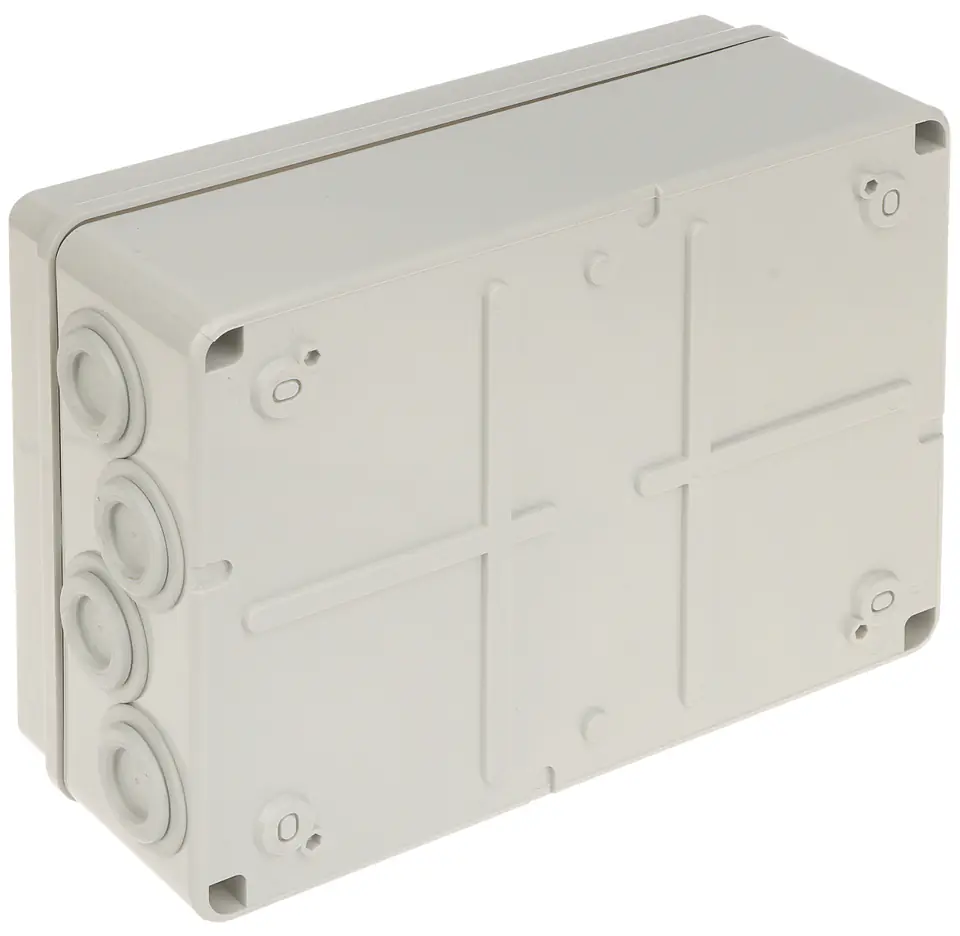

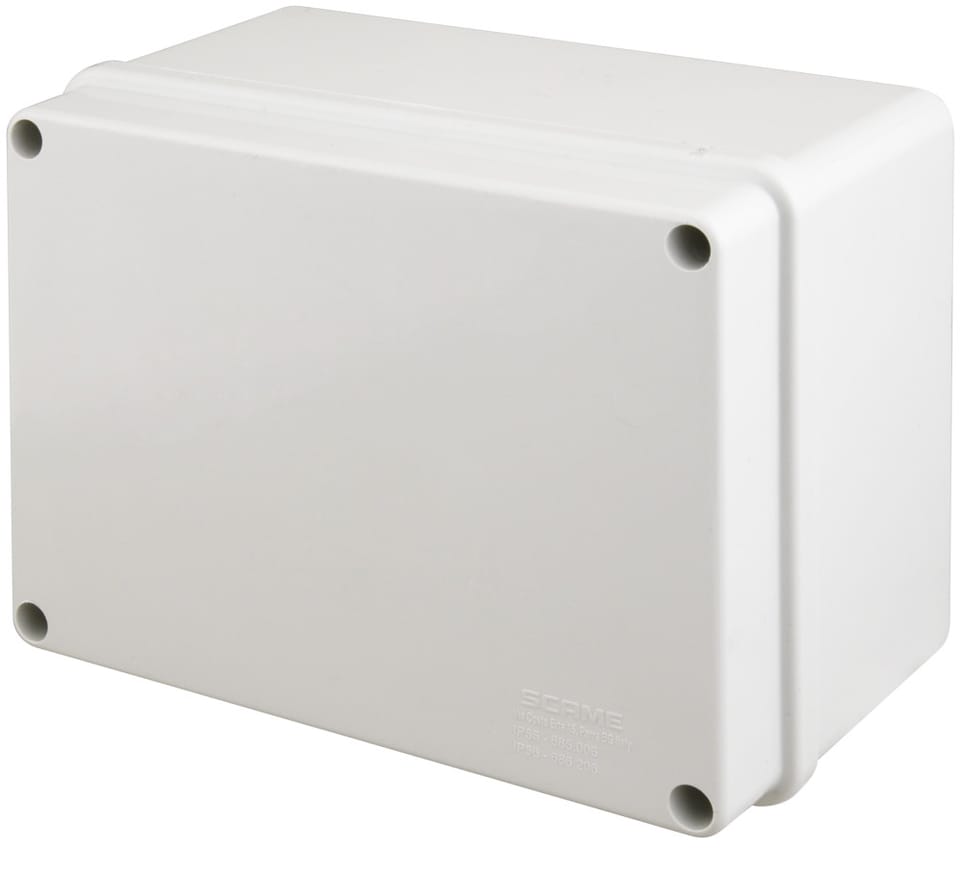

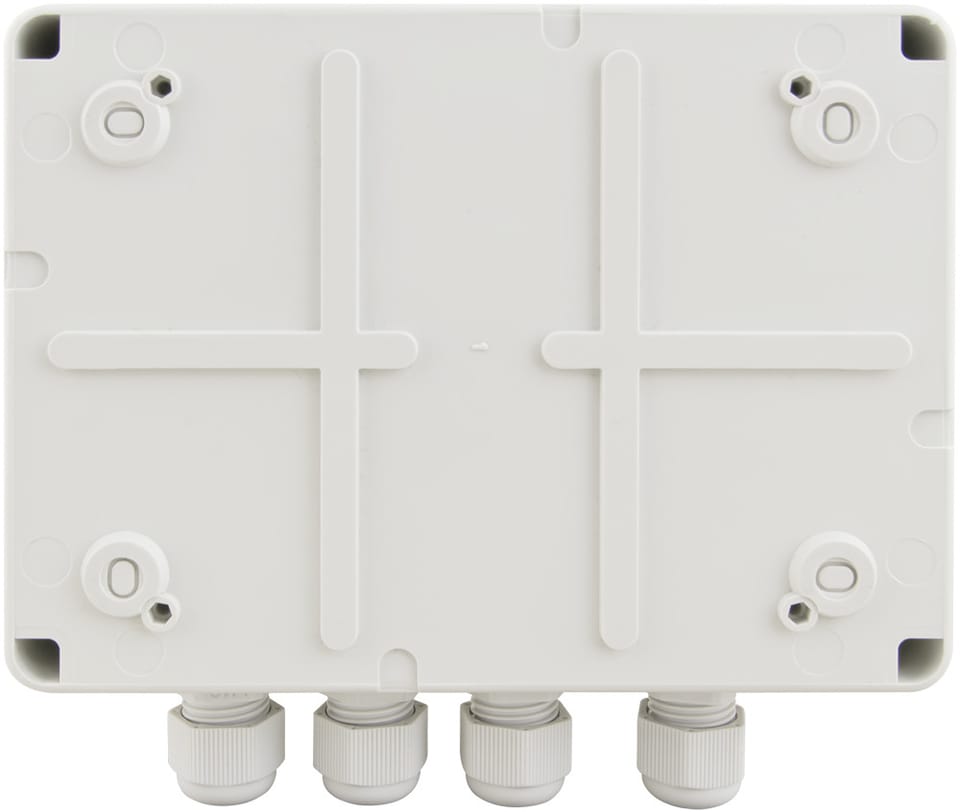

Case::Plastic, hermetic
Dimensions::198 x 148 x 80 mm
Input voltage::42 ... 57 VDC
Joint::4 x RJ-45 Jack
Manufacturer / brand::PULSAR
Number of inputs::1
Number of outputs::3
Operating temperature / relative humidity::-25 ... 50 °C / 10 ... 90 %
Output power::19.2 W / PoE OUT port 1/2 ,14.4 W / PoE OUT port 3 ,max. 19.2 W (total)
Output voltage::42 ... 57 VDC
Scales::0.55 kg
Sealing::IP56
Security::Surge Suppression Overload Short-Circuit
Signal diodes::LAN, PoE
Standards::PoE: 802.3af/at - Port PoE OUT 1/2, Passive PoE - Port PoE OUT 3
Supported baud rate::Range : 100 m - Input, 100 m - 3 x Output, Supported transmission speed 10 / 100 Mbps - Fast Ethernet
Warranty::2 years

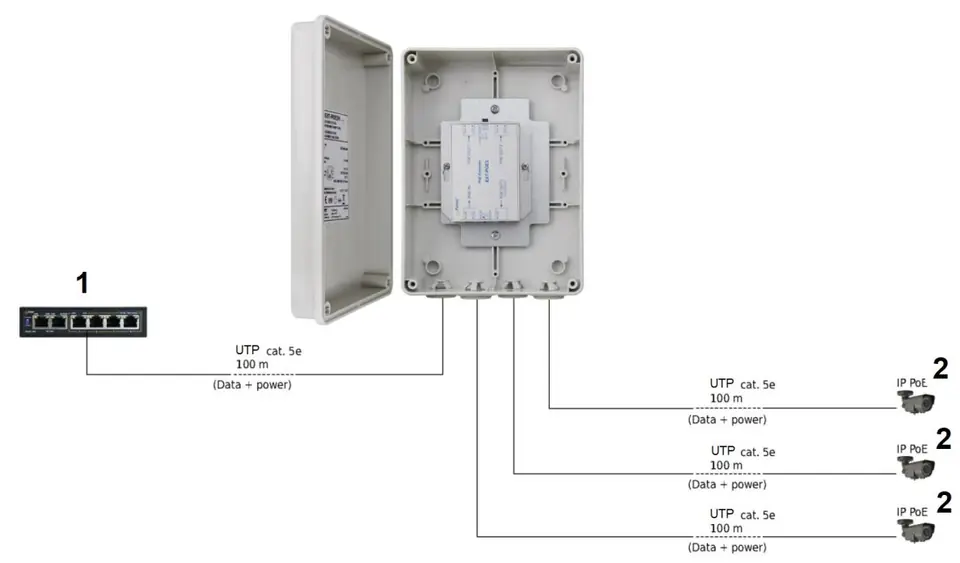

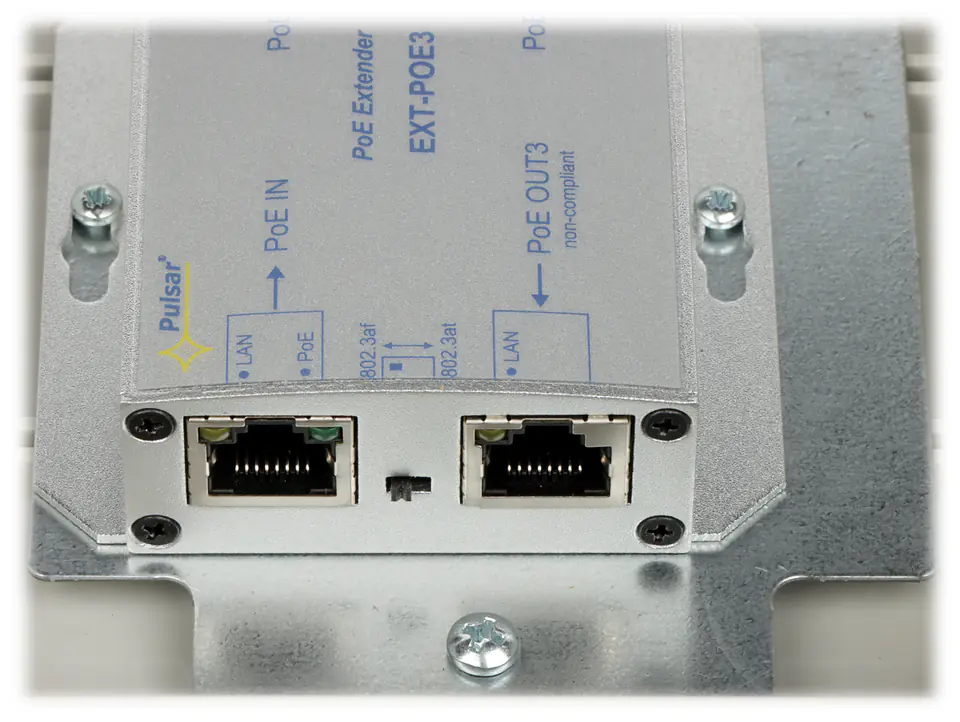

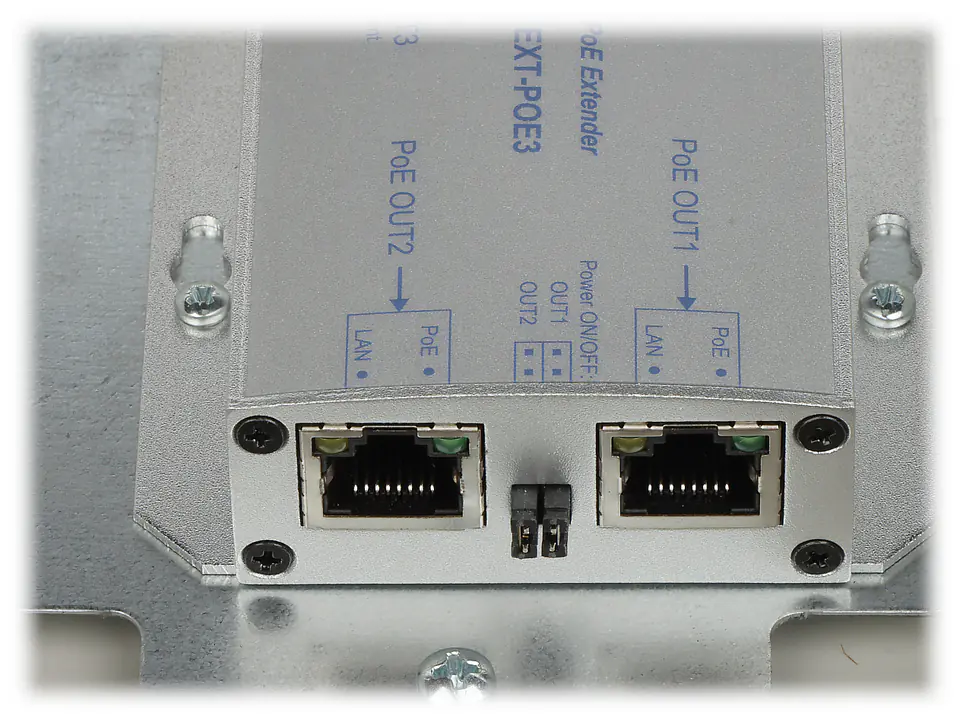

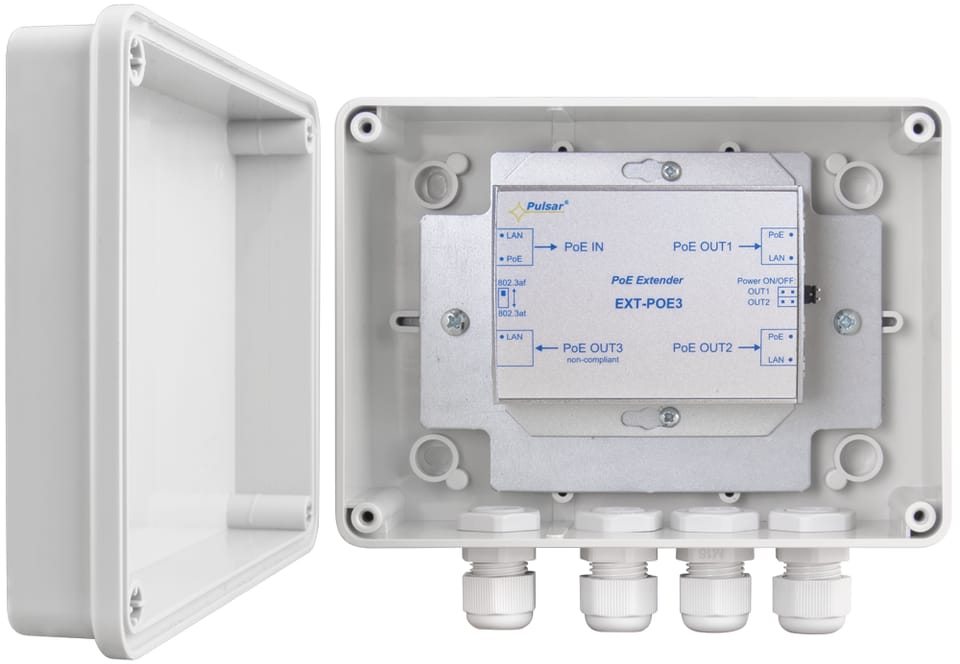

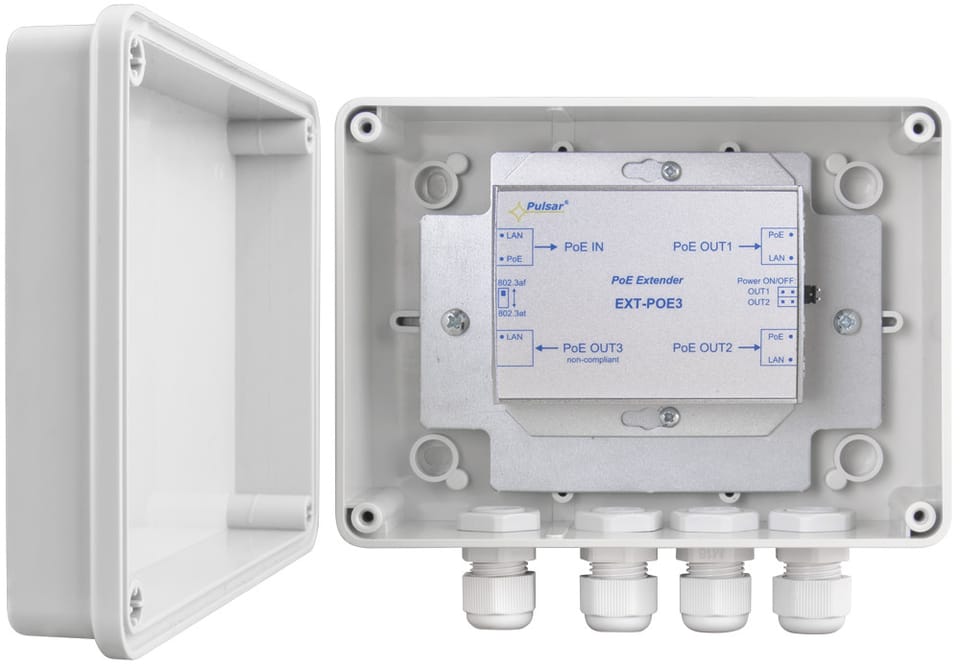

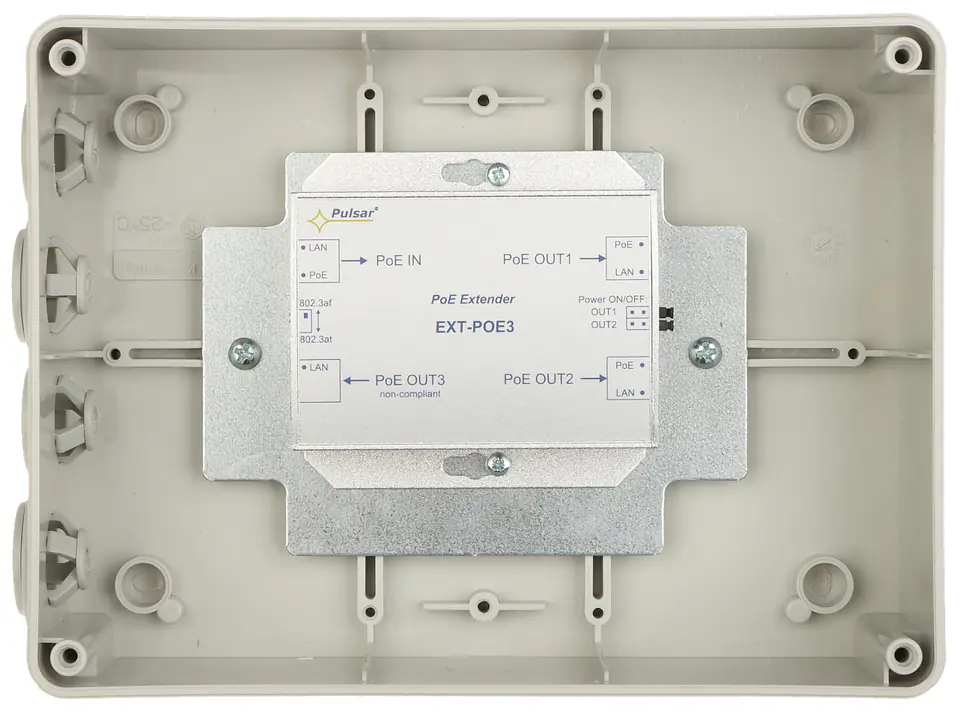

EXT-POE3H increases the range of Ethernet data and PoE power supply by another 100 metersThe device can be powered by applying voltage directly to 4/5 and 7/8 twisted pair pairs, as well as locally using a 48V DC power supply (the power source is selected using a configuration jumper)The output voltage is consistent with the input voltage

The product meets the IP56 protection class

Remark! The device cannot be used in Gigabit Ethernet networks, where all pairs of twisted pair cables are involved in data transmission

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
