| Dimensions:: | 87 x 77 x 25 mm |
|---|---|
| Ethernet interface:: | 10/100 Mbps |
| Indication of the operating status:: | Leds |
| Input poe in power supply pairs:: | 1/2 (+) 3/6(-) 4/5 (+) 7/8 (-) |
| Manufacturer / brand:: | PULSAR |
| Number of inputs:: | 1 pc. - RJ-45 socket |
| Number of outputs:: | 3 pcs. - RJ-45 socket |
| Operating temperature:: | -10 °C ... 40 °C |
| Output poe out pairs out1/2:: | 4/5 (+) 7/8 (-) - Passive PoE |
| Output voltage:: | Compatible with supply voltage |
| Output:: | 0.6 A - PoE OUT 1/2 Ports - PoE Compliant (802.3af/at) 0.3 A - PoE OUT Port 3 - Passive PoEToex Max. 0.6 A |
| Power:: | Compliant with PoE (802.3af/at) : 44 V ... 57 VDC |
| Scales:: | 0.11 kg |
| Security:: | Short-circuit Overload |
| Warranty:: | 2 years |

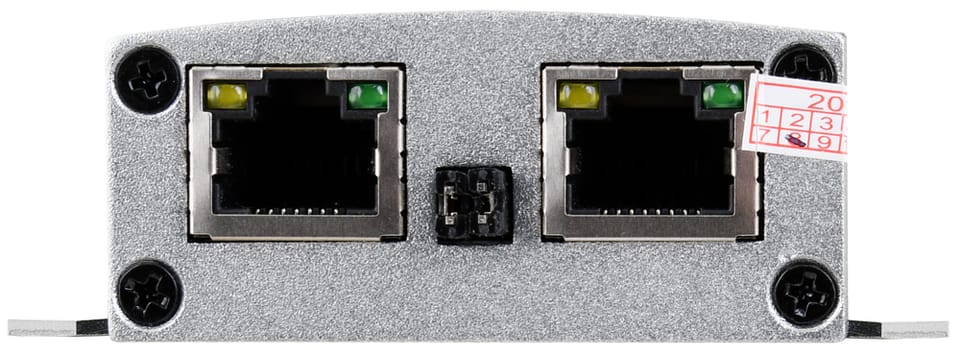

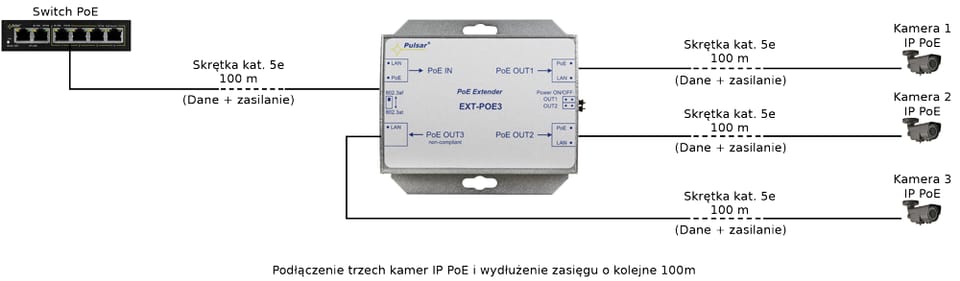

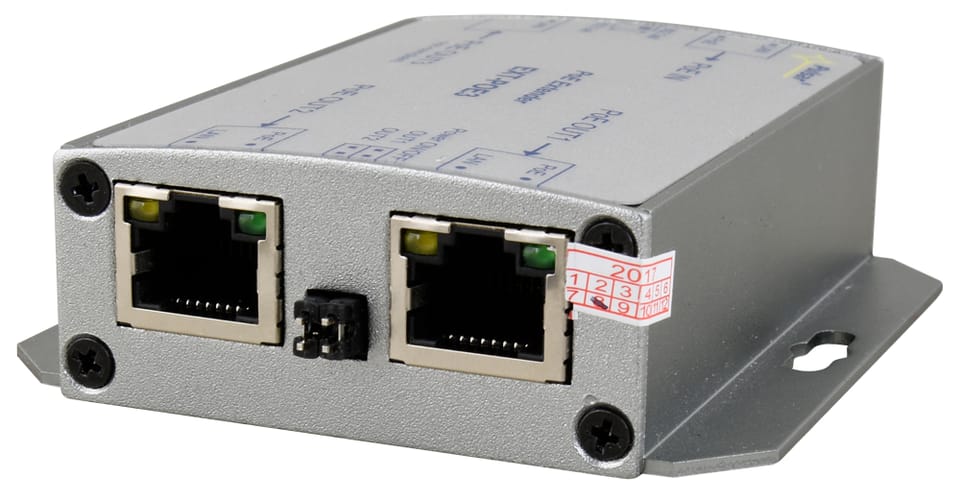

The EXT-POE3 Extender is a device designed to increase the distance of Transmission of PoE power supply and Ethernet data via UTP cat cable. 5/5e by another 100 mThe device is powered from a PoE switch or other device compliant with this standard
Remark! The device cannot be used in networks with a bandwidth of 1Gbit/s (Gigabit Ethernet)
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
