Technical data:
Product series: PRO accessories
Description: 305 x 30 x 2.8 mm, 96
Genus. Pack.: Paper / Cardboard / Corrugated cardboard - Packaging, case, with Euro hole
Incl. Pack. : 1 Pcs.
Minimum order quantity: 1 pc.
Outside diameter mm: 305
Mm hole: 30
Cutting width (b1) mm / body thickness (b2) mm: 2.8/2.0
Number of Teeth: 96
Tooth shape: HLTCG
Max. rotation speed (rev/min): 6200
Cutting result: 4
NL/TKS diameter:
- 2/7/42
- 2/9,5/46,5
- 2/9/46
- 2/10/60
Approach angle ° ?: -5
Angle of application ° ß: 15
Materials for processing (details):
- Laminated boards/multilayer panels
- Laminated MDF
- Epoxy (epoxy resin)
- Aluminum
- Feet
- Copper
- Chipboard
- Sound-absorbing records
- Light building boards
**

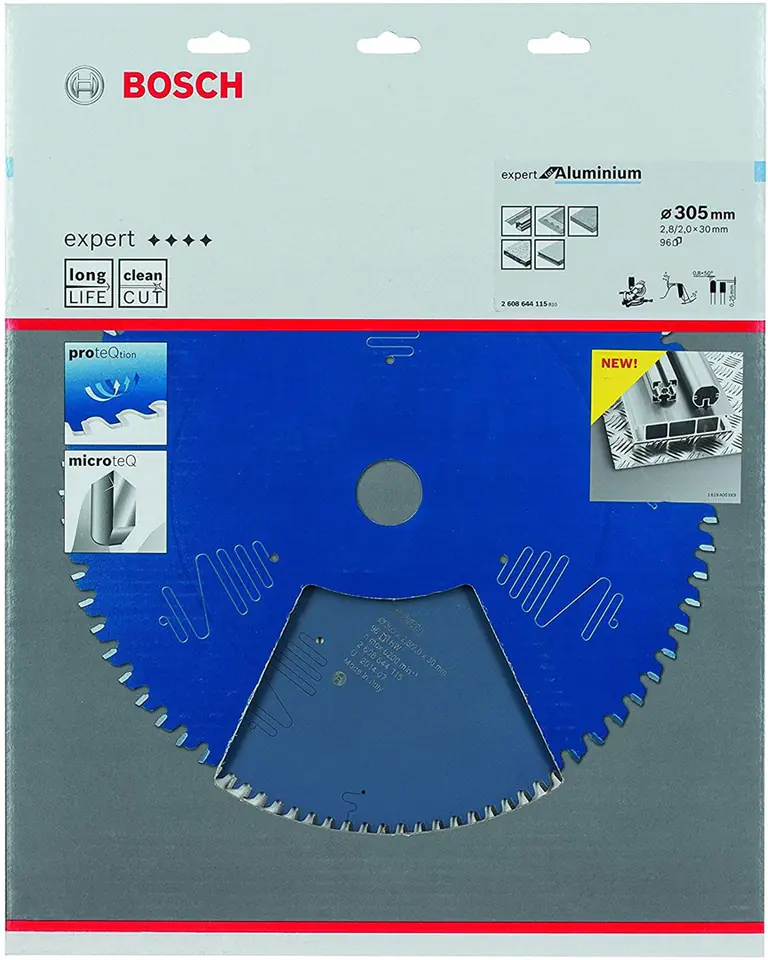

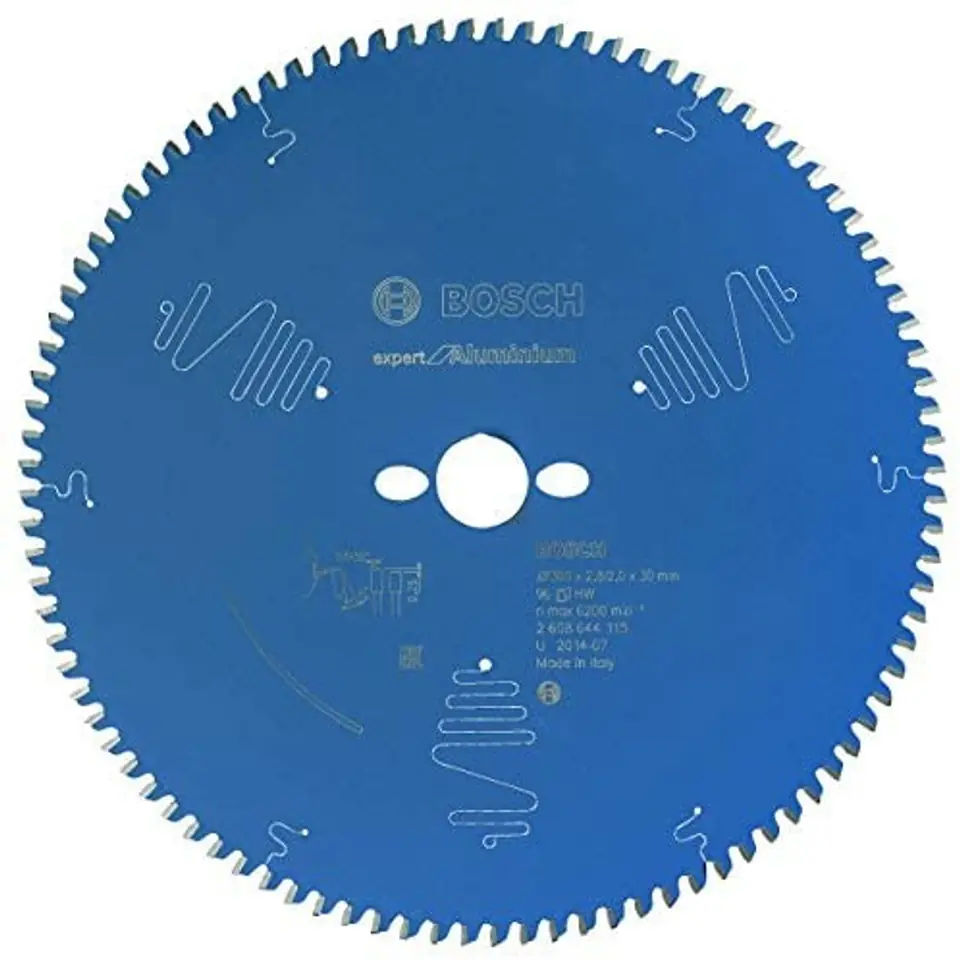

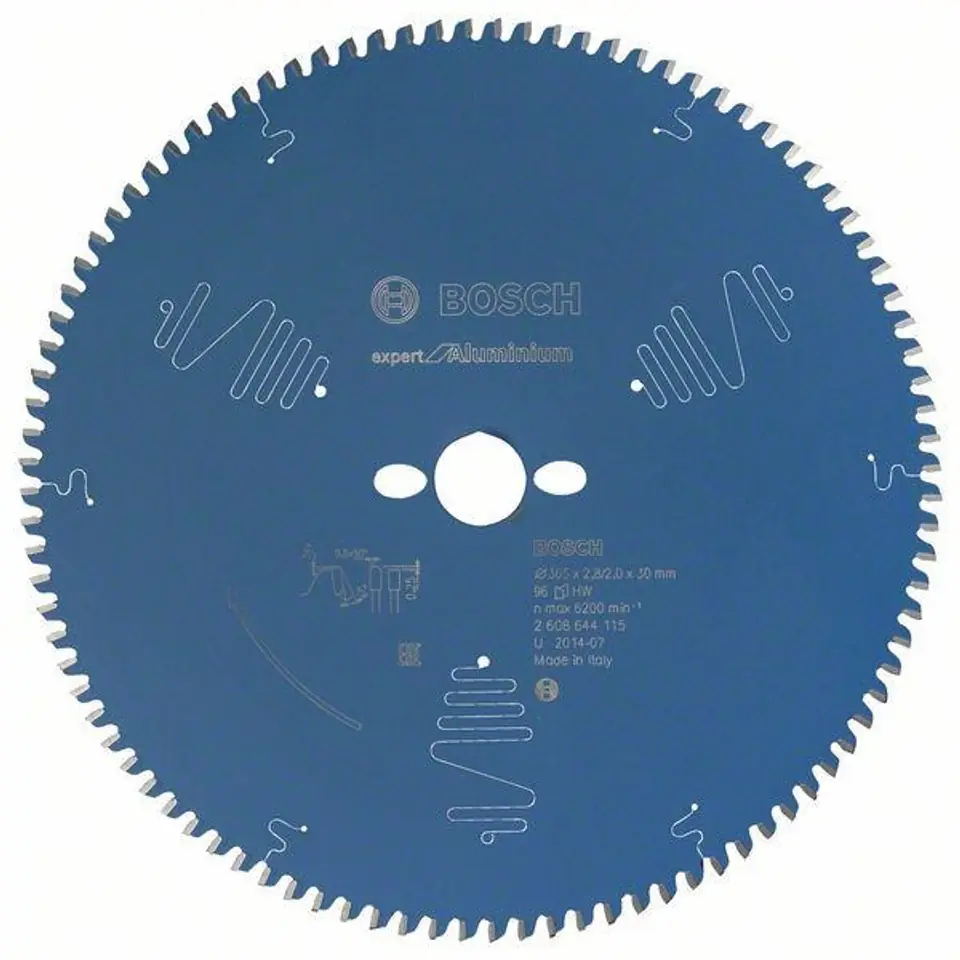

The presented photo has an illustrative function.
