Manufacturer name: MSW-ROLLER-900Y

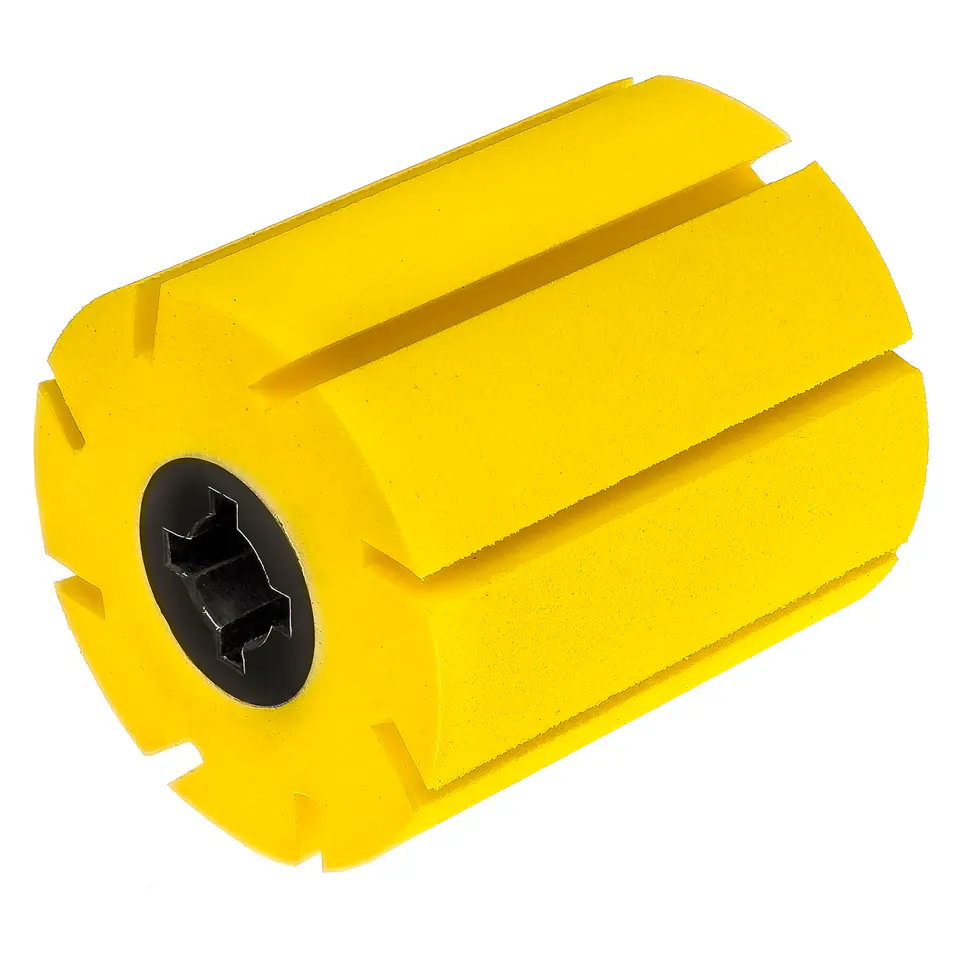

Professional expansion roller for grinding and satin machines of the German manufacturer MSW .
For sanding belts and sleeves. Sanding belts and sleeves are tensioned onto a roller and tensioned by centrifugal force.
Made of flexible material that adheres snugly to the sanding sleeve during operation, stably holds the sanding belt in place and prevents it from moving.
The expansion roller is designed for satin machines and grinders equipped with an M19 mounting pin with a diameter of 19 mm and a length of 100 mm.
M19 MOUNTING PIN IS NOT INCLUDED IN THE SCOPE OF DELIVERY. The mandrel can be purchased in our store as a separate article MSW-SHAFT-M19.
MSW expansion rollers fit 6047 MSW-BUR900S satin machine, which can be purchased in our store and for all other brands.
Technical parameters:
- - Model - MSW-ROLLER-900Y
- - Catalogue number - 6062
- - Article status - New
- - Shaft diameter - 90 mm
- - Shaft height - 100 mm
- - Mounting pin (compatible) - M19
- - User manual - No
- - Dimensions (LxWxH) - 9 x 9 x 10 cm
- - Weight - 0.26 kg
- - Shipping dimensions (LxWxH) - 10,5 x 10,5 x 22 cm
- - Shipping weight - 0,5 kg
