Expansion module for inputs and outputs of the INTEGRA INT-PP series control panel

€92.06
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Satel
Product code:
INT-PP / 5905033331570

Specification

Ean:5905033331570
Model:Other

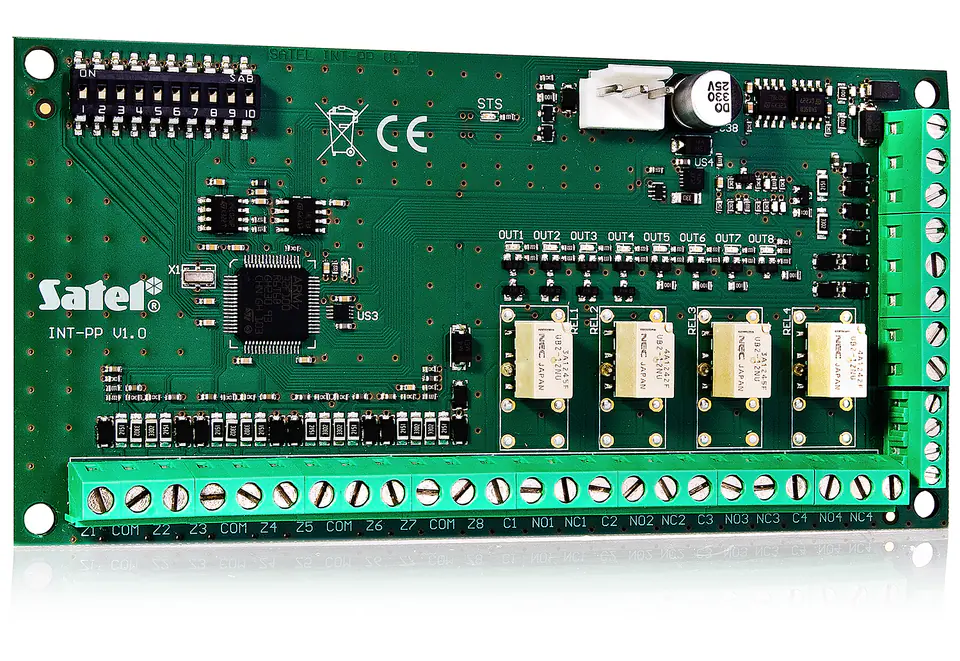

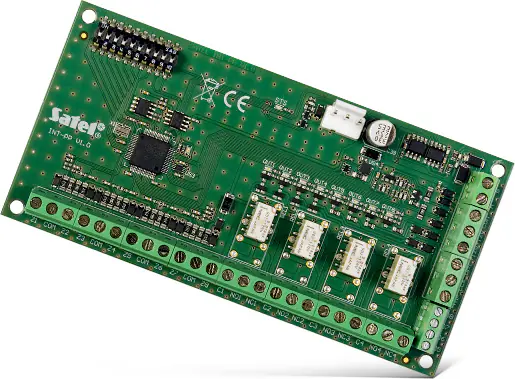

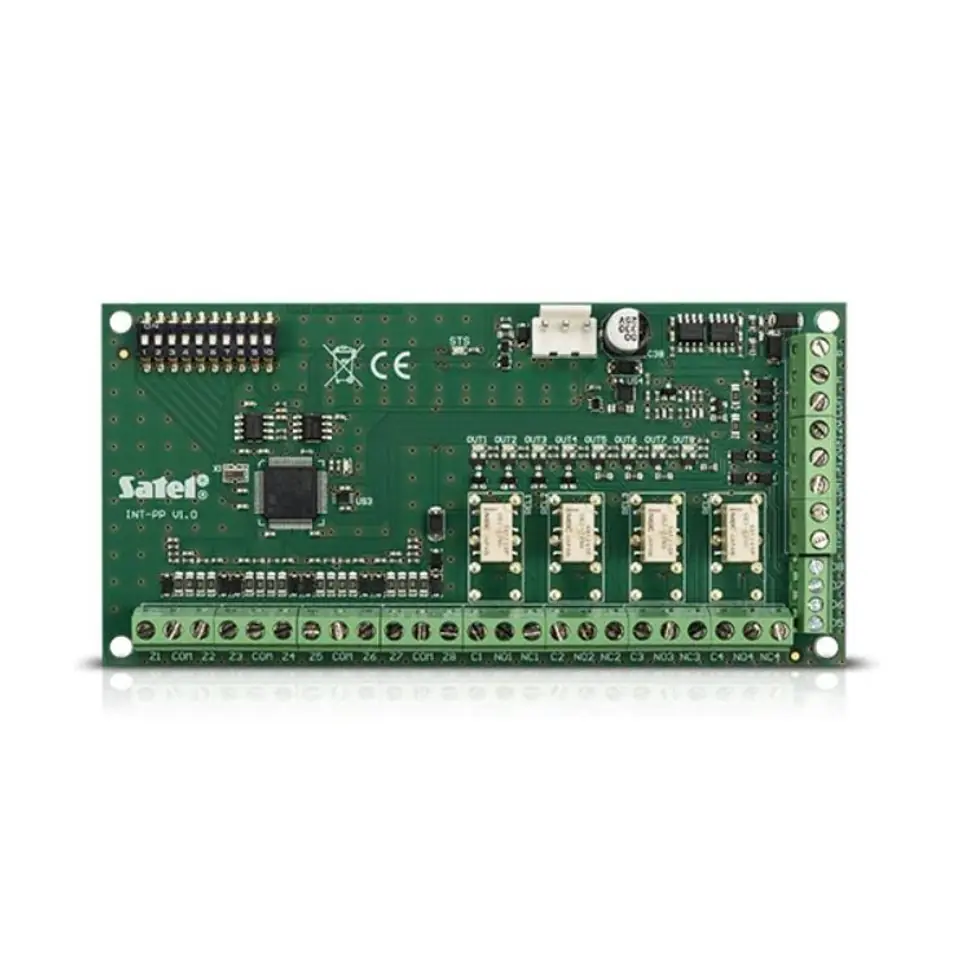

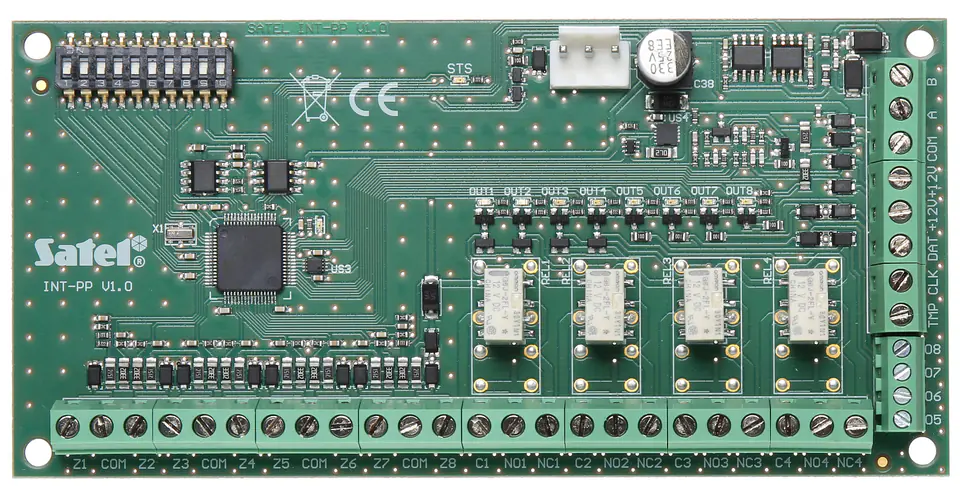

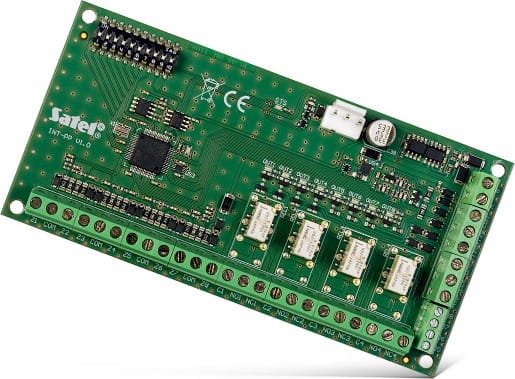

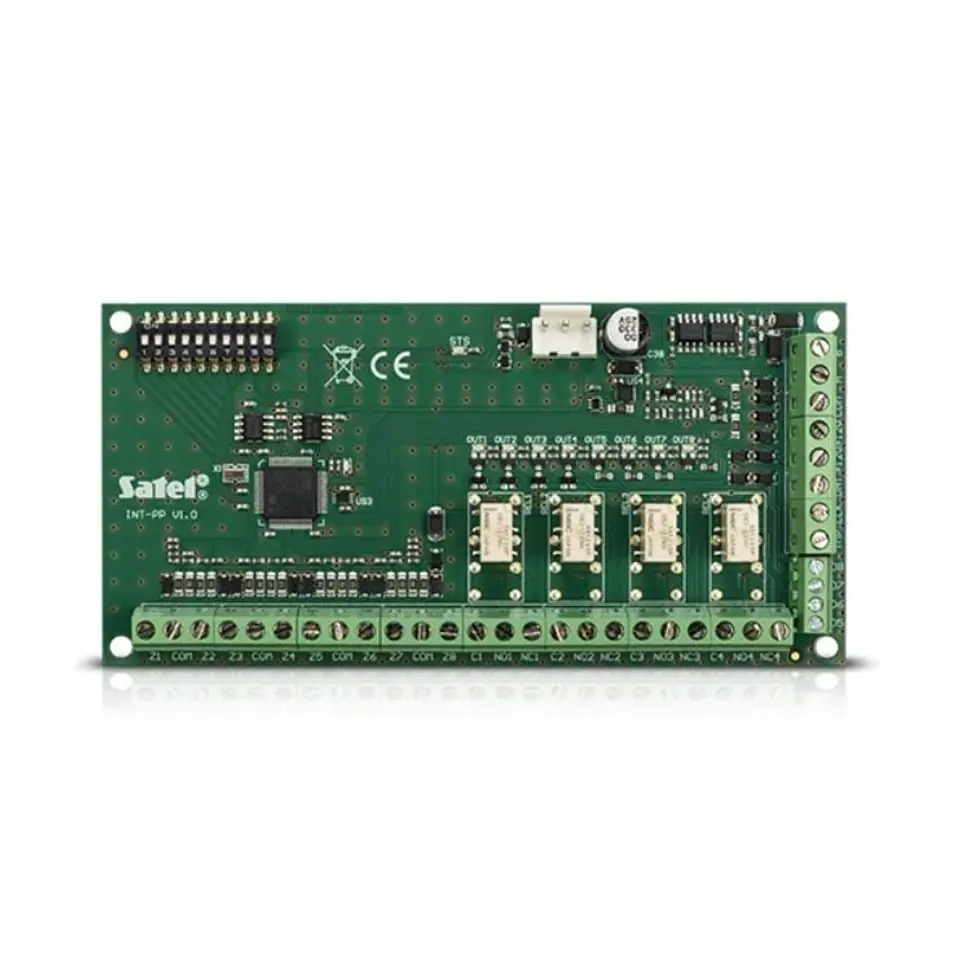

The module is designed to work with alarm control panels from the INTEGRA and INTEGRA Plus families, as well as with the ACCO-NT access control panel. This device replaces the CA-64 PP module. INT-PP allows the expansion of the control panel with an additional 8 wired inputs, as well as 8 programmable outputs: relay and OC. An additional tamper input makes it easier to detect unauthorized opening of the housing in which the module is placed.

Configuration support:

  • NO, NC
  • EOL, 2EOL/NO, 2EOL/NC (alarm control panels only)

3EOL (INTEGRA Plus only)
Operation of roller shutter and vibration detectors (alarm control panels only)
Expansion of the system by 8 inputs

Expansion of the system by 8 outputs:

  • 4 OC outputs
  • 4 relay outputs

Can be connected to RS-485 bus (software update via bus)

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
