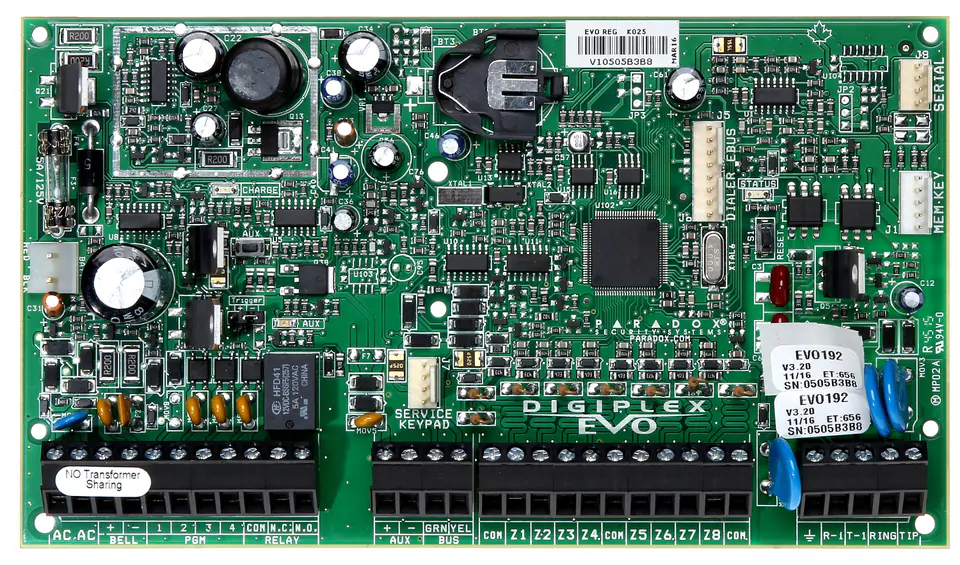

EVO-192 PARADOX CONTROL PANEL BOARD

€92.32
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
running out
Brand:
Paradox
Product code:
EVO-192 / 5902887019890

Specification

Country of origin::Canada
Current efficiency of the power supply::1.7 A
Dimensions::190 x 109 mm
Event memory::2048
Expansion modules::254
Grade::3
Load capacity of low-current programmable outputs::100 mA
Manufacturer / brand::PARADOX
Maximum number of supported inputs::192 pcs. (max), 16 pcs. - ATZ function
Maximum number of supported outputs::16 pcs.
Motherboard inputs::8 pcs.
Motherboard outputs::5 pcs. - programmable
Operating temperature::-20 °C ... 50 °C
Partitions::8
Permissible relative humidity::93 %
Power consumption::≤ 40 VA
Power::17 V AC / 700 mA
Scales::0.194 kg
Selected features::Supervision and protection against tampering of bus modules Telephone dialer output Siren output Access control and home automation functions Possibility of cooperation with wireless device modules
Supported languages::English
Users + administrators::999
Warranty::2 years

The EVO-192 control panel is dedicated to work in facilities where the highest level of protection and maximum safety are very importantIntuitive operation of the system and the possibility of traditional control using keypads, remote control via radio remote controls, PC, phone or tablet facilitate the use of the system and improve the comfort of operation

The bus design of the system ensures trouble-free communication of the control panel with actuators and sensors, allowing for easy configuration change and expansion of the system

The software can be updated using a computer

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
