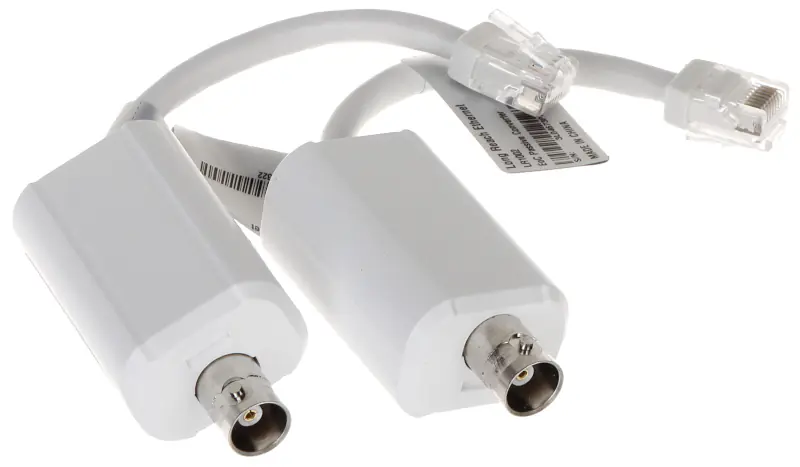

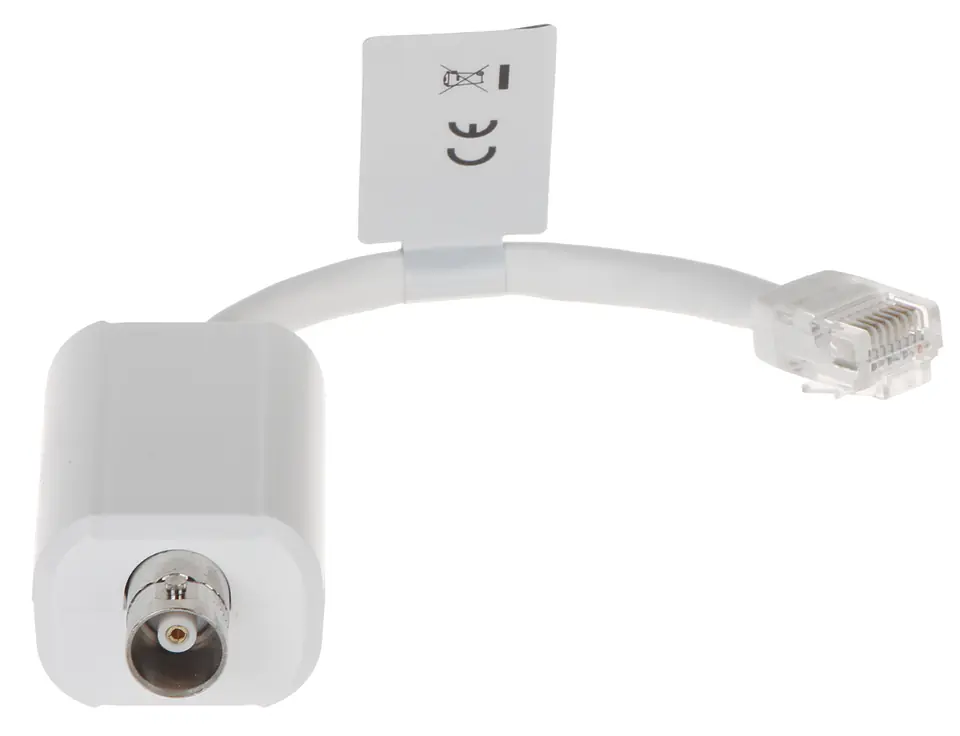

The LR1002 works as an RJ45 to BNC port converter enabling data transmission and ePoE power via coaxial cable

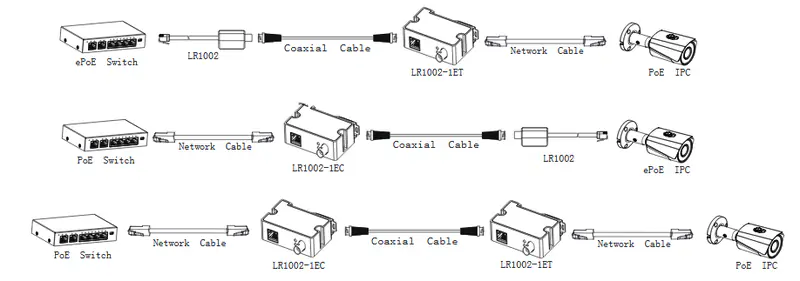

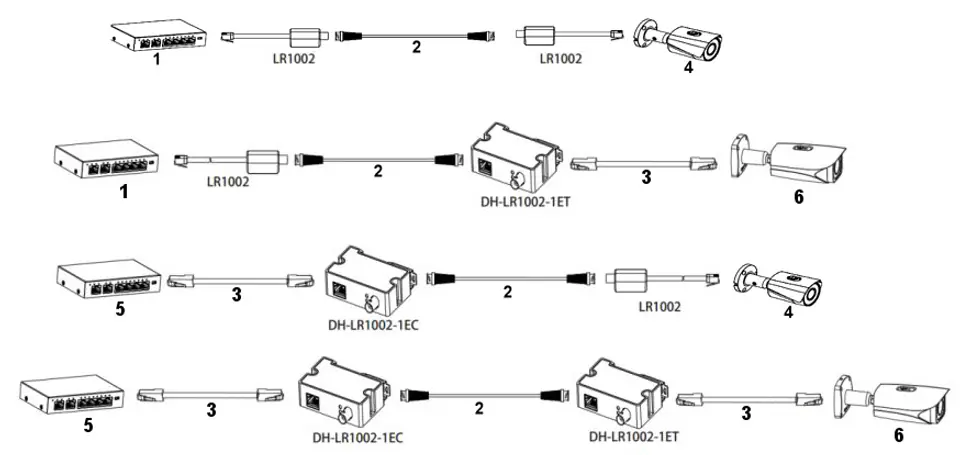

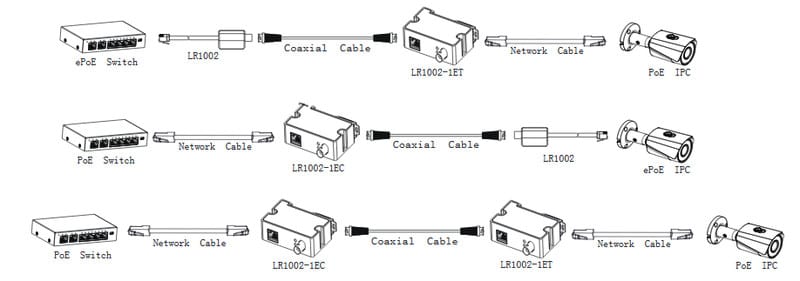

Two devices are required to create a transmission pathThe LR1002 converter also works with the LR1002-1ET, LR1002-1EC extenders
Baud:: | 10/100 Mbps Full Duplex |
---|---|
Dimensions:: | 56 x 27 x 21 mm 7 cm (cable length) |

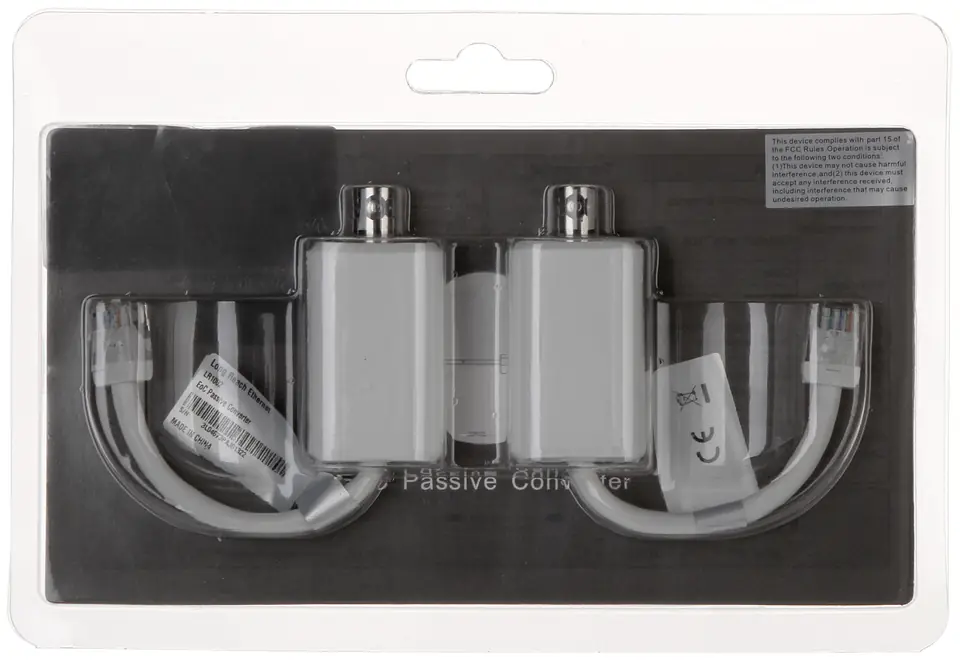

In the package:: | 2 pcs. Price per pack |
Lan ports:: | 1 pc. RJ45 |
Manufacturer / brand:: | DAHUA |
Power:: | ePoE |
Scales:: | 0.030 kg |
Security:: | surge protectors |
Selected features:: | Plug & Play Auto MDI/MDI-X Detection - Automatically detects data transmission mode Support for IP cameras and network devices Easy installation - no IP address and MAC address configuration required Included 2 pcs. |
Transmission ports:: | 1 pc. BNC |
Transmission range:: | Max. 1000 m @ 10 Mbpsmax. 400 m @ 100 MbpsThe data transfer and power supply range is strongly dependent on the cable used and the power required to power the receiver |
Warranty:: | 3 years |
The LR1002 works as an RJ45 to BNC port converter enabling data transmission and ePoE power via coaxial cable
Two devices are required to create a transmission pathThe LR1002 converter also works with the LR1002-1ET, LR1002-1EC extenders
