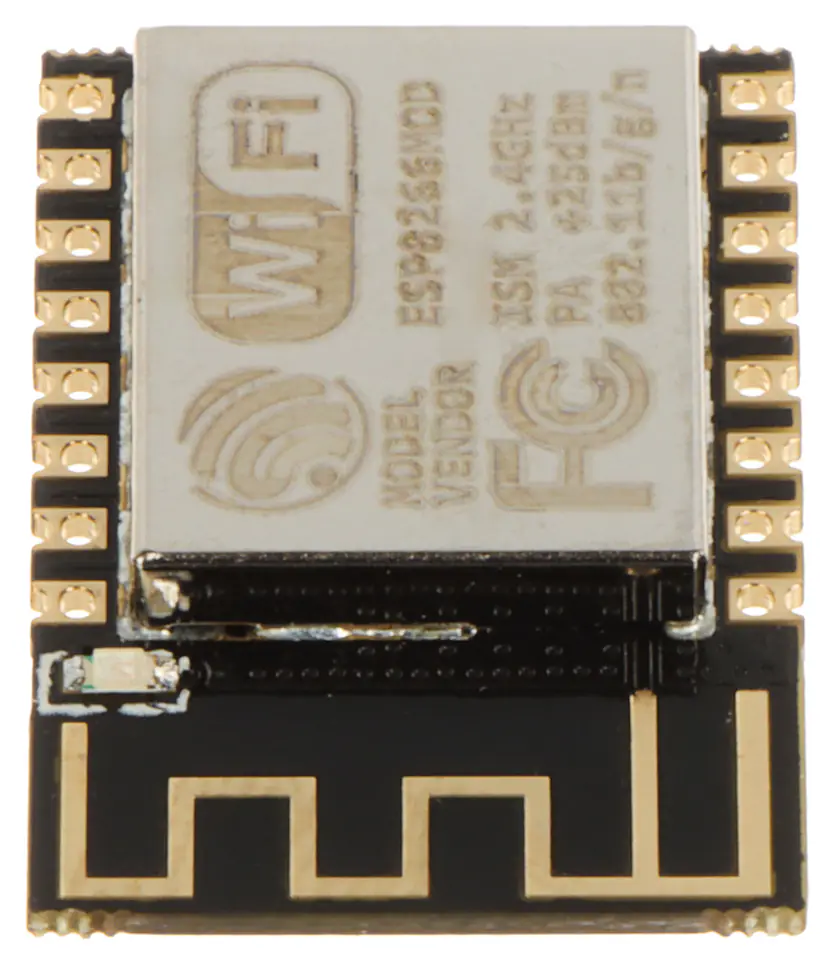

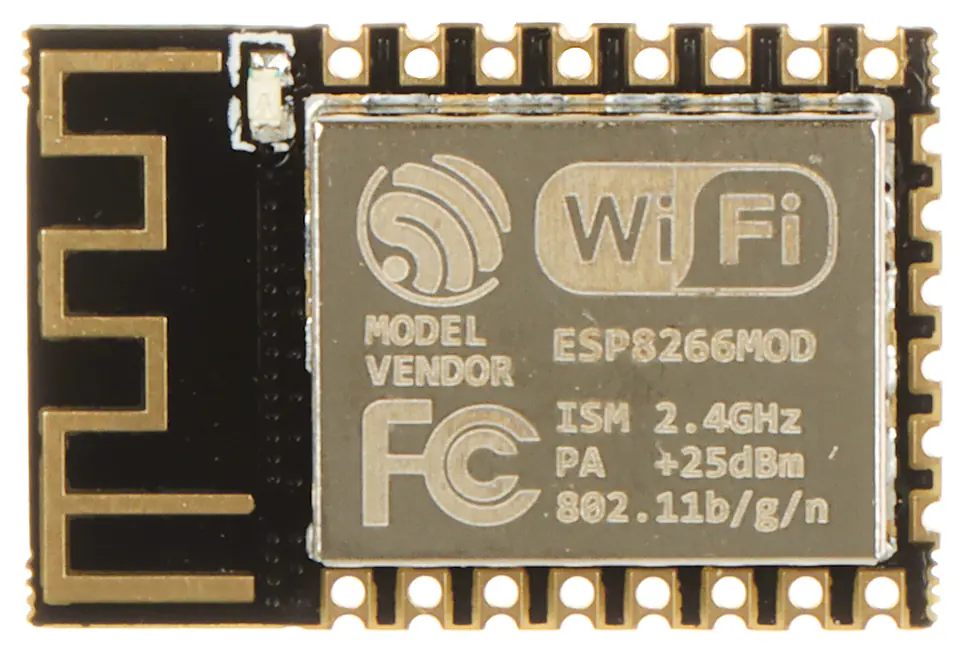

ESP8266 ESPRESSIF WI-FI MODULE ESP-12F

€3.66
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Espressif
Product code:
ESP-12F / 5902887067273

Specification

Antenna type:Internal
Connection security:WEP / TKIP / AES, WPA-PSK / WPA2-PSK
Dimensions:24 x 16 x 3.2 mm
Frequency range:2.4 GHz

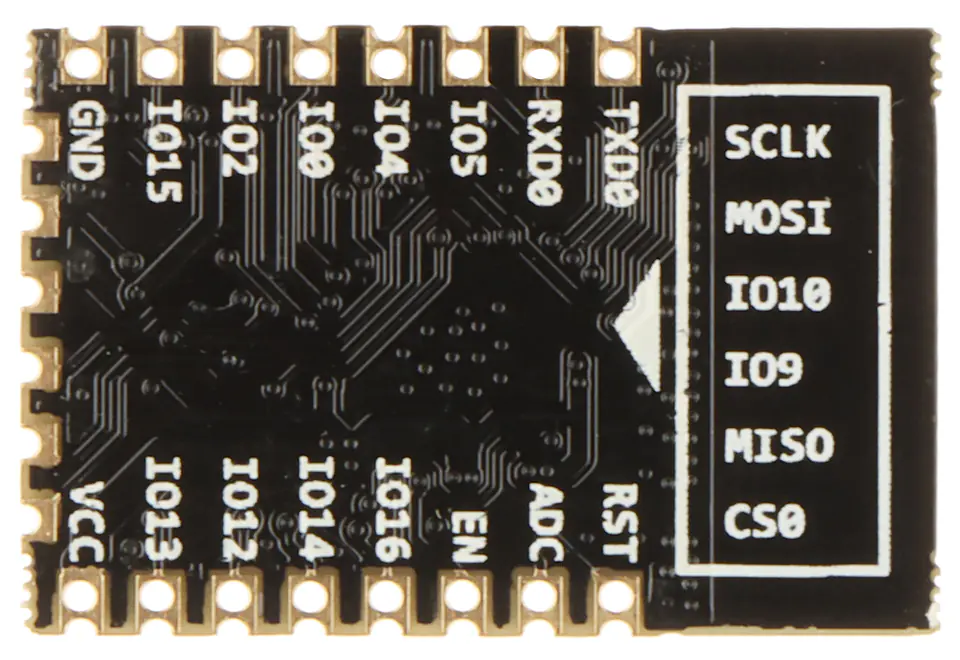

Interface:UART 3.3 V, SDIO, SPI, I2C, I2S, GPIO, ADC, PWM
Operating modes:Station / Soft AP / Station + Soft AP
Operating temperature:0 °C ... 40 °C
Producer / brand:Espressif
Radio chipset:ESP8266
Receiver sensitivity:11b 11M : -91 dBm 11g 54M : -75 dBm 11n MCS7 : -72 dBm
Scales:0.001 kg
Supported standards:IEEE 802.11 b/g/n/e/i
Warranty:2 years

The ESP-12F Wi-Fi module is a perfect complement to devices and systems built on the basis of popular microcontrollers (such as Arduino)This module allows you to expand the capabilities of devices with wireless communication - both working as a client and as an access point

In addition, the processor present on the board, in addition to supporting the Wi-Fi module, can perform other tasks, so the module can be used as a standalone microcontroller with wireless connectivityIn the use of additional capabilities of the controller will also help integrated 4 MB of Flash memoryThe whole can be programmed via the appropriate USB interface -> UART 3.3V using the Arduino IDE or Eclipse IDE environment

Remark! During programming and use of the module, attention should be paid to the voltage levels of logic circuitsThe module has been designed for use with a voltage of 3.3 V DC both from the power supply side of the device and in the logic layerSupplying 5 VDC to the inputs may cause permanent damage to the module

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
