The ESP12-2R-D8 module allows for wireless control of 2 relaysCommunication with the device is via Wi-Fi interface
Arduino IDE or Eclipse package tools can be used to program the moduleProgramming of the module is done via the TTL UART serial port

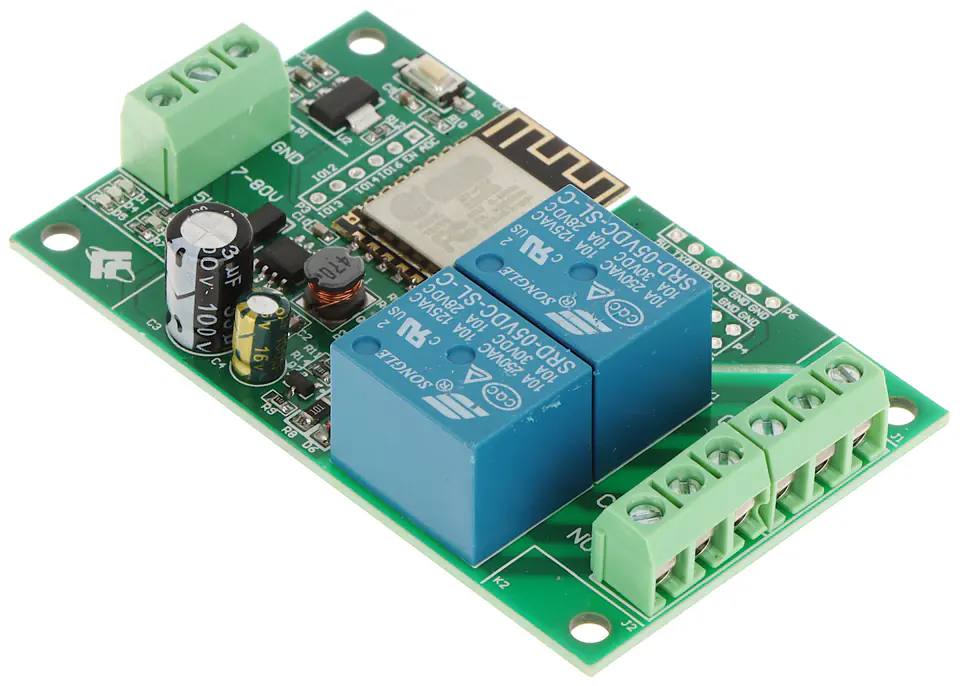

ESP12-2R-D8 WI-FI RELAY MODULE
€11.67
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- ESP12-2R-D8 / 5902887067280
Share this product:
Specification
| Contact rating: | 10 A / 250 V AC ,10 A / 30 V DC |
|---|---|
| Control: | Wi-Fi |
| Dimensions: | 78 x 47 x 19 mm |
| Egress: | 2 x NO/NC |
| Number of relay outputs: | 2 pcs. |
| Power: | 7 volts ... 30 V DC or 5 V DC (not included) |
| Protocol: | IEEE 802.11 b/g/n/e/i, Wi-Fi Direct (P2P), TCP, UDP |
| Scales: | 0.04 kg |
| Selected features: | LED signaling Programming using Arduino IDE or Eclipse tools The module can be used as part of IoT (Internet of Things) systems The Wi-Fi module operates in the 2.4 GHz band |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
