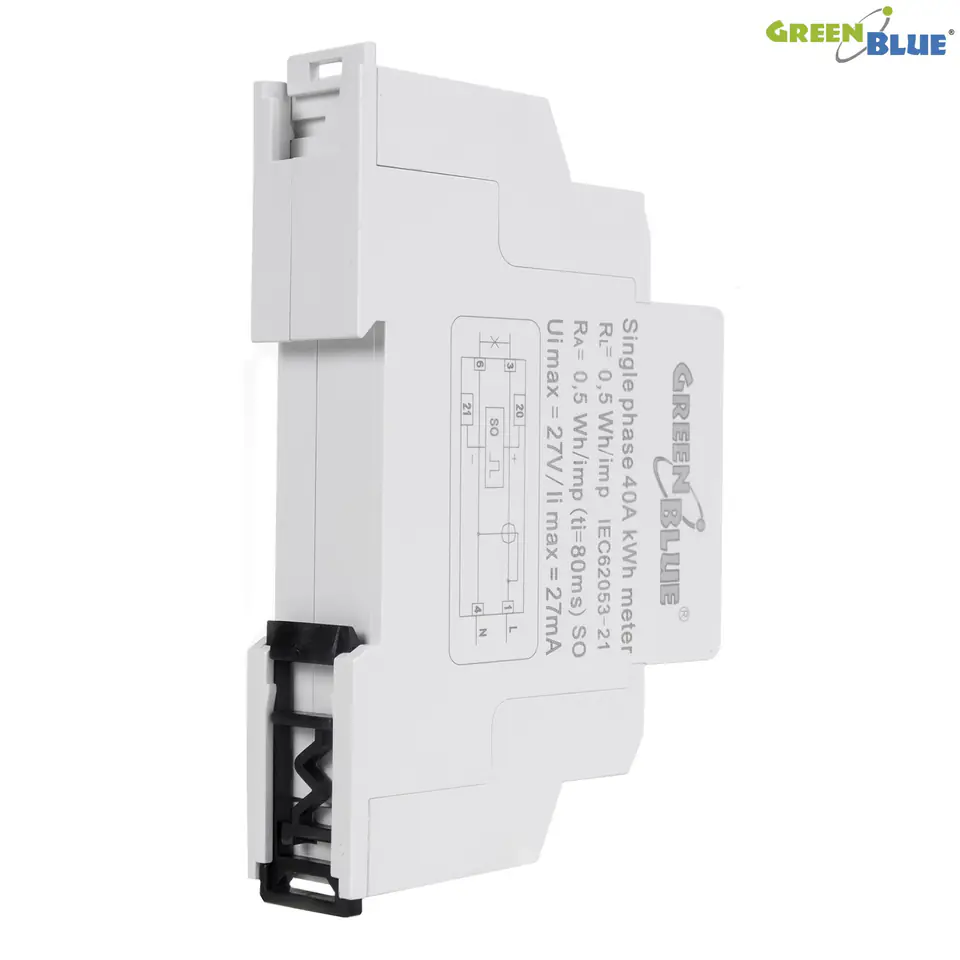

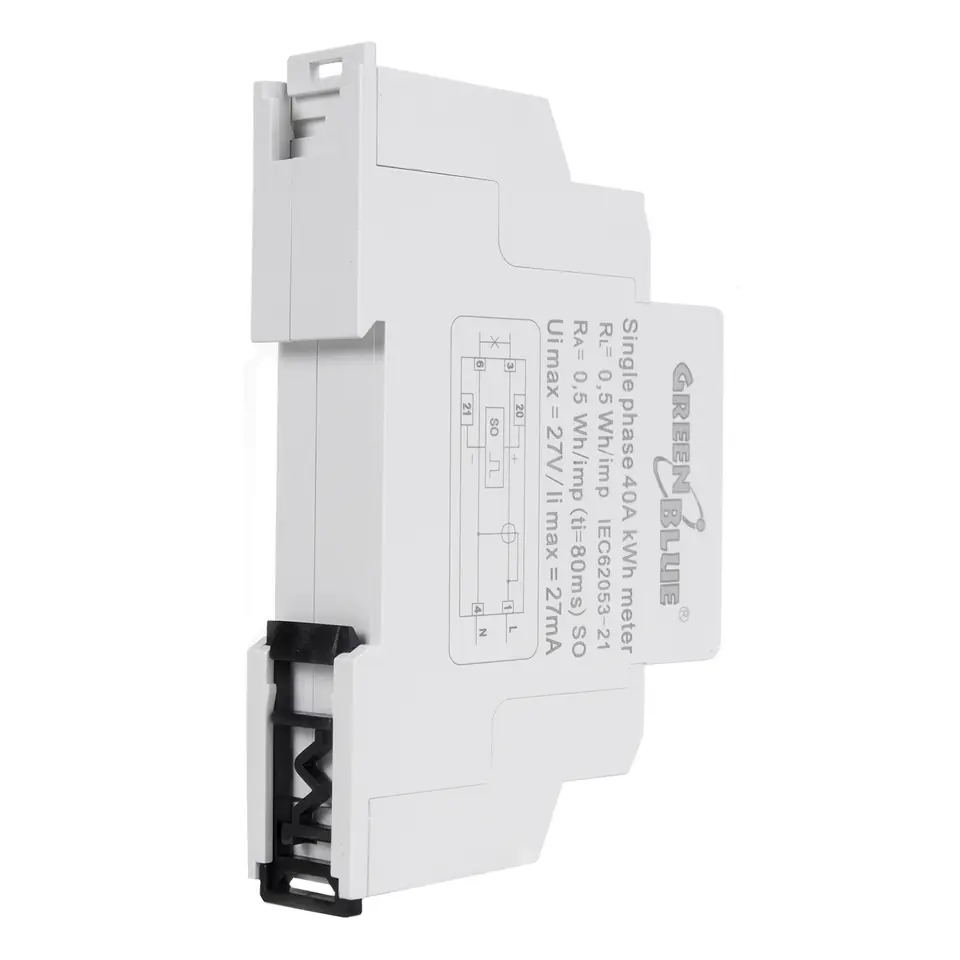

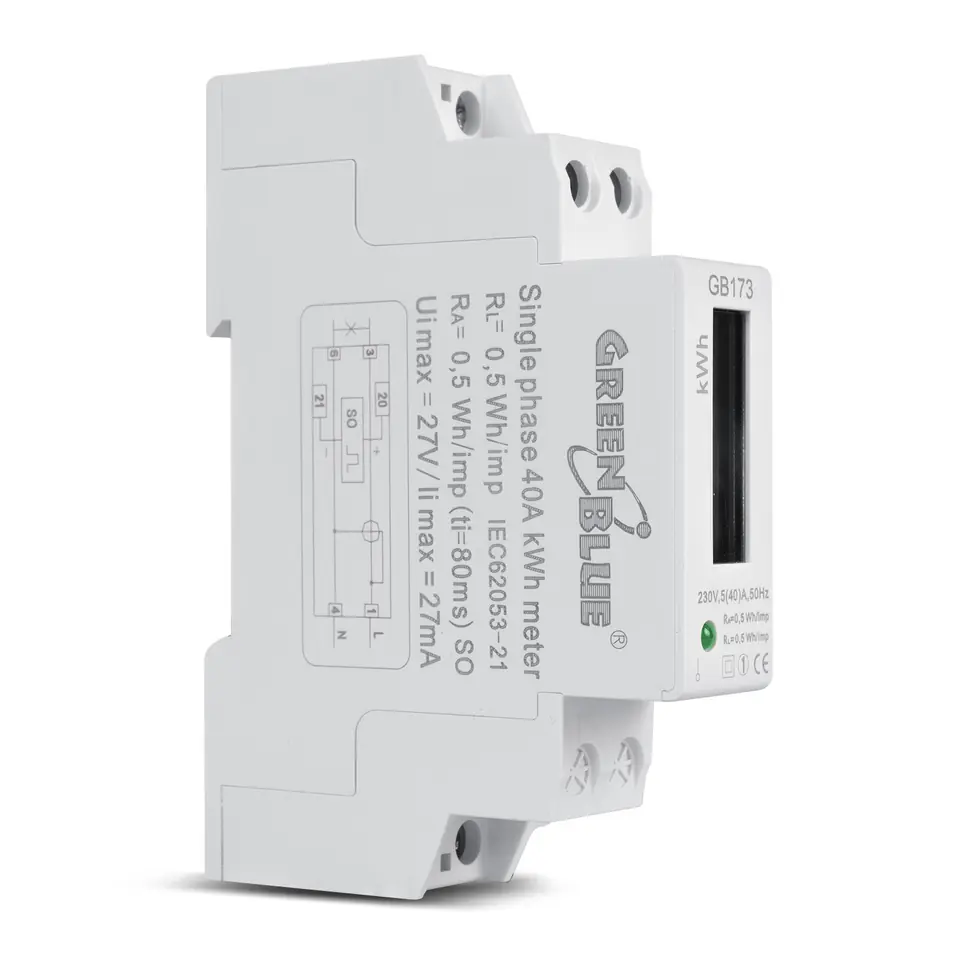

GreenBlue GB173
The GB173 is an electronic watt-meter for making indications in metric units (kWh). A special electronic system under the influence of the flowing current and the applied voltage generates pulses in an amount proportional to the electricity consumed.
Display and signalling
Power consumption is indicated by flashing LEDs. The energy consumed is indicated by the LCD display.
Technical Specifications:
- Nominal voltage: 230VAC, 110VAC
- Working voltage: 100-300V AC
- Base current (lb): 5A
- Maximum current: 20A, 30A, 40A
- Operating Current Range: 0.25A - 30A
- Frequency: 50Hz-60Hz ± 10%
- Power consumption: <2W / 10VA
- Data display mode: 6+1 digits on LCD
- The power indicator (green LED) is connected and working properly
- Power indicator (red LED): Flashes when load is running
Included:

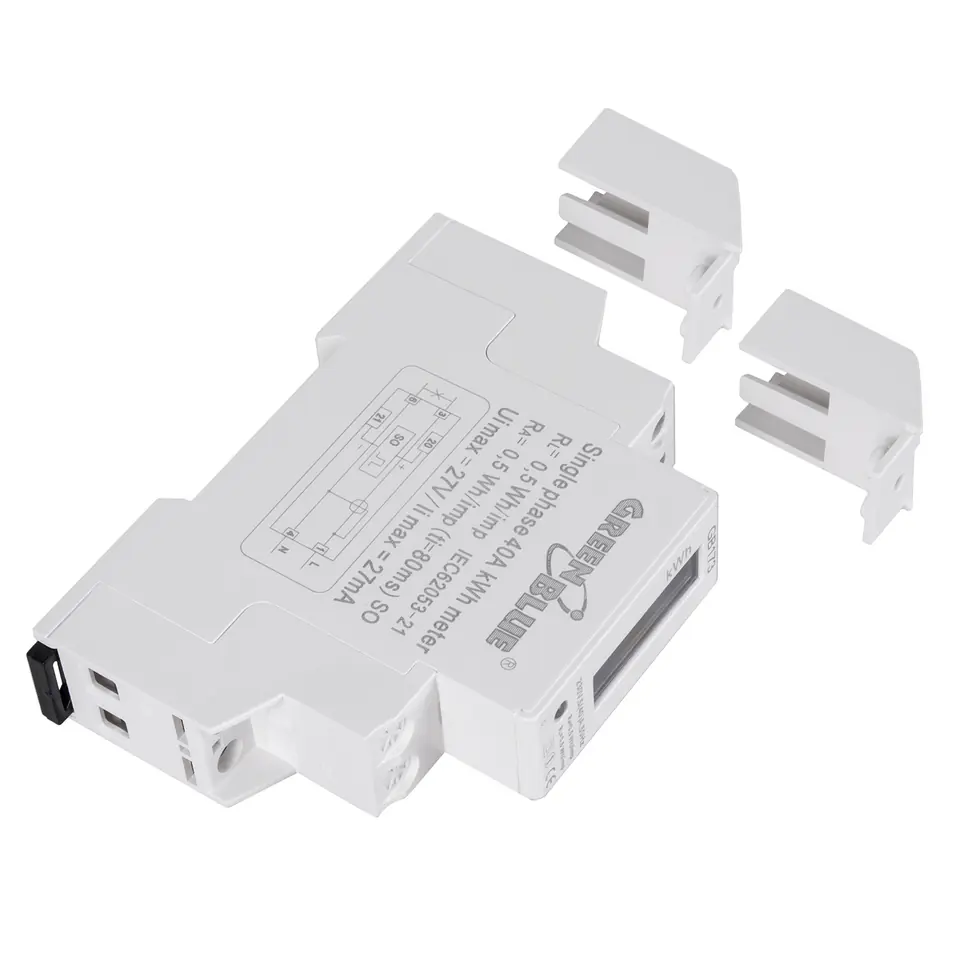

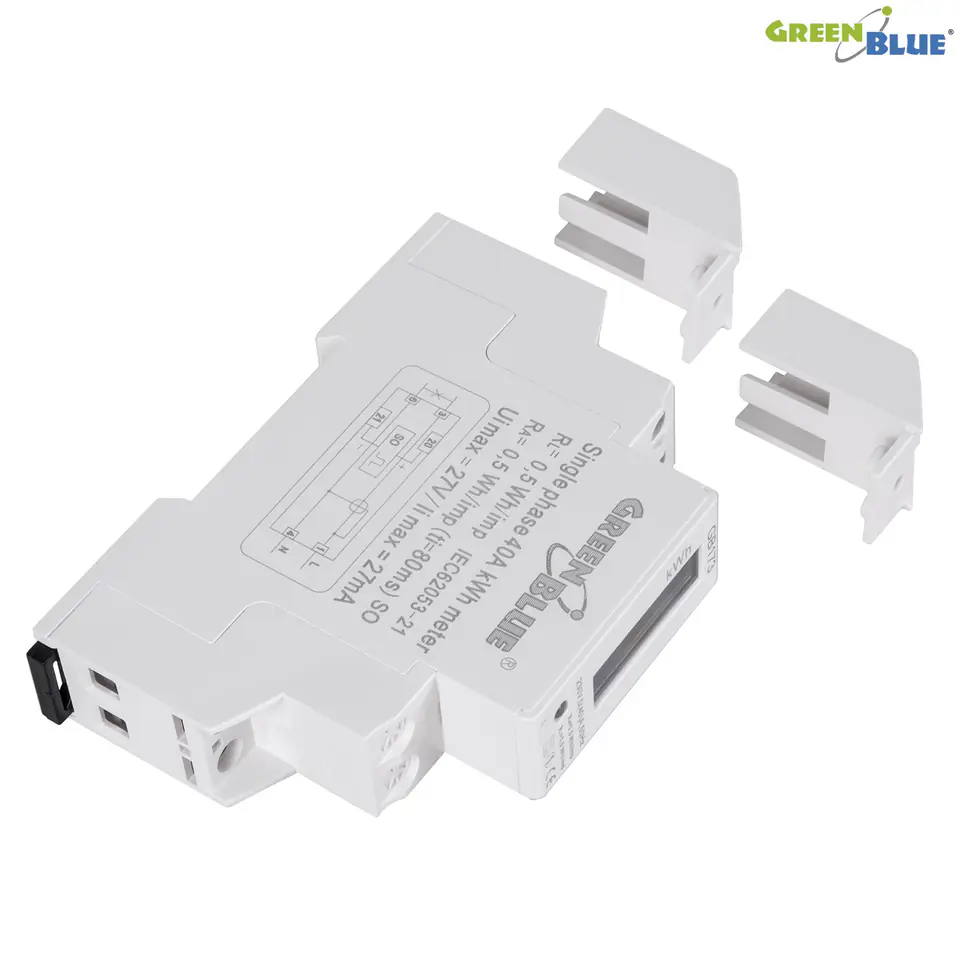

- Energy meter for DIN rail GreenBlue GB173 LCD display
- Original packaging
- Manual
NOTE: Before installation, it is absolutely necessary to disconnect the power supply. The installation should be made by a qualified electrician!
