Mandrel cutter, solid carbide
Material: solid carbide, type N, DIN6527L, 35°/38°, coated Signum, with central blade.
Application: for grooving milling, linear inclined pitting (up to 45°), for roughing and finishing, and for drilling at maximum speed in various materials.

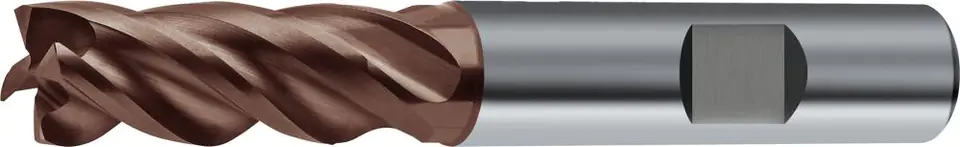

End milling cutter DIVER, TiALN, type RF100, shank HB 16mm GÜHRING
€241.88
Shipping from warehouse: B6
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GÜHRING
- Product code:
- 9067360160000 / 4049844144590
Share this product:
Specification
| Aluminium > 8% silicon: | 200 |
|---|---|
| Cast iron gg/gts: | 160 |
| Copper alloys: | 130 |

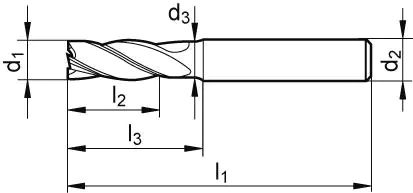

| Cutting part length l2: | 32 mm |
| Diameter d1 = h 10: | 16 mm |
| Ggg cast iron: | 128 |
| Inox austenite.: | 80 |
| Inox duplex: | 64 |
| Inox ferrite./martenz.: | 100 |
| Neck diameter d3: | 15.5 mm |
| Neck length l3: | 42 mm |
| Shank diameter d2 = h6: | 16 mm |
| Steel < 1000 n/mm2: | 152 |
| Steel < 1000 n/mm2 fz: | 0.035 mm/rev |
| Steel < 1400 n/mm2: | 122 |
| Steel < 700 n/mm2: | 190 |
| Total length l1: | 92 mm |
