Video recorder, streamer via HDMI
An HDMI encoder is a device that can be used for industrial use. It allows users to stream live video via a wired connection. Thanks to the use of an encoder, we can conduct live broadcasts, e.g. on such portals as YouTube, Facebook, Twitch, etc., and record video in real time
The device allows not only to download the stream to its own server via TS (H.265 / H.264 support) like IPTV, but also to stream RTMP (support only H.264) to streaming services. Support multiple protocols, such as: TCP/IP, DHCP, DNS, DDNS (3322, Oray), HTTP, RTP, RTSP, RTMP, TS, UDP, ONVIF, Multicast, etc. In addition, it is compatible with the private Hikvision protocol, so it can be managed using iVMS-4200/8700.
With support on browsers like Google Chrome, Firefox, Safari, Edge, etc. You can view videos directly from your computer. We can manage audio (recommended audio settings: AAC 500 bitrate), insert a logo, add text, etc.
In addition to video streaming, we can also easily save to an SD card (max 128Gb) in MP4 format. To start recording, simply press the reset/record button for a second. Application of the device: - IPTV, hotel TV system - Live transmission or streaming, e.g. YouTube - Distance education - Broadcasts at universities - Telemedicine - NVR and recording systems - video surveillance

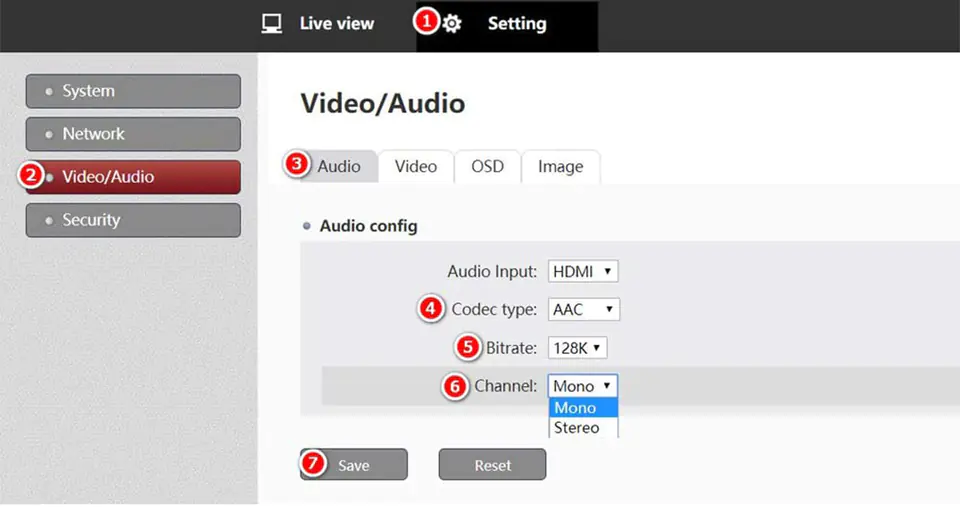

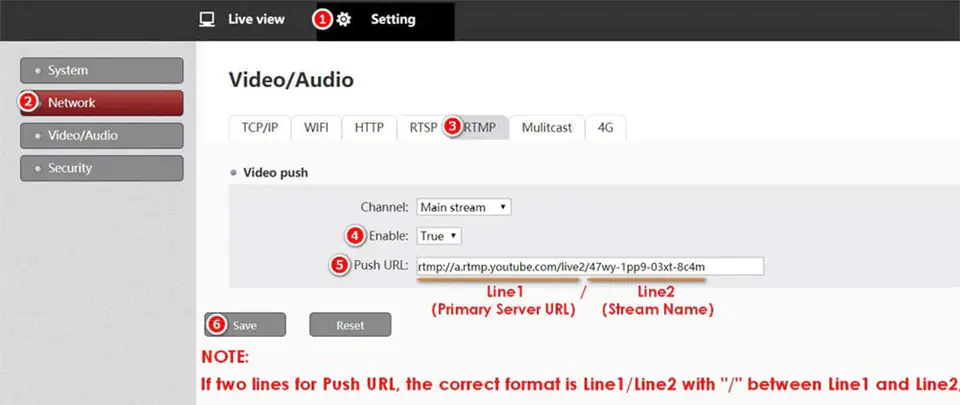

Sample screenshots
Video encoding - H.265, H.264
Resolution - up to 1080P
Video Input - 1x HDMI
Bitrate - CBR/VBR, 64-1200Kbit/s (500 recommended)
Card slot - 1x Micro SD (Max 128Gb)
Playback - supports online playback (10/20/30 minutes)
Format video - MP4
Audio Encoding - AAC, G 711A, G 711U
Sampling Rate 32K, 48K, 64K, 128K, 256K or 8000Hz(NVR)
Audio input - HDMI and 3.5mm jack input
Channels - mono / stereo
Volume - 0-100 (adjustable)
OSD - Date, time, logo
Protocols: DDNS, HTTP, ONVIF, RTMP, RTSP, RTP, TS, UDP, Hikvision
