| Colour:: | Black (RAL 9005) |
|---|---|
| Destiny:: | Rack 19" |

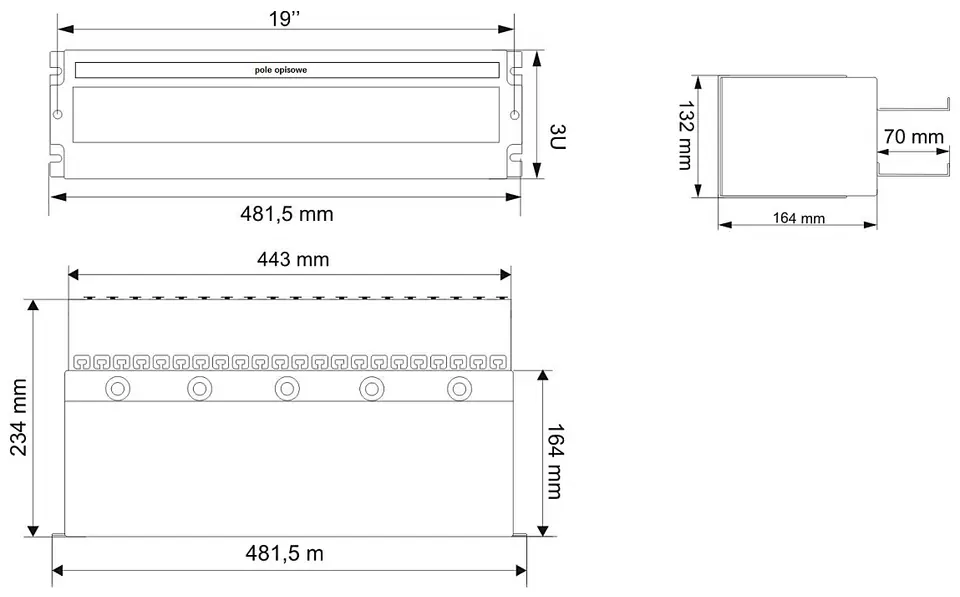

| Dimensions:: | 445 x 125 x 155 mm Internal dimensions481.5 x 132 x 234 mm External dimensions |
| Height:: | 3 U |
| Manufacturer / brand:: | PULSAR |
| Material:: | Steel - powder coating |
| Operating temperature:: | -10 °C ... 40 °C |
| Scales:: | 3.3 kg |
| Sealing:: | IP20 |

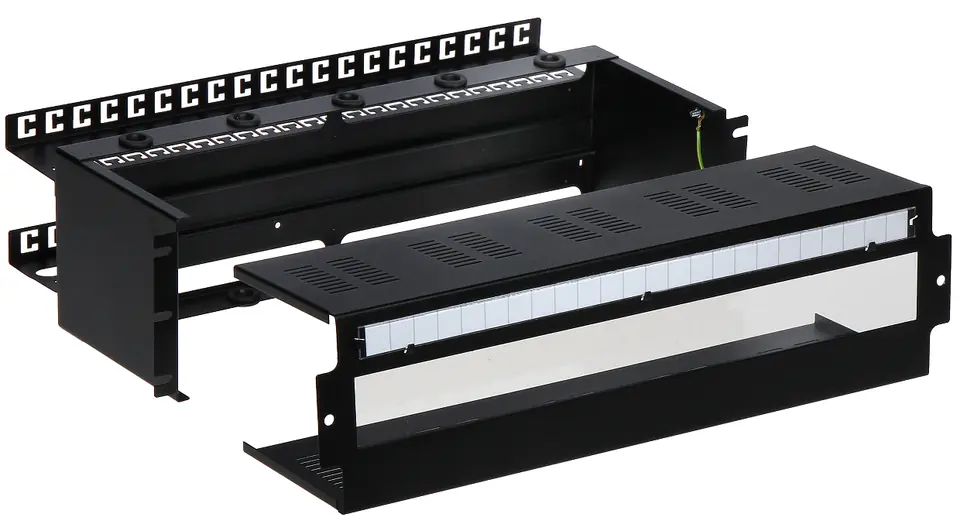

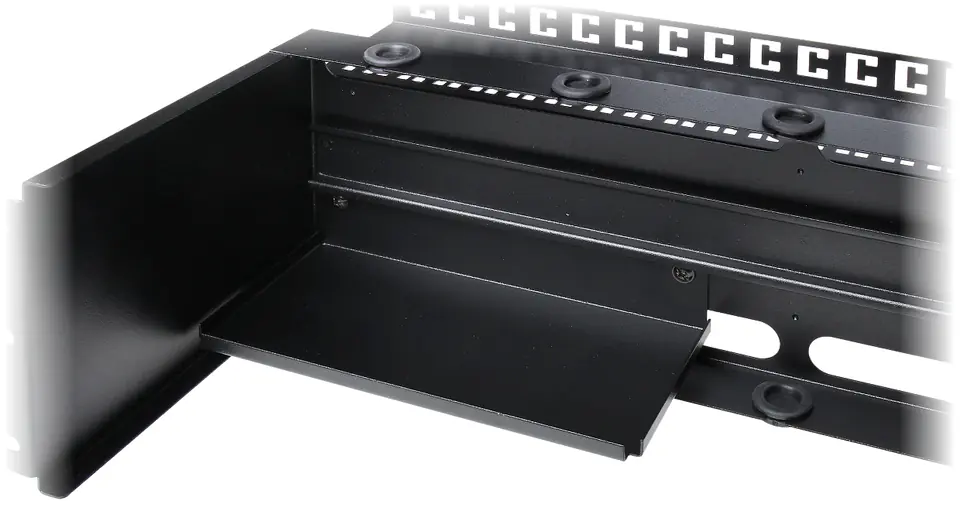

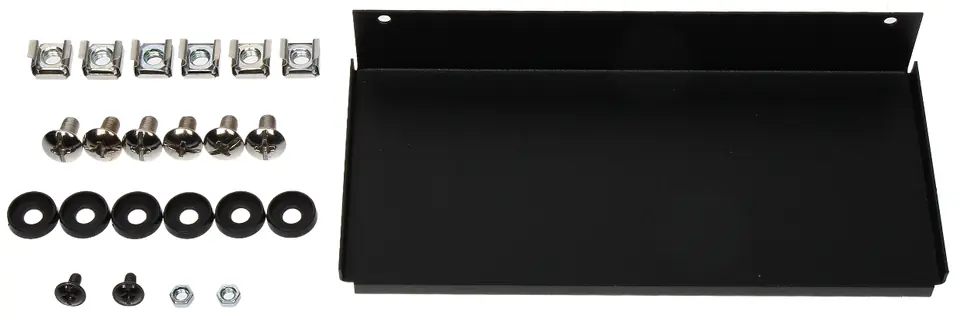

| Selected features:: | TH-35 Rail Corrosion resistance Possibility to mount 24 fuses with a width of 1 S Mounting 6-o butt mount to RACK profiles Included with 6 M6 screws with baskets The housing is equipped with a descriptive field 420x20 mm In the upper and lower part of the housing, 10 rubber bushings are made Included sheet metal for the 7Ah/12V battery |
| Warranty:: | 2 years |
| Width:: | 19 " |

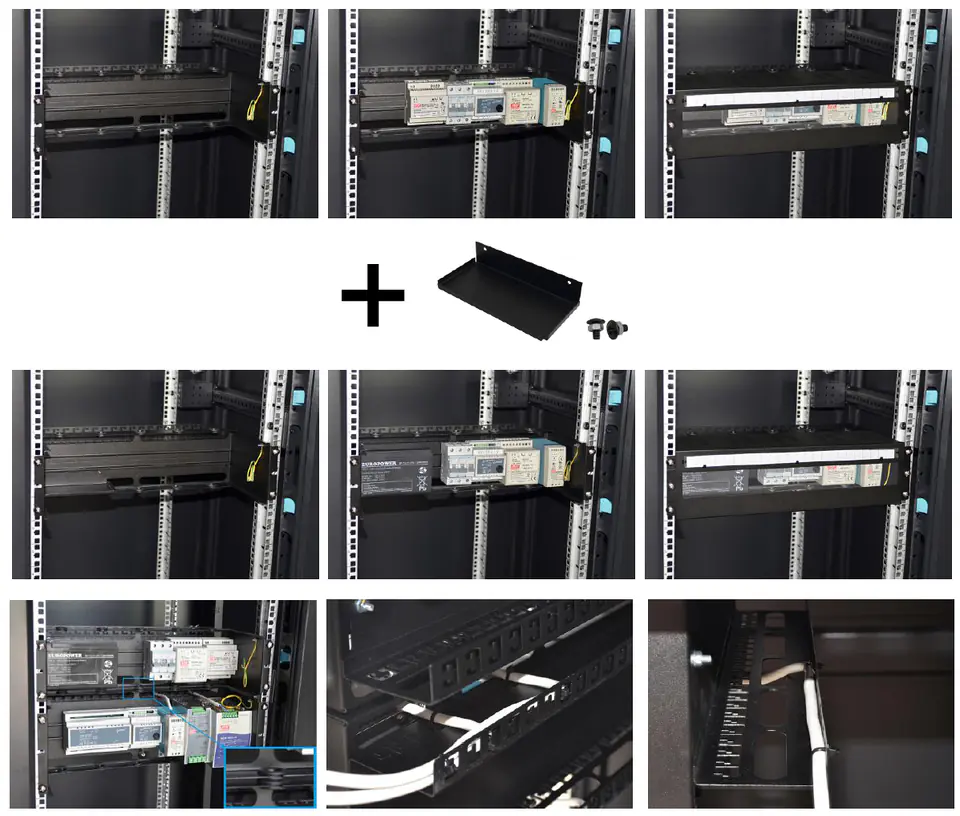

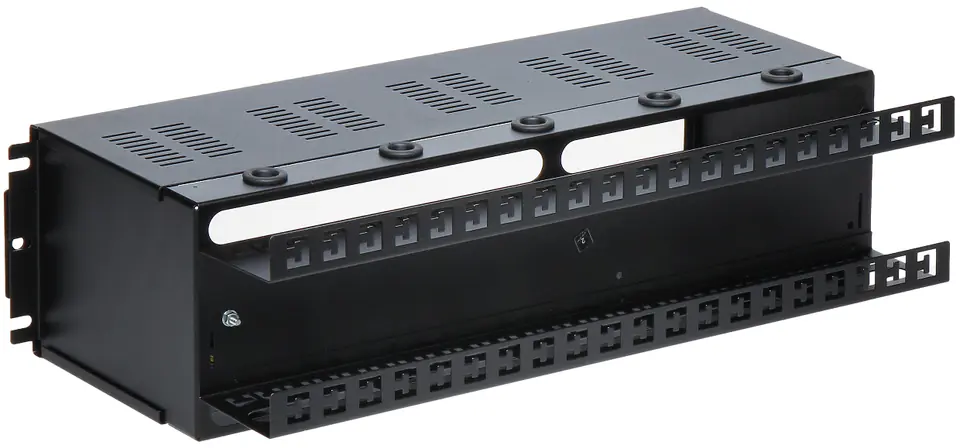

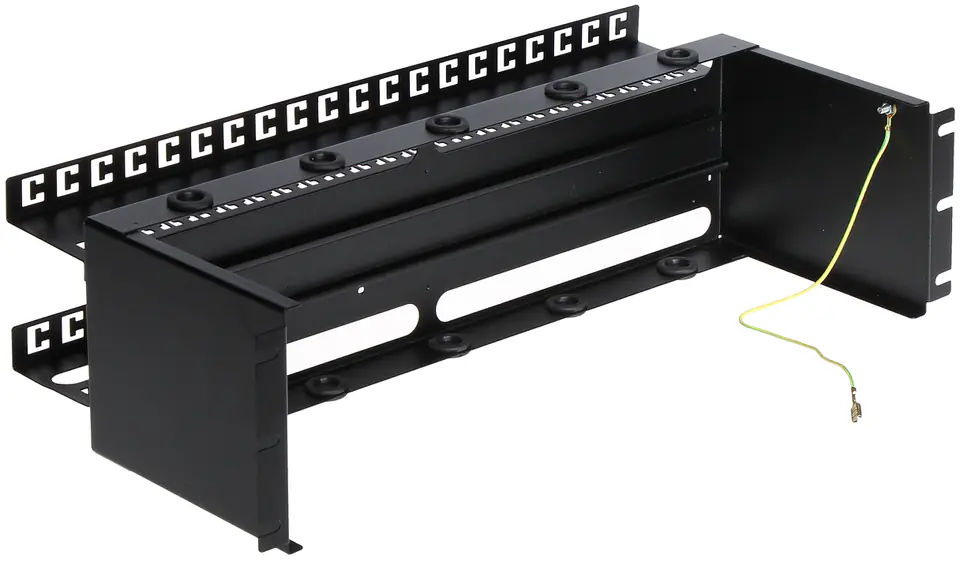

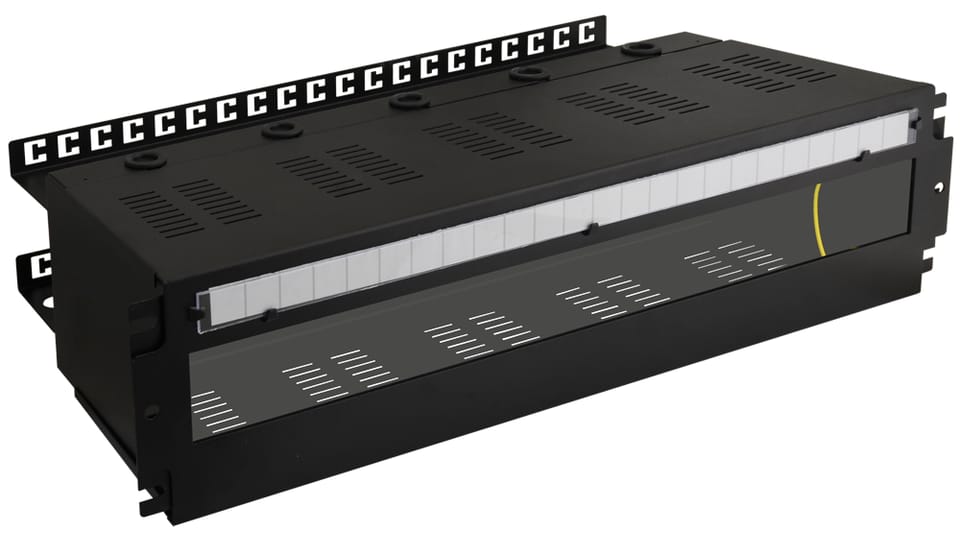

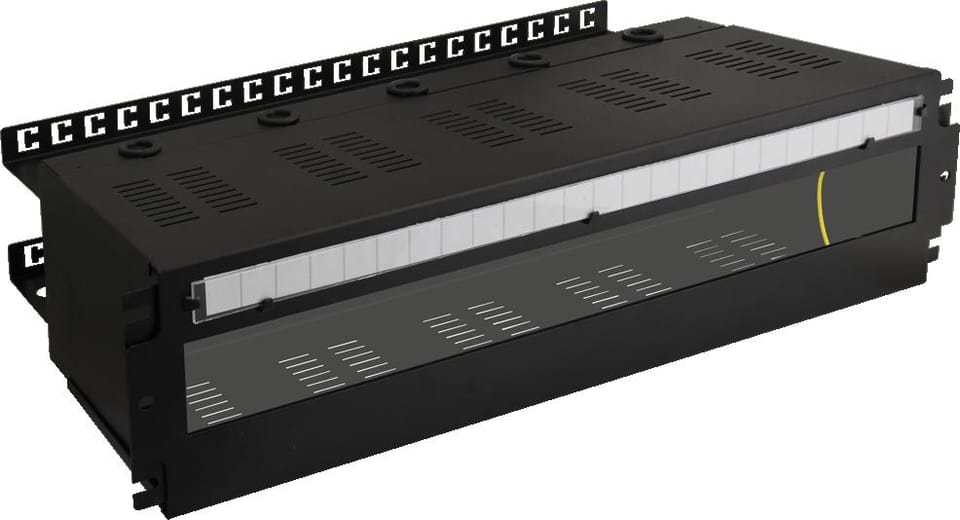

The housing with DIN rail for RACK cabinets is designed for mounting devices located in DIN enclosures, for RACK cabinets 19"The housing has a DIN rail with a length of 24x1SThe height of the mounted module cannot exceed 160 mm
A maximum of 24 fuses with a width of 1 S can be inserted into the housing.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
