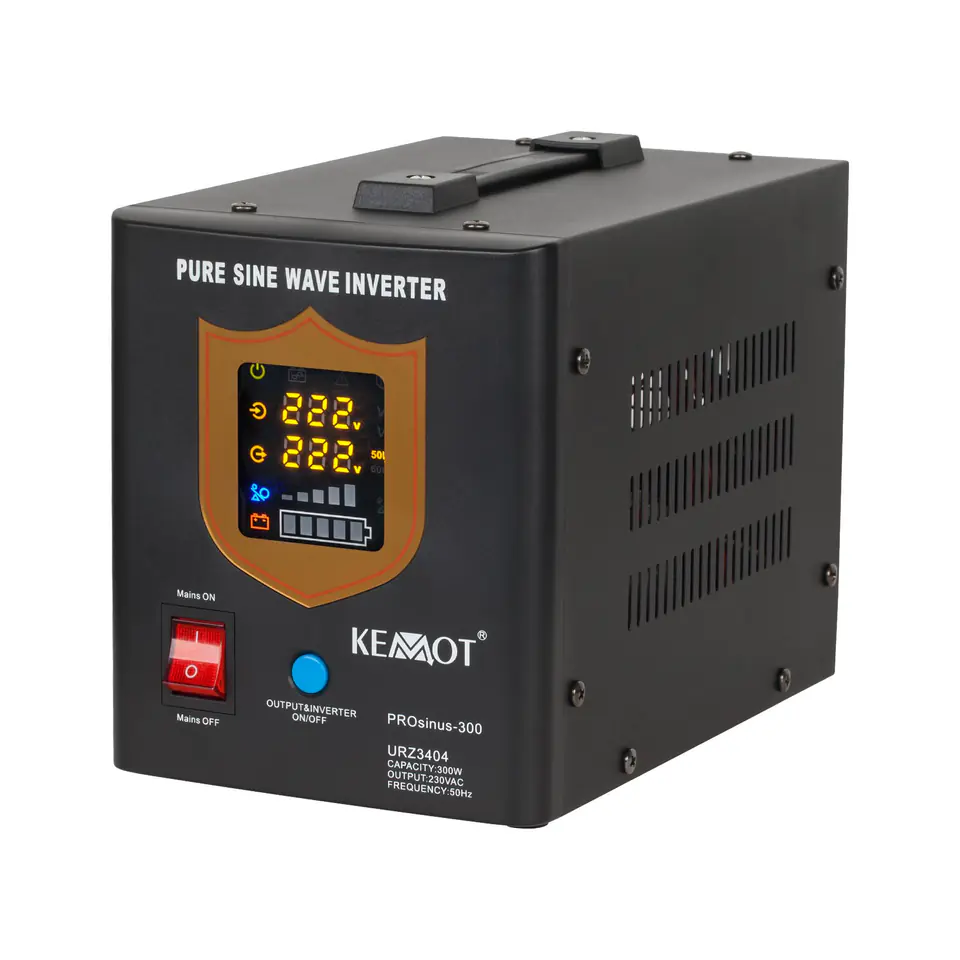

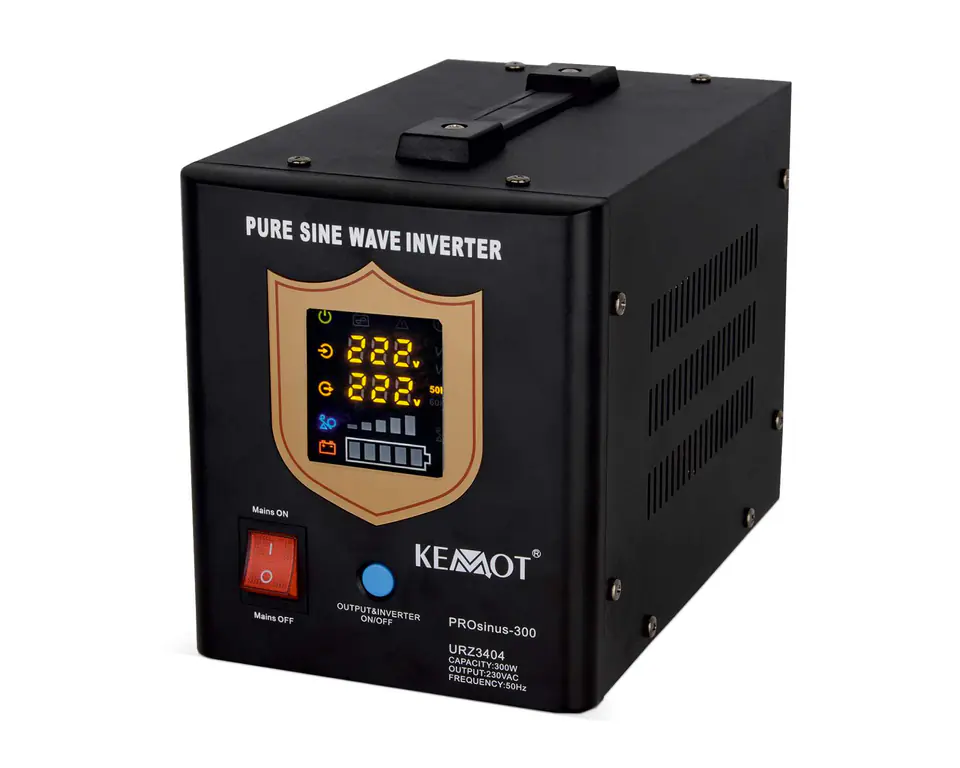

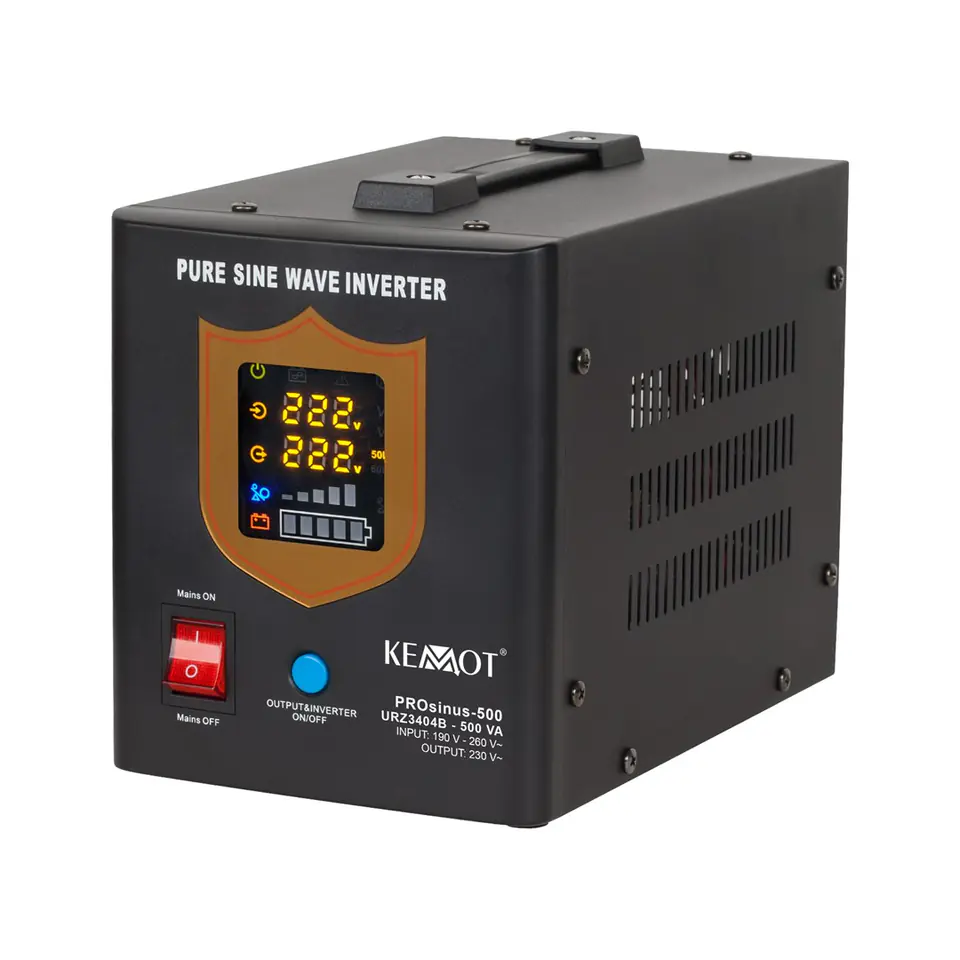

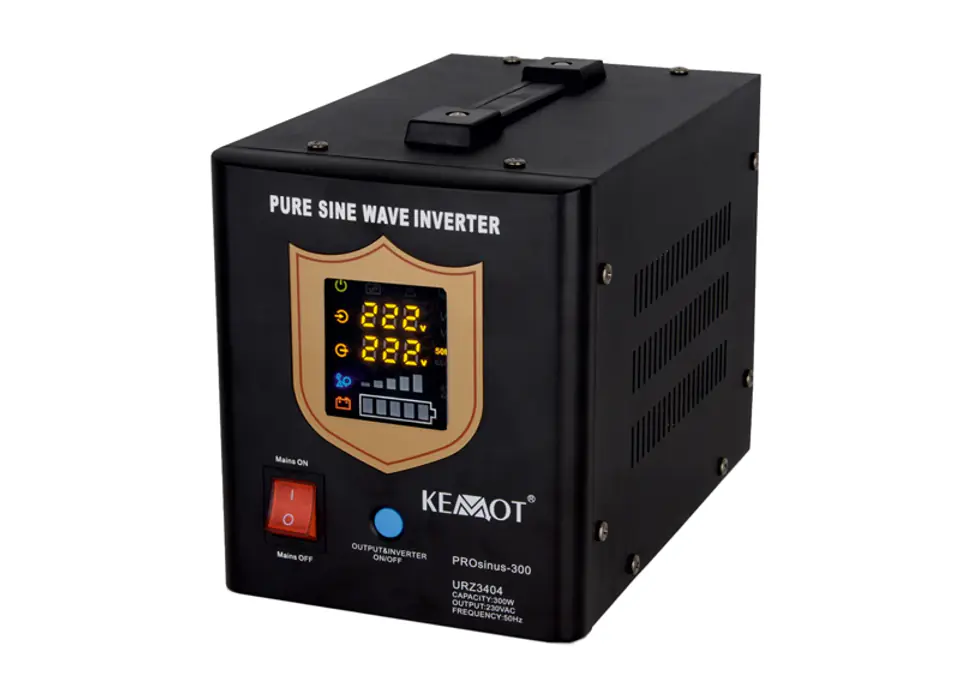

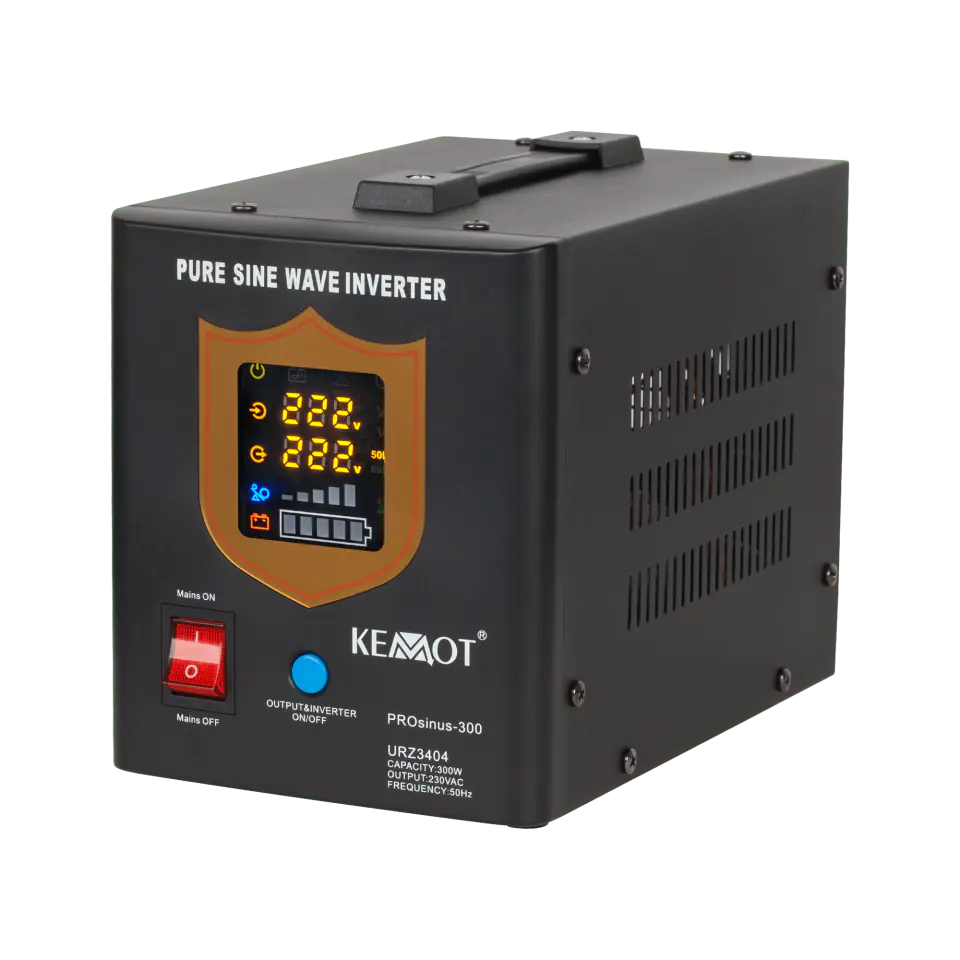

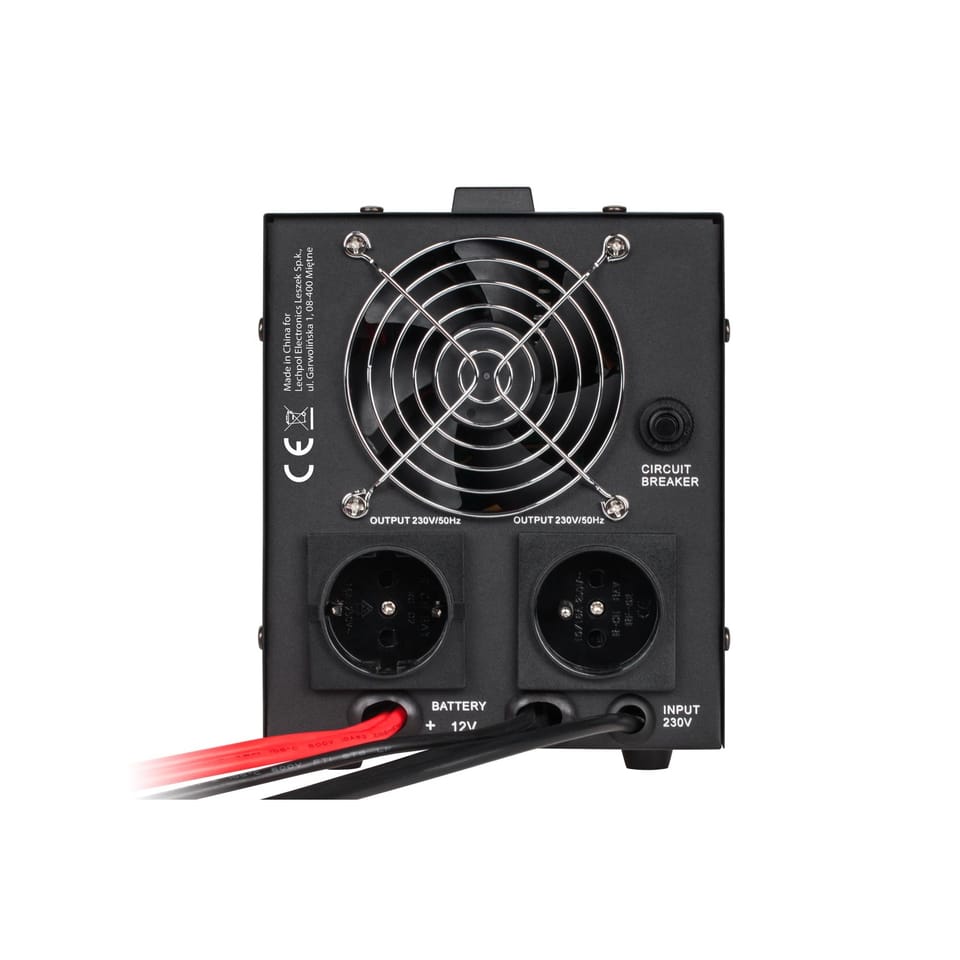

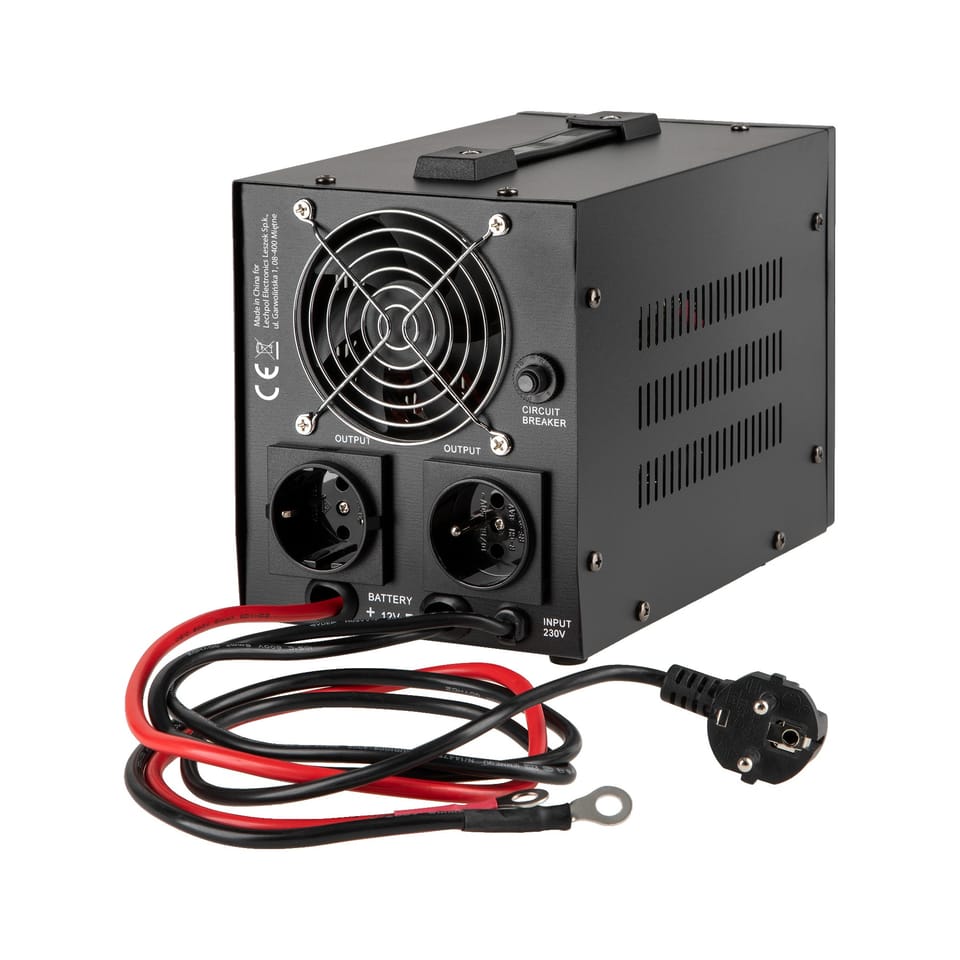

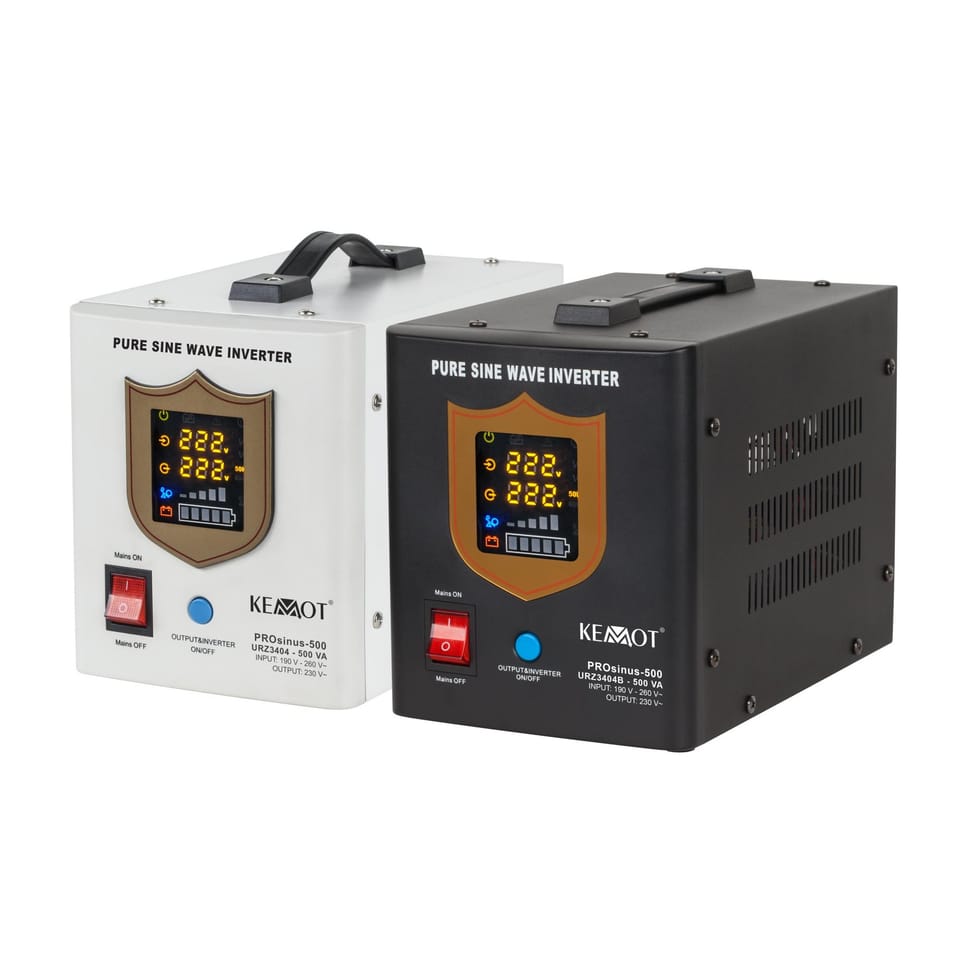

UNINTERRUPTIBLE POWER SUPPLY KEMOT PROsinus-300 converter with pure sinusoidal waveform and charging function 12V 230V 500VA/300W - black
In many homes there are devices that make our lives easier on a daily basis, but require constant power supply to work properly. In winter, among this type of equipment, stoves and pumps and other installations that guarantee heating of the house deserve special attention. But what to do in the event of a power outage?
KEMOT emergency power supply systems are used to protect selected devices against power disturbances, the consequence of which may be a disturbance or interruption of their operation.

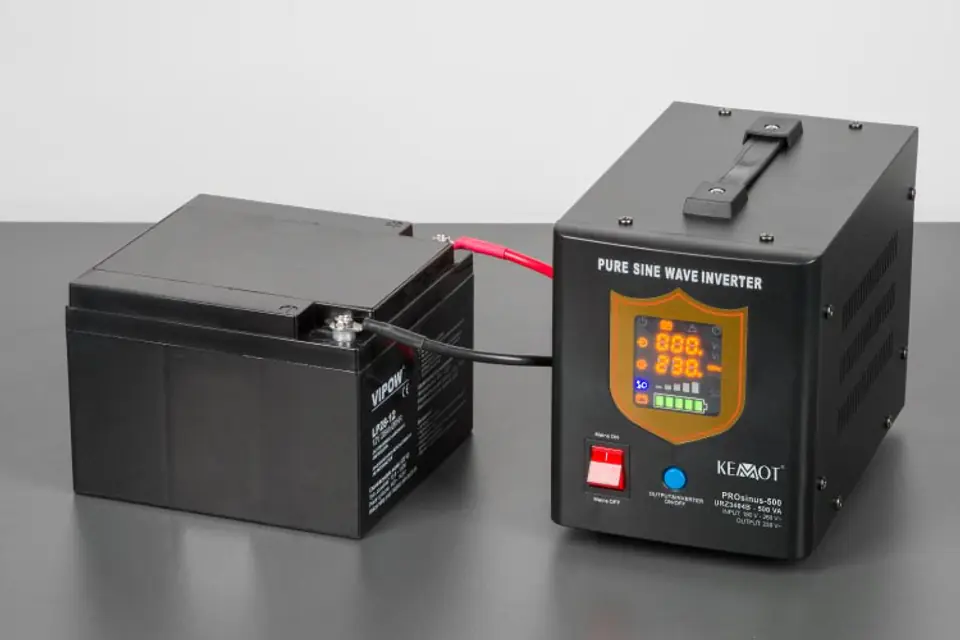

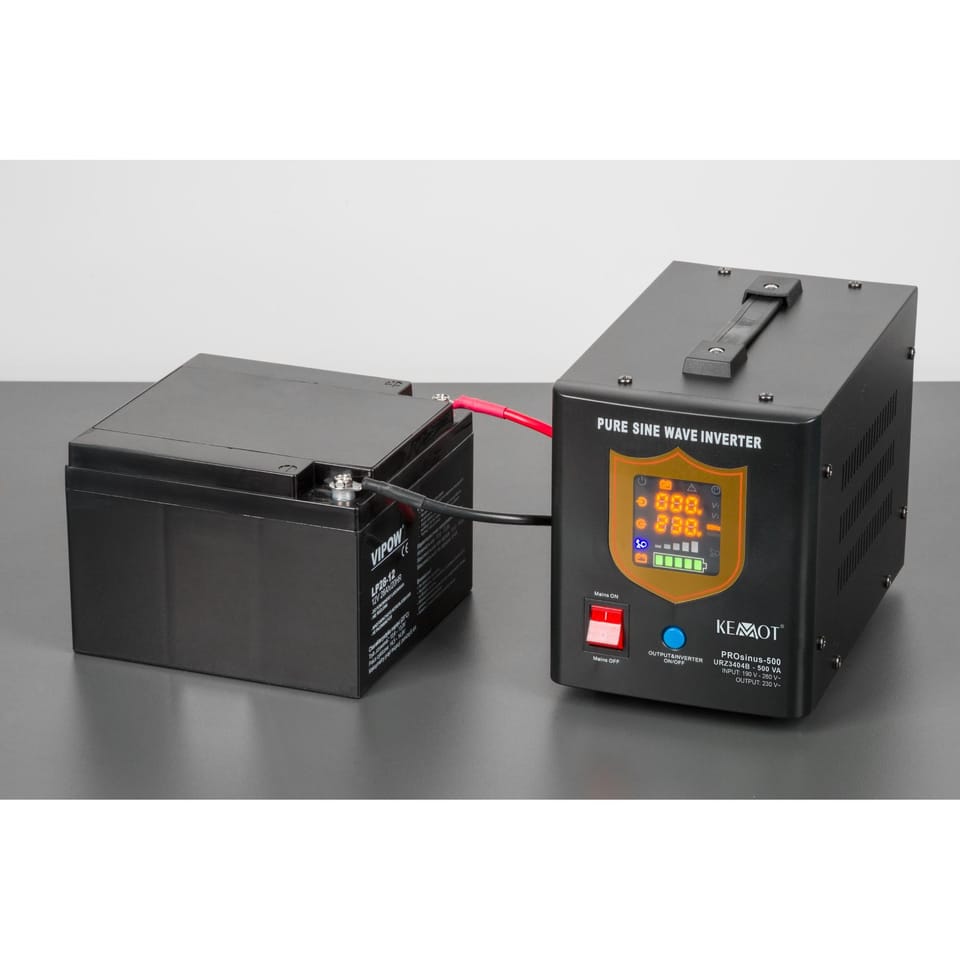

The KEMOT PROsinus series of devices is perfect for powering e.g. central heating pumps or pumps in fireplace installations, as well as induction motors, or e.g. installation automation devices using heat convectors and any devices extremely sensitive to the slightest changes in the shape of voltage. Their advantage is a pure sinusoidal course of the output voltage (supplying the receivers), thanks to which the device ensures stable operation, preventing the effect of overheating of induction receivers. Together with the 12V battery, they constitute a complete 230 VAC guaranteed power supply device.

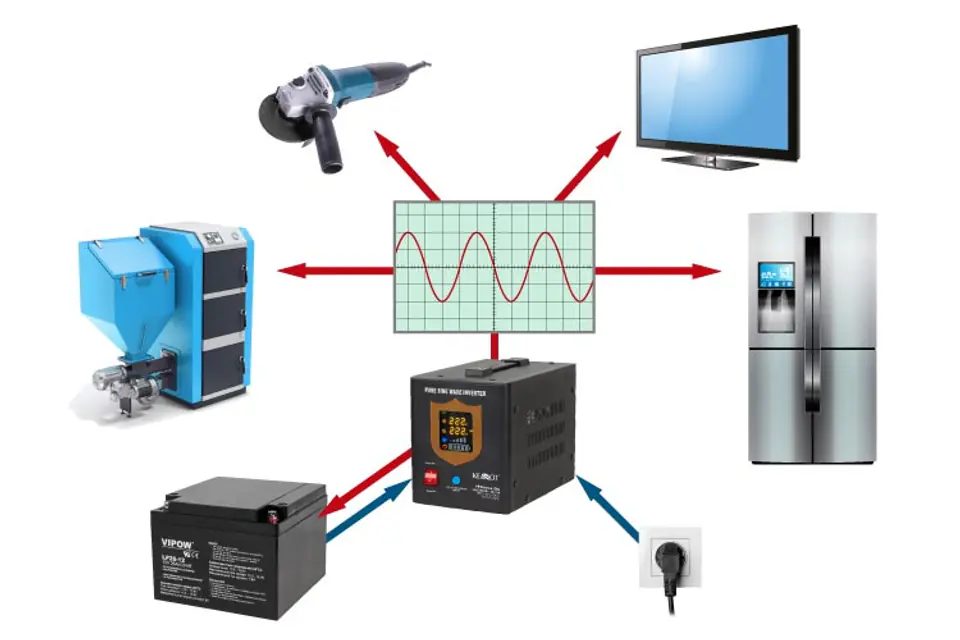

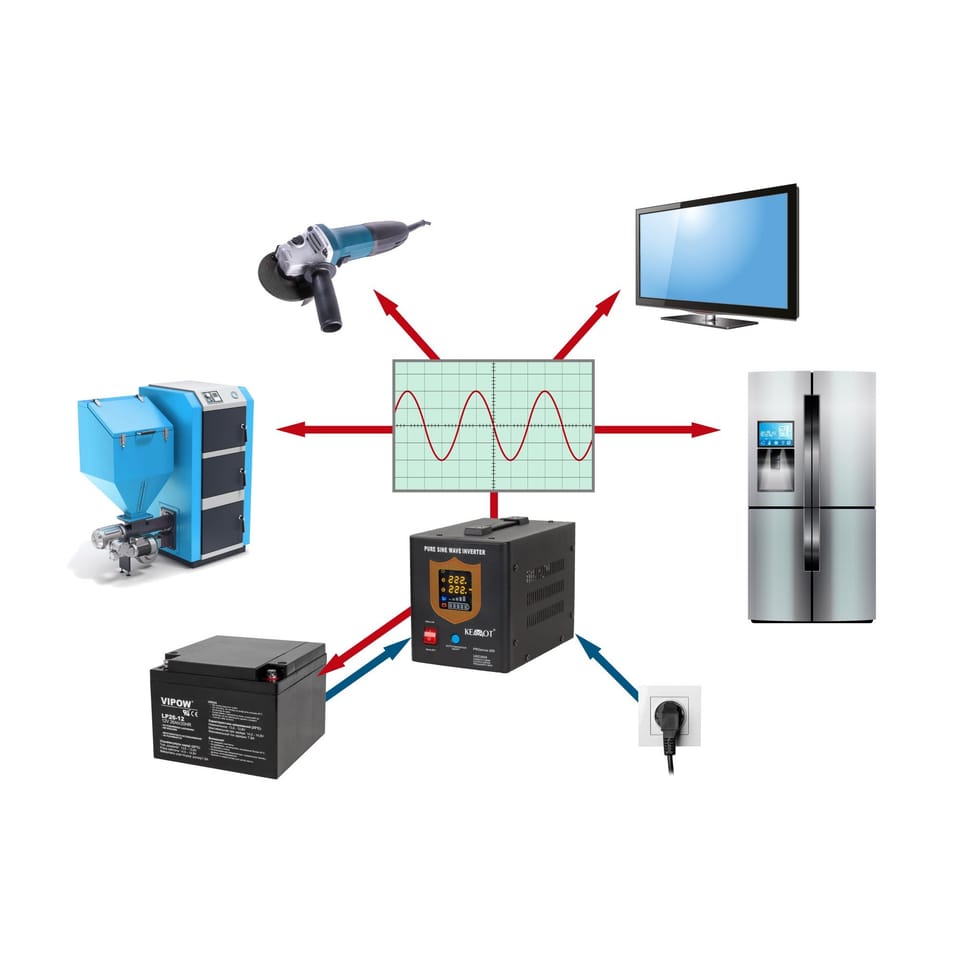

Application of emergency power supply

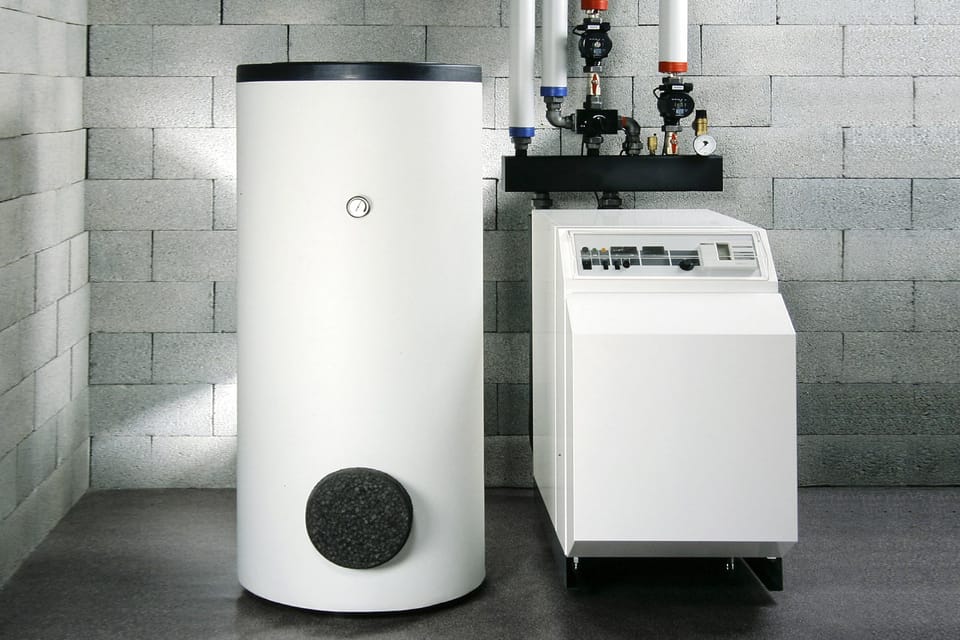

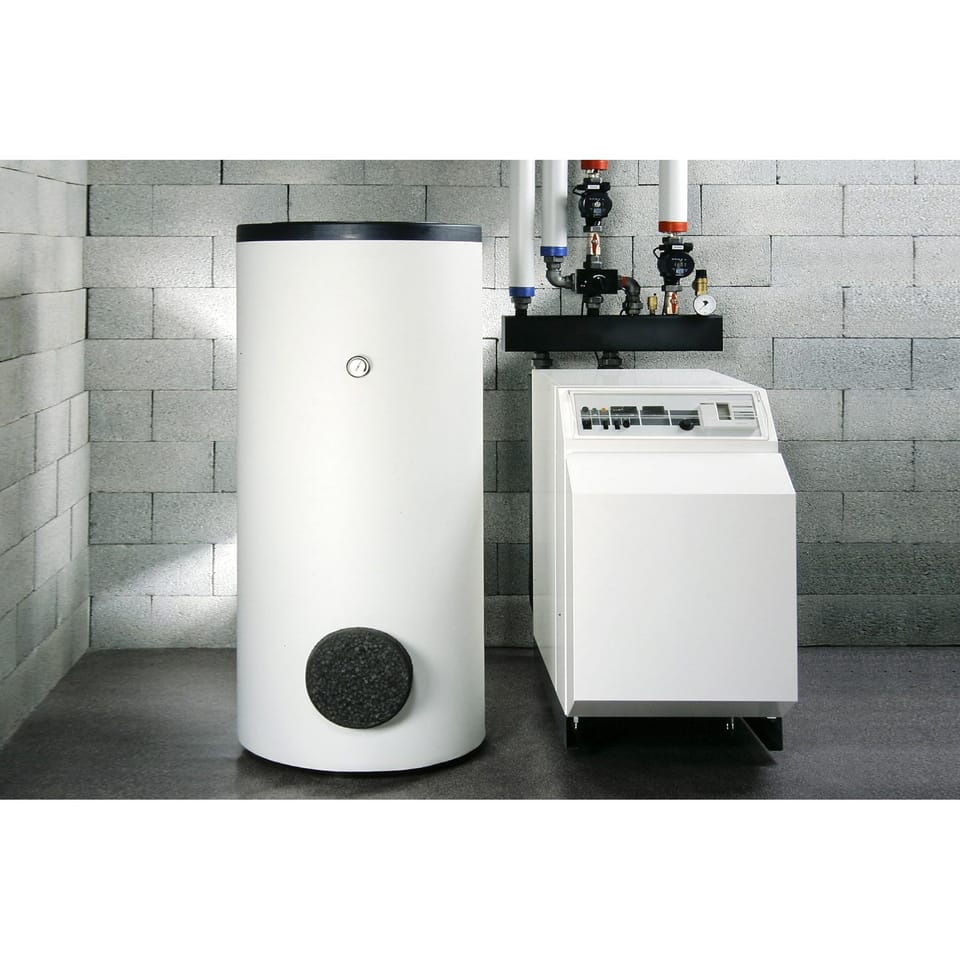

Emergency furnace power supply
RTV devices (TVs, tuners, hi-fi, dvd)
Household appliances (refrigerators, blenders)
Power tools (drills, grinders)
Power supply for chargers (smartphones, tablets, phones, laptops, gps)
Pumps, compressors (water, heat, air conditioners)
Office equipment (fax machines, computers, monitors)
Other devices with a power supply of up to 500 W in continuous operation (700 W MAX in pulse)
Overload protection
Short circuit protection
Protection against excessive voltage
Protection against too low voltage

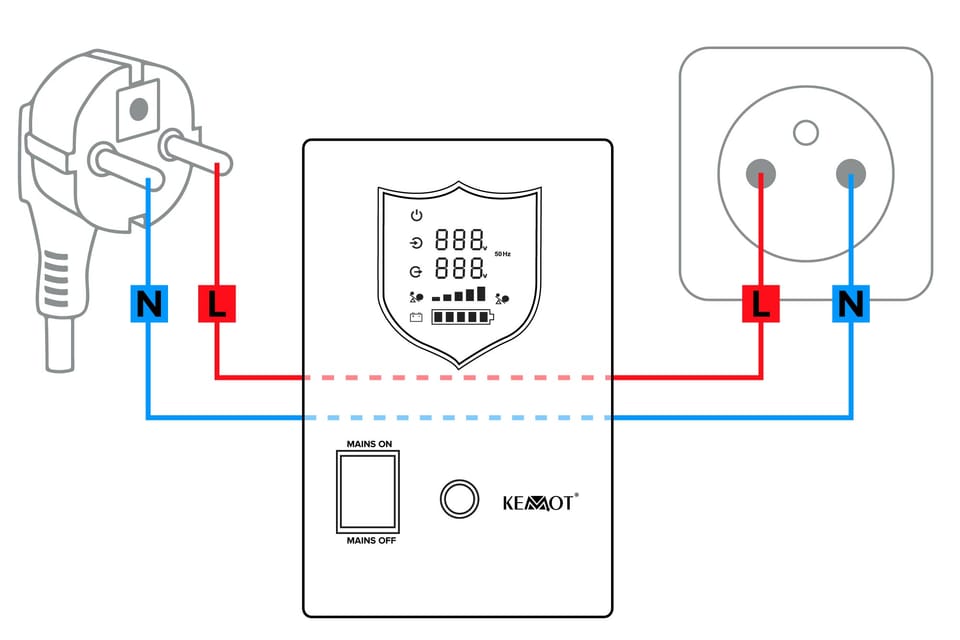

The device can work in three modes:
As an emergency power source with charging function - converts 12V DC voltage fed from the external battery to 230V AC and recharges the external battery
As a rectifier - recharges the external battery
As a converter - converts 12V DC voltage from battery to 230V AC AC
Rated power: 300W
Battery type: 12 V DC
Maximum battery voltage: 15 V DC
Input voltage range: 180 - 275 V AC
Input frequency: 45 - 60 Hz
Output Voltage Range: 230V AC +/-8%
Output Frequency: 50/60Hz +/-0.5Hz

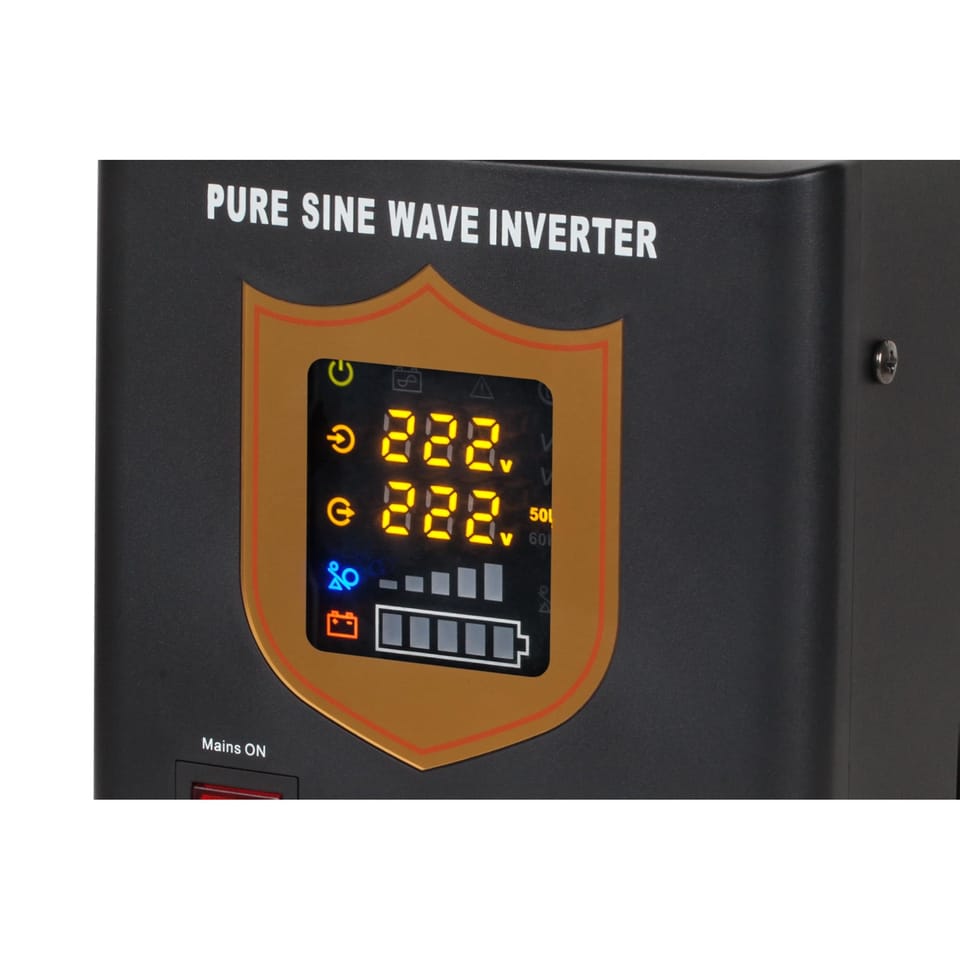

Output Voltage Shape: Pure Sine Wave
Output efficiency: >= 85% (DC to AC)
Battery charging current: Max. 10 A
Switching time: =< 4ms
Protection: Against overload, short circuit, too high or too low voltage
Operating temperature: 0 - 40°C
Permissible air humidity: 10 - 90%
Dimensions: 14,5 x 18 x 24 cm
Weight: 4.3 kg
