EMERGENCY DOOR OPENING BUTTON APWK-LED YOTOGI

Name: EMERGENCY DOOR OPENING BUTTON APWK-LED YOTOGI
Brand: YOTOGI
SKU: 921986
Price: 46.9 EUR
Availability: InStock

€46.90

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: YOTOGI
Product code:: APWK-LED / 5902052409358

Specification

Colour:	Green
Contact rating:	3 A / 125 V
Contact type:	3 x NO/NC
Current consumption:	12 V : 18 mA (operation) / 75 mA (alarm) 24 V : 11 mA (operation) / 41 mA (alarm)
Dimensions:	90 x 93 x 45 mm
Material of manufacture:	ABS
Operating temperature:	-30 °C ... 70 °C
Power:	12 volts DC 24 volts DC
Producer / brand:	YOTOGI
Scales:	0.164 kg
Sealing:	IP24

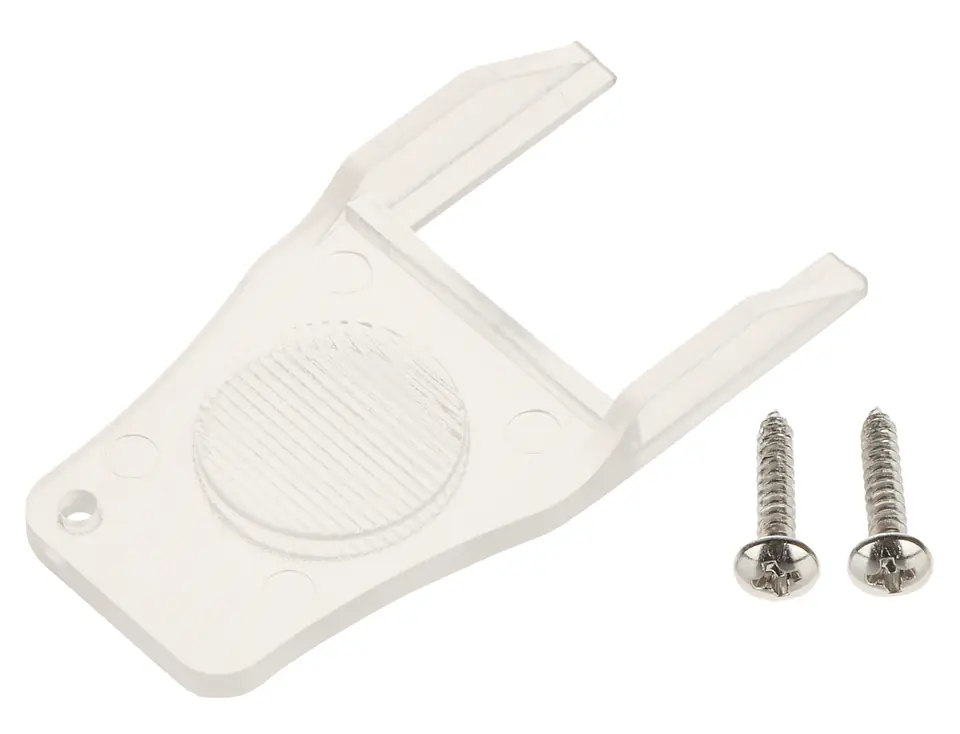

Selected features:	LED Signaling Sound Signaling Alarm Memory Enclosure opening key included Mounting - Surface / flush-mounted
Warranty:	2 years

Button to trigger the door opening signal in access control systemsResetting the button is done using a dedicated key

APWK-LED button has optical and acoustic signalingOptical signaling is carried out using LEDsThe LED indicators can light up in two colors - green (normal state) or red (alarm state)The way the red LED works can be set in one of three ways - on / off / flashingIt is also possible to set the operating mode of acoustic signaling - silent / intermittent / continuous and to set the intensity of the generated sound
