ELECTRONIC PROTRACTOR 500MM

Technical Specifications

Manufacturer: Yato
Manufacturer no: YT-71005
Material: Steel
Operating temperature range: 0~40 °C
Storage Temperature: -10~+50°C
Power supply: battery
Battery Type: 3V CR2032
Length: 500 mm
Metric scale: Yes
Inch scale: Yes
Measuring accuracy: ± 0.2°
Display Type: LCD Backlit
Measurement unit: | meters Inches
Measured Angle Range: 360°
Accuracy of measured angle: ± 0.2 °
Date Hold: Yes
Functions: saving | measurement Reset the | indication Manual locking
Read Resolution: 0.05°



Electronic protractor with a shoulder length of 500 mm.

Large screen for reading results.
- Metal arms
- Arm setting lock
- Incised millimeter and inch graduation
- Measuring range: 0-360°
- Resolution: 0.05°
- Accuracy: +/- 0.2
- Power supply: CR2032 battery


**

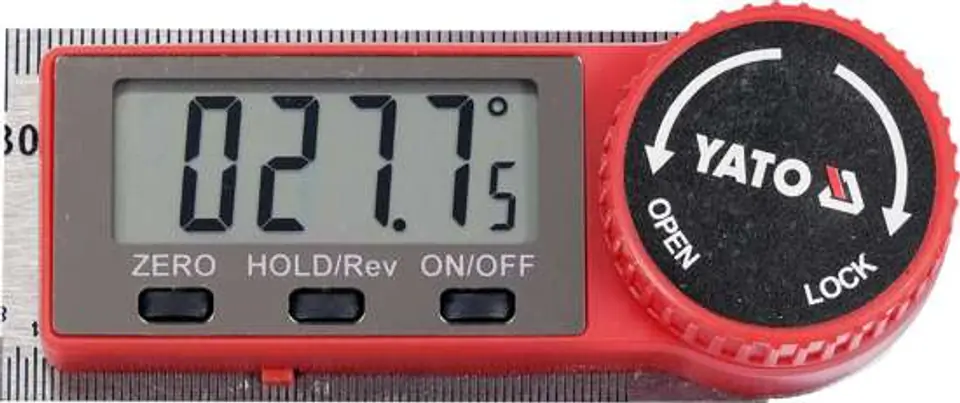

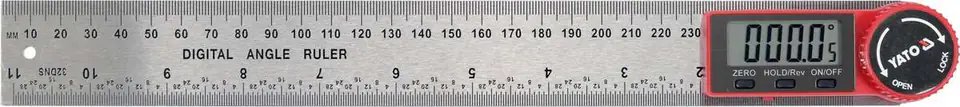

Illustrative photos
