ELECTRONIC MAGNETIC PROTRACTOR

Specifications:

Brand: Yato
Symbol: YT-71000
Series: GRD
Dimensions: 58x58x32 mm
Material: Aluminum
Operating temperature range: 0~40 °C
Storage Temperature: -10~+50°C
Power supply: battery
Battery Type: 2x1.5V AAA
Magnet yes|in base
Backlight: Yes
Measurement Accuracy: 0.01°
Display Type: LCD Backlit
Measurement Unit: degrees|millimeters/meters|percentage slope|slope in imperial measurement system in inches per foot
Measured angle range: 360 (4x90)°
Accuracy of measured angle: 0 / 90°: ± 0.1° 1° - 89°: ± 0.2°
Functions: reset and relative angle measurement|keeping of measurement result on the screen
Auto shutdown: 3 min



Electronic protractor, body made of aluminum. Strong magnets are mounted in the base. Body dimensions approx. 58 x 58 x 32 mm. Measuring range 4 x 90°, display resolution +/- 0.01°, measurement accuracy +/- 0.1° for 0-90°. Available functions - change of measurement units, result in degrees, percentages, mm / m , in / ft . Screen backlight, blocking measurement. Magnetic mounting allows for precise positioning of, for example, a circular saw and effective assembly work on steel structures. Power supply 2 batteries 1.5 V type AAA. Weight 71g , For quick and accurate measurements during construction, renovation and assembly works. Especially when setting up steel structures, machines or setting circular saws. According to the accompanying instructions for use.


**

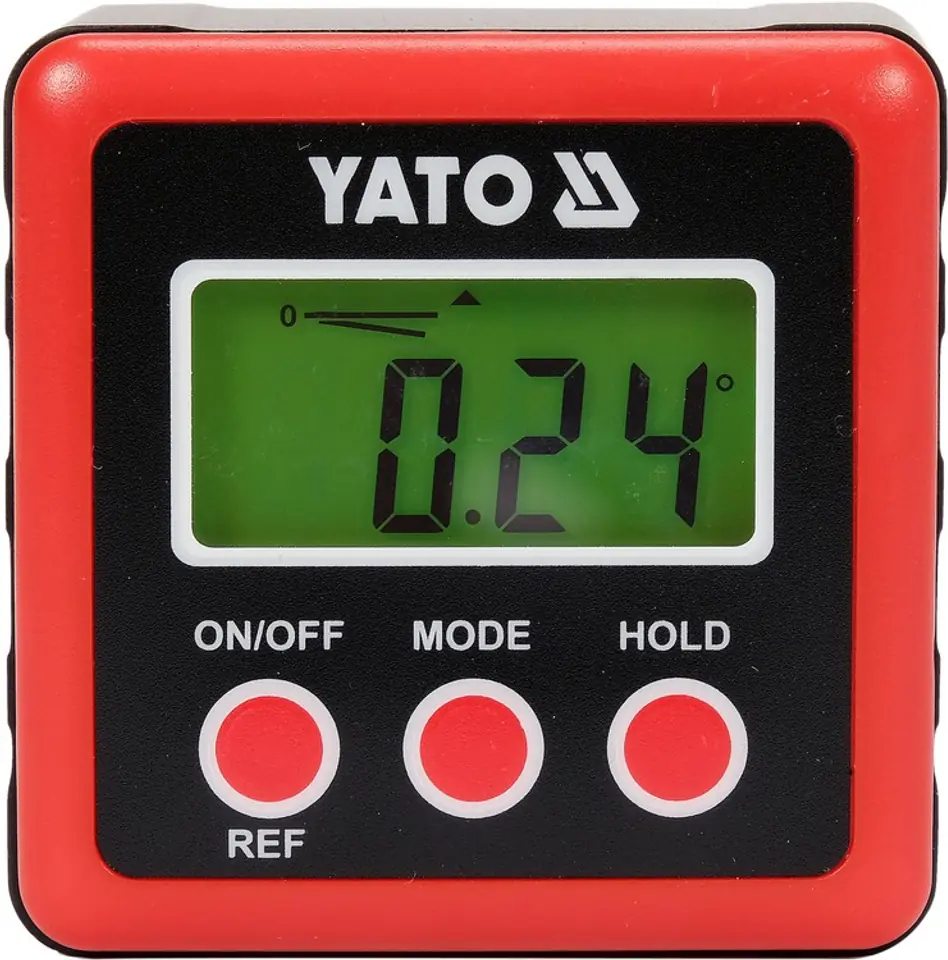

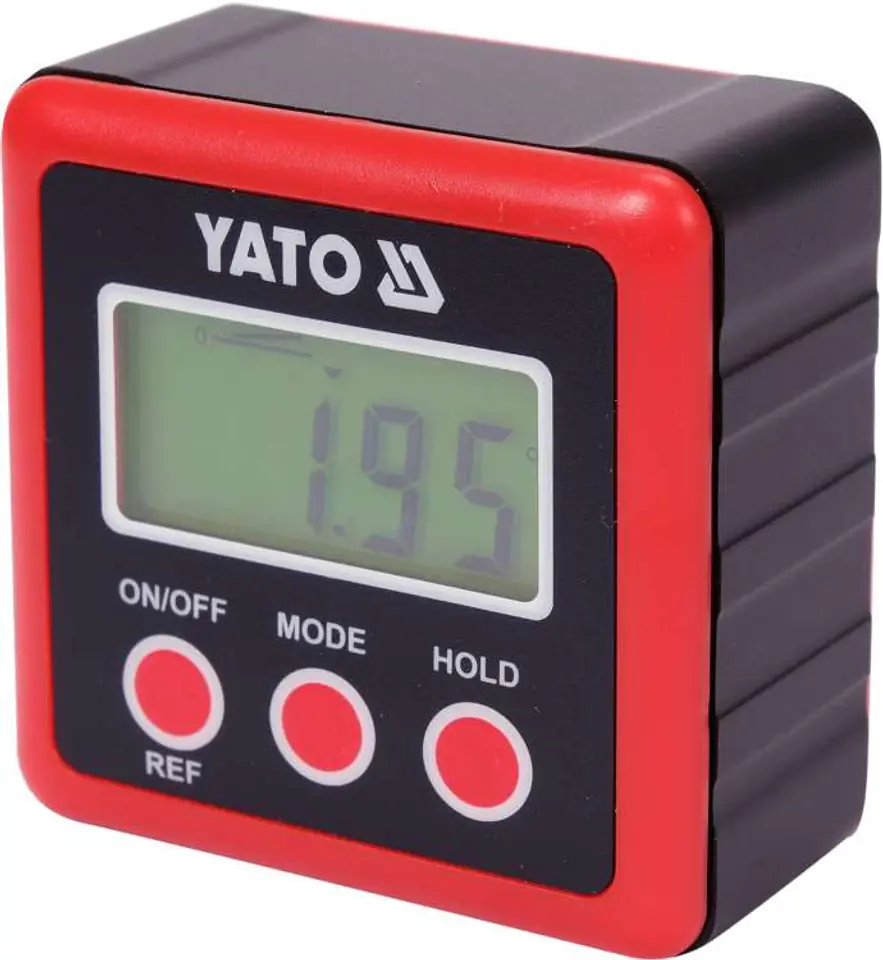

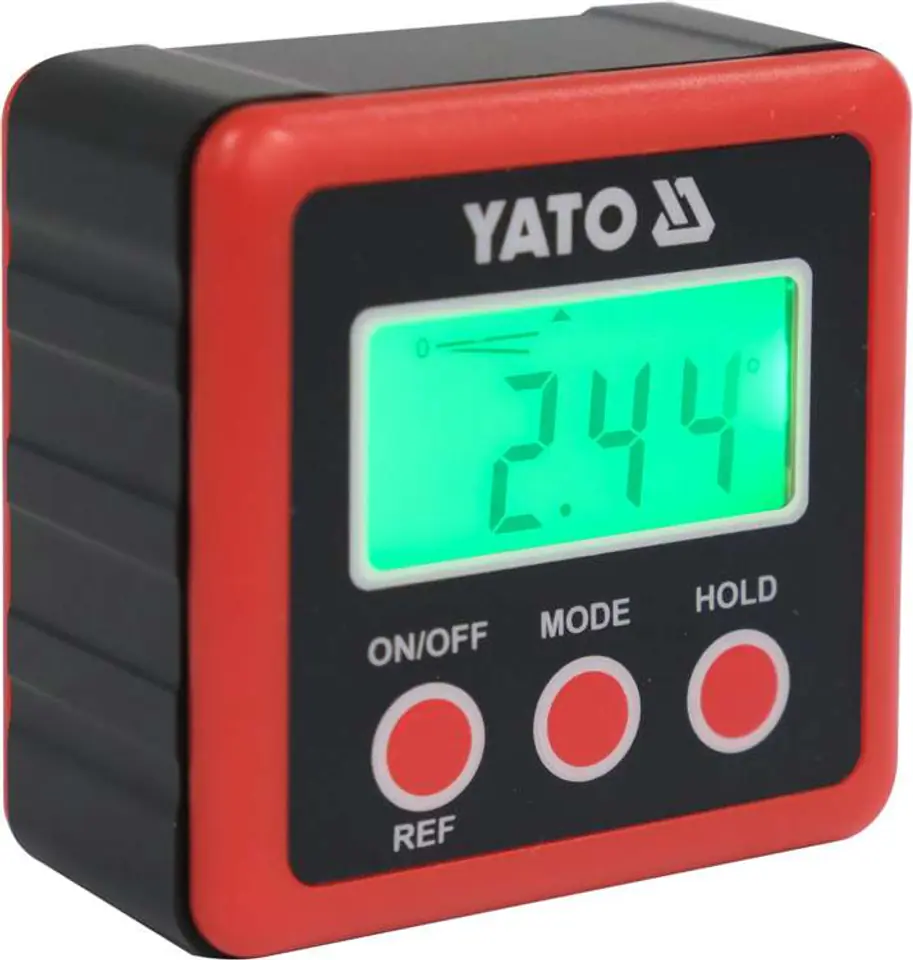

Illustrative photo.
